HM2PN1PMK3M5GC: DescriptionBoard Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size320KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2PN1PMK3M5GC Overview

Board Connector, 132 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal

HM2PN1PMK3M5GC Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	132
Base Number Matches	1

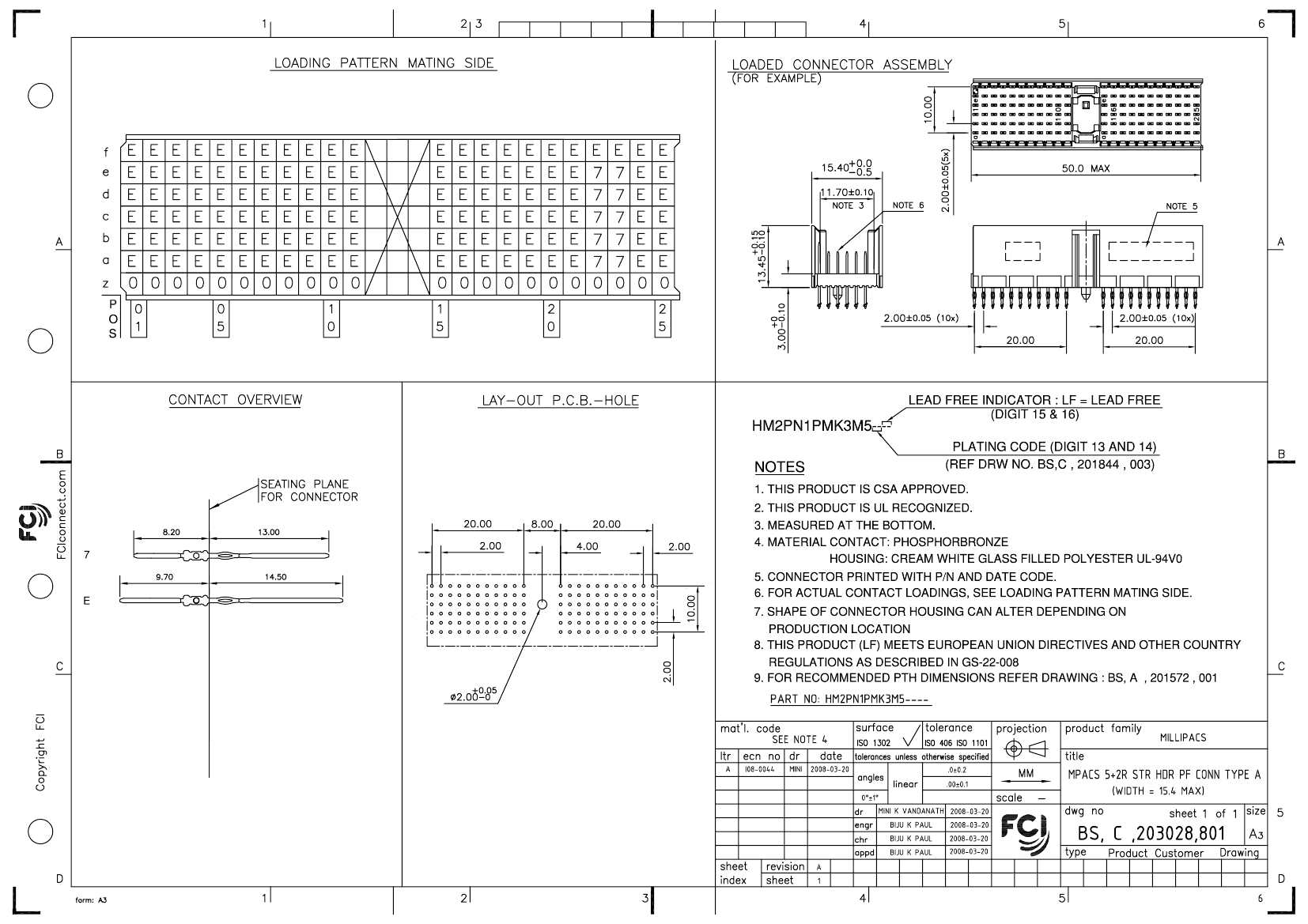

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Mar 21, 2008

.
