GP10B: DescriptionRectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size155KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

GP10B Overview

Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN

GP10B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	2 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

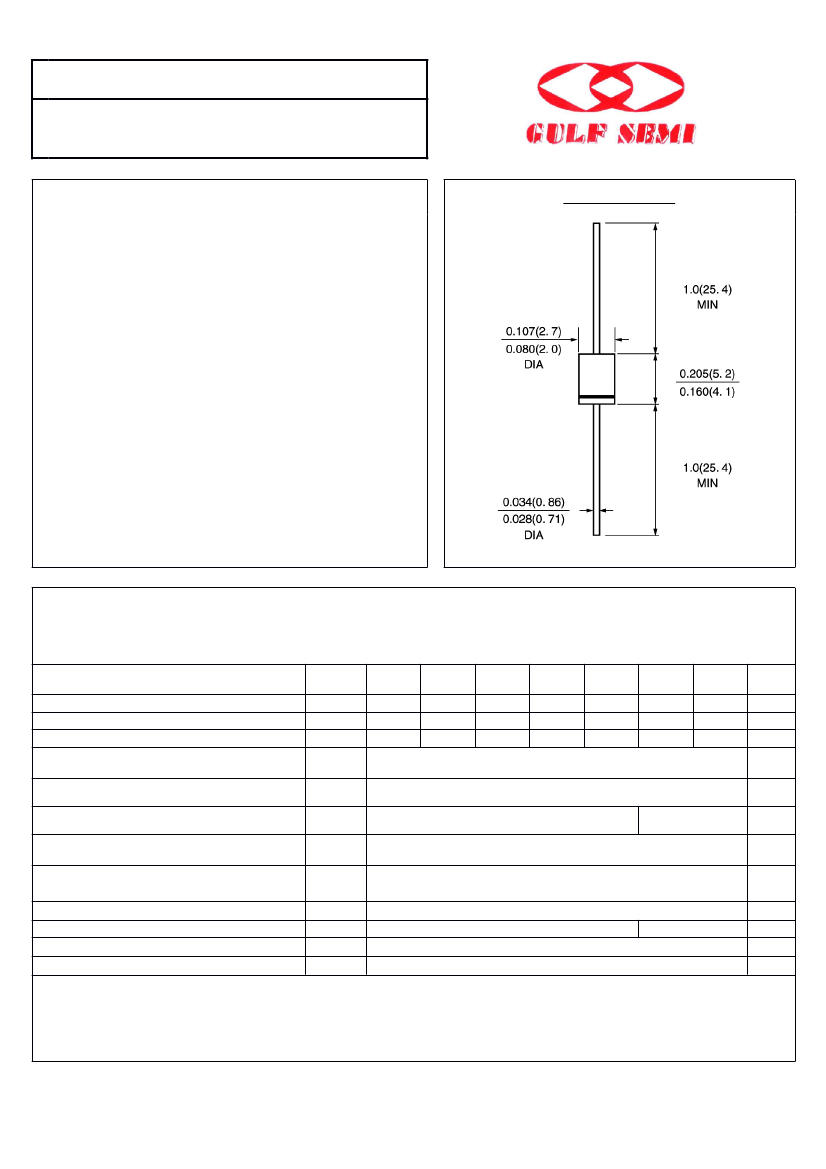

GP10A THRU GP10M

SINTERED GLASS JUNCTION

PLASTIC RECTIFIER

VOLTAGE:50 TO 1000V

CURRENT: 1.0A

FEATURE

High temperature metallurgically bonded construction

Sintered glass cavity free junction

Capability of meeting environmental standard of

MIL-S-19500

High temperature soldering guaranteed

350°C /10sec/0.375”lead length at 5 lbs tension

Operate at Ta

=55°C

with no thermal run away

Typical Ir<0.1µA

DO-41\DO-204AL

MECHANICAL DATA

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Case: Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity: color band denotes cathode

Mounting position: any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,

for capacitive load, derate current by 20%)

SYMBOL

10A

10B

10D

10G

10J

10K

10M

units

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8”lead length at Ta =75

°C

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage at

1.0A

Maximum full load reverse current full cycle

Average at 75

°C

Maximum DC Reverse Current

Ta =25

°C

at rated DC blocking voltage

Ta =125

°C

Typical Reverse Recovery Time

(Note 1)

Typical Junction Capacitance

Typical Thermal Resistance

(Note 2)

(Note 3)

Vrrm

Vrms

Vdc

If(av)

Ifsm

Ir(av)

Trr

R(ja)

Tstg, Tj

100

200

140

200

400

280

400

1.0

30.0

600

420

600

800

560

800

1000

700

1000

1.1

30.0

5.0

50.0

2.0

8.0

55.0

-65 to +175

1.2

7.0

Storage and Operating Junction Temperature

°C

Note:

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3. Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted

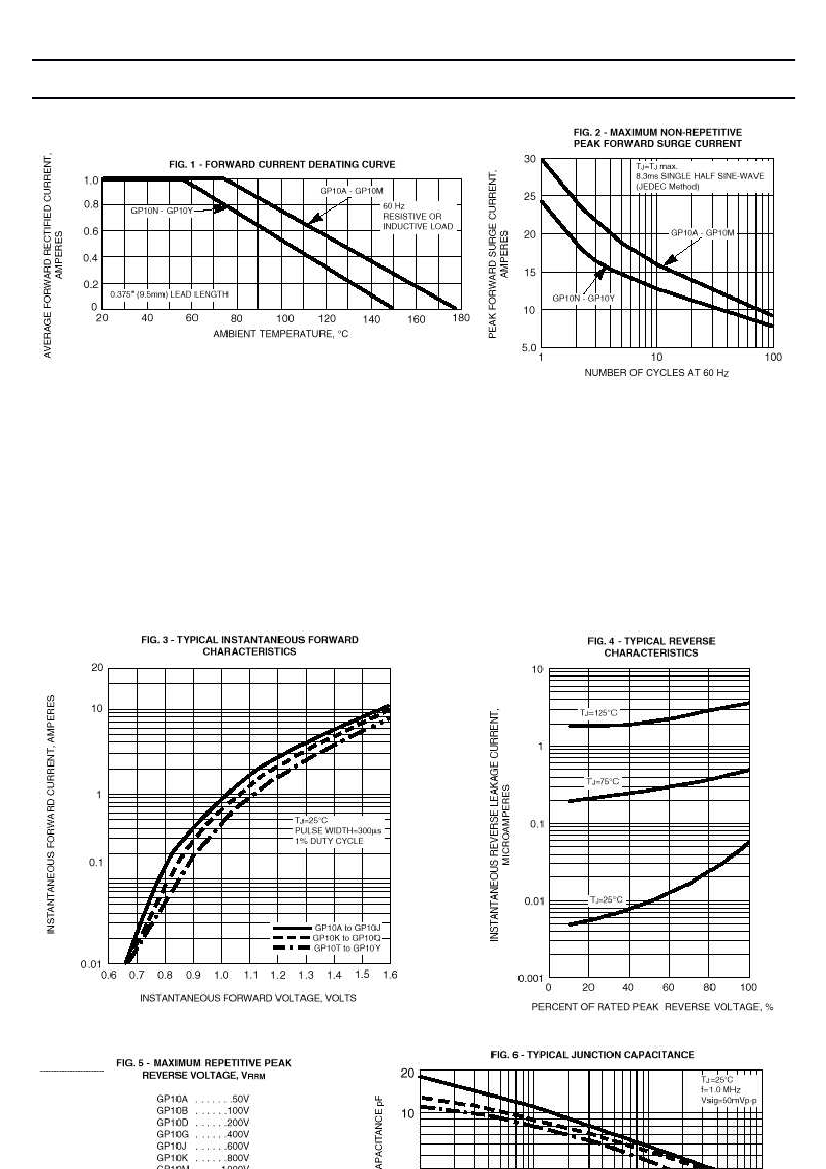

Rev.A4

www.gulfsemi.com
