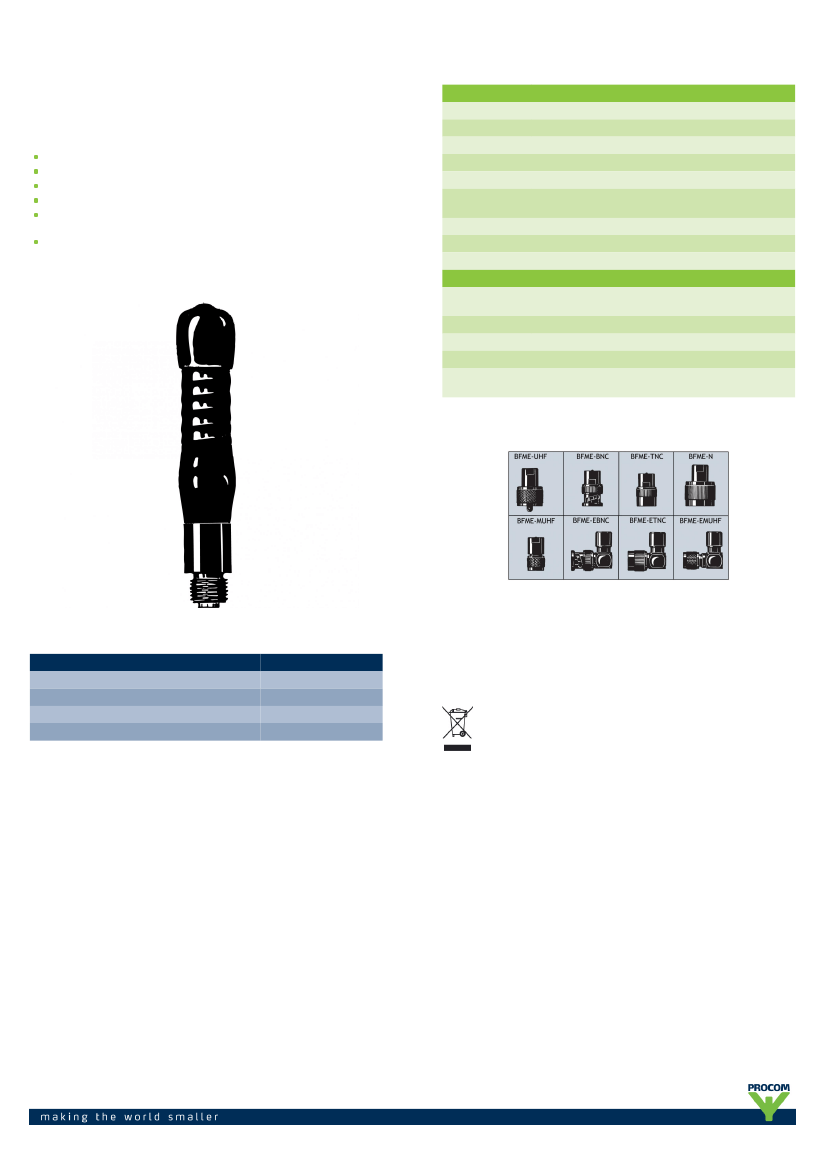

HX 70/...-FME
Antenna with Universal FME-Connection System for
Portable Equipment in the 70 cm Band
DESCRIPTION
Short conical steel helix moulded in flexible thermoplastic rubber.
Reduced-size ¼ λ helical antenna whip.
Optimum performance compared to physical dimensions.
Delivered factory tuned and tested to ensure minimum SWR.
Provided with universal FME-connection system for optimum flexibility
and easily exchangeable connectors.
Designed for use with the following of Procoms line of black FME-
connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-
TNC, BFME-N, BFME-MUHF, BFME-EBNC, BFME-ETNC and BFME-
EMUHF.
SPECIFICATIONS
ELECTRICAL
MODEL
ANTENNA TYPE
FREQUENCY
IMPEDANCE
POLARISATION
GAIN
BANDWIDTH
SWR
MAX. POWER
MECHANICAL
MATERIALS
COLOUR
TOTAL HEIGHT
WEIGHT
CONNECTOR
Steel helix moulded in flexible thermoplastic rubber
Black-chromed brass
Black
Approx. 65 mm (dep. on type)
Approx. 20 g
FME (female) (Exchangeable BFME-connectors
to be ordered separately)
HX 70/...-FME
Shortened ¼ λ antenna for portable equipment
70 cm band covered by four models
Nom. 50 Ω
Vertical
Approx. -3 dB (equal to a ¼ λ portable antenna
on the same equipment)
≥ 20 MHz @ SWR ≤ 2.0
<1.5 when mounted directly on portable equipment
50 W
RECOMMENDED BFME-CONNECTORS
(To be ordered separately)
PLEASE NOTE
ORDERING DESIGNATIONS
TYPE
HX 70/s-FME
HX 70/l-FME
HX 70/m-FME
HX 70/h-FME
PRODUCT NO.
140000195
140000204
140000205
140000201
FREQUENCY
380 – 410 MHz
400 – 430 MHz
420 – 450 MHz
440 – 470 MHz
PROCOM France S.A.R.L. se réserve le droit
d'améliorer les spécifications sans préavis.
16/05/12
The HX 70 is also available with SMA male connector and different thread
studs, but in this case with fixed, non-exchangeable connector (not FME-
connection system). Information on these special versions on request.
