IC274-144174 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> IC274-144174

Preview

IC274-144174: DescriptionIC Socket, BGA1441, 1441 Contact(s); CategoryThe connector socket; File Size65KB，2 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric Compare View All

IC274-144174 Overview

IC Socket, BGA1441, 1441 Contact(s)

IC274-144174 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Device slot type	IC SOCKET
Type of equipment used	BGA1441
Shell material	POLYETHERIMIDE
Manufacturer's serial number	IC274
Number of contacts	1441
Base Number Matches	1

Preview

Download Datasheet

View All

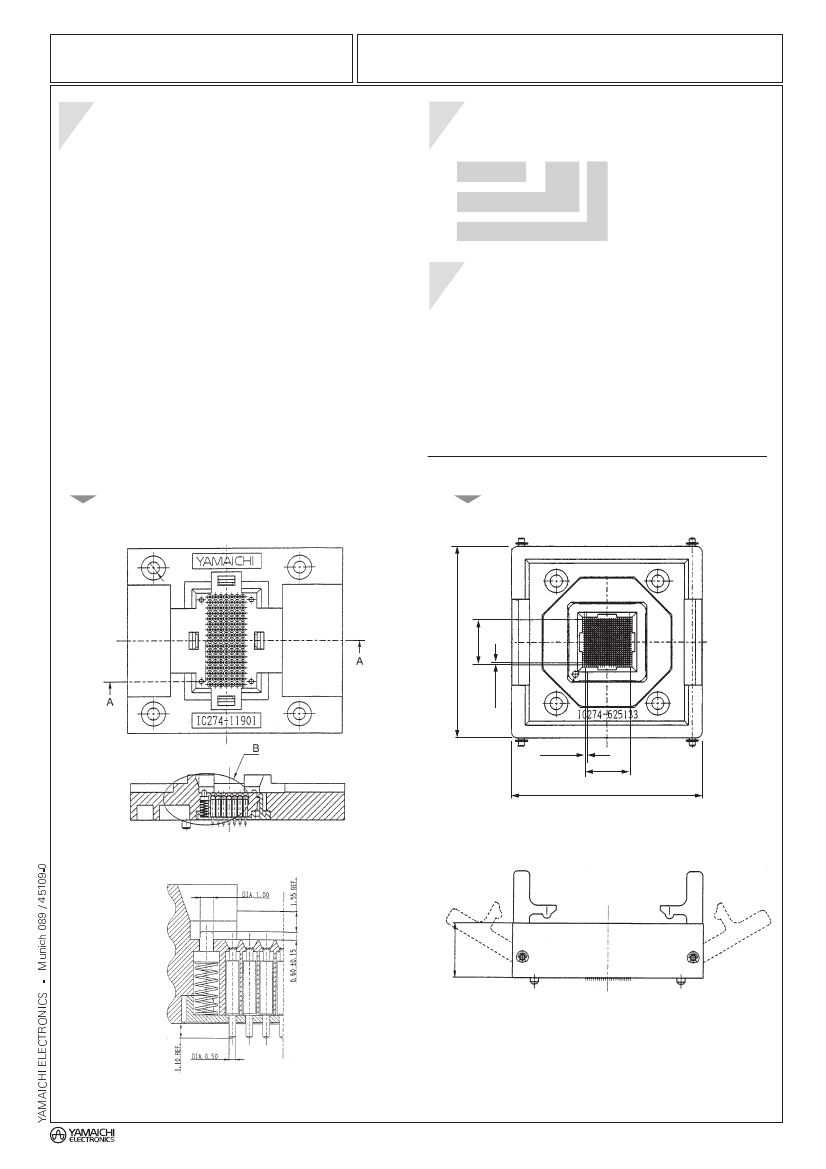

IC274 Series

(Test Contactor)

Specifications

SMT Pogo Pins (LGA, BGA, CSP - 0.50 to 1.50mm Pitch)

Part Number

(Details)

IC274

-

119 01

Series No.

No. of Contact Pins

Design Number

1M

Ω

min. at 500V DC

Insulation Resistance:

Dielectric Withstanding Voltage: 100V AC for 1 minute

Contact Resistance:

200m

Ω

max. at 10mA/20mV max.

Operating Temperature Range: –40

°

C to +100

°

C

Contact Force:

15g~80g per Pin

Materials and Finish

Housing: Polyethersulphone (PES), glass-filled and

Polyetherimide (PEI), glass-filled

Contacts: Beryllium Copper (BeCu)

Plating: Gold over Nickel

Ordering Procedure

Note:

Each Test Contactor Socket is custom built.

1. The customer must specify:

the number of contact pins,

2. Required pitch

3. All device parameters

4. Any other special requirements.

The final part number will be determined

by Yamaichi.

Socket / Handler Base with Cover

Features

µ

Open Top Handler type sockets for LGA / BGA / CSP packages

µ

Spring pogo pin contacts in SMT

µ

Depopulation versions available

Applicable Dimensions

(Reference Only)

Socket / Handler Base

51.50±0.05

11.00

0.50±0.05

11.00

47.00

Section A - A

Munich 089 / 45109-0

YAMAICHI ELECTRONICS

-

Detail 'B'

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

13.30

IC274-144174 Related Products

	IC274-144174	IC274-144145	IC274-073158	IC274-15362	IC274-729132	IC274-1521105
Description	IC Socket, BGA1441, 1441 Contact(s)	IC Socket, BGA144, 144 Contact(s)	IC Socket, BGA73, 73 Contact(s)	IC Socket, BGA153, 153 Contact(s)	IC Socket, BGA729, 729 Contact(s)	IC Socket, BGA1521, 1521 Contact(s)
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	BGA1441	BGA144	BGA73	BGA153	BGA729	BGA1521
Shell material	POLYETHERIMIDE	POLYETHERIMIDE	POLYETHERIMIDE	POLYETHERIMIDE	POLYETHERIMIDE	POLYETHERIMIDE
Manufacturer's serial number	IC274	IC274	IC274	IC274	IC274	IC274
Number of contacts	1441	144	73	153	729	1521
Maker	-	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.
