59628856501CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> 59628856501CA

59628856501CA: DescriptionQUAD OP-AMP, 1500 uV OFFSET-MAX, 6 MHz BAND WIDTH, PDSO16; Categorysemiconductor Analog mixed-signal IC; File Size867KB，16 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

59628856501CA Overview

QUAD OP-AMP, 1500 uV OFFSET-MAX, 6 MHz BAND WIDTH, PDSO16

59628856501CA Parametric

Parameter Name	Attribute value
Number of functions	4
Number of terminals	16
Maximum supply/operating voltage	18 V
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Rated supply voltage	15 V
Maximum negative supply voltage	-18 V
Rated negative supply voltage	-15 V
Rated bandwidth	6 kHz
Rated rotation rate	2 V/us
Maximum input offset voltage	1500 mV
Processing package description	PLASTIC, MS-013AA, SOIC-16
state	ACTIVE
Craftsmanship	BIPOLAR
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
Amplifier type	OP-AMP
Rated common mode rejection ratio	110 dB
Maximum input bias current IIB	0.0750 uA

Preview

Download Datasheet

View All

FEATURES

Very Low-Noise, 5 nV/÷Hz @ 1 kHz Max

Excellent Input Offset Voltage, 0.4 mV Max

Low Offset Voltage Drift, 2 V/ C Max

Very High Gain, 1000 V/mV Min

Outstanding CMR, 110 dB Min

Slew Rate, 2 V/ s Typ

Gain-Bandwidth Product, 6 MHz Typ

Industry Standard Quad Pinouts

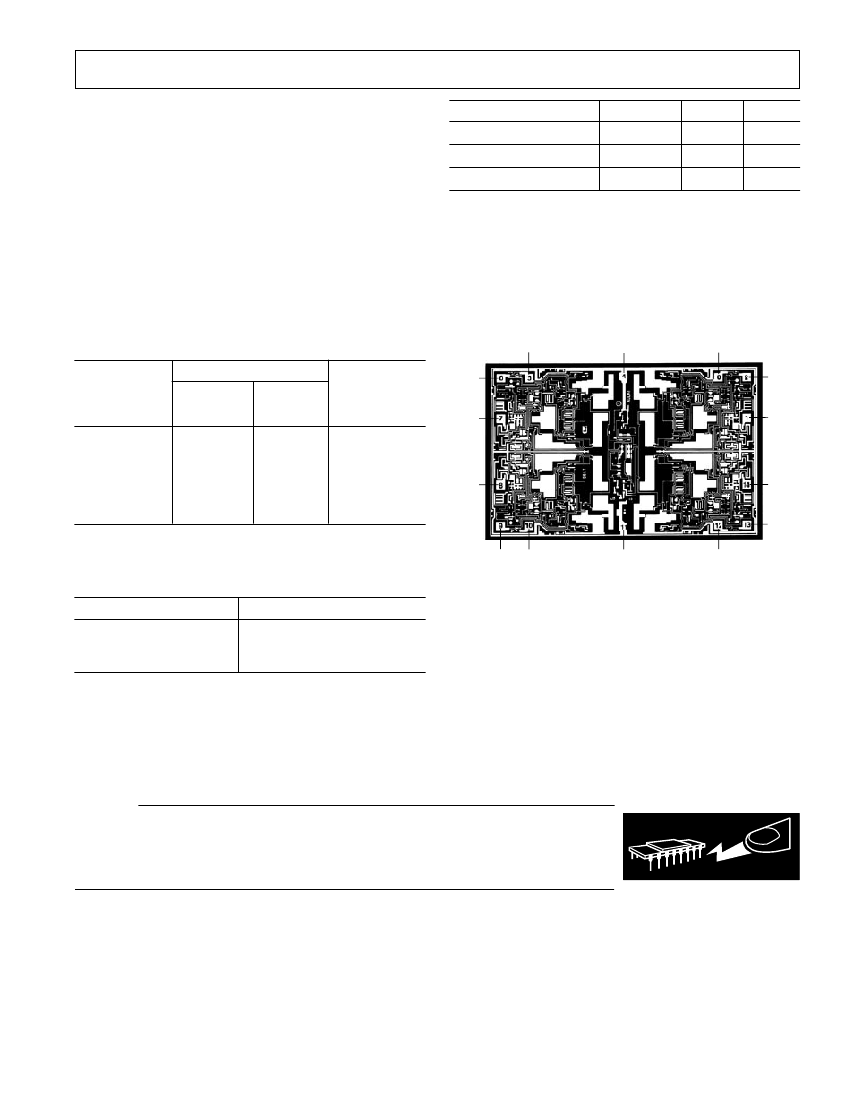

Available in Die Form

GENERAL DESCRIPTION

Very Low Noise Quad

Operational Amplifier

OP470

PIN CONNECTIONS

14-Lead Hermetic DIP

(Y-Suffix)

14-Lead Plastic DIP

(P-Suffix)

OUT D

–IN D

+IN D

16-Lead SOIC Package

(S-Suffix)

OUT A

–IN A

OUT D

–IN D

+IN D

OUT A

–IN A

+IN A

V+

+IN B

–IN B

OUT B

+IN A

V+

+IN B

–IN B

OUT B

OP470

V–

+IN C

–IN C

OUT C

OP470

V–

+IN C

The OP470 is a high-performance monolithic quad operational

amplifier with exceptionally low voltage noise, 5 nV/÷Hz at

1 kHz max, offering comparable performance to ADI’s industry

standard OP27.

The OP470 features an input offset voltage below 0.4 mV,

excellent for a quad op amp, and an offset drift under 2

mV/∞C,

guaranteed over the full military temperature range. Open loop

gain of the OP470 is over 1,000,000 into a 10 kW load ensuring

excellent gain accuracy and linearity, even in high gain applica-

tions. Input bias current is under 25 nA, which reduces errors

due to signal source resistance. The OP470’s CMR of over 110

dB and PSRR of less than 1.8

mV/V

significantly reduce errors

due to ground noise and power supply fluctuations. Power

consumption of the quad OP470 is half that of four OP27s, a

significant advantage for power conscious applications. The

OP470 is unity-gain stable with a gain bandwidth product of

6 MHz and a slew rate of 2 V/ms.

–IN C

OUT C

NC = NO CONNECT

The OP470 offers excellent amplifier matching which is impor-

tant for applications such as multiple gain blocks, low noise

instrumentation amplifiers, quad buffers, and low noise active

filters.

The OP470 conforms to the industry standard 14-lead DIP

pinout. It is pin compatible with the LM148/149, HA4741,

HA5104, and RM4156 quad op amps and can be used to up-

grade systems using these devices.

For higher speed applications, the OP471, with a slew rate of 8

V/ms, is recommended.

SIMPLIFIED SCHEMATIC

V+

BIAS

–IN

+IN

V–

REV. B

Information furnished by Analog Devices is believed to be accurate and

reliable. However, no responsibility is assumed by Analog Devices for its

use, nor for any infringements of patents or other rights of third parties that

may result from its use. No license is granted by implication or otherwise

under any patent or patent rights of Analog Devices.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781/329-4700

www.analog.com

Fax: 781/326-8703
