87555-1121: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Jack,; CategoryThe connector The connector; File Size200KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

87555-1121 Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Jack,

87555-1121 Parametric

Parameter Name	Attribute value
Objectid	2146250078
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BLISTER PACKAGE,LOADED FACE UP
Board mount options	SOLDER HOLDING FLANGE
body width	0.551 inch
subject depth	0.5 inch
body length	0.44 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	4

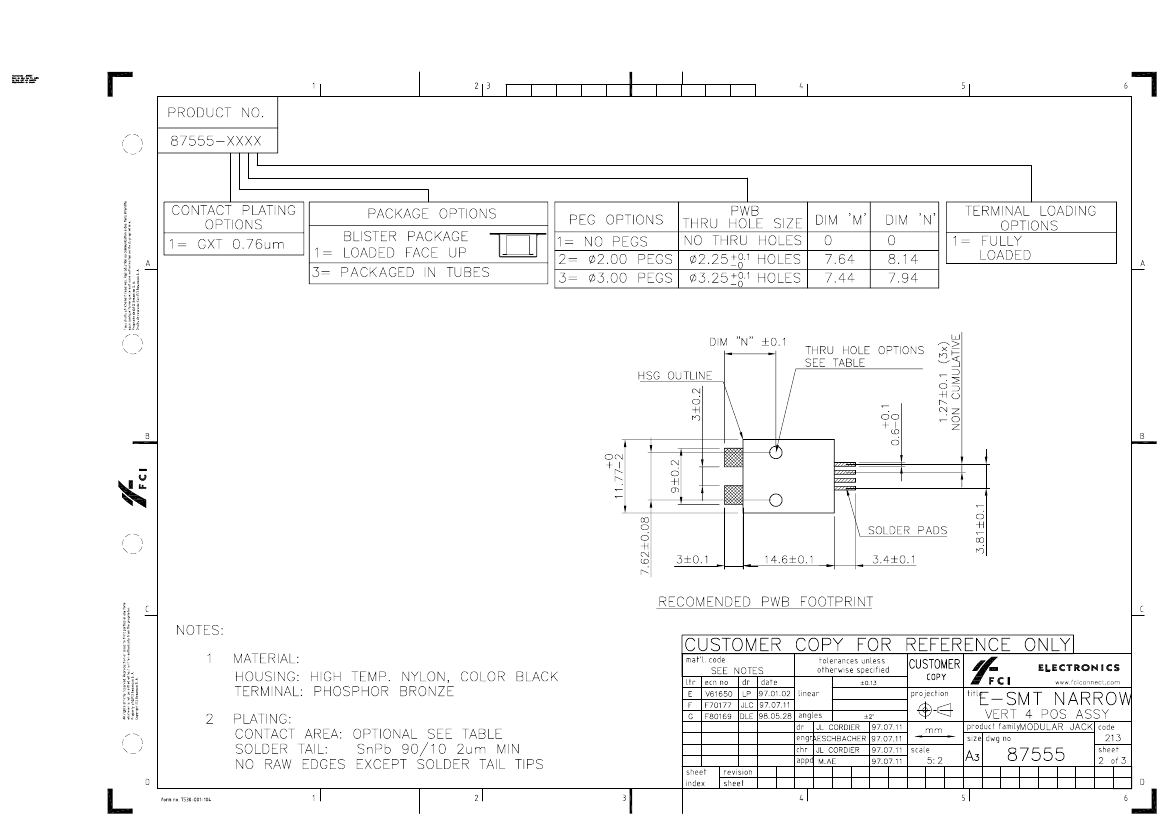

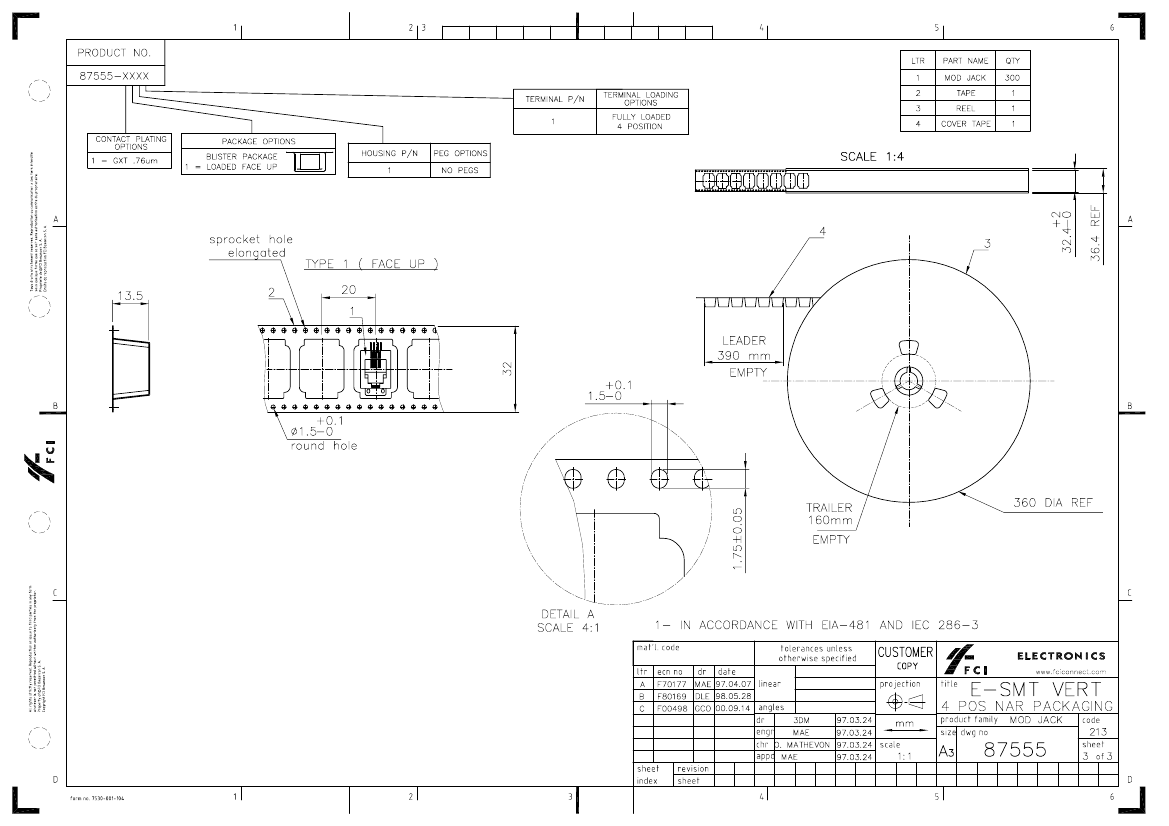

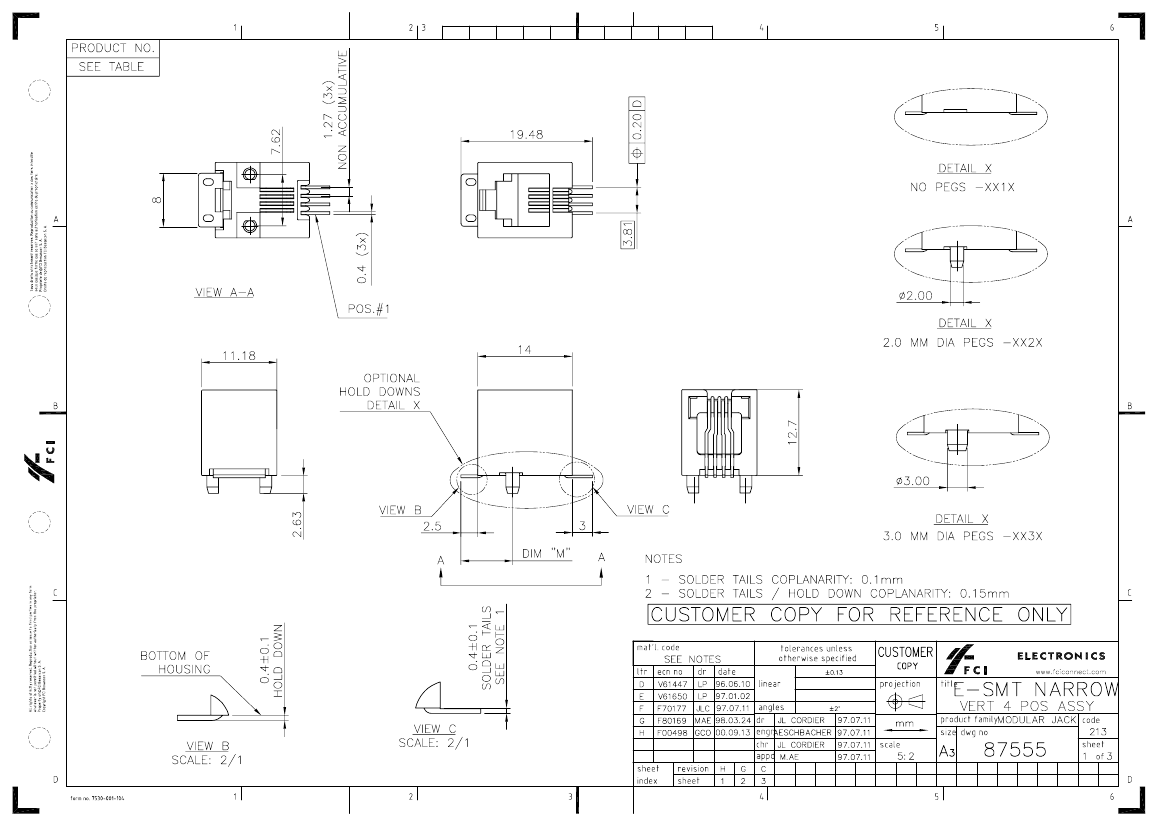

Preview

Download Datasheet

View All

PDM: Rev:H

STATUS:

Released

Printed: Jan 17, 2003

87555-1121 Related Products

	87555-1121	87555-1131	87555-1111	87555-1311	87555-1321	87555-1331
Description	Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Jack,	Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Jack,	Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Jack,	Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Jack,	Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Jack,	Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Jack,
Objectid	2146250078	2146250079	2146250077	2146250080	2146250081	2146250082
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BLISTER PACKAGE,LOADED FACE UP	BLISTER PACKAGE,LOADED FACE UP	BLISTER PACKAGE,LOADED FACE UP	TUBE PACKAGING	TUBE PACKAGING	TUBE PACKAGING
Board mount options	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE
body width	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch	0.551 inch
subject depth	0.5 inch	0.5 inch	0.5 inch	0.5 inch	0.5 inch	0.5 inch
body length	0.44 inch	0.44 inch	0.44 inch	0.44 inch	0.44 inch	0.44 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
DIN compliance	NO	NO	NO	NO	NO	NO
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
maximum insertion force	4.8928 N	4.8928 N	4.8928 N	4.8928 N	4.8928 N	4.8928 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	4	4	4	4	4
