Inductors
Transponder coils
Size 7.8 2.7 2.7 (mm)
Series/Type:
Date:
B82450A*E
October 2015
a~í~=pÜÉÉí
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Transponder coils
Size 7.8 x 2.7 x 2.7 (mm)
Rated inductance 1 ... 18.52 mH
Sensitivity 10 ... 50 mV/µT
Construction
■
Ferrite core
■
Winding: enamel copper wire welded to terminals
■
Flame-retardant molding
B82450A*E
Features
■
■
■
■
Robust construction for a high mechanical stability
Qualified to AEC-Q200
High sensitivity in X/Y orientation
Suitable for pick and place
and AOI (Automatic Optical Inspection)
■
Suitable for lead-free reflow soldering
■
RoHS-compatible
Applications
■
Car access systems
– immobilizer
– PEPS (Passive Entry, Passive Start)
■
TPMS (Tire Pressure Monitoring Systems)
Terminals
■
Base material CuSn6
■
Layer composition Ni, Sn (lead-free)
■
Electro-plated
Marking
■
Marking on component:
Manufacturer, L value in nH, letter “E”, date of
manufacture (YWWD), last five digits of lot number,
internal information
■
Minimum data on reel:
Manufacturer, ordering code, L value,
quantity, date of packing
Delivery mode and packing unit
■
16-mm blister tape, wound on 330-mm
■
Packing unit: 2500 pcs./reel
reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
10/15
Transponder coils
Size 7.8 x 2.7 x 2.7 (mm)

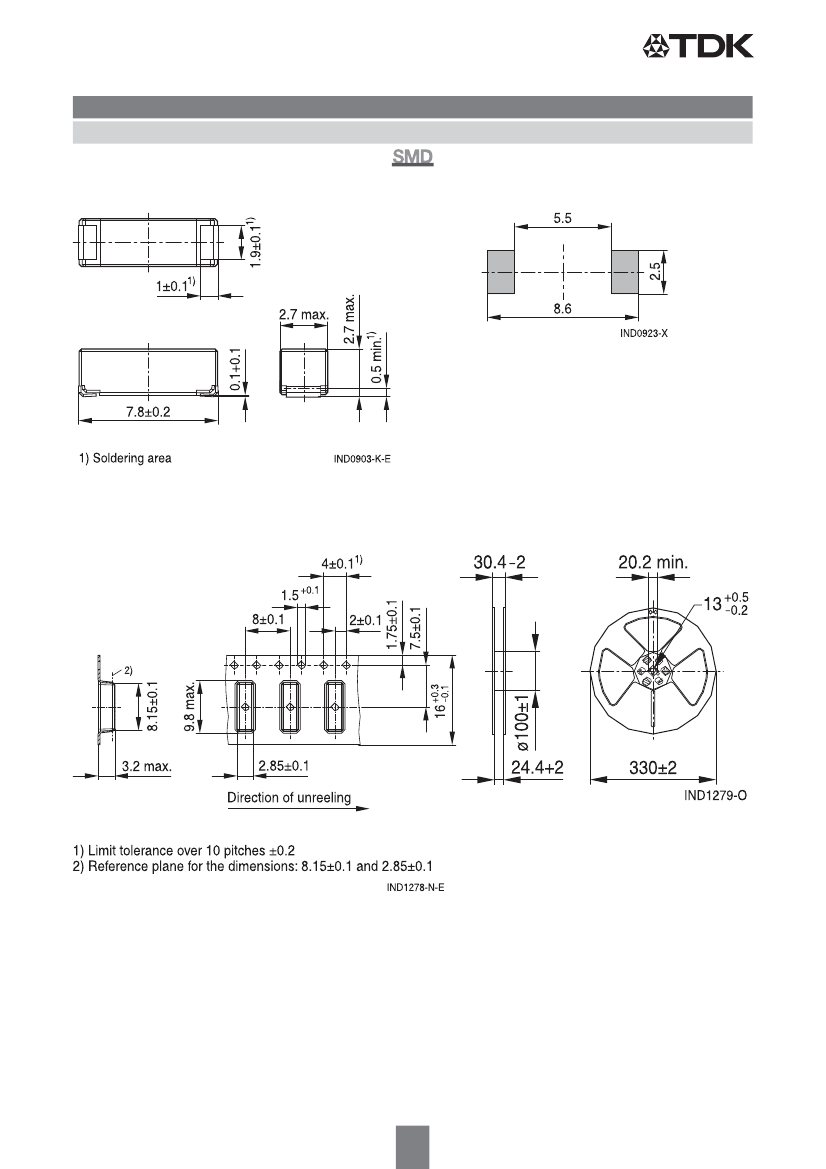

Dimensional drawing and layout recommendation
B82450A*E
Dimensions in mm
Taping and packing
Blister tape
Reel
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
10/15
Transponder coils
Size 7.8 x 2.7 x 2.7 (mm)
Technical data and measuring conditions
Rated inductance L
R
Q factor Q
min
Sensitivity S
typ
Resonance frequency f
res
Solderability (lead-free)
B82450A*E
Measured with Agilent 4294A and test fixture Agilent 16034
at frequency f
L
, RMS voltage 500 mV, +20 °C
Measured with Agilent 4294A and test fixture Agilent 16034
at frequency f
Q
, RMS voltage 500 mV, +20 °C
Measured with Helmholtz coil test setup at 125 kHz
Measuring with network analyzer Agilent 8753D, +20 °C
Sn95.5Ag3.8Cu0.7: +(245 5) °C, 3 s
Wetting of soldering area 90%
(based on IEC 60068-2-58)
40/125/56 (to IEC 60068-1)
Mounted: 40 °C … +125 °C
Packaged: –25 °C … +40 °C, 75% RH
Approx. 0.25 g
Climatic category
Storage conditions
Weight
Characteristics and ordering codes
L
R
mH
1.0
2.36
7.2
18.52
3%
35
35
35
30
L
tolerance
Q
min
f
L
, f
Q
kHz
125
125
125
125
S
typ
mV
T
10
16
28
50
f
res
MHz
> 3.0
> 2.0
> 1.0
> 0.4
B82450A1004E000
B82450A2364E000
B82450A7204E000
B82450A1855E001
Ordering code
Characteristics and ordering codes for other L values available on request.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
10/15
