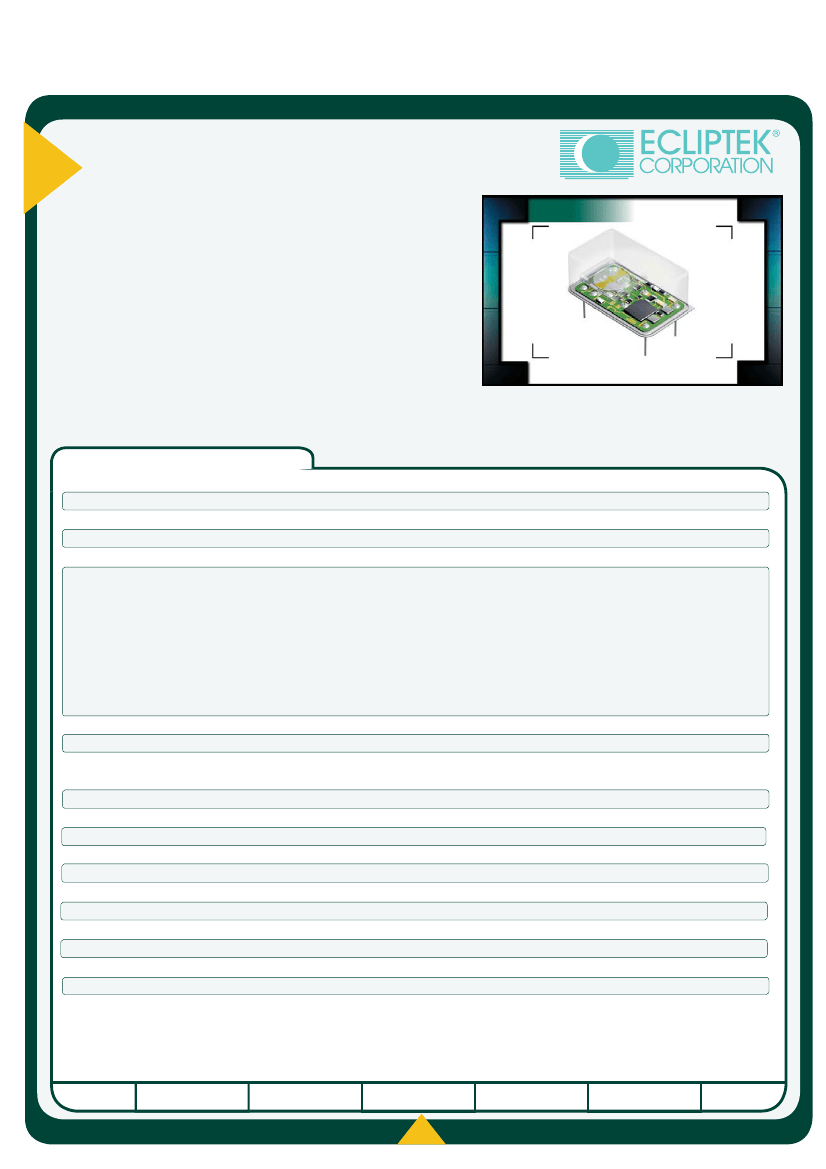

EB71F51
Series
• Oven Controlled Crystal Oscillator (OCXO)
• AT-Cut output
• HCMOS output
• 5.0V supply voltage
• 14 pin DIP package
• External control voltage option available
• Stability to ±100ppb
• Custom lead length, gull wing options available
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range (OTR)
Storage Temperature Range
Supply Voltage (V
DD
)
Frequency Tolerance / Stability
vs. Initial Tolerance
vs. Temperature Stability
vs. Vdd
vs. Load
vs. Aging (1 Day)
vs. Aging (1 Year)
vs. Aging (10 Years)
Crystal Cut
Warm Up Time
Power Consumption
EB71F51
H 13.2
L 20.3
W 13.0
OSCILLATOR
10.000MHz, 12.288MHz, 12.800MHz, 16.000MHz, 19.440MHz, or 20.000MHz
0°C to 50°C, 0°C to 70°C, or -20°C to 70°C
-55°C to 125°C
5.0V
DC
±5%
at Nominal V
DD
and V
C
, at 25°C
at Nominal V
DD
and V
C
V
DD
±5%
Vload ±5%
after 72 Hours of Operation
after 72 Hours of Operation
after 72 Hours of Operation
to ±500ppb of Final Frequency at 1 Hour at 25°C
at Steady State, at 25°C
During Warm Up, at 25°C
I
OH
= -8mA
I
OL
= +8mA
Measured at 20% to 80% of Waveform
Measured at 50% of Waveform
±1.0ppm or ±500ppb Maximum
±100ppb, ±200ppb, ±280ppb, or ±500ppb Maximum
±50ppb Maximum
±50ppb Maximum
±30ppb Maximum
±500ppb Maximum
±3.0ppm Maximum
AT-Cut
3 Minutes Maximum
1.6 Watts Maximum
2.5 Watts Maximum
V
DD
-0.5V
DC
Minimum
0.5V
DC
Maximum
6nSec Maximum
50 ±5(%)
15pF HCMOS Load
±5ppm Minimum
0.0V
DC
to V
DD
2.5V
DC
±2.5V
DC
Positive Transfer Characteristic
±10% Maximum
10kOhms Typical
-95dBc/Hz
-120dBc/Hz
-135dBc/Hz
-140dBc/Hz
VOLTAGE
CLASS
REV
.
DATE
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time
Duty Cycle
Load Drive Capability
Referenced to F
O
at V
C
= 2.5V
DC
; V
DD
=5.0V
DC
over OTR
Frequency Deviation
Control Voltage Range
Control Voltage (V
C
)
Transfer Function
Linearity
Input Impedance
Typical Phase Noise (at 12.800MHz)
at 10Hz Offset
at 100Hz Offset
at 1kHz Offset
at 10kHz Offset
MANUFACTURER
CATEGORY
SERIES
PACKAGE
ECLIPTEK CORP.
OSCILLATOR
EB71F51
14 pin DIP
5.0V
OS1Z
05/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
EB71F51 C 10 B V 2 - 20.000M - CL125
INITIAL TOLERANCE
C= ±1.0ppm
D= ±500ppb
FREQUENCY STABILITY
2 Digit Code Per Table 1
OPERATING TEMPERATURE RANGE (OTR)
1 Letter Code Per Table 1
AVAILABLE OPTIONS
Blank=None (Standard)
CLXXX=Custom Lead Length
G=Full Size Gull Wing
FREQUENCY
DUTY CYCLE
2=50% ±5%
VOLTAGE CONTROL OPTION
N=None (No Connect on Pin 1)
V=Voltage Control on Pin 1

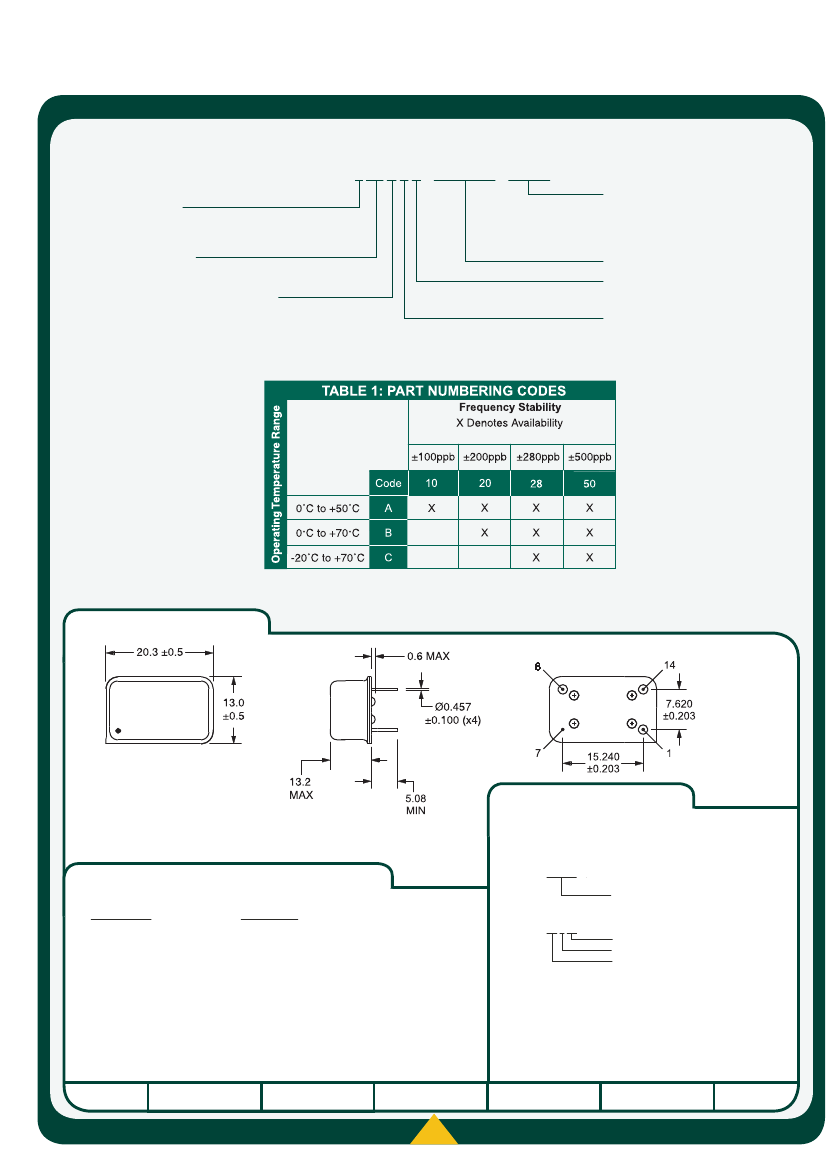

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1: No Connect or Voltage Control
Pin 7: Case Ground
Pin 8: Output
Pin 14: Supply Voltage
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Line 2: XX.XXX M
Frequency in MHz
(5 Digits Maximum + Decimal)
Characteristic
Gross Leak Test
Mechanical Shock
Vibration
Lead Integrity
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2004
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-883, Method 210
MIL-STD-883, Method 215
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
Note: Pin 1 shall be designated with a dot
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EB71F51
14 pin DIP
5.0V
OS1Z
05/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
