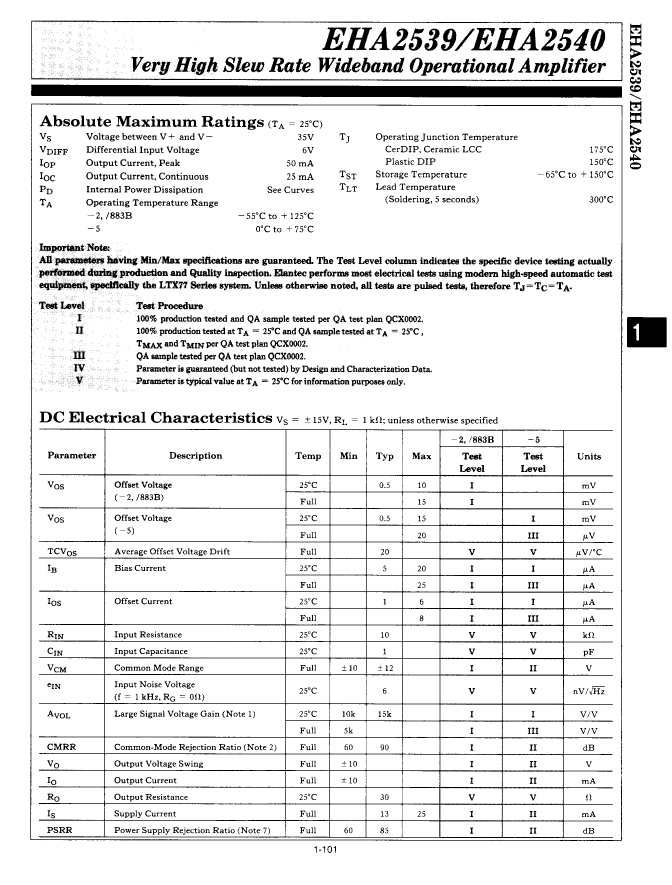

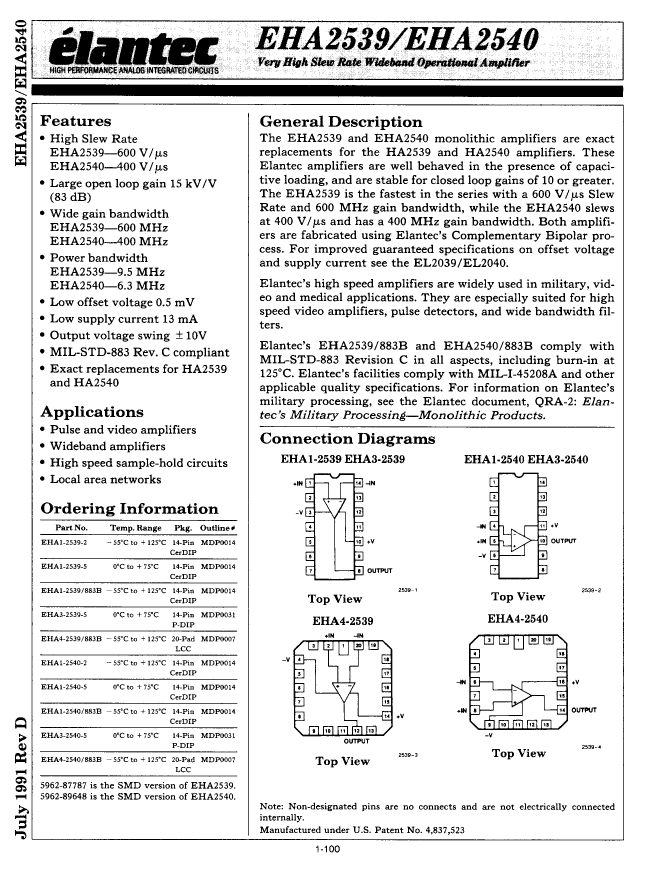

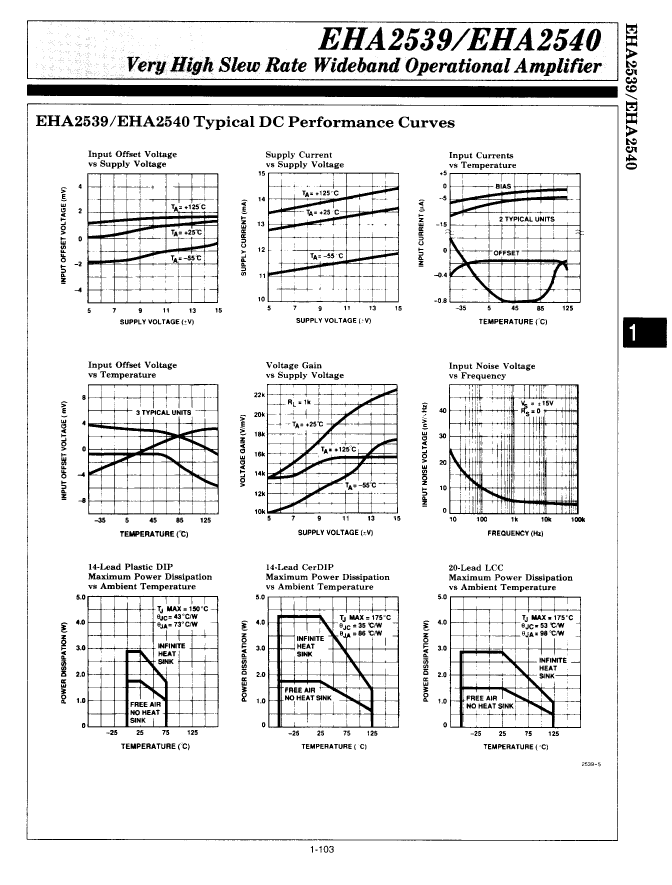

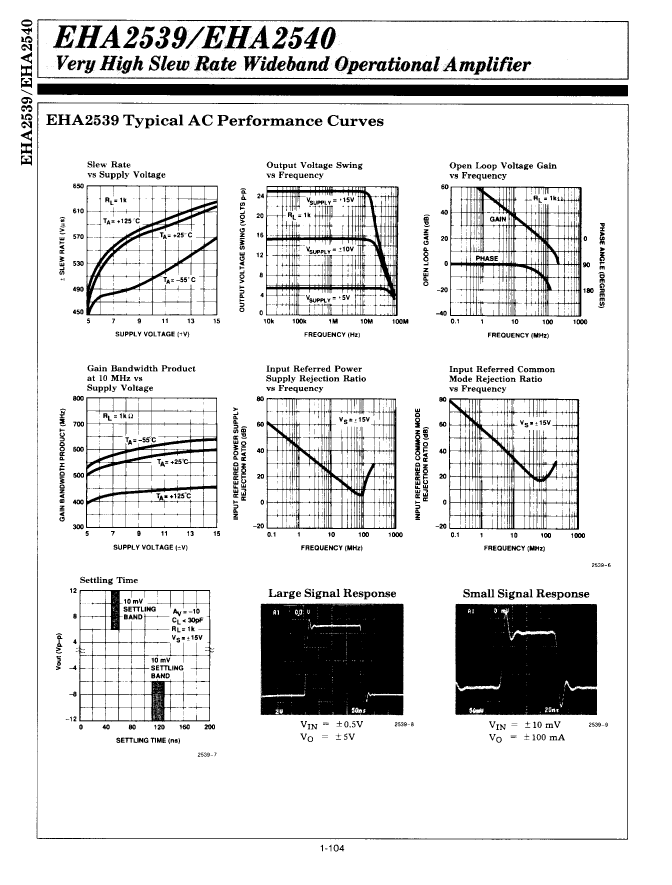

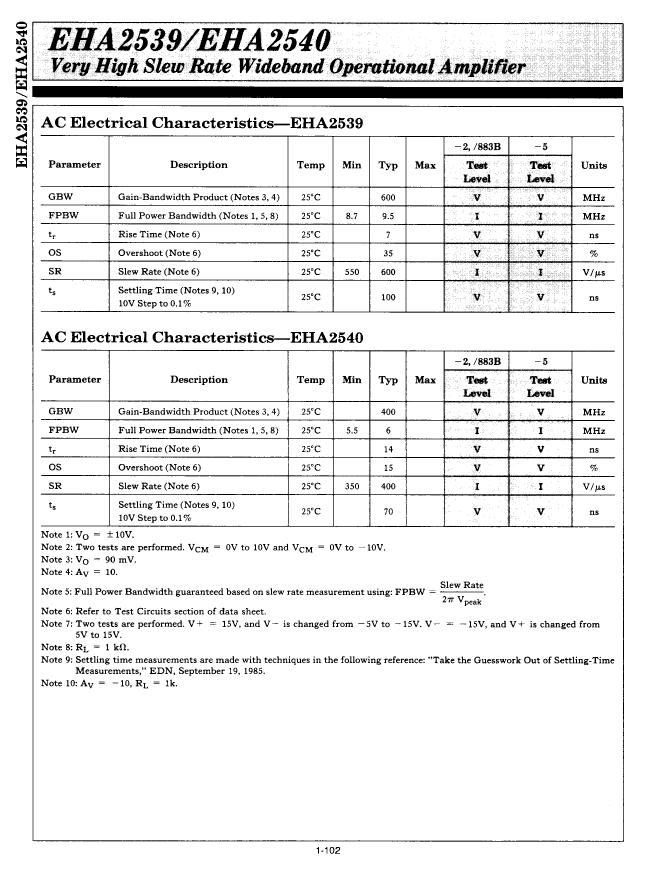

EHA0-2539-6: DescriptionOperational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, DIE; CategoryAnalog mixed-signal IC Amplifier circuit; File Size730KB，12 Pages; ManufacturerELANTEC (Renesas )

Download Datasheet Parametric Compare View All

EHA0-2539-6 Overview

Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, DIE

EHA0-2539-6 Parametric

Parameter Name	Attribute value
Maker	ELANTEC (Renesas )
package instruction	DIE
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	20 µA
Maximum bias current (IIB) at 25C	20 µA
Minimum Common Mode Rejection Ratio	60 dB
frequency compensation	YES (AVCL>=10)
Maximum input offset voltage	10000 µV
JESD-30 code	R-XUUC-N5
low-dissonance	NO
Negative supply voltage upper limit	-17.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	RECTANGULAR
Package form	UNCASED CHIP
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	550 V/us
Nominal slew rate	600 V/us
Maximum slew rate	23 mA
Supply voltage upper limit	17.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
Nominal Uniform Gain Bandwidth	600000 kHz
Minimum voltage gain	10000
broadband	YES
Base Number Matches	1

Preview

Download Datasheet

View All

EHA0-2539-6 Related Products

	EHA0-2539-6	EHA3-2540-5	EHA3-2539-5	EHA4-2540/883B
Description	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, DIE	Operational Amplifier, 1 Func, 20000uV Offset-Max, BIPolar, PDIP14,	Operational Amplifier, 1 Func, 20000uV Offset-Max, BIPolar, PDIP14,	Operational Amplifier, 1 Func, 15000uV Offset-Max, BIPolar, CQCC20,
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	20 µA	25 µA	25 µA	25 µA
Maximum bias current (IIB) at 25C	20 µA	0.02 µA	20 µA	0.02 µA
Minimum Common Mode Rejection Ratio	60 dB	60 dB	60 dB	60 dB
frequency compensation	YES (AVCL>=10)	YES (AVCL>=10)	YES (AVCL>=10)	YES (AVCL>=10)
Maximum input offset voltage	10000 µV	20000 µV	20000 µV	15000 µV
JESD-30 code	R-XUUC-N5	R-PDIP-T14	R-PDIP-T14	S-CQCC-N20
low-dissonance	NO	NO	NO	NO
Negative supply voltage upper limit	-17.5 V	-17.5 V	-17.5 V	-17.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	5	14	14	20
Maximum operating temperature	125 °C	75 °C	75 °C	125 °C
Package body material	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIE	DIP	DIP	QCCN
Encapsulate equivalent code	DIE OR CHIP	DIP14,.3	DIP14,.3	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	UNCASED CHIP	IN-LINE	IN-LINE	CHIP CARRIER
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	550 V/us	350 V/us	550 V/us	350 V/us
Nominal slew rate	600 V/us	400 V/us	600 V/us	400 V/us
Maximum slew rate	23 mA	25 mA	25 mA	25 mA
Supply voltage upper limit	17.5 V	17.5 V	17.5 V	17.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal location	UPPER	DUAL	DUAL	QUAD
Nominal Uniform Gain Bandwidth	600000 kHz	400000 kHz	600000 kHz	400000 kHz
Minimum voltage gain	10000	5000	5000	5000
broadband	YES	YES	YES	YES
Base Number Matches	1	1	1	1
Is it Rohs certified?	-	incompatible	incompatible	incompatible
Nominal Common Mode Rejection Ratio	-	90 dB	90 dB	90 dB
JESD-609 code	-	e0	e0	e0
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	-	2.54 mm	2.54 mm	1.27 mm
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
