EHA0-2400-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> EHA0-2400-6

EHA0-2400-6: DescriptionOperational Amplifier, 1 Func, 9000uV Offset-Max, BIPolar, DIE; CategoryAnalog mixed-signal IC Amplifier circuit; File Size554KB，6 Pages; ManufacturerELANTEC (Renesas )

Download Datasheet Parametric Compare View All

EHA0-2400-6 Overview

Operational Amplifier, 1 Func, 9000uV Offset-Max, BIPolar, DIE

EHA0-2400-6 Parametric

Parameter Name	Attribute value
Maker	ELANTEC (Renesas )
package instruction	DIE
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.2 µA
Maximum bias current (IIB) at 25C	0.2 µA
Minimum Common Mode Rejection Ratio	80 dB
Nominal Common Mode Rejection Ratio	100 dB
frequency compensation	YES (AVCL>=10)
Maximum input offset voltage	9000 µV
JESD-30 code	R-XUUC-N16
low-dissonance	NO
Negative supply voltage upper limit	-22.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	RECTANGULAR
Package form	UNCASED CHIP
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	20 V/us
Nominal slew rate	30 V/us
Maximum slew rate	6 mA
Supply voltage upper limit	22.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
Nominal Uniform Gain Bandwidth	8000 kHz
Minimum voltage gain	50000
Base Number Matches	1

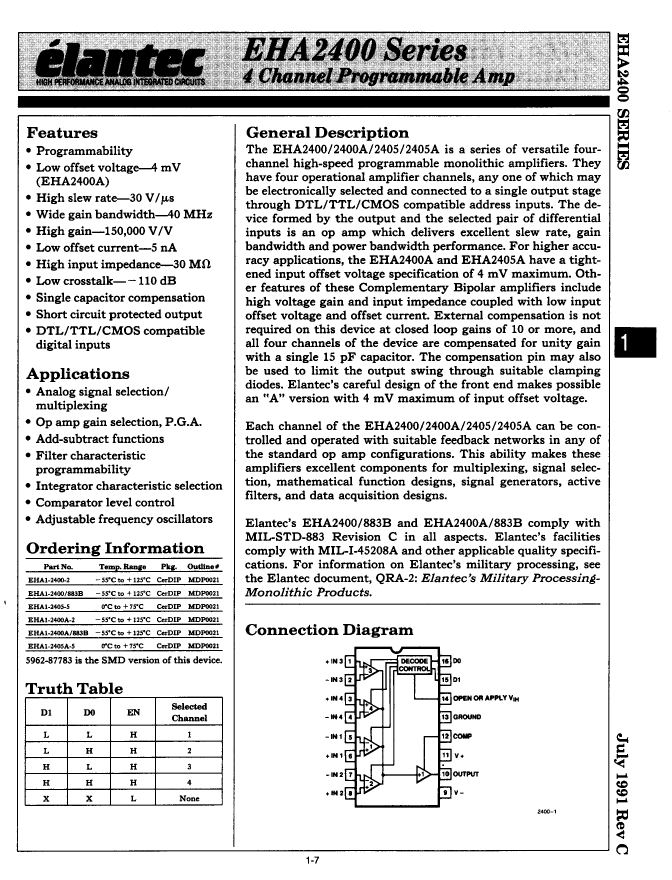

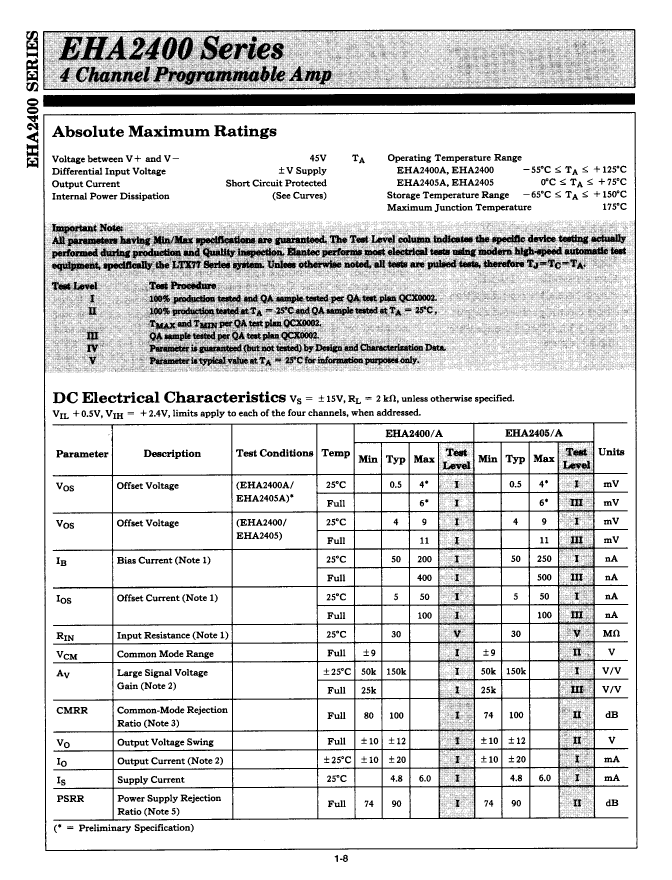

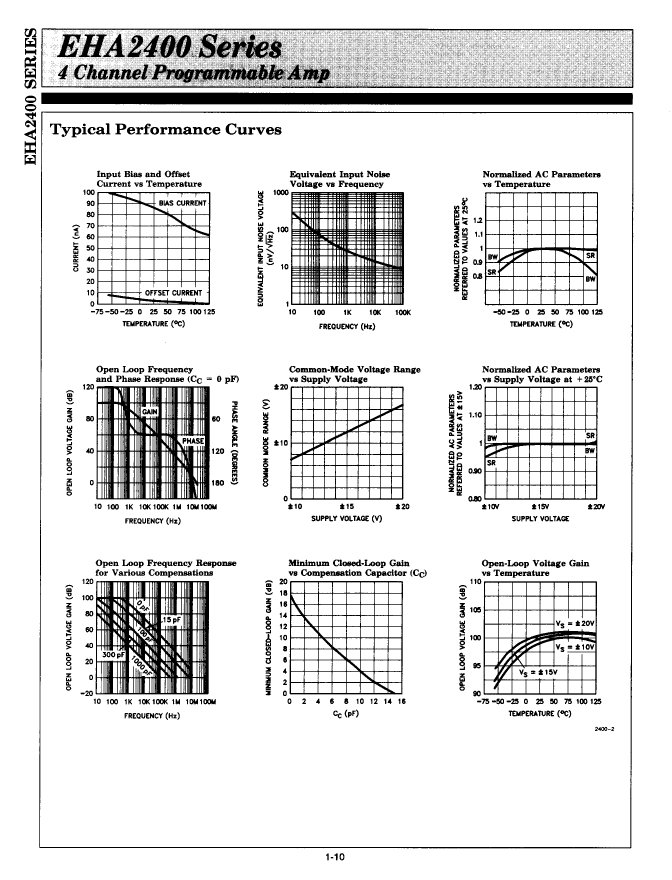

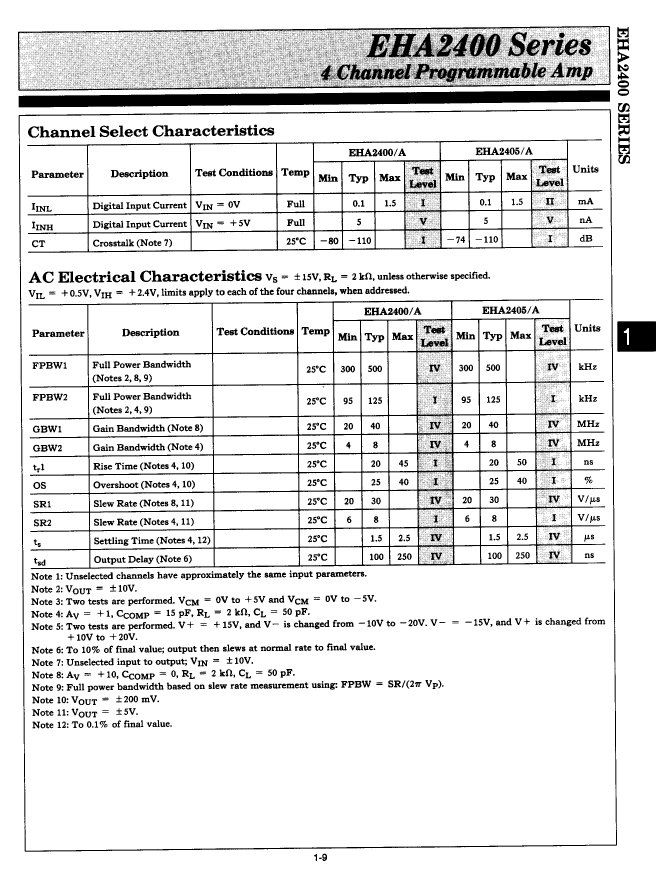

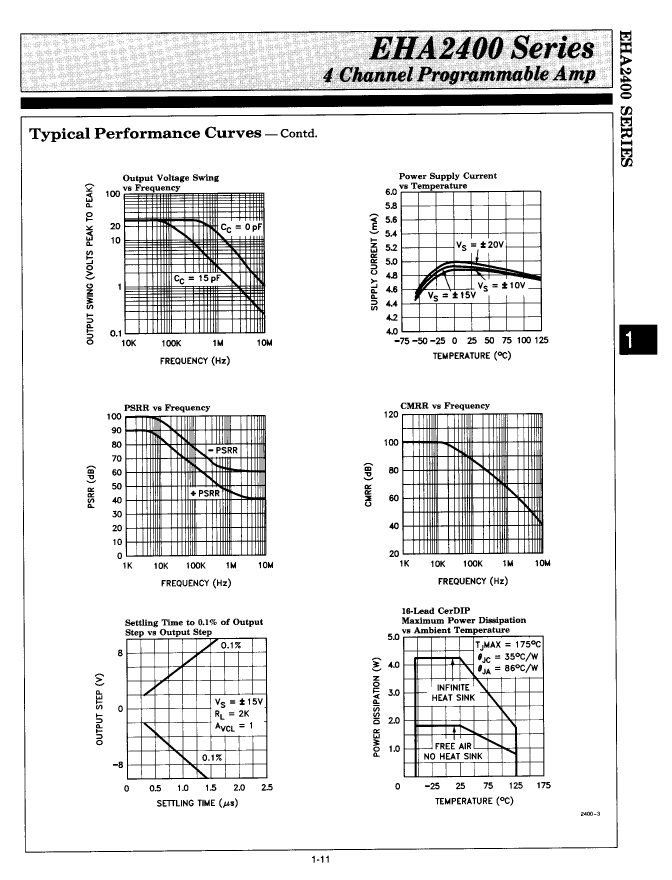

Preview

Download Datasheet

View All

EHA0-2400-6 Related Products

	EHA0-2400-6	EHA1-2400-2	EHA1-2400/883B	EHA1-2400A-2	EHA1-2400A/883B
Description	Operational Amplifier, 1 Func, 9000uV Offset-Max, BIPolar, DIE	Operational Amplifier, 1 Func, 11000uV Offset-Max, BIPolar, CDIP16,	Operational Amplifier, 1 Func, 11000uV Offset-Max, BIPolar, CDIP16,	Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, CDIP16,	Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, CDIP16,
Maker	ELANTEC (Renesas )	ELANTEC (Renesas )	ELANTEC (Renesas )	ELANTEC (Renesas )	ELANTEC (Renesas )
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.2 µA	0.4 µA	0.4 µA	0.4 µA	0.4 µA
Maximum bias current (IIB) at 25C	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA
Minimum Common Mode Rejection Ratio	80 dB	80 dB	80 dB	80 dB	80 dB
Nominal Common Mode Rejection Ratio	100 dB	100 dB	100 dB	100 dB	100 dB
frequency compensation	YES (AVCL>=10)	YES (AVCL>=10)	YES (AVCL>=10)	YES (AVCL>=10)	YES (AVCL>=10)
Maximum input offset voltage	9000 µV	11000 µV	11000 µV	6000 µV	6000 µV
JESD-30 code	R-XUUC-N16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16
low-dissonance	NO	NO	NO	NO	NO
Negative supply voltage upper limit	-22.5 V	-22.5 V	-22.5 V	-22.5 V	-22.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1
Number of terminals	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIE	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIE OR CHIP	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	20 V/us	20 V/us	20 V/us	20 V/us	20 V/us
Nominal slew rate	30 V/us	30 V/us	30 V/us	30 V/us	30 V/us
Maximum slew rate	6 mA	6 mA	6 mA	6 mA	6 mA
Supply voltage upper limit	22.5 V	22.5 V	22.5 V	22.5 V	22.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	UPPER	DUAL	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	8000 kHz	8000 kHz	8000 kHz	8000 kHz	8000 kHz
Minimum voltage gain	50000	25000	25000	25000	25000
Base Number Matches	1	1	1	1	1
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible
JESD-609 code	-	e0	e0	e0	e0
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
