EHA0-2602-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> EHA0-2602-6

EHA0-2602-6: DescriptionOperational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, DIE; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，15 Pages; ManufacturerELANTEC (Renesas )

Download Datasheet Parametric Compare View All

EHA0-2602-6 Overview

Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, DIE

EHA0-2602-6 Parametric

Parameter Name	Attribute value
Maker	ELANTEC (Renesas )
package instruction	DIE
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.025 µA
Maximum bias current (IIB) at 25C	0.025 µA
frequency compensation	YES
Maximum input offset voltage	5000 µV
JESD-30 code	X-XUUC-N
low-dissonance	NO
Negative supply voltage upper limit	-22.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Maximum operating temperature	25 °C
Minimum operating temperature	25 °C
Package body material	UNSPECIFIED
Encapsulate equivalent code	DIE OR CHIP
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	4 V/us
Nominal slew rate	7 V/us
Maximum slew rate	4 mA
Supply voltage upper limit	22.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal form	NO LEAD
Terminal location	UPPER
Nominal Uniform Gain Bandwidth	12000 kHz
Minimum voltage gain	80000
Base Number Matches	1

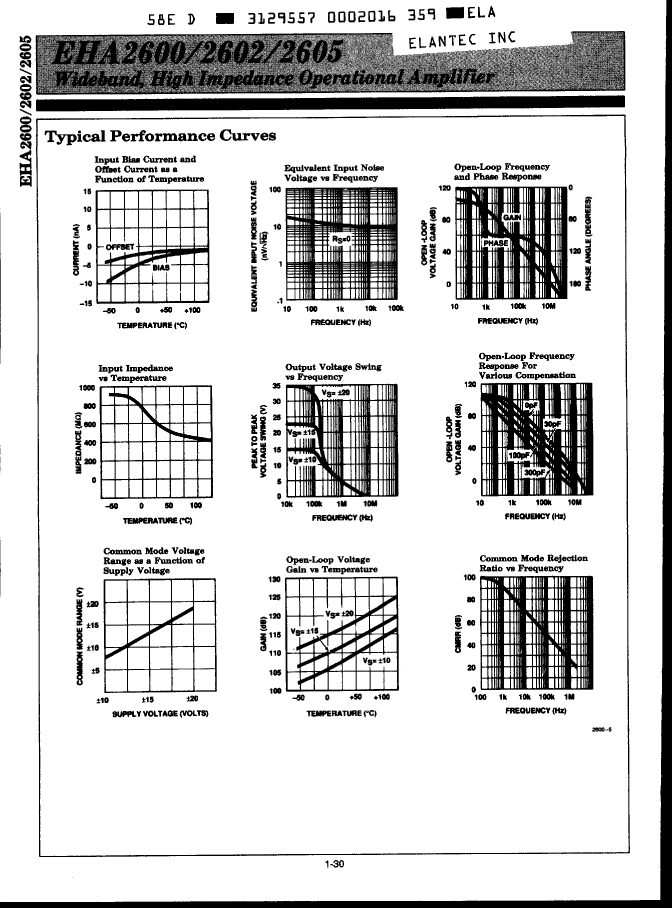

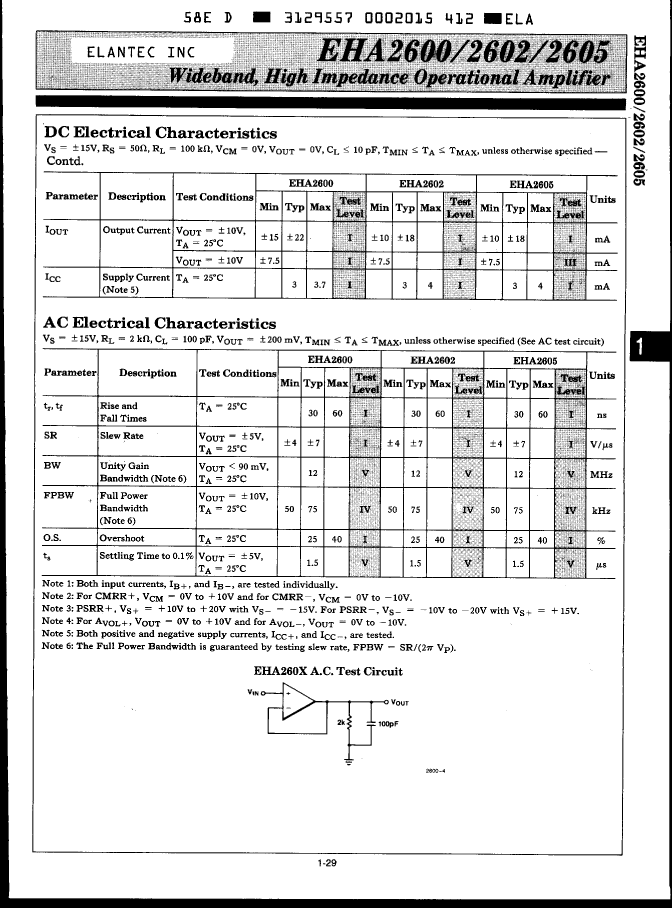

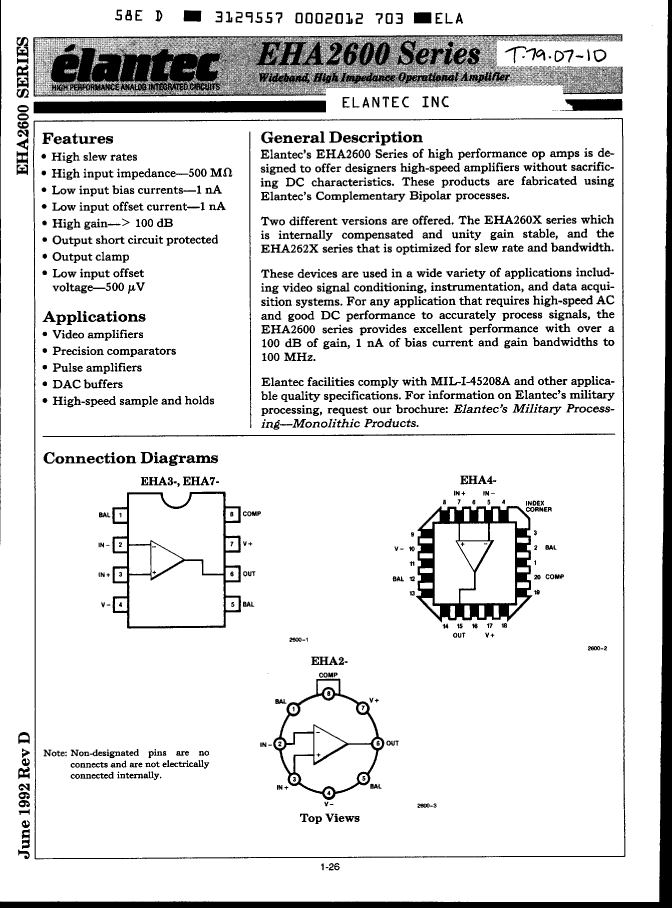

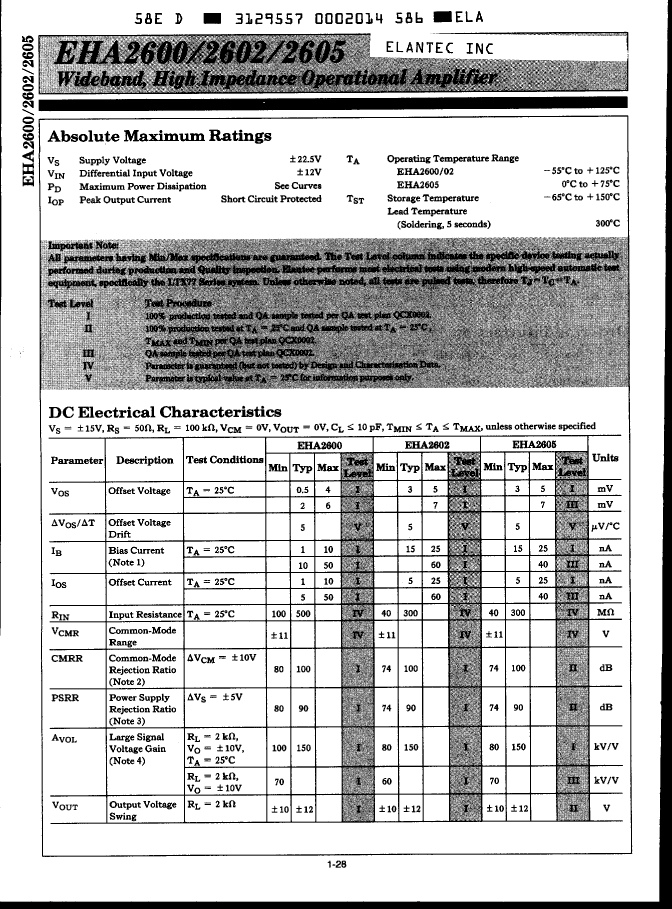

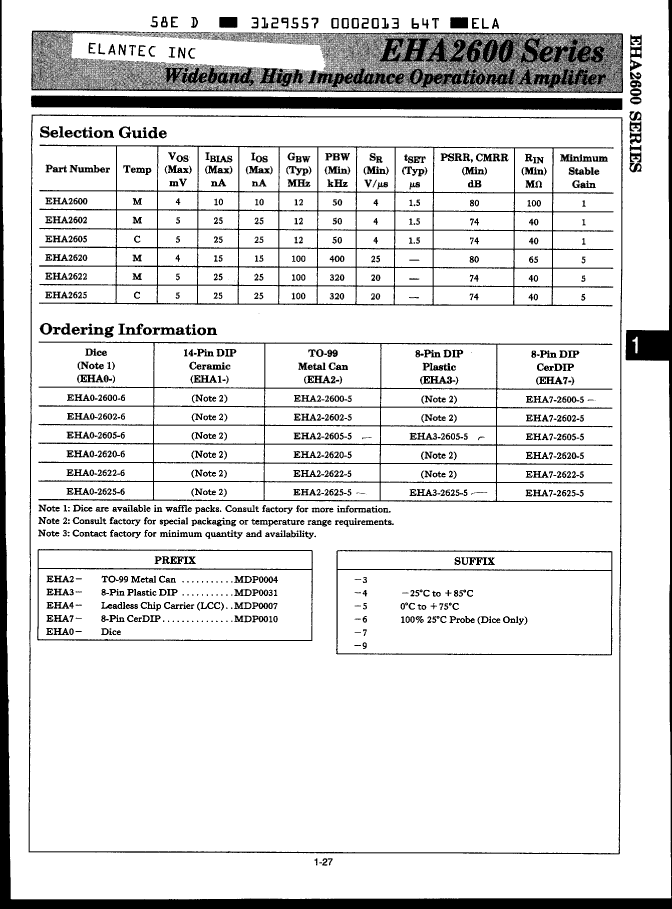

Preview

Download Datasheet

View All

EHA0-2602-6 Related Products

	EHA0-2602-6	EHA0-2622-6	EHA3-2605-5
Description	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, DIE	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, DIE	Operational Amplifier, 1 Func, 7000uV Offset-Max, BIPolar, PDIP8,
Maker	ELANTEC (Renesas )	ELANTEC (Renesas )	ELANTEC (Renesas )
Reach Compliance Code	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.025 µA	0.025 µA	0.04 µA
Maximum bias current (IIB) at 25C	0.025 µA	0.025 µA	0.025 µA
frequency compensation	YES	YES (AVCL>=5)	YES
Maximum input offset voltage	5000 µV	5000 µV	7000 µV
JESD-30 code	X-XUUC-N	X-XUUC-N	R-PDIP-T8
low-dissonance	NO	NO	NO
Negative supply voltage upper limit	-22.5 V	-22.5 V	-22.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	1	1	1
Maximum operating temperature	25 °C	25 °C	75 °C
Minimum operating temperature	25 °C	25 °C	-
Package body material	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY
Encapsulate equivalent code	DIE OR CHIP	DIE OR CHIP	DIP8,.3
Package shape	UNSPECIFIED	UNSPECIFIED	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	IN-LINE
power supply	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	4 V/us	20 V/us	4 V/us
Nominal slew rate	7 V/us	35 V/us	7 V/us
Maximum slew rate	4 mA	4 mA	4 mA
Supply voltage upper limit	22.5 V	22.5 V	22.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	YES	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	COMMERCIAL EXTENDED
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE
Terminal location	UPPER	UPPER	DUAL
Nominal Uniform Gain Bandwidth	12000 kHz	100000 kHz	12000 kHz
Minimum voltage gain	80000	80000	70000
Base Number Matches	1	1	1
package instruction	DIE	DIE	-
