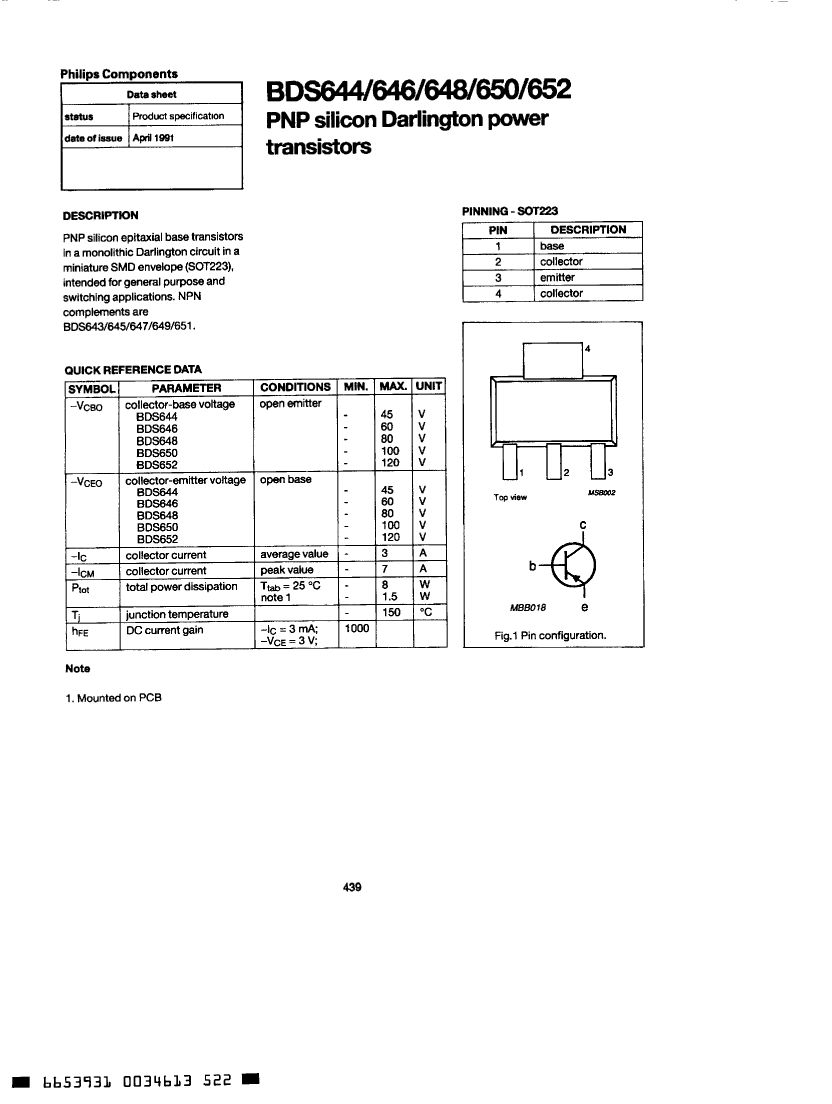

BDS652 Overview

Transistor,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
package instruction	,
Reach Compliance Code	unknown

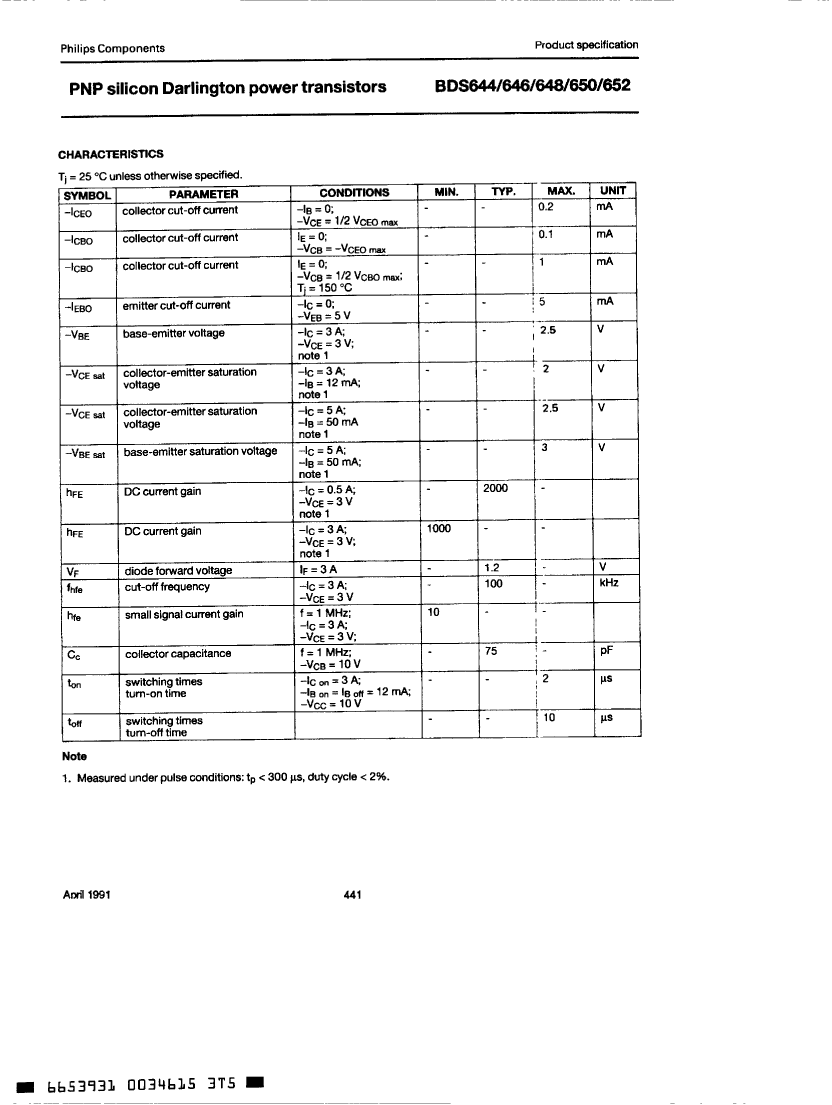

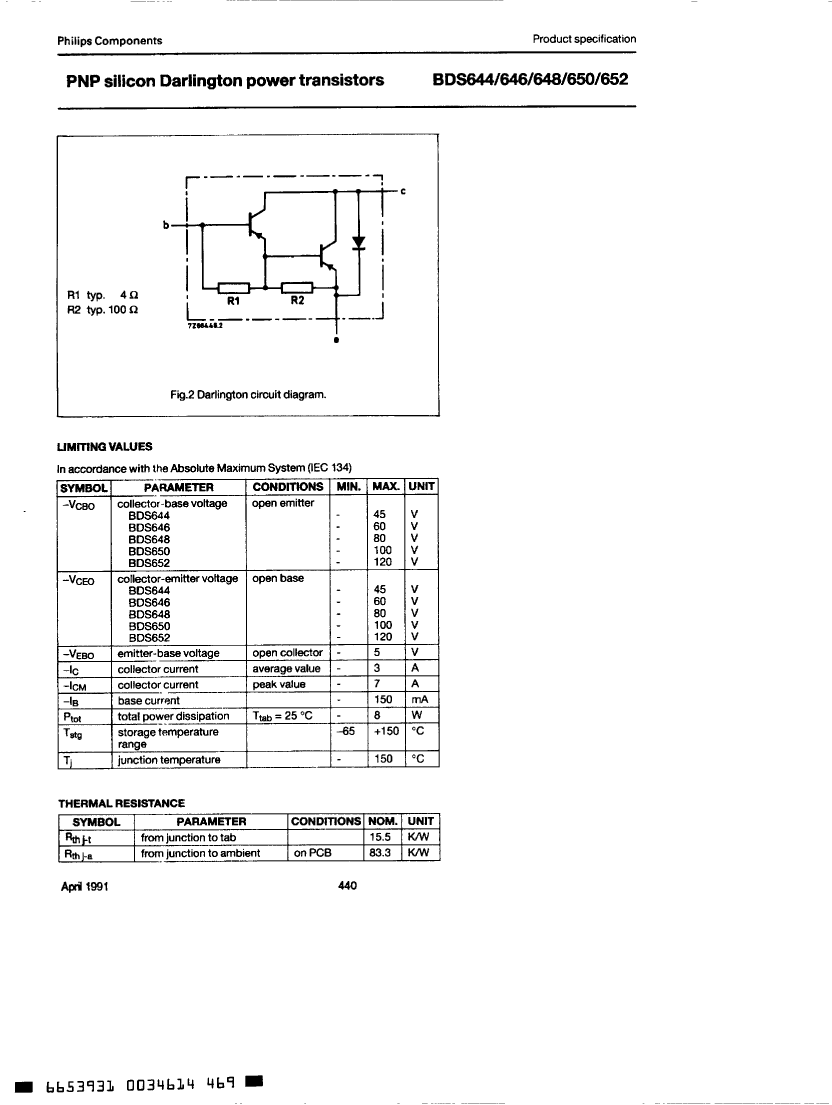

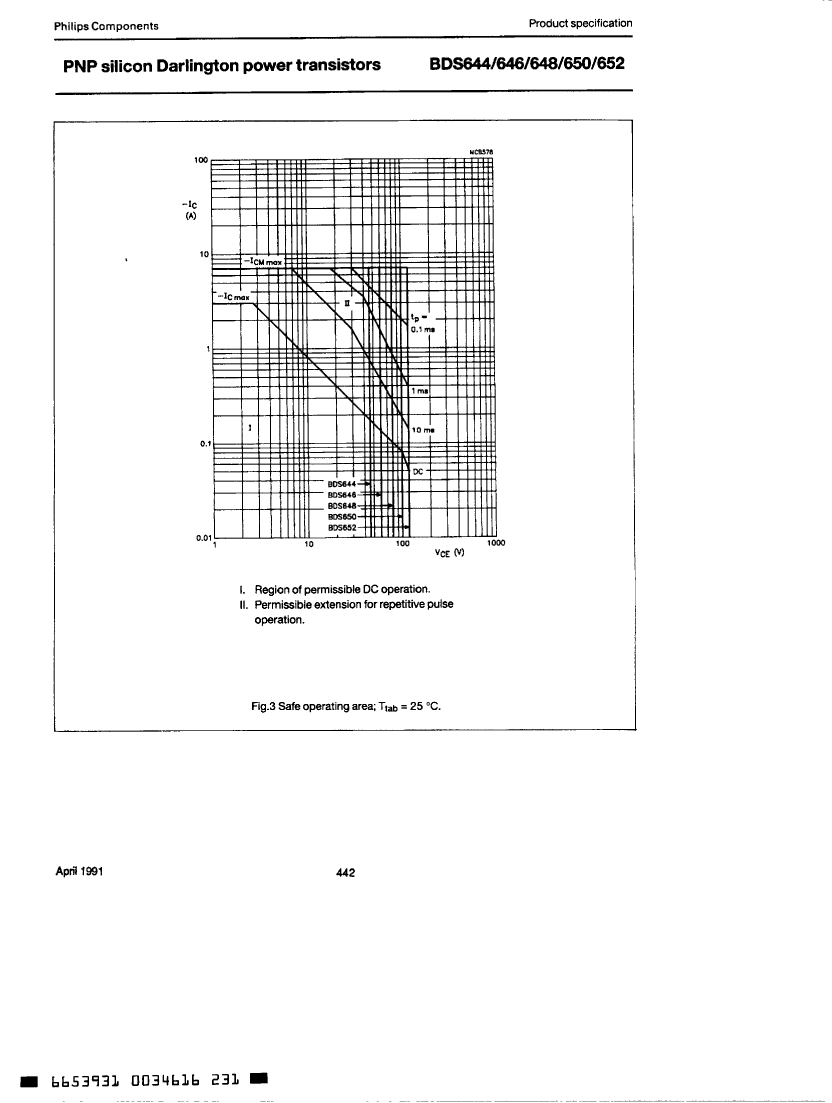

Maximum collector current (IC)	3 A
Configuration	DARLINGTON
Minimum DC current gain (hFE)	1000
JESD-609 code	e0

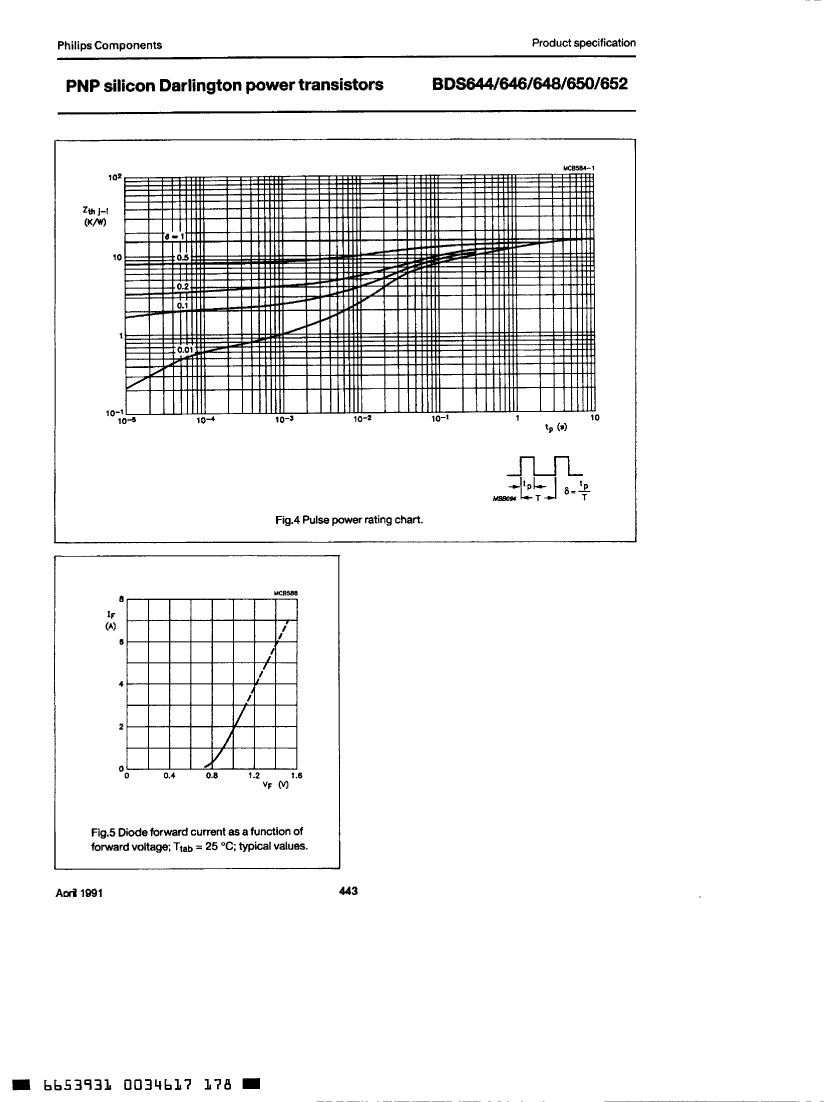

Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	8 W
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	10 MHz
Base Number Matches	1

	BDS652	BDS644	BDS648	BDS650	BDS646
Description	Transistor,	Transistor,	Transistor,	Transistor,	Transistor,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	3 A	3 A	3 A	3 A	3 A
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	1000	1000	1000	1000	1000
JESD-609 code	e0	e0	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	8 W	8 W	8 W	8 W	8 W
surface mount	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
Maker	North American Philips Discrete Products Div	-	-	North American Philips Discrete Products Div	North American Philips Discrete Products Div
Base Number Matches	1	1	1	-	-
