84699-630TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 84699-630TR

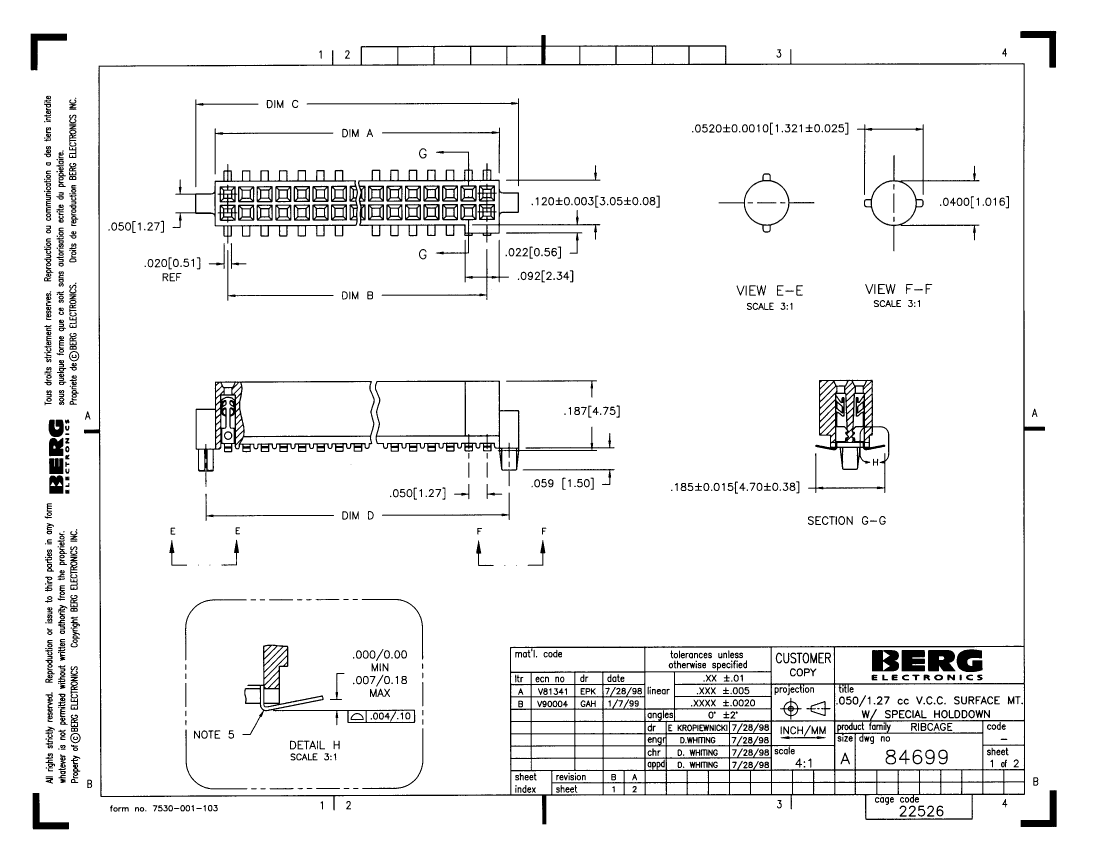

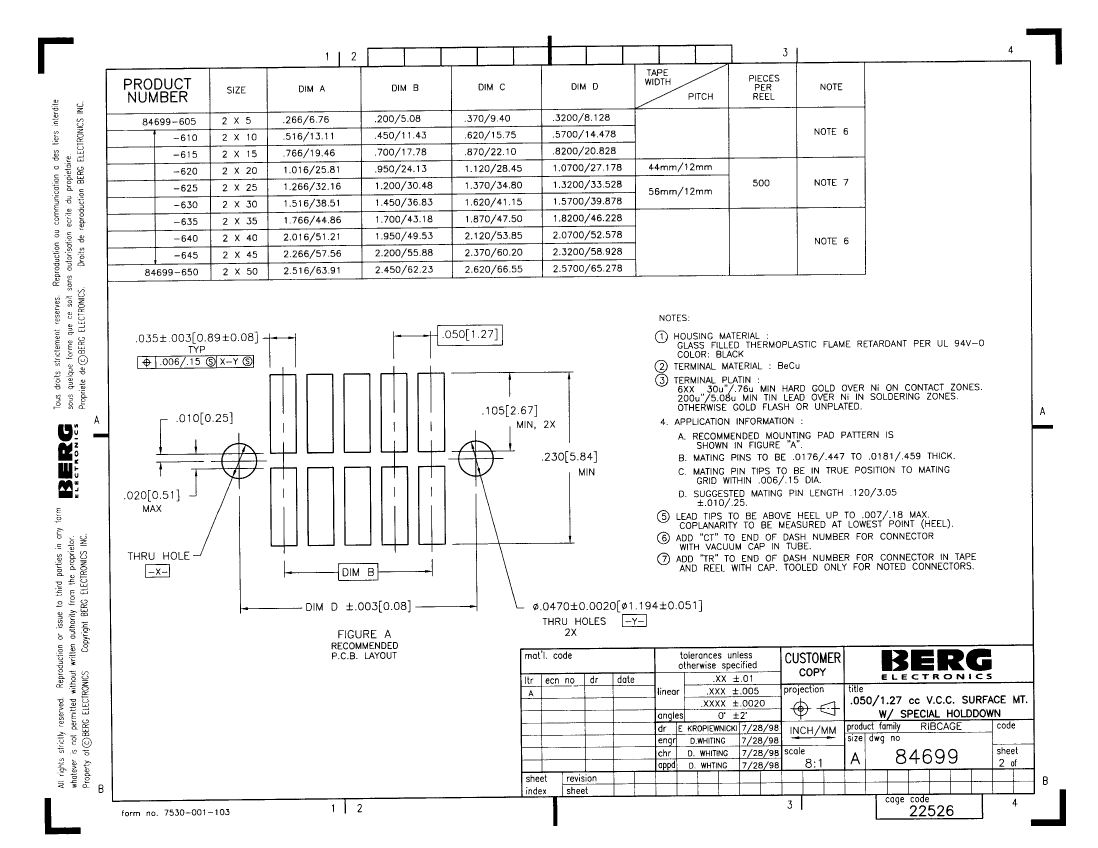

84699-630TR: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size185KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

84699-630TR Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

84699-630TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PACKAGING TAPE&REEL
body width	0.142 inch
subject depth	0.187 inch
body length	1.62 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	800VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.112 N
Insulation resistance	50000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	84699
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.175 mm
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
UL Flammability Code	94V-0
Evacuation force-minimum value	.0973 N
Base Number Matches	1
