BYY57-400 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYY57-400

BYY57-400: DescriptionRectifier Diode, 1 Phase, 1 Element, 35A, 400V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN; CategoryDiscrete semiconductor diode; File Size218KB，5 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BYY57-400 Overview

Rectifier Diode, 1 Phase, 1 Element, 35A, 400V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN

BYY57-400 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Zetex Semiconductors
package instruction	O-MUPF-D1
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	O-MUPF-D1
JESD-609 code	e3
Maximum non-repetitive peak forward current	600 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	200 °C
Maximum output current	35 A
Package body material	METAL
Package shape	ROUND
Package form	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

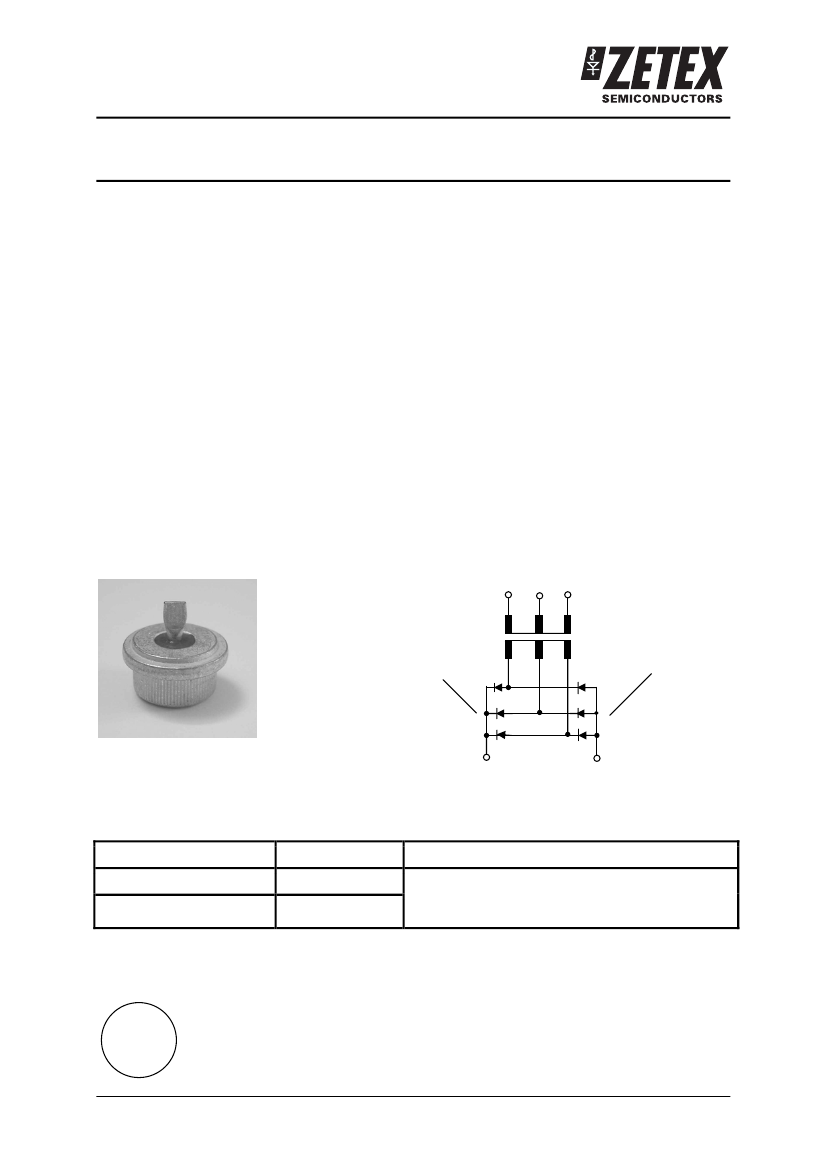

BYY57 / BYY58

35A Silicon Power Rectifier Diode

Part no.

Description

The BYY57/58 are hermetically sealed 35A-

diodes, which are available in different reverse

voltage classes up to 1500V.

The diodes can be delivered with limited forward

voltage

and reverse current differences for

parallel connecting in rectifier stacks and back-

off-diodes

Features

•

Applications

•

Forward current 35A

Reverse voltage 75V – 1500V

Hermetic press-fit package

Available in different modifications of the

package

Power supplies

Rectifier diode in car generators

Rectifier bridges/stacks

Back-off-diodes

Pinout details

Typical application circuit

Six pulse

bridge

connection

3 x BYY57-1200

3 x BYY58-1200

BYY57: 1 – cathode; 2 - anode

BYY58: 1 – anode; 2 - cathode

Ordering information

Device

BYY57-75; …; BYY57-1500

BYY58-75; …; BYY58-1500

Quantity per box

500

Options

The package quantities for the different package

modifications are included in

“PressFitPackageModifications.pdf”

Device marking

Devices are identified by type. Colour of marking: BYY57- black, BYY58 – red

422........................................……. date code 422 = 2004 week 22

ZETEX

BYY57………………………………... diode type

400………………………………….. repetitive peak reverse voltage V

RRM

(in V) 400

Issue 4 – September 2006

www.zetex.com

BYY57-400 Related Products

	BYY57-400	BYY58-300	BYY57-300	BYY58-1000	BYY57-1300	BYY58-1200	BYY58-1300	BYY57-1400
Description	Rectifier Diode, 1 Phase, 1 Element, 35A, 400V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 35A, 300V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 35A, 300V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 35A, 1000V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 35A, 1300V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 35A, 1200V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 35A, 1300V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 35A, 1400V V(RRM), Silicon, HERMETICALLY SEALED, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V
JESD-30 code	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1	O-MUPF-D1
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Maximum non-repetitive peak forward current	600 A	600 A	600 A	600 A	600 A	600 A	600 A	600 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Maximum output current	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	300 V	300 V	1000 V	1300 V	1200 V	1300 V	1400 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	1	1	1
Maker	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	-
