HS-0546RH, HS-0547RH
Data Sheet
August 1999
File Number
3544.2
Radiation Hardened Single 16/Differential
8 Channel CMOS Analog Multiplexers with
Active Overvoltage Protection
The HS-0546RH and HS-0547RH are radiation hardened
analog multiplexers with Active Overvoltage Protection and
guaranteed r
ON
matching. Analog input levels may greatly
exceed either power supply without damaging the device or

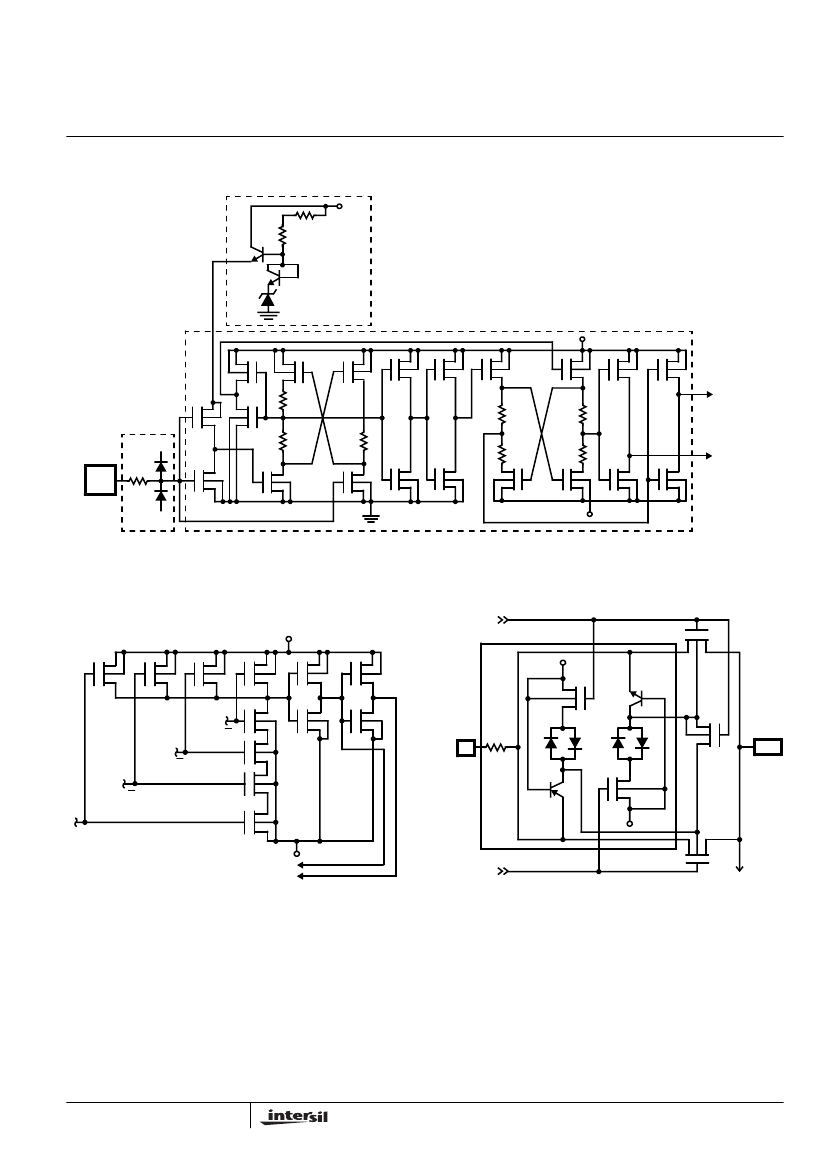

disturbing the signal path of other channels. Active protection
circuitry assures that signal fidelity is maintained even under
fault conditions that would destroy other multiplexers. Analog
inputs can withstand constant 70V peak-to-peak levels with
±15V
supplies and digital inputs will sustain continuous faults
up to 4V greater than either supply. In addition, signal sources
are protected from short circuiting should multiplexer supply
loss occur: each input presents 1kΩ of resistance under this
condition. These features make the HS-0546RH and
HS-0547RH ideal for use in systems where the analog inputs
originate from external equipment or separately powered
circuitry. Both devices are fabricated with 44V dielectrically
isolated CMOS technology. The HS-0546 is a 16 channel
device and the HS-0547 is an 8 channel differential version. If
input overvoltage protection is not needed, the HS-0506 and
HS-0507 multiplexers are recommended.
Specifications for Rad Hard QML devices are controlled
by the Defense Supply Center in Columbus (DSCC). The
SMD numbers listed here must be used when ordering.
Detailed Electrical Specifications for these devices are
contained in SMD 5962-95693. A “hot-link” is provided
on our homepage for downloading.
http://www.intersil.com/spacedefense/space.htm
Features
• Electrically Screened to SMD # 5962-95693
• QML Qualified per MIL-PRF-38535 Requirements
• Gamma Dose . . . . . . . . . . . . . . . . . . . . . . 1 x 10
4
RAD(Si)
• No Latch-Up
• No Channel Interaction During Overvoltage
• Guaranteed r
ON
Matching
• Maximum Power Supply . . . . . . . . . . . . . . . . . . . . . . . .44V

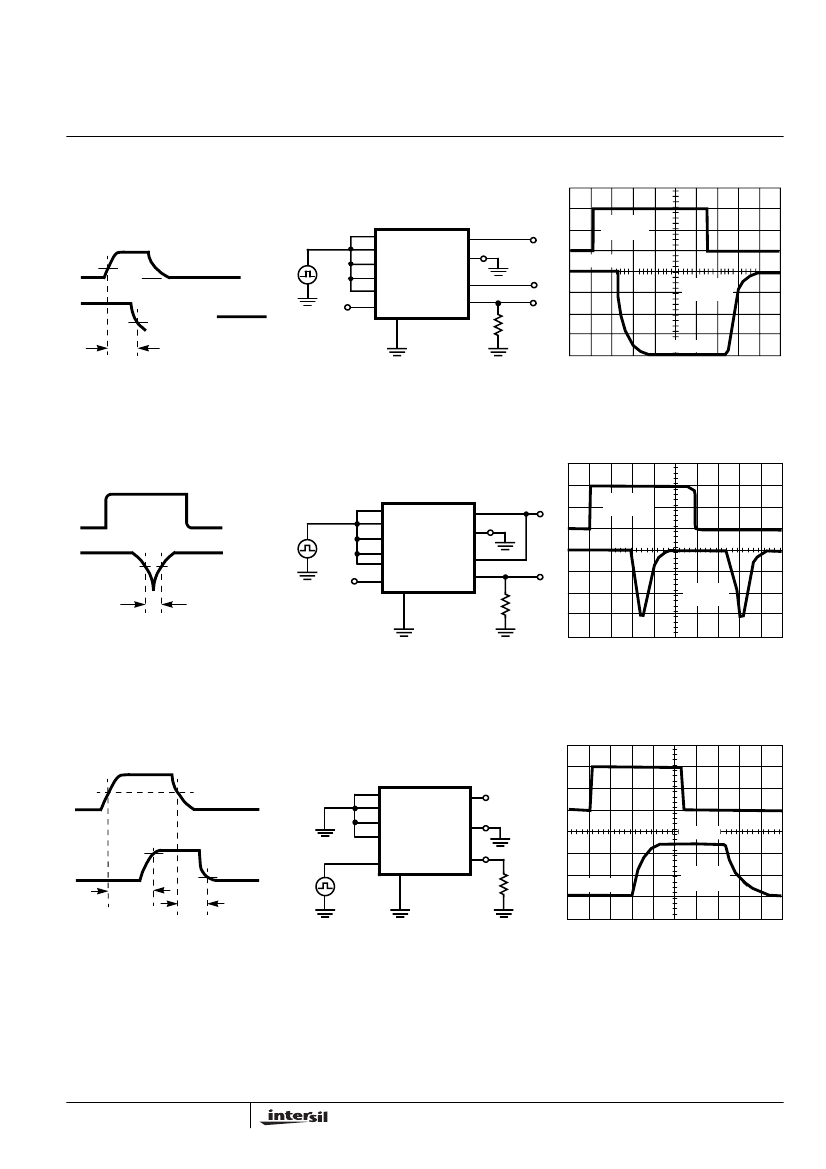

• Break-Before-Make Switch
• Analog Signal Range
. . . . . . . . . . . . . . . . . . . . . . . . . . . .±15V
• Access Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0µs
Applications
• Data Acquisition Systems
• Control Systems
• Telemetry
Ordering Information
INTERNAL
ORDERING NUMBER
MKT. NUMBER
5962D9569301V9A
HS0-0546RH-Q
5962D9569301VXA
HS1-0546RH-Q
5962D9569301VXC
5962D9569302V9A
5962D9569302VXA
5962D9569302VXC
HS1B-0546RH-Q
HS0-0547RH-Q
HS1-0547RH-Q
HS1B-0547RH-Q
TEMP. RANGE
(
o
C)
25
-55 to 125
-55 to 125
25
-55 to 125
-55 to 125
Pinouts
HS-0546RH GDIP1-T28 (CERDIP) OR CDIP2-T28 (SBDIP)
TOP VIEW
V
SUPPLY
1
NC 2
NC 3
IN 16 4
IN 15 5
IN 14 6
IN 13 7
IN 12 8
IN 11 9
IN 10 10
IN 9 11
GND 12
V
REF
13
ADDRESS A3 14
28 OUT
27 -V
SUPPLY
26 IN 8
25 IN 7
24 IN 6
23 IN 5
22 IN 4
21 IN 3
20 IN 2
19 IN 1
18 ENABLE
17 ADDRESS A0
16 ADDRESS A1
15 ADDRESS A0
HS-0547RH GDIP1-T28 (CERDIP) OR CDIP2-T28 (SBDIP)
TOP VIEW
+V
SUPPLY
1
OUT B 2
NC 3
IN 8B 4
IN 7B 5
IN 6B 6
IN 5B 7
IN 4B 8
IN 3B 9
IN 2B 10
IN 1B 11
GND 12
V
REF
13
NC 14
28 OUT A
27 -V
SUPPLY
26 IN 8A
25 IN 7A
24 IN 6A
23 IN 5A
22 IN 4A
21 IN 3A
20 IN 2A
19 IN 1A
18 ENABLE
17 ADDRESS A0
16 ADDRESS A1
15 ADDRESS A2
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
|
Copyright
©
Intersil Corporation 1999
HS-0546RH, HS-0547RH
Burn-In/Life Test Circuits
V1
1
C1 D1
R1
2
3
4
5
6
7
8
9
10
11
12
13
F3
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
F4
F0
F1
F2
V1
D2 C2
C1 D1
R1
R2
V2
V2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
D2 C2
R2
V3
DYNAMIC AND LIFE TEST
NOTES:
1. The Dynamic Test Circuit is utilized for all life testing.
2. V1 = +15V minimum, +16V maximum.
3. V2 = -15V maximum, -16V minimum.
4. R1, R2 = 10kΩ,
±5%,
1/4 or 1/2W (per socket).
5. C1, C2 = 0.01µF minimum (per socket) or 0.1µF minimum
(per row).
6. D1, D2 = 1N4002 or equivalent (per board).
7. F0 = 100kHz, 10%; F1 = F0/2; F2 = F1/2; F3 = F2/2; F4 = F3/2
40% - 60% duty cycle; VIL = 0.8V maximum;
VIH = 4.0V minimum.
NOTES:
STATIC
8. V1 =
+5V
minimum,
+6V
maximum.
9. V2 =
+15V
minimum,
+16V
maximum.
10. V3 = -15V maximum, -16V minimum.
11. R1, R2 = 10kΩ,
±5%,
1/4 or 1/2W (per socket).
12. C1, C2 = 0.01µF minimum (per socket) or 0.1µF minimum
(per row).
13. D1, D2 = 1N4002 or equivalent (per board).
Irradiation Circuit
+15V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
-15V
10kΩ
10kΩ
NC
+1V
+5V
5
