CD5283 thru CD5314 &
CD7048 thru CD7055
Current Regulator Diode Chips
Rev. V3
Features
•
All Junctions Completely Protected with Silicon
Dioxide
•
Constant Current over Wide Voltage Range
•
Electrically Equivalent to 1N5283
-
1N5314 &
1N7048
-
1N7055

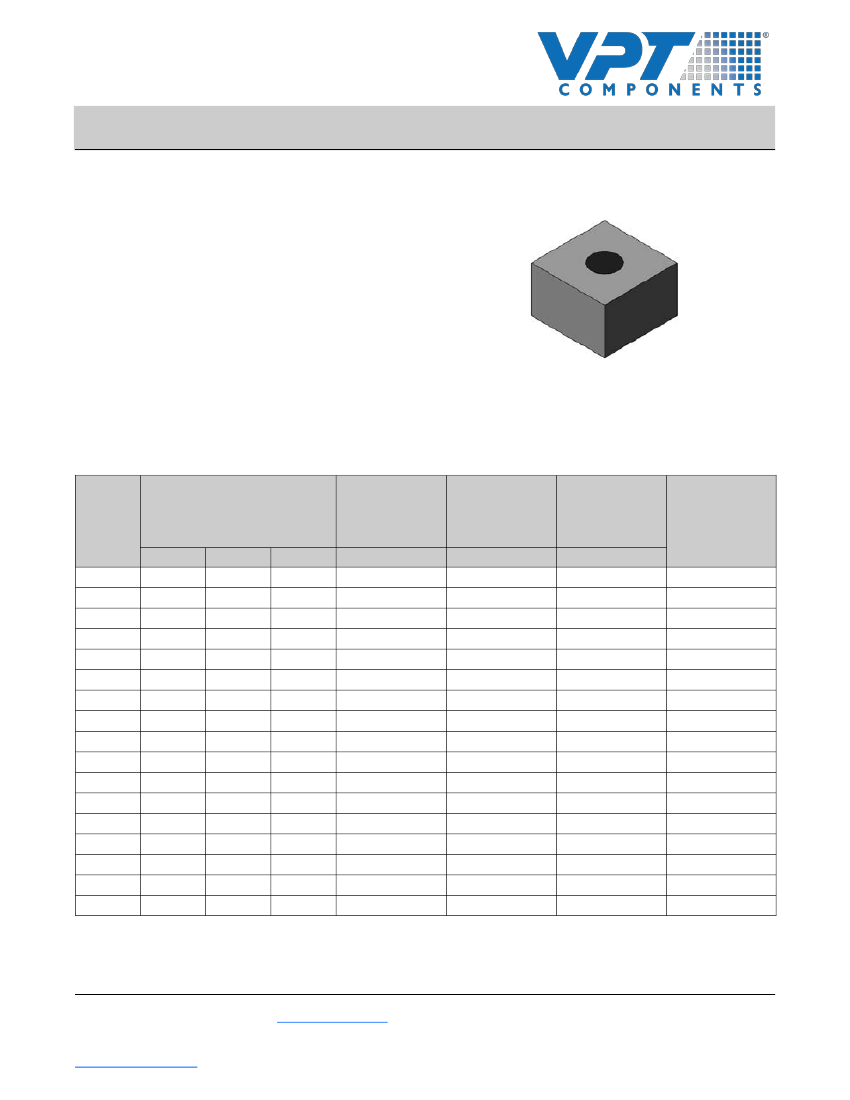

Die
Description
These 0.5 W zener diodes are electrically equivalent
to the 1N5283
-
1N5314, 1N7048
-
1N7055 series
diodes. They are compatible with all wire bonding
and die attach techniques with the exception of
solder reflow.
These diodes are available in JANHC and JANKC
per MIL-PRF-19500/463.
Electrical Specifications: T
A
= +25°C (unless otherwise specified)
Regulator Current
V
S
= 25 V l
P
(mA)
Nominal
CD5283
CD5284
CD5285
CD5286
CD5287
CD5288
CD5289
CD5290
CD5291
CD5292
CD5293
CD5294
CD5295
CD5296
CD5297
CD5298
CD5299
0.22
0.24
0.27
0.30
0.33
0.39
0.43
0.47
0.56
0.62
0.68
0.75
0.82
0.91
1.00
1.10
1.20
Minimum Maximum
0.198
0.216
0.243
0.270
0.297
0.351
0.387
0.423
0.504
0.558
0.612
0.675
0.738
0.819
0.900
0.99
1.08
0.242
0.264
0.297
0.330
0.363
0.429
0.473
0.517
0.616
0.682
0.748
0.825
0.902
1.001
1.100
1.21
1.32
Dynamic
Impedance
@ V
S
= 25 V Z
S
(M)
(Note 1)
Minimum
25.0
19.0
14.0
9.0
8.0
4.10
3.30
2.70
1.90
1.55
1.35
1.15
1.00
0.88
0.80
0.70
0.64
Knee
Impedance
@ V
K
= 6.0 V Z
K
(M)
(Note 2)
Minimum
2.75
2.35
1.95
1.60
1.35
1.000
0.870
0.750
0.560
0.470
0.400
0.335
0.290
0240
0.205
0.180
0.155
Limiting
Voltage
@ I
L
= 0.8 l
P
(min)
V
L
(V)
Maximum
1.00
1.00
1.00
1.00
1.00
1.05
1.05
1.05
1.10
1.13
1.15
1.20
1.25
1.29
1.35
1.40
1.45
Peak
Operating
Voltage
(V)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Part #
(Continued next page)
1
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
CD5283 thru CD5314 &
CD7048 thru CD7055
Current Regulator Diode Chips
Rev. V3
Electrical Specifications: T
A
= +25°C (unless otherwise specified)
Regulator Current
V
S
= 25 V l
P
(mA)
Nominal
CD5300
CD5301
CD5302
CD5303
CD5304
CD5305
CD5306
CD5307
CD5308
CD5309
CD5310
CD5311
CD5312
CD5313
CD5314
CD7048
CD7049
CD7050
CD7051
CD7052
CD7053
CD7054
CD7055
1.30
1.40
1.50
1.60
1.80
2.00
2.20
2.40
2.70
3.00
3.30
3.60
3.90
4.30
4.70
5.10
5.60
6.20
6.80
7.50
8.20
9.10
10.00
Minimum Maximum
1.17
1.26
1.35
1.44
1.62
1.80
1.98
2.16
2.43
2.70
2.97
3.24
3.51
3.87
4.23
4.59
5.04
5.58
6.12
6.75
7.38
8.19
9.00
1.43
1.54
1.65
1.76
1.98
2.20
2.42
2.54
2.97
3.30
3.63
3.96
4.29
4.73
5.17
5.61
6.16
6.82
7.48
8.25
9.02
10.01
11.10
Dynamic
Impedance
@ V
S
= 25 V Z
S
(M)
(Note 1)
Minimum
0.58
0.54
0.51
0.475
0.420
0.395
0.370
0.345
0.320
0.300
0.280
0.265
0.255
0.245
0.235
100
90
80
70
50
30
20
10
Knee
Impedance
@ V
K
= 6.0 V Z
K
(M)
(Note 2)
Minimum
0.135
0.115
0.105
0.092
0.074
0.061
0.052
0.044
0.035
0.029
0.024
0.020
0.017
0.014
0.012
4.0
4.0
3.0
2.0
15
1.5
1.0
1.0
Limiting
Voltage
@ I
L
= 0.8 l
P
(min)
V
L
(V)
Maximum
1.50
1.55
1.60
1.65
1.75
1.85
1.95
2.00
2.15
2.25
2.35
2.50
2.60
2.75
2.90
3.67
4.03
4.46
4.90
5.40
5.90
6.55
7.20
Peak
Operating
Voltage
(V)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
80
80
70
70
60
60
50
50
Part #
1.
Z
S
is derived by superimposing A 90 Hz RMS signal equal to 10% of V
T
on V
T
.
2.
Z
K
is derived by superimposing A 90Hz RMS signal equal to 10% of V
K
on V
K
.
2
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
CD5283 thru CD5314 &
CD7048 thru CD7055
Current Regulator Diode Chips
Rev. V3

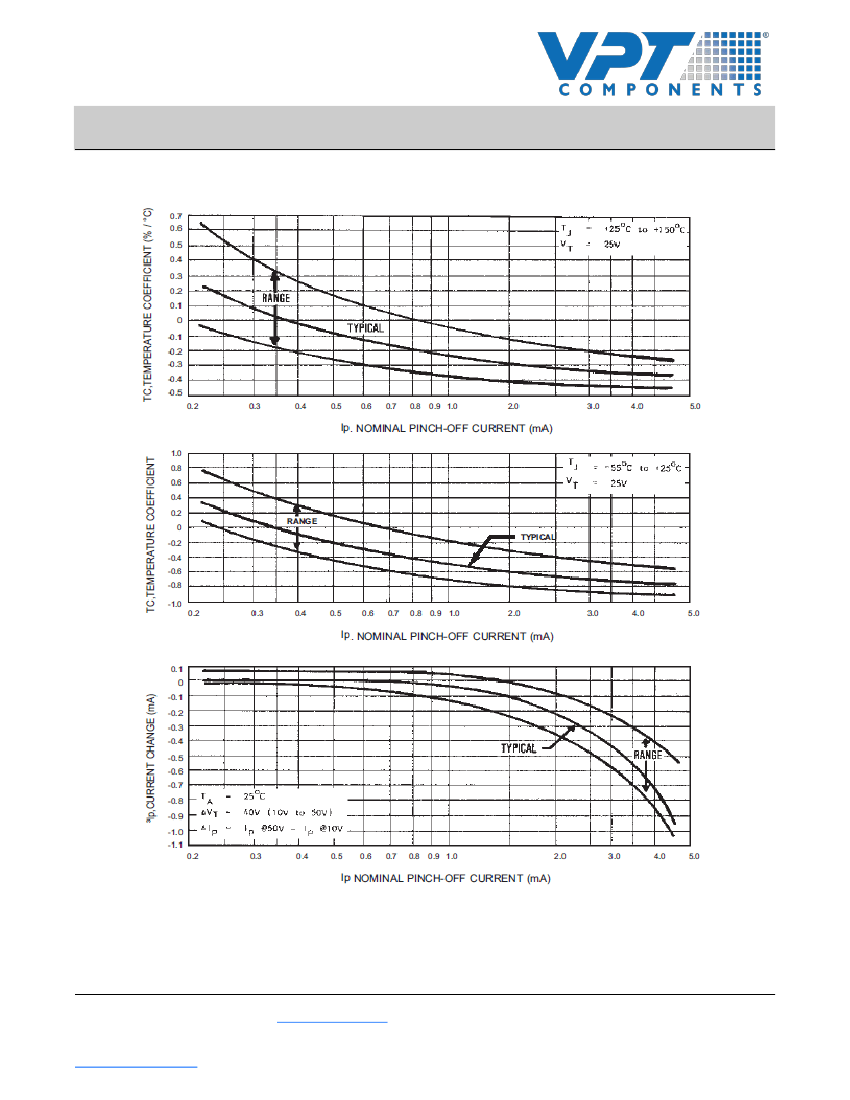

Temperature Coefficient
3
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
CD5283 thru CD5314 &
CD7048 thru CD7055
Current Regulator Diode Chips
Rev. V3
Absolute Maximum Ratings
3,4
Operating Temperature
Storage Temperature
-65°C
to +175°C
-65°C
to +175°C
3. Exceeding any one or combination of these limits may cause
permanent damage to this device.
4.
VPT Components does not recommend sustained operation
near these survivability limits.

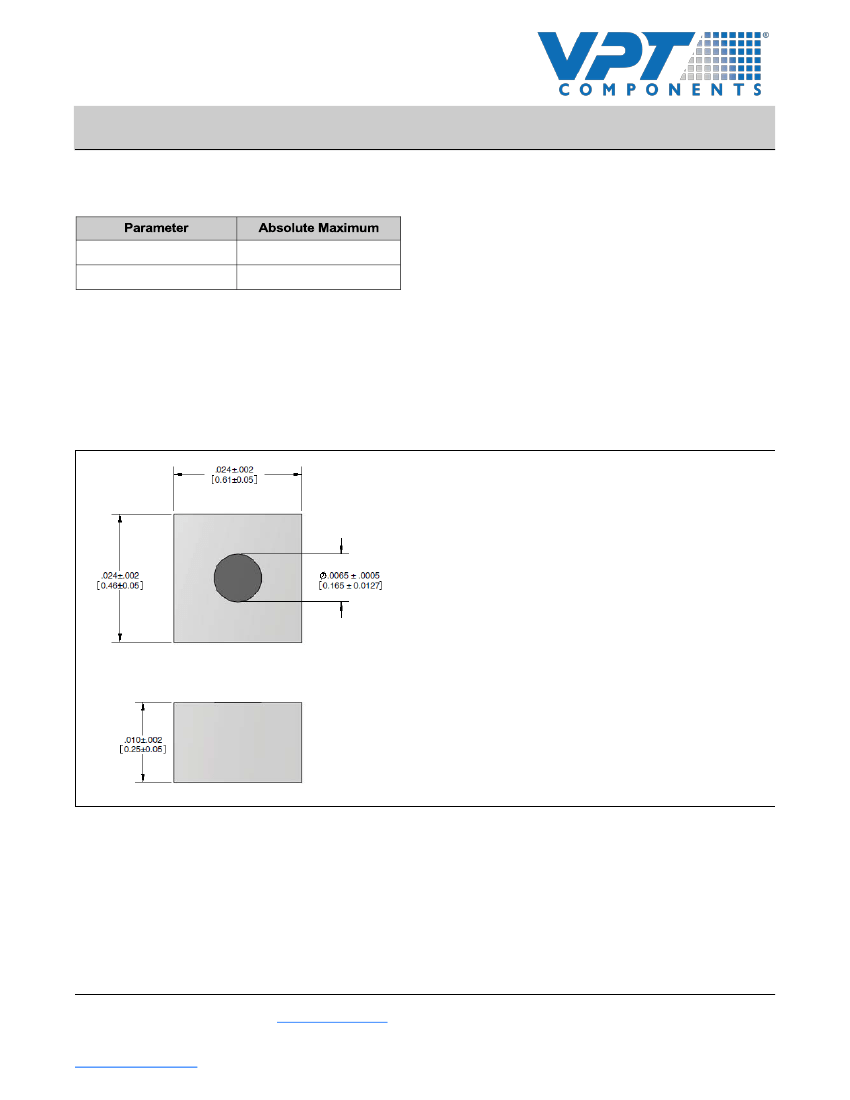

Die
Top: (anode) AL
Back: (cathode) Au
AL Thickness:
25,000 Å Minimum
Gold Thickness:
4,000 Å Minimum
Chip Thickness:
10 mils
Circuit Layout Data: For Zener operation, cathode must be
operated positive with respect to anode.
Metallization:
4
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
CD5283 thru CD5314 &
CD7048 thru CD7055
Current Regulator Diode Chips
Rev. V3
VPT COMPONENTS. ALL RIGHTS RESERVED.
Information in this document is provided in connection with VPT Components products. These materials are provided by
VPT Components as a service to its customers and may be used for informational purposes only. Except as provided in VPT
Components Terms and Conditions of Sale for such products or in any separate agreement related to this document, VPT
Components assumes no liability whatsoever. VPT Components assumes no responsibility for errors or omissions in these
materials. VPT Components may make changes to specifications and product descriptions at any time, without notice. VPT
Components makes no commitment to update the information and shall have no responsibility whatsoever for conflicts or
incompatibilities arising from future changes to its specifications and product descriptions. No license, express or implied,
by estoppels or otherwise, to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, RELATING TO
SALE AND/OR USE OF VPT COMPONENTS PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A
PARTICULAR PURPOSE, CONSEQUENTIAL OR INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PA-
TENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. VPT COMPONENTS FURTHER DOES NOT WARRANT THE
ACCURACY OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CON-TAINED WITHIN THESE
MATERIALS. VPT COMPONENTS SHALL NOT BE LIABLE FOR ANY SPECIAL, IN-DIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVE-NUES OR LOST PROFITS, WHICH MAY RESULT FROM THE USE
OF THESE MATERIALS.
VPT Components products are not intended for use in medical, lifesaving or life sustaining applications. VPT Components
customers using or selling VPT Components products for use in such applications do so at their own risk and agree to fully
indemnify VPT Components for any damages resulting from such improper use or sale.
5
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com
