PTC thermistors for
overcurrent protection
Leaded disks, coated, 230 V, lead-free series
Series/Type:
Date:
B598**
March 2016
© EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Overcurrent protection
Leaded disks, coated, 230 V, lead-free series
C850 ... C883
Applications
Overcurrent protection
Short circuit protection
Features
No intentional use of lead compounds
Lead concentration in the homogenous
materials lower than 0.1%
Tight resistance tolerance
Marking: Type, manufacturer's logo,
reference temperature in
°C
and date code
YYWW
UL approval to UL 1434 (file number
E69802)
VDE approval for selected types
(licence number 104843)
IECQ certificate for selected types
(file number 101-QA-2)
RoHS-compatible
Options
Thermistors with diameter w
≤11.0
mm are
also available on tape (to IEC 60286-2)
Delivery mode
Cardboard strips (standard)
Dimensional drawing
Dimensions (mm)
Type
C850
C860
C873
C875
C880
C883
w
max
13.5
11.0
9.0
9.0
6.5
6.5
h
max
17.0
14.5
12.5
12.5
10.0
10.0
l
min
35
35
35
35
35
35
∅d
0.6
0.6
0.6
0.6
0.6
0.6
General technical data
Max. operating voltage
Rated voltage
Switching cycles
Tolerance of R
R
Reference temperature
Operating temperature range
Operating temperature range
(T
A
= 60
°C)
V
max
V
R
N
∆R
R
T
ref
T
op
T
op
265
230
100
±20
120
40/+125
0/+60
V DC or V AC
V DC or V AC
%
°C
°C
°C
(T
ref
= 120
°C)
(typ.)
(V = 0)
(V = V
max
)
Electrical specifications and ordering codes
Type
I
R
I
S
I
Smax
(V = V
max
)
I
r
(typ.)
(V = V
max
)
mA
13
10
T
ref
R
R
(typ.)
°C
120
120
Ω
10
15
R
min
Approvals
Ordering code
mA mA A
C850 220 330 2.2
C860 170 260 1.5
Ω
6
9
X
X
IECQ
B59850C0120A570
B59860C0120A570
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 11
Overcurrent protection
Leaded disks, coated, 230 V, lead-free series
C850 ... C883
Type
I
R
I
S
I
Smax
(V = V
max
)
mA mA A
C873
C875
C880
C883
90 140 1.0
80 120 1.0
65 98 0.4
50 75 0.4
I
r
(typ.)
(V = V
max
)
mA
9
9
6
5
T
ref
R
R
(typ.)
°C
120
120
120
120
Ω
45
65
70
120
R
min
Approvals
Ordering code
Ω
27
39
42
72
X
X
X
X
IECQ
B59873C0120A570
B59875C0120A570
B59880C0120A570
B59883C0120A570
X
X
Reliability data
Test
Electrical endurance,
cycling
Electrical endurance,
constant
Damp heat
Standard
IEC 60738-1
IEC 60738-1
IEC 60738-1
Test conditions
Room temperature, I
Smax
; V
max
Number of cycles: 100
Storage at V
max
and T
op,max
(@ V
max
)
Test duration: 1000 h
Temperature of air: 40
°C
Relative humidity of air: 93%
Duration: 56 days
Test according to IEC 60068-2-78
T
1
= T
op,min
(0 V), T
2
= T
op,max
(0 V)
Number of cycles: 5
Test duration: 30 min
Test according to IEC 60068-2-14, test Na
Frequency range: 10 to 55 Hz
Displacement amplitude: 0.75 mm
Test duration: 3
×
2 h
Test according to IEC 60068-2-6, test Fc
Acceleration: 400 m/s
2
Pulse duration: 6 ms; 6
×
5000 pulses
Dry heat: T = T
op,max
(0 V)
Test duration: 16 h
Damp heat first cycle
Cold: T = T
op,min
(0 V)
Test duration: 2 h
Damp heat 5 cycles
Tests performed according to
IEC 60068-2-30
∆R
25
/R
25
< 25%
< 25%
< 10%
Rapid change
of temperature
IEC 60738-1
< 10%
Vibration
IEC 60738-1
< 5%
Shock
Climatic sequence
IEC 60738-1
IEC 60738-1
< 5%
< 10%
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 11
Overcurrent protection
Leaded disks, coated, 230 V, lead-free series
C850 ... C883

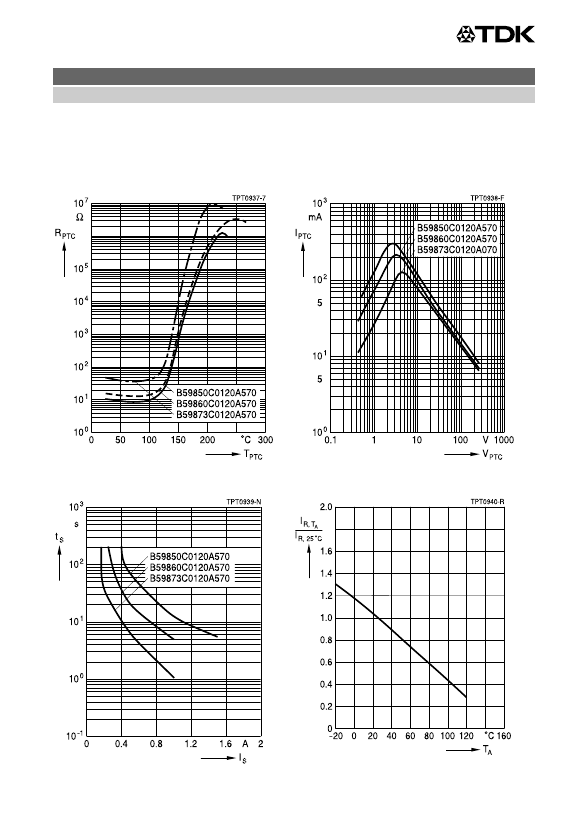

Characteristics (typical)
PTC resistance R
PTC
versus
PTC temperature T
PTC
(measured at low signal voltage)
PTC current I
PTC
versus PTC voltage V
PTC
(measured at 25
°C
in still air)
Switching time t
S
versus switching current I
S
(measured at 25
°C
in still air)
Rated current I
R
versus ambient temperature T
A
(measured in still air)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 11
Overcurrent protection
Leaded disks, coated, 230 V, lead-free series
C850 ... C883

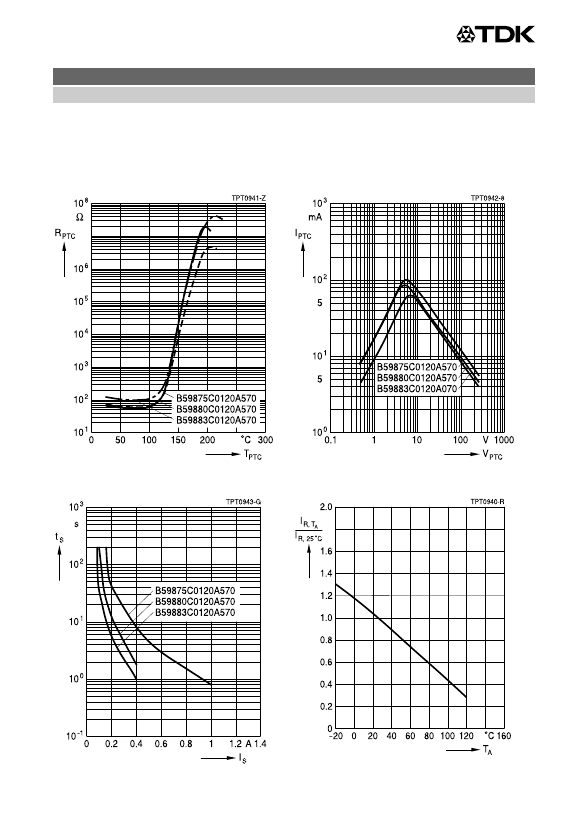

Characteristics (typical)
PTC resistance R
PTC
versus
PTC temperature T
PTC
(measured at low signal voltage)
PTC current I
PTC
versus PTC voltage V
PTC
(measured at 25
°C
in still air)
Switching time t
S
versus switching current I
S
(measured at 25
°C
in still air)
Rated current I
R
versus ambient temperature T
A
(measured in still air)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 11
