58358-703LF: DescriptionBoard Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, LEAD FREE; CategoryThe connector The connector; File Size213KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

58358-703LF Overview

Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.543 inch
subject depth	0.626 inch
body length	0.469 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P8
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact style	BLADE PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	58358
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.169 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

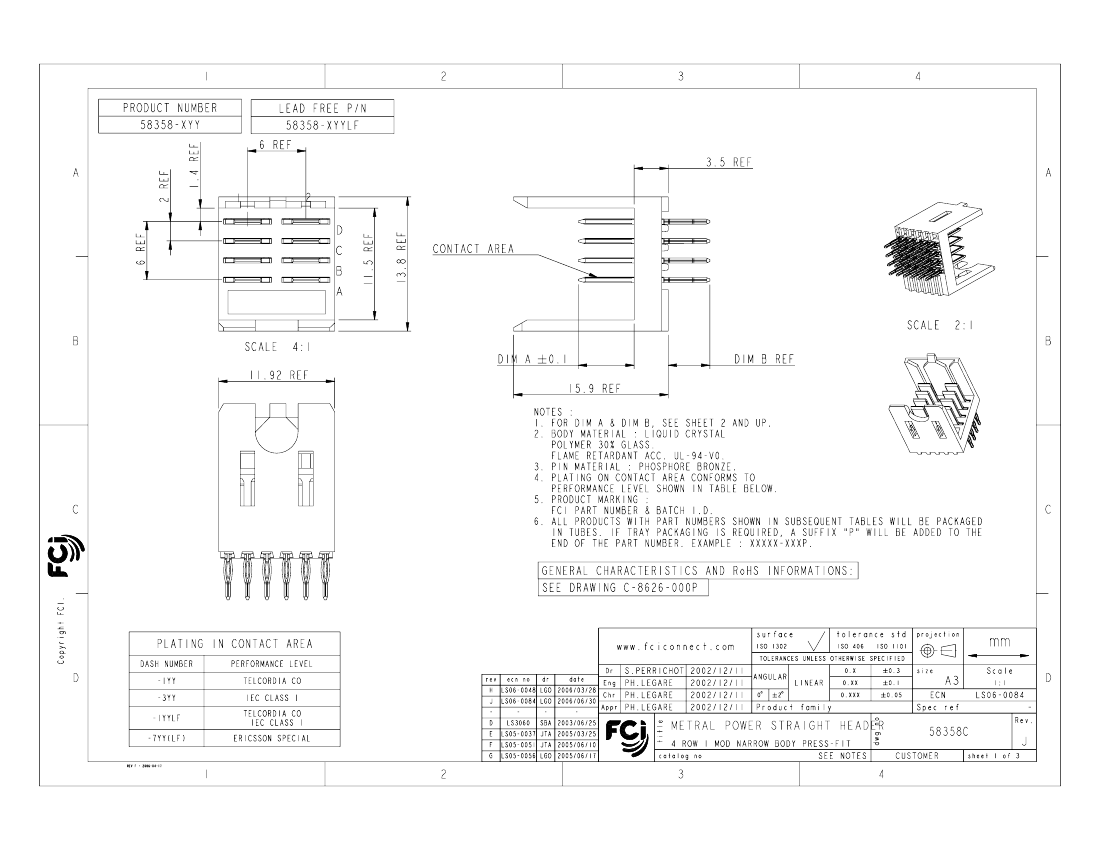

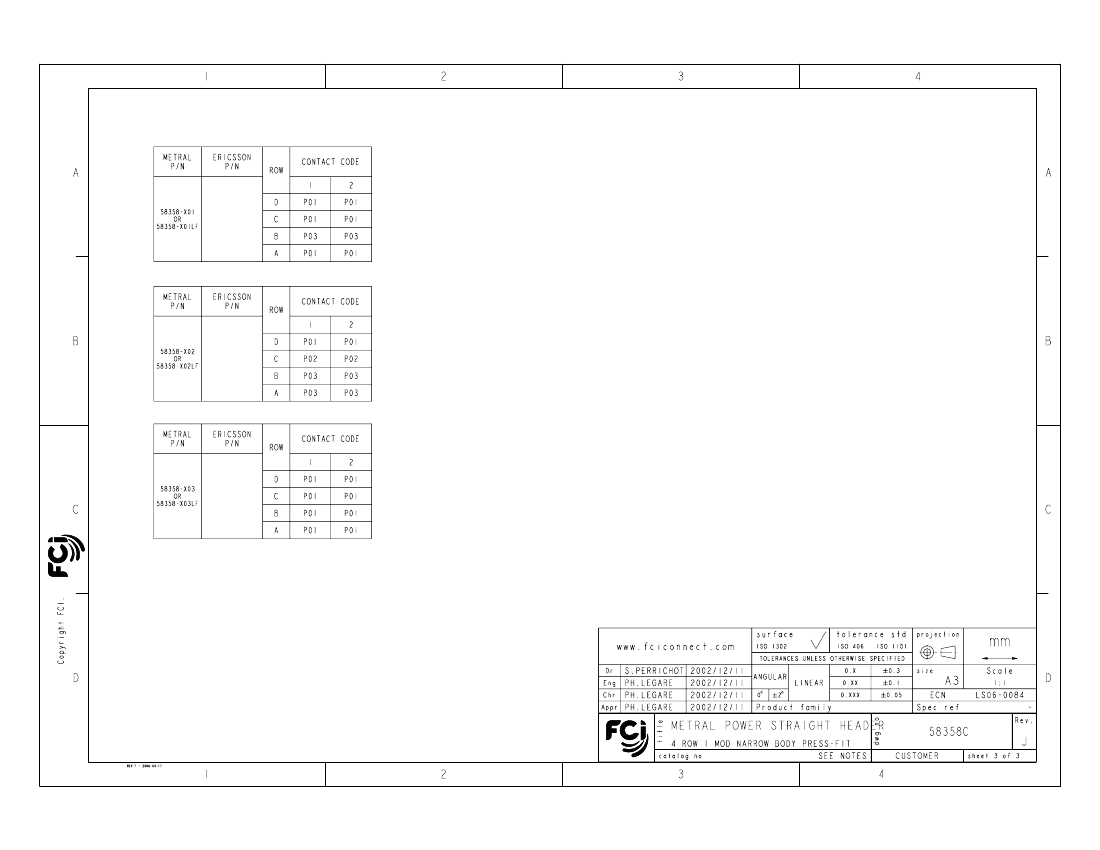

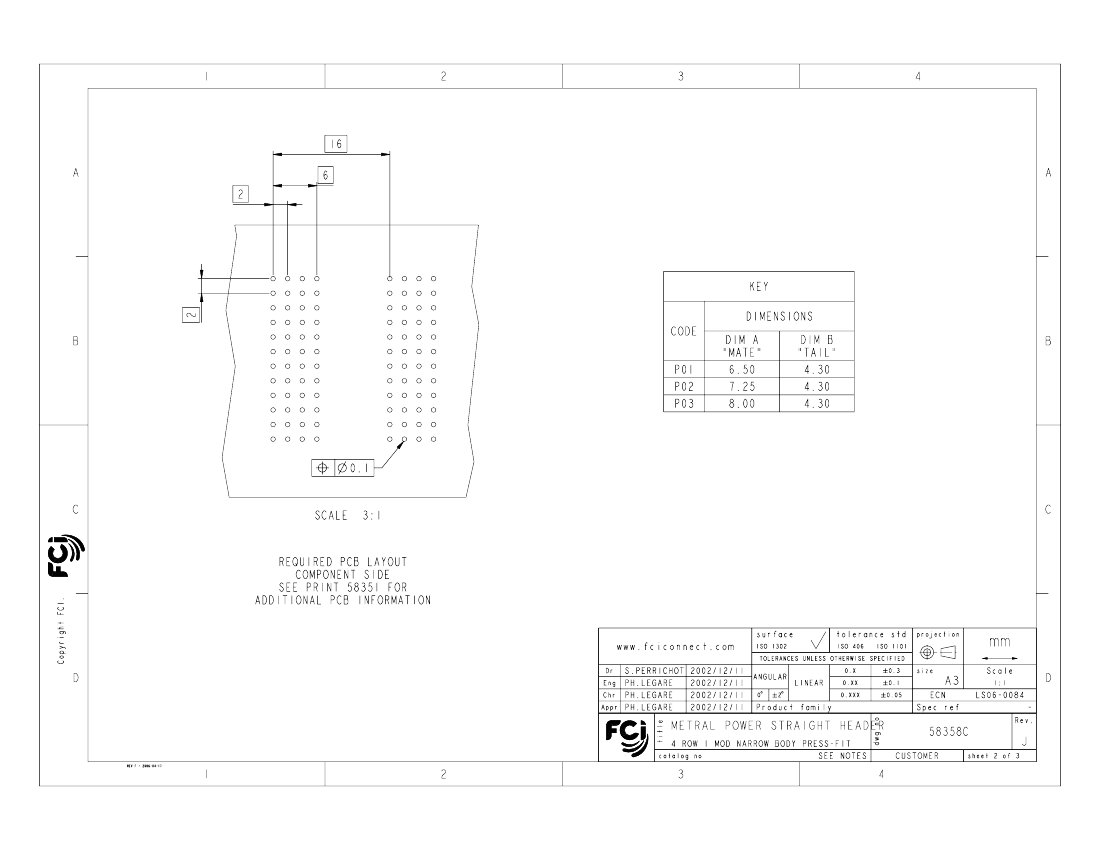

PDM: Rev:J

STATUS:

Released

Printed: Sep 29, 2009

.
