DG613AK/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG613AK/883

DG613AK/883: DescriptionSPST, 2 Func, 1 Channel, NMOS, CDIP16,; CategoryAnalog mixed-signal IC The signal circuit; File Size246KB，8 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

DG613AK/883 Overview

SPST, 2 Func, 1 Channel, NMOS, CDIP16,

DG613AK/883 Parametric

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-3 V
Number of channels	1
Number of functions	2
Number of terminals	16
Nominal off-state isolation	74 dB
On-state resistance matching specifications	2 Ω
Maximum on-state resistance (Ron)	45 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	0.005 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	25 ns
Maximum connection time	35 ns
technology	NMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

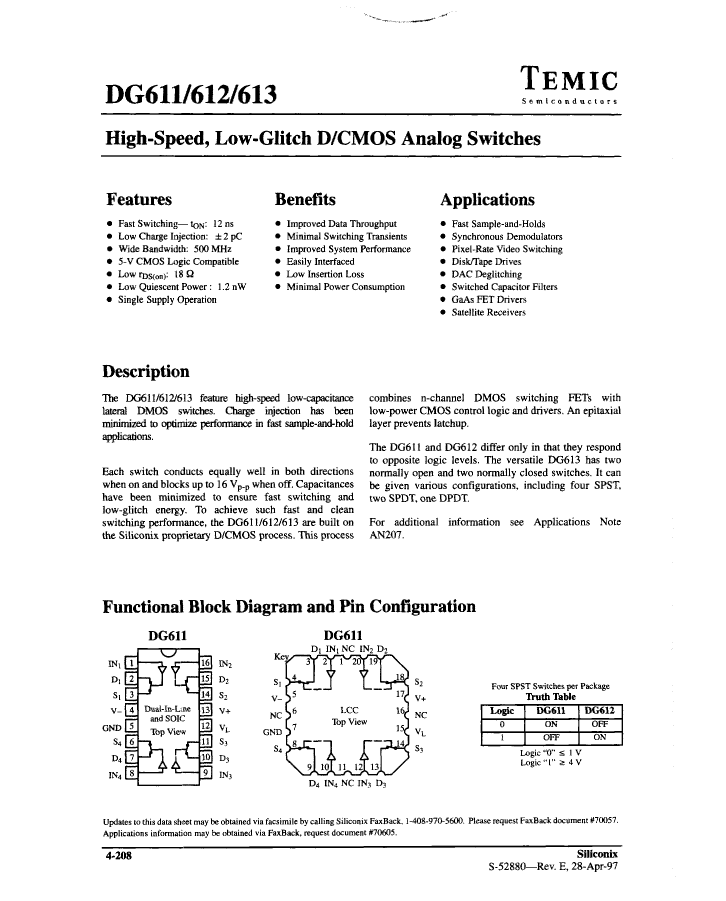

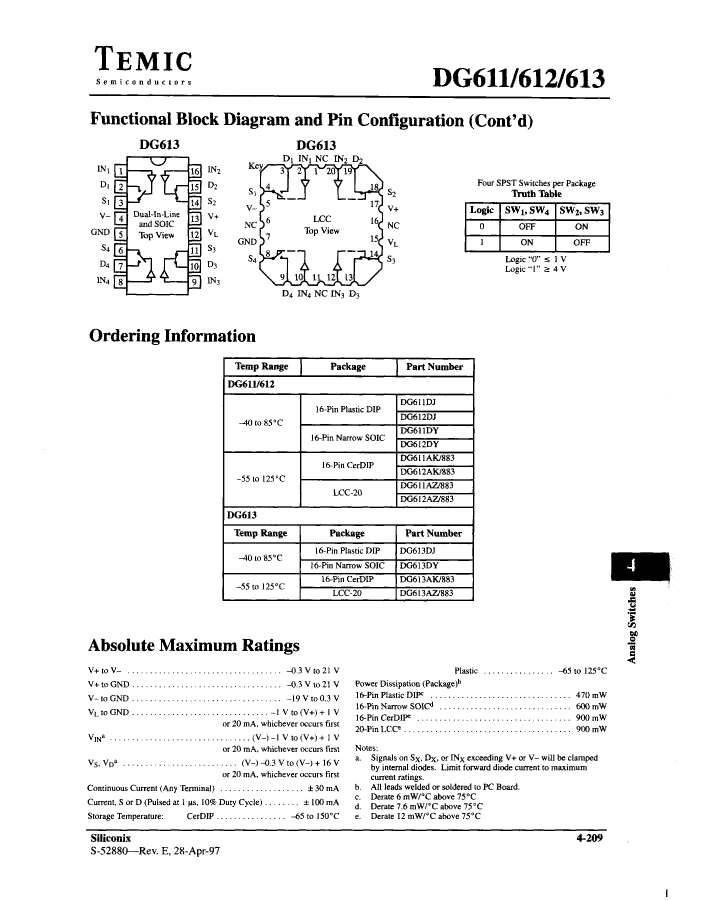

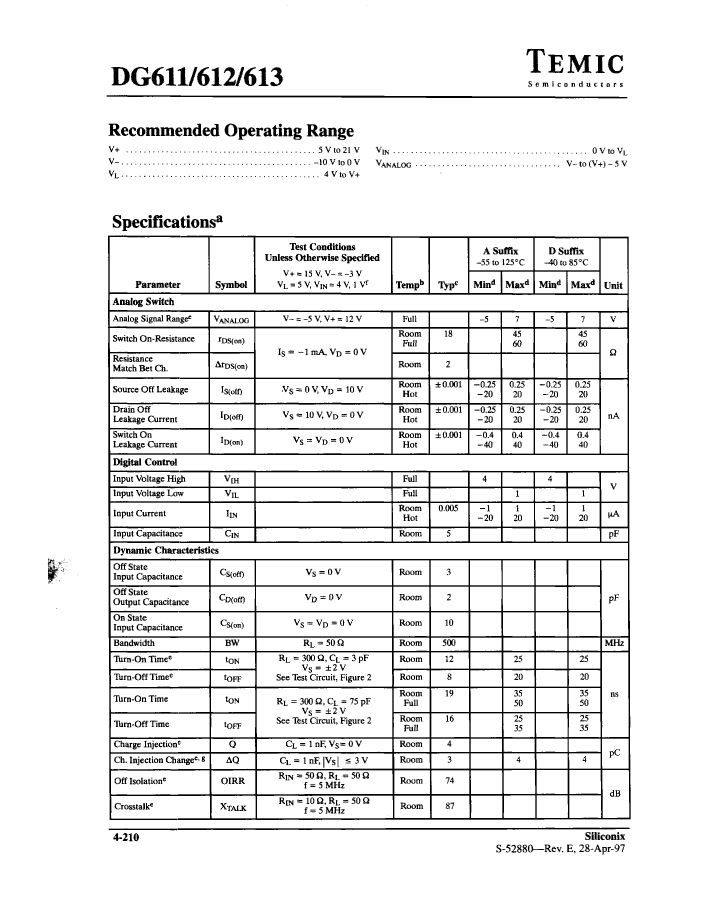

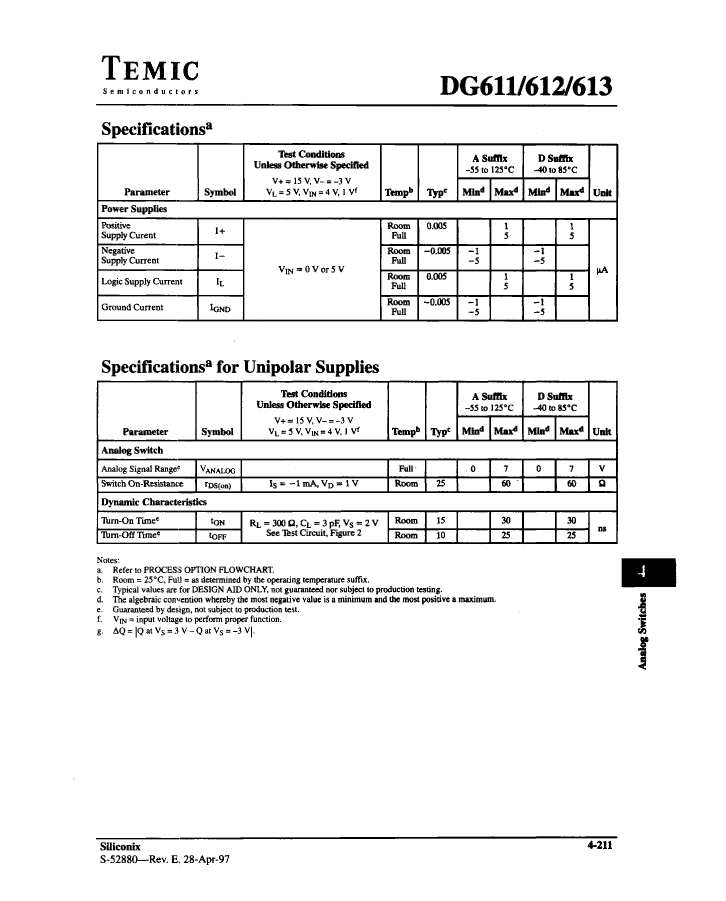

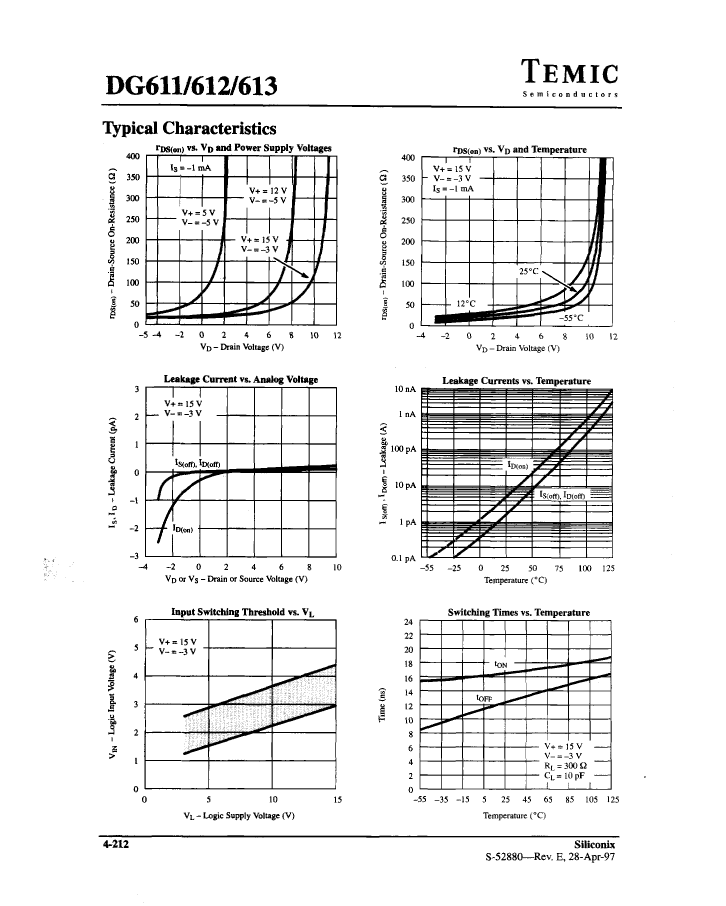

Preview

Download Datasheet

View All

DG613AK/883 Related Products

	DG613AK/883	DG611DY-T1	DG613AZ/883	DG612DY-T1	DG613DY	DG613DY-T1	DG613DJ
Description	SPST, 2 Func, 1 Channel, NMOS, CDIP16,	SPST, 4 Func, 1 Channel, NMOS, PDSO16,	SPST, 2 Func, 1 Channel, NMOS, CQCC20,	SPST, 4 Func, 1 Channel, NMOS, PDSO16,	SPST, 2 Func, 1 Channel, NMOS, PDSO16,	SPST, 2 Func, 1 Channel, NMOS, PDSO16,	SPST, 2 Func, 1 Channel, NMOS, CDIP16,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	R-GDIP-T16	R-PDSO-G16	S-CQCC-N20	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-3 V	-3 V	-3 V	-3 V	-3 V	-3 V	-3 V
Number of channels	1	1	1	1	1	1	1
Number of functions	2	4	2	4	2	2	2
Number of terminals	16	16	20	16	16	16	16
Nominal off-state isolation	74 dB	74 dB	74 dB	74 dB	74 dB	74 dB	74 dB
On-state resistance matching specifications	2 Ω	2 Ω	2 Ω	2 Ω	2 Ω	2 Ω	2 Ω
Maximum on-state resistance (Ron)	45 Ω	45 Ω	45 Ω	45 Ω	45 Ω	45 Ω	45 Ω
Maximum operating temperature	125 °C	85 °C	125 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	0.005 mA	0.005 mA	0.005 mA	0.005 mA	0.005 mA	0.005 mA	0.005 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	YES	YES	YES	YES	YES	NO
Maximum disconnect time	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns
Maximum connection time	35 ns	35 ns	35 ns	35 ns	35 ns	35 ns	35 ns
technology	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	NO LEAD	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL
Maker	TEMIC	-	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC
