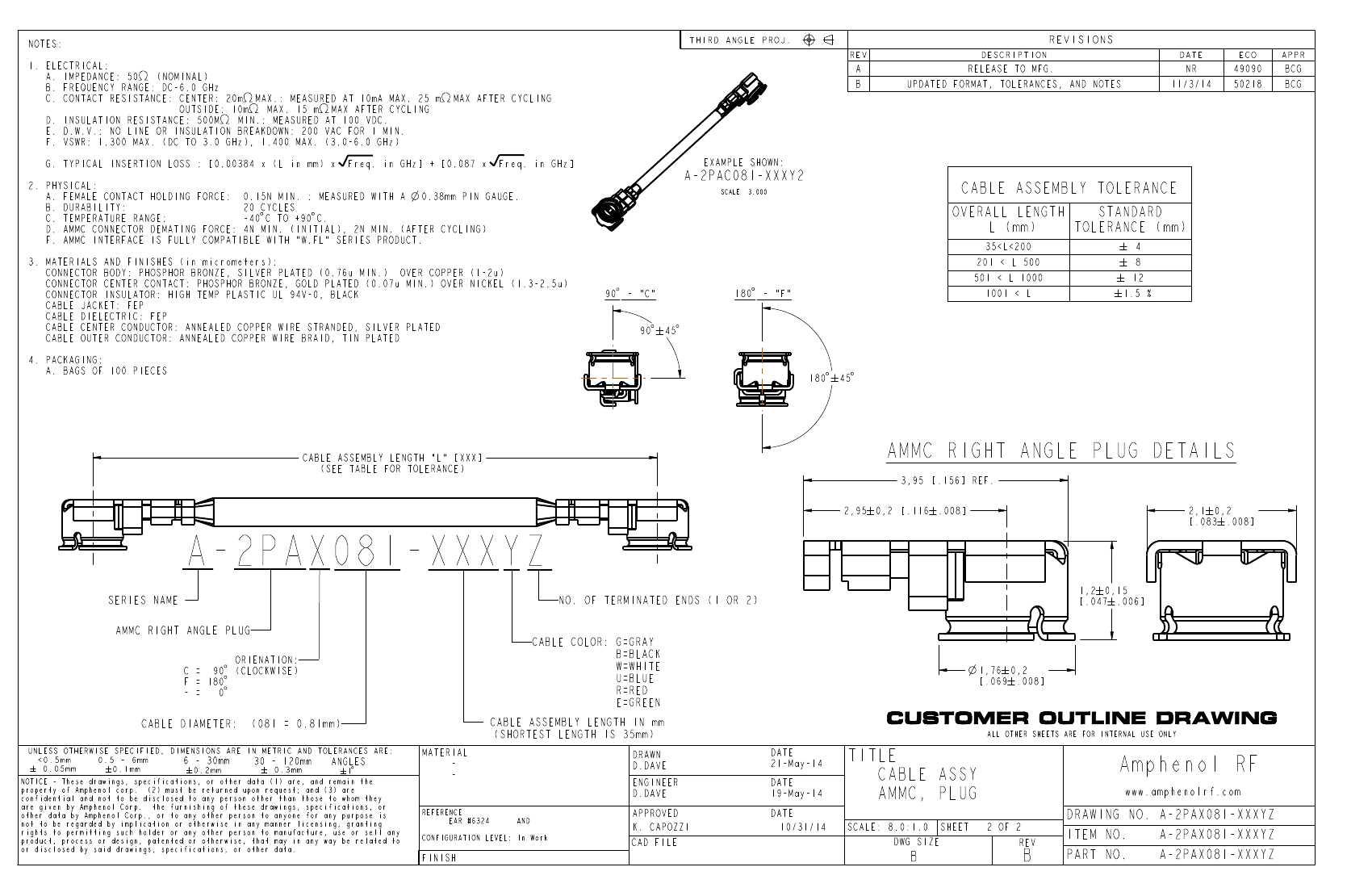

NOTES:
1. ELECTRICAL:
A. IMPEDANCE: 50
(NOMINAL)
B. FREQUENCY RANGE: DC-6.0 GHz
C. CONTACT RESISTANCE: CENTER: 20m
MAX.: MEASURED AT 10mA MAX. 25 m
OUTSIDE: 10m
MAX. 15 m MAX AFTER CYCLING
D. INSULATION RESISTANCE: 500M
MIN.: MEASURED AT 100 VDC.
E. D.W.V.: NO LINE OR INSULATION BREAKDOWN: 200 VAC FOR 1 MIN.
F. VSWR: 1.300 MAX. (DC TO 3.0 GHz), 1.400 MAX. (3.0-6.0 GHz)
G. TYPICAL INSERTION LOSS : [0.00384 x (L in mm) x
THIRD ANGLE PROJ.
REV
REVISIONS
A
B
RELEASE TO MFG.
DESCRIPTION
DATE
MAX AFTER CYCLING
UPDATED FORMAT, TOLERANCES, AND NOTES
11/3/14
NR
49090
50218
ECO
APPR
BCG
BCG
Freq. in GHz] + [0.087 x
Freq. in GHz]
2. PHYSICAL:
A. FEMALE CONTACT HOLDING FORCE: 0.15N MIN. : MEASURED WITH A
0.38mm PIN GAUGE.
B. DURABILITY:
20 CYCLES
C. TEMPERATURE RANGE:
-40 C TO +90 C.
$
$
D. AMMC CONNECTOR DEMATING FORCE: 4N MIN. (INITIAL), 2N MIN. (AFTER CYCLING)
F. AMMC INTERFACE IS FULLY COMPATIBLE WITH "W.FL" SERIES PRODUCT.
3. MATERIALS AND FINISHES (in micrometers):
CONNECTOR BODY: PHOSPHOR BRONZE, SILVER PLATED (0.76u MIN.) OVER COPPER
CONNECTOR CENTER CONTACT: PHOSPHOR BRONZE, GOLD PLATED (0.07u MIN.) OVER
CONNECTOR INSULATOR: HIGH TEMP PLASTIC UL 94V-0, BLACK
CABLE JACKET: FEP
CABLE DIELECTRIC: FEP
CABLE CENTER CONDUCTOR: ANNEALED COPPER WIRE STRANDED, SILVER PLATED
CABLE OUTER CONDUCTOR: ANNEALED COPPER WIRE BRAID, TIN PLATED
4. PACKAGING:
A. BAGS OF 100 PIECES
(1-2u)
NICKEL (1.3-2.5u)
A-2PAC081-XXXY2
SCALE
3.000
EXAMPLE SHOWN:
OVERALL LENGTH
STANDARD
L (mm)
TOLERANCE (mm)
501 < L 1000
1001 < L
201 < L 500
35<L<200
# 12
# 8
# 4
CABLE ASSEMBLY TOLERANCE
90 $- "C"
90 $#
45 $
180 $- "F"
#1.5 %
180 $#
45 $
CABLE ASSEMBLY LENGTH "L" [XXX]
(SEE TABLE FOR TOLERANCE)
AMMC RIGHT ANGLE PLUG DETAILS
3,95 [.156] REF.
2,95 #
0,2 [.116 #
.008 ]
2,1 #
0,2
[.083 #
.008 ]
A-2PAX081-XXXYZ
SERIES NAME
AMMC RIGHT ANGLE PLUG
ORIENATION:
C = 90 $(CLOCKWISE)
F = 180 $
- =
0 $
NO. OF TERMINATED ENDS (1 OR 2)
CABLE COLOR: G=GRAY
B=BLACK
W=WHITE
U=BLUE
R=RED
E=GREEN
CABLE ASSEMBLY LENGTH IN mm
(SHORTEST LENGTH IS 35mm)
MATERIAL
-
-
REFERENCE
EAR #6324
1,2 #
0,15
[.047 #
.006 ]
1,76 #
0,2
[.069 #
.008 ]
CABLE DIAMETER:
(081 = 0.81mm)
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
# 0.05mm
#
0.1mm
# 0.3mm
#
0.2mm
# $
1
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
DRAWN
D.DAVE
ENGINEER
D.DAVE
AND
DATE
21-May-14
DATE
19-May-14
DATE
10/31/14
CONFIGURATION LEVEL: In Work
FINISH
CAD FILE
APPROVED
K. CAPOZZI
TITLE
CABLE ASSY
AMMC, PLUG
SCALE: 8.0:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO. A-2PAX081-XXXYZ
B
REV
B
ITEM NO.
PART NO.
A-2PAX081-XXXYZ
A-2PAX081-XXXYZ
