50085-0805N-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 50085-0805N-001

50085-0805N-001: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.024 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size152KB，1 Pages; ManufacturerAces Electronics Co., Ltd.

Download Datasheet Parametric Compare View All

50085-0805N-001 Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.024 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

50085-0805N-001 Parametric

Parameter Name	Attribute value
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.22 inch
subject depth	0.154 inch
body length	1.205 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	50085
Plug contact pitch	0.024 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.6896 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
Base Number Matches	1

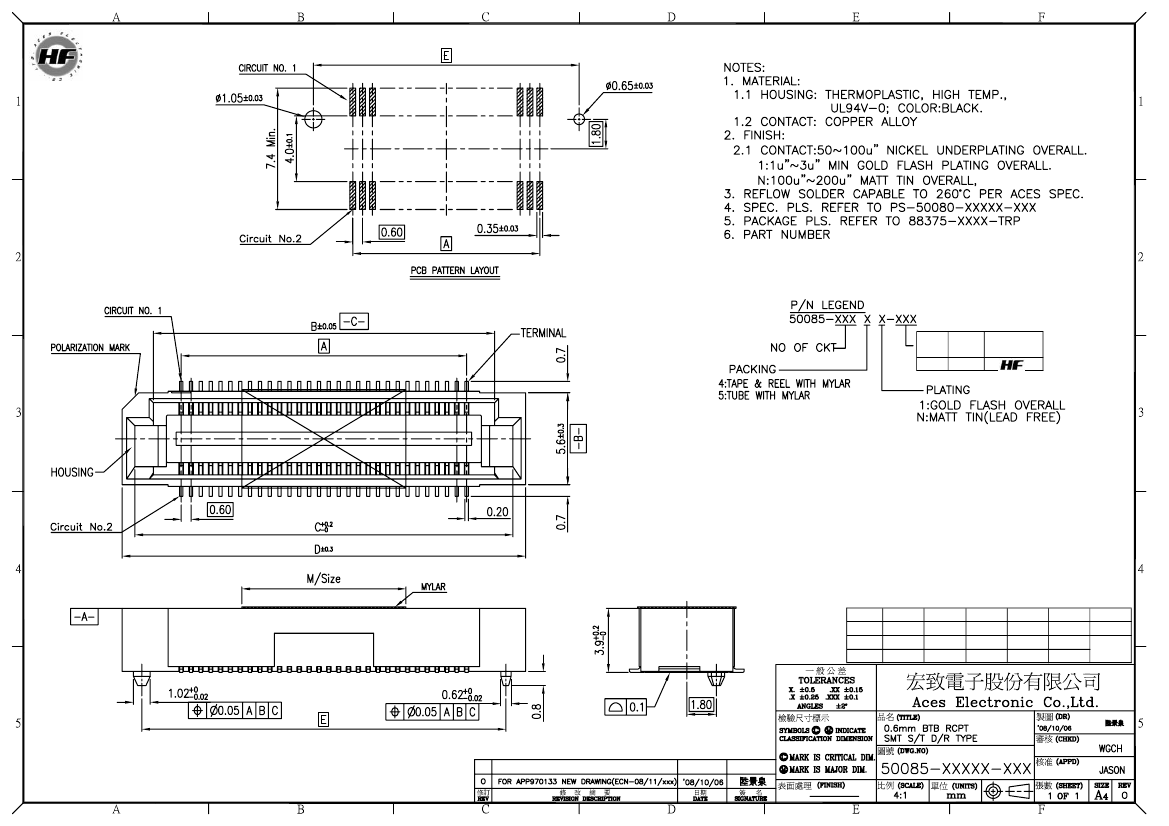

Preview

Download Datasheet

View All

XXX

001

Housing

Halogen Free

Color

Black

CKT

100

Dim A

23.4

26.4

29.4

Dim B

26.8

29.8

32.8

Dim C

29.05

32.05

35.05

Dim D

30.6

33.6

36.6

Dim E

28.2

31.2

34.2

M/Size

10*6

15*6
