HM2P66PD5115E9LF datasheet, PDF

HM2P66PD5115E9LF: DescriptionBoard Connector, 128 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size355KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P66PD5115E9LF Overview

Board Connector, 128 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	18 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	128
UL Flammability Code	94V-0
Base Number Matches	1

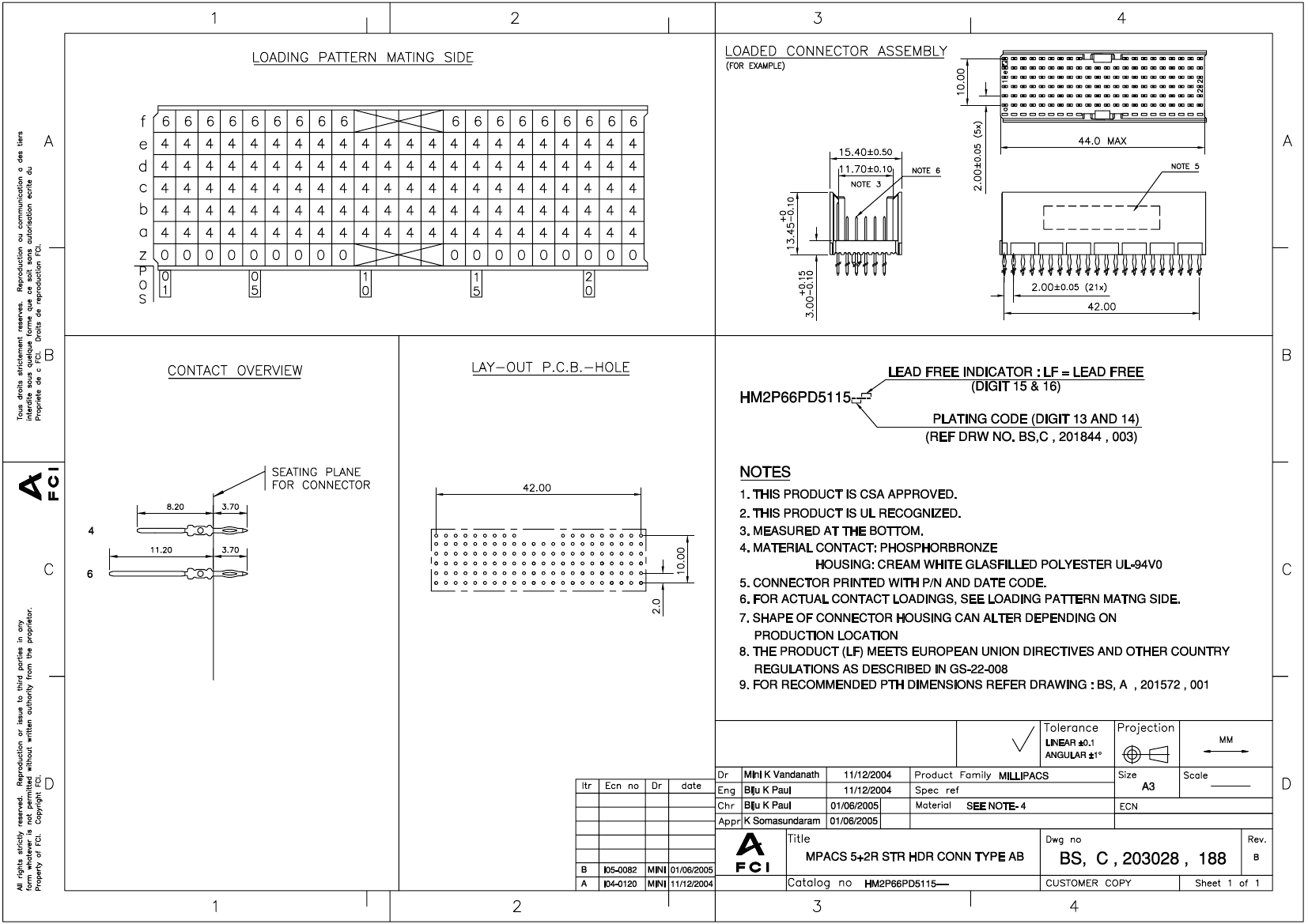

PDM: Rev:B

STATUS:

Released

Printed: Dec 03, 2007

	HM2P66PD5115E9LF	HM2P66PD5115E9	HM2P66PD5115Z1	HM2P66PD5115Z1LF
Description	Board Connector, 128 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 128 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 128 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 128 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	18 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	18 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	18 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	18 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	MATTE TIN	TIN LEAD	TIN LEAD	MATTE TIN
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e0	e0	e3
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	6	6	6	6
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	128	128	128	128
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	Amphenol	-	Amphenol
Base Number Matches	1	1	1	-
