BAV70GS08 datasheet, PDF - EEWORLD Datasheet

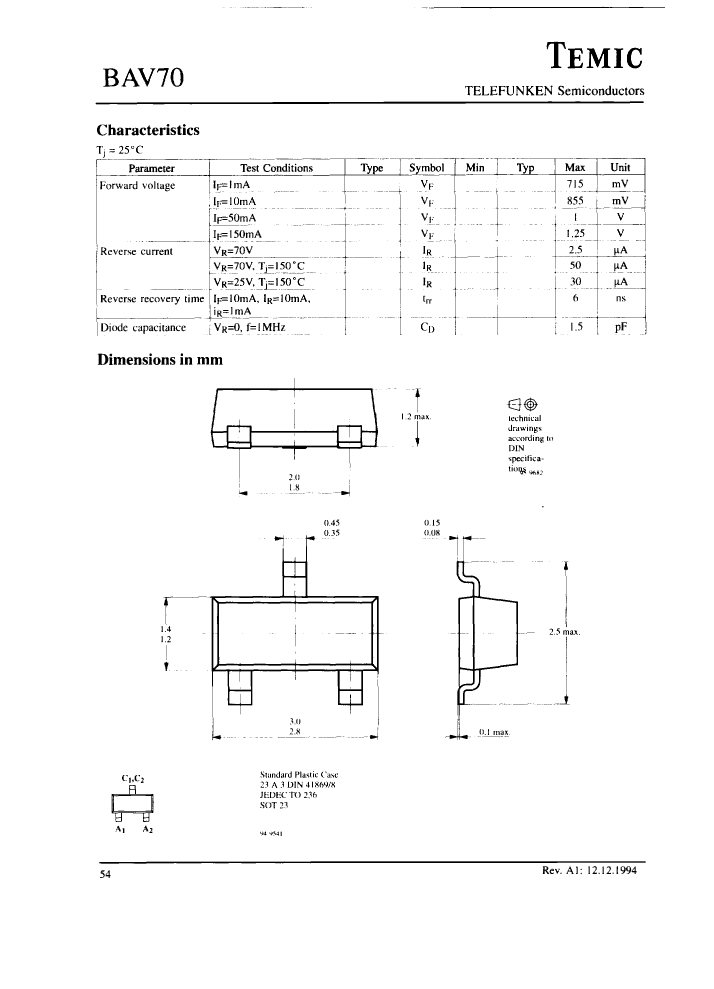

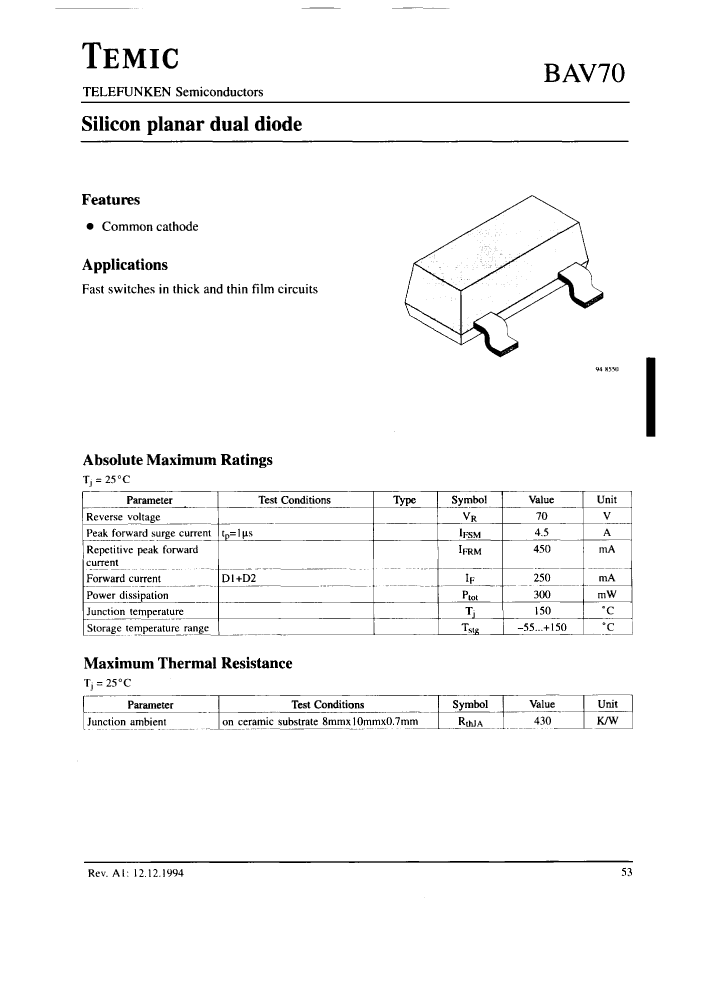

BAV70GS08: DescriptionRectifier Diode, 2 Element, 0.125A, Silicon,; CategoryDiscrete semiconductor diode; File Size38KB，2 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

BAV70GS08 Overview

Rectifier Diode, 2 Element, 0.125A, Silicon,

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Other features	FAST SWITCHES
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PDSO-G3
Maximum non-repetitive peak forward current	4.5 A
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.125 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.3 W
Certification status	Not Qualified
Maximum reverse current	2.5 µA
Maximum reverse recovery time	0.006 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	BAV70GS08	BAV70GS18
Description	Rectifier Diode, 2 Element, 0.125A, Silicon,	Rectifier Diode, 2 Element, 0.125A, Silicon,
Maker	TEMIC	TEMIC
Reach Compliance Code	unknown	unknown
Other features	FAST SWITCHES	FAST SWITCHES
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Maximum non-repetitive peak forward current	4.5 A	4.5 A
Number of components	2	2
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Maximum output current	0.125 A	0.125 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.3 W	0.3 W
Certification status	Not Qualified	Not Qualified
Maximum reverse current	2.5 µA	2.5 µA
Maximum reverse recovery time	0.006 µs	0.006 µs
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Base Number Matches	1	1
