MS3474L16-23P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MS3474L16-23P

MS3474L16-23P: DescriptionMIL Series Connector, 23 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS3474L16-23P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS3474L16-23P	-	-	View	Buy Now

MS3474L16-23P Overview

MIL Series Connector, 23 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

MS3474L16-23P Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-26482, COMPATIBLE CONTACTS: M39029/4-110; M39029/4-111
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	16
Termination type	CRIMP
Total number of contacts	23
Base Number Matches	1

Preview

Download Datasheet

View All

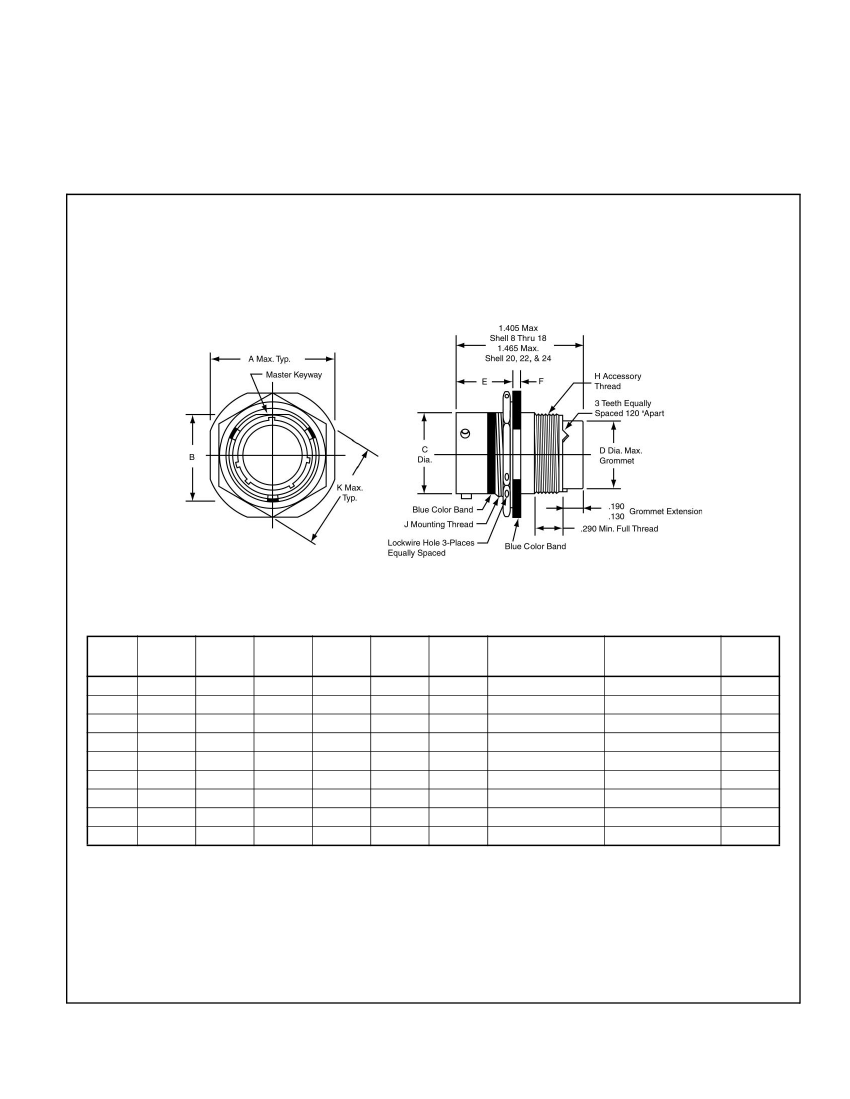

Miniature Cylindrical MIL-C-26482, Series 2

MS3474

jam nut receptacle

Receptacle Shell, Jam Nut Mount,

Bayonet Coupling

Military No. MS3474

Amphenol/Matrix No. MB14

To complete order number see how to order, page 14.

Accessory Thread

Class 2A

Mounting Thread

Class 2A

Shell

Size

Max.

±.005

C Dia.

±.003

D Dia.

Max.

.954

1.078

1.266

1.391

1.516

1.641

1.828

1.954

2.078

.525

.650

.813

.937

1.061

1.186

1.311

1.436

1.561

.471

.588

.748

.873

.998

1.123

1.248

1.373

1.498

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

.707/.658

.772/.721

.113/.086

.148/.096

.5000-20 UNF

.6250-24 UNF

.7500-20 UNEF

.8750-20 UNEF

1.0000-20 UNEF

1.0625-18 UNEF

1.1875-18 UNEF

1.3125-18 UNEF

1.4375-18 UNEF

.5625-24 UNEF

.6875-24 UNEF

.8750-20 UNEF

1.0000-20 UNEF

1.1250-18 UNEF

1.2500-18 UNEF

1.3750-18 UNEF

1.5000-18 UNEF

1.6250-18 UNEF

.767

.892

1.079

1.205

1.329

1.455

1.579

1.705

1.829
