54ABT821/B3A

Description
D Flip-Flop, 10-Func, Positive Edge Triggered, CQCC28
Categorylogic    logic
File Size312KB,6 Pages
ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.)
Websitehttps://www.nxp.com/
Download Datasheet Parametric Compare View All

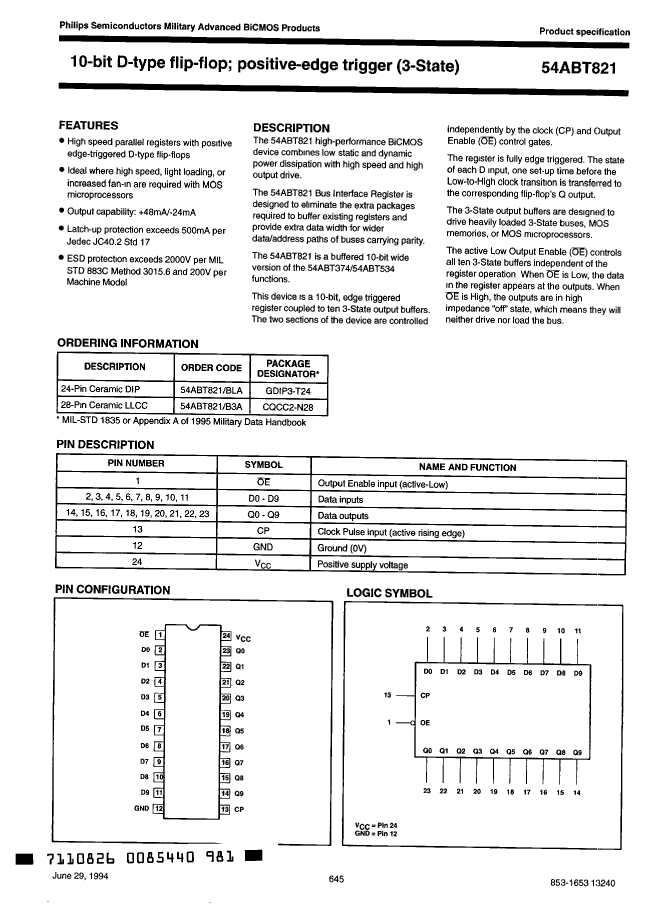

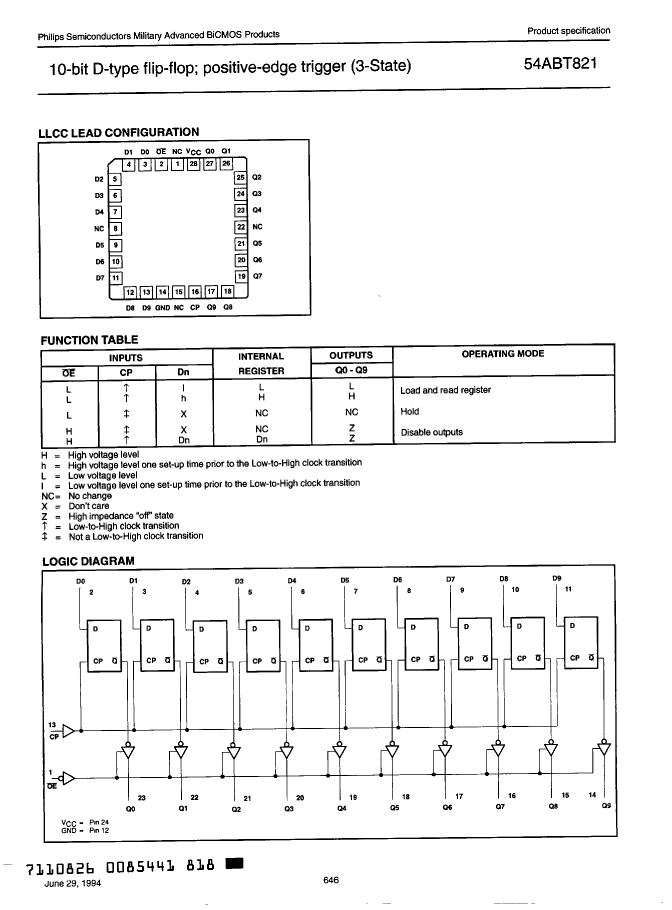

54ABT821/B3A Overview

D Flip-Flop, 10-Func, Positive Edge Triggered, CQCC28

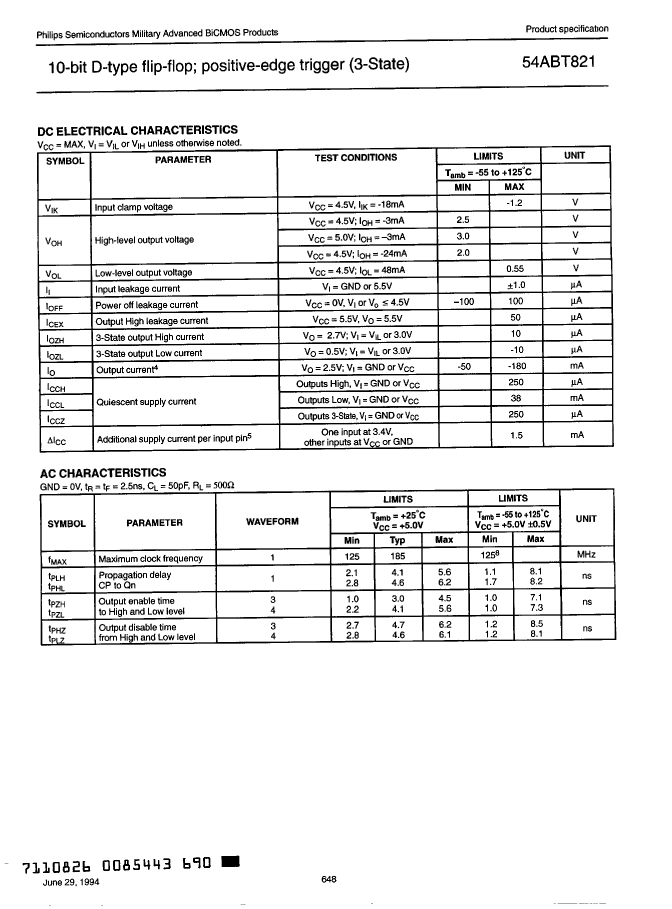

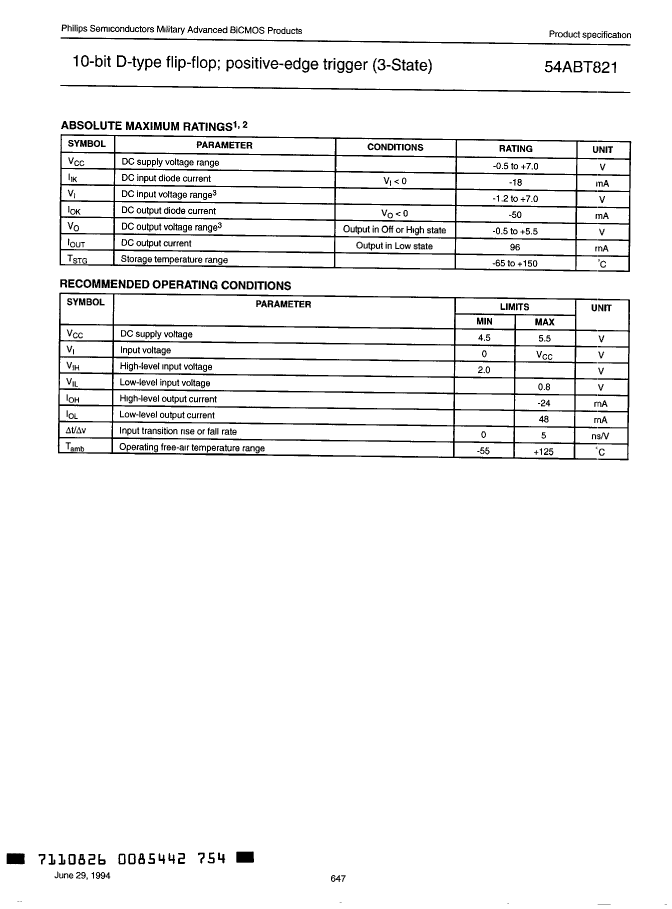

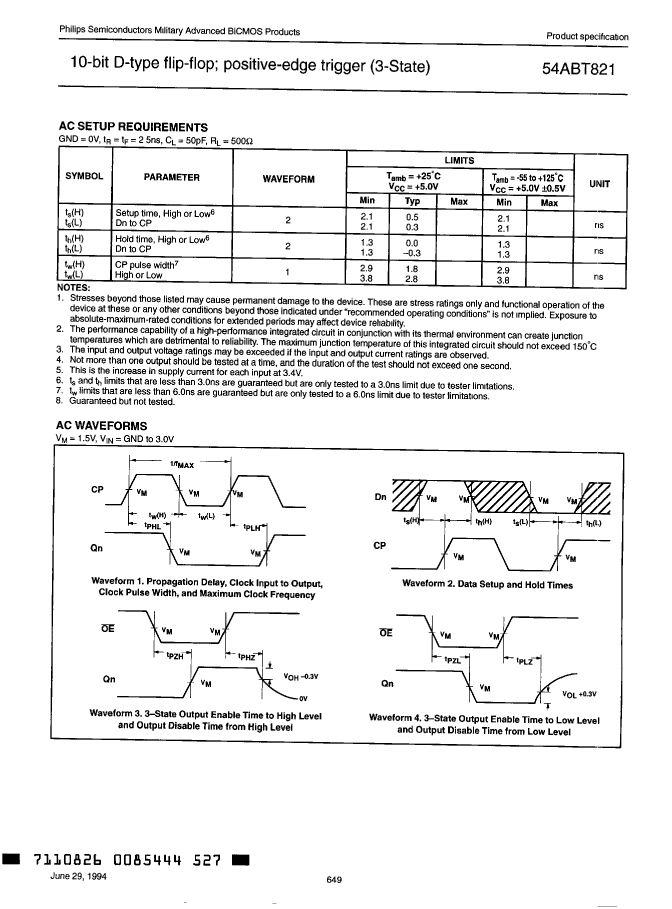

54ABT821/B3A Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPhilips Semiconductors (NXP Semiconductors N.V.)
package instructionQCCN, LCC28,.45SQ
Reach Compliance Codeunknown
JESD-30 codeS-XQCC-N28
JESD-609 codee0
Logic integrated circuit typeD FLIP-FLOP
MaximumI(ol)0.048 A
Number of functions10
Number of terminals28
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Package body materialCERAMIC
encapsulated codeQCCN
Encapsulate equivalent codeLCC28,.45SQ
Package shapeSQUARE
Package formCHIP CARRIER
power supply5 V
Maximum supply current (ICC)38 mA
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Trigger typePOSITIVE EDGE
Base Number Matches1
This Material Copyrighted By Its Respective Manufacturer

54ABT821/B3A Related Products

54ABT821/B3A 54ABT821/BLA
Description D Flip-Flop, 10-Func, Positive Edge Triggered, CQCC28 D Flip-Flop, 10-Func, Positive Edge Triggered, CDIP24
Is it Rohs certified? incompatible incompatible
Maker Philips Semiconductors (NXP Semiconductors N.V.) Philips Semiconductors (NXP Semiconductors N.V.)
package instruction QCCN, LCC28,.45SQ DIP, DIP24,.3
Reach Compliance Code unknown unknown
JESD-30 code S-XQCC-N28 R-XDIP-T24
JESD-609 code e0 e0
Logic integrated circuit type D FLIP-FLOP D FLIP-FLOP
MaximumI(ol) 0.048 A 0.048 A
Number of functions 10 10
Number of terminals 28 24
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output characteristics 3-STATE 3-STATE
Package body material CERAMIC CERAMIC
encapsulated code QCCN DIP
Encapsulate equivalent code LCC28,.45SQ DIP24,.3
Package shape SQUARE RECTANGULAR
Package form CHIP CARRIER IN-LINE
power supply 5 V 5 V
Maximum supply current (ICC) 38 mA 38 mA
Certification status Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Nominal supply voltage (Vsup) 5 V 5 V
surface mount YES NO
Temperature level MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm
Terminal location QUAD DUAL
Trigger type POSITIVE EDGE POSITIVE EDGE
Base Number Matches 1 1
