P83C504IBP datasheet, PDF - EEWORLD Datasheet

P83C504IBP: DescriptionMicrocontroller, 8-Bit, MROM, 8051 CPU, 24MHz, CMOS, PDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，22 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric View All

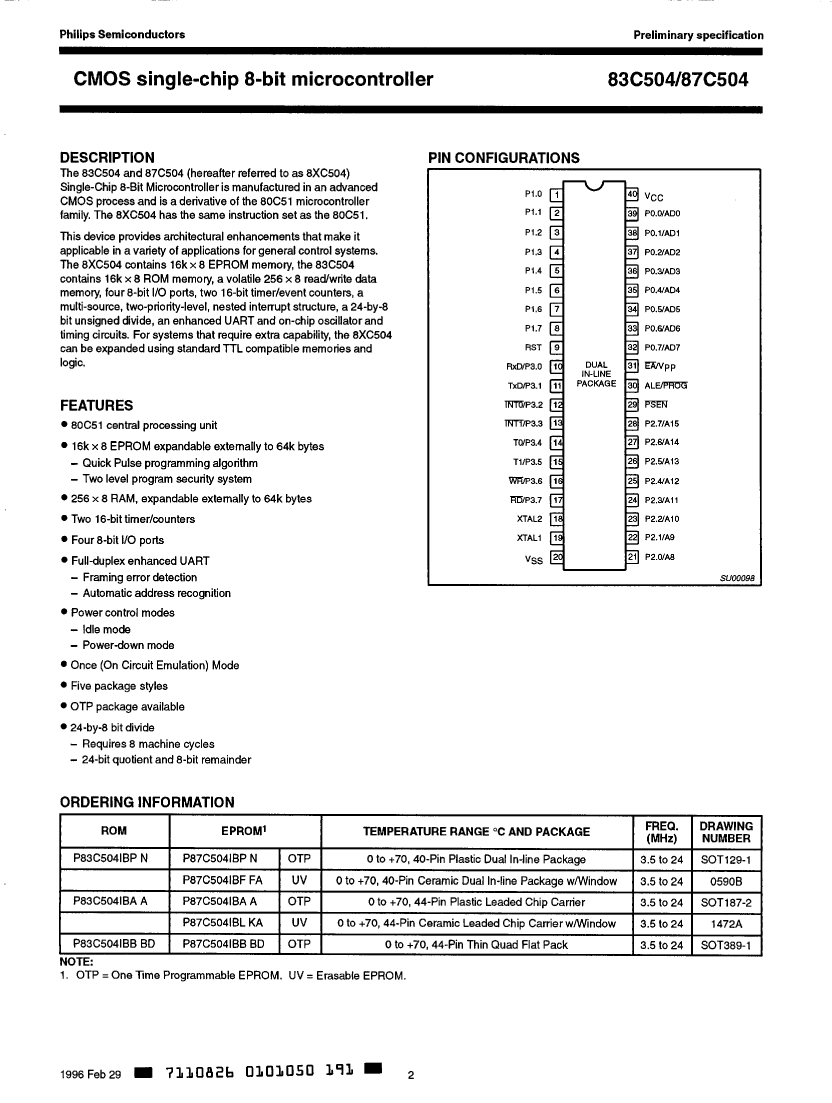

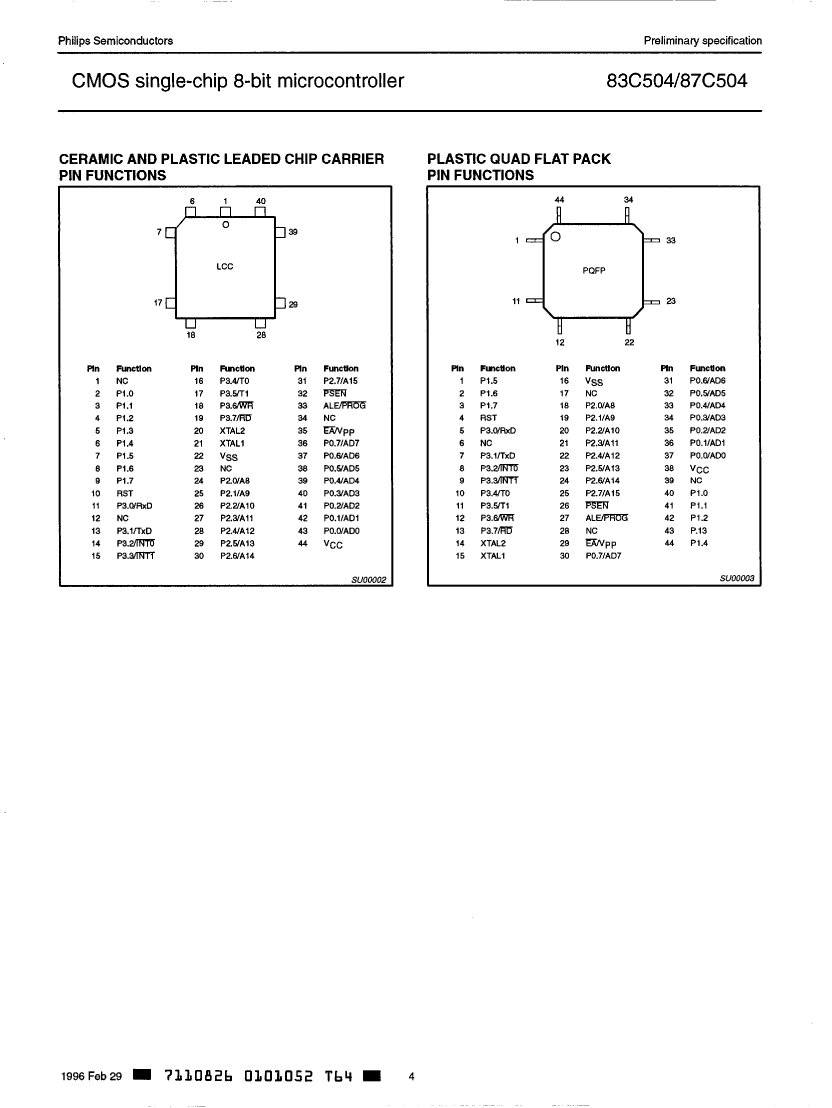

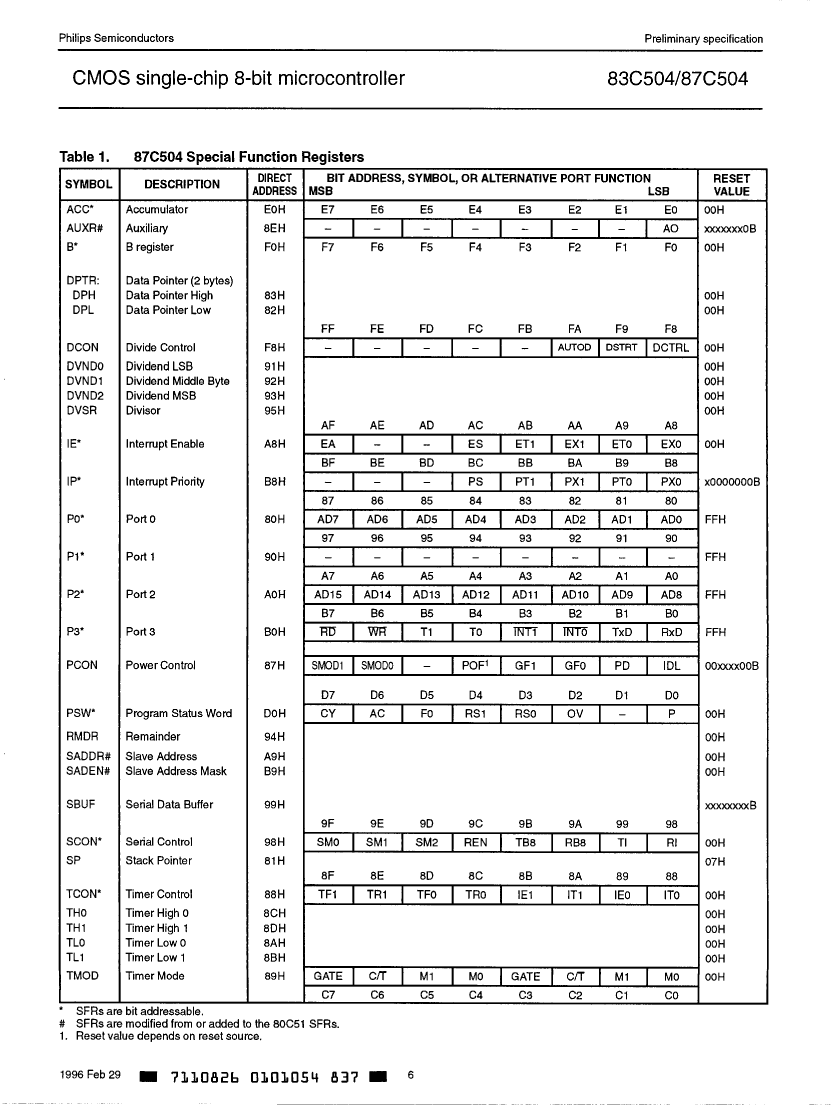

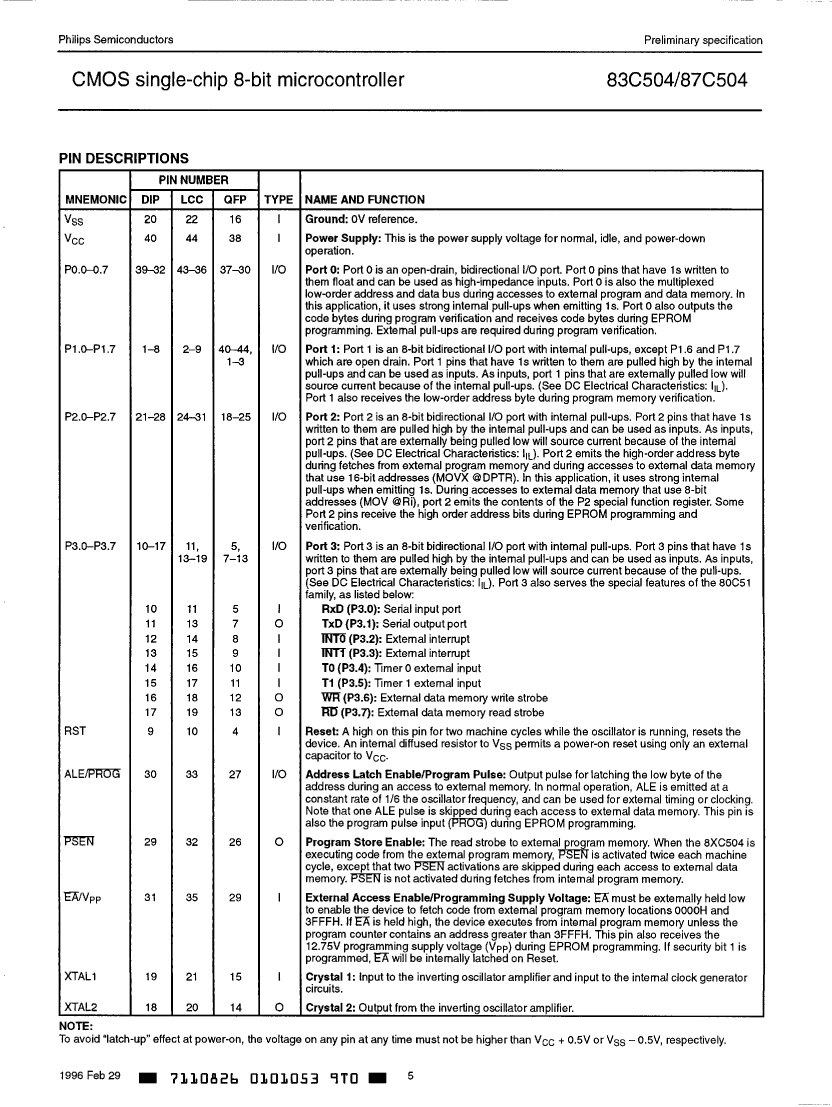

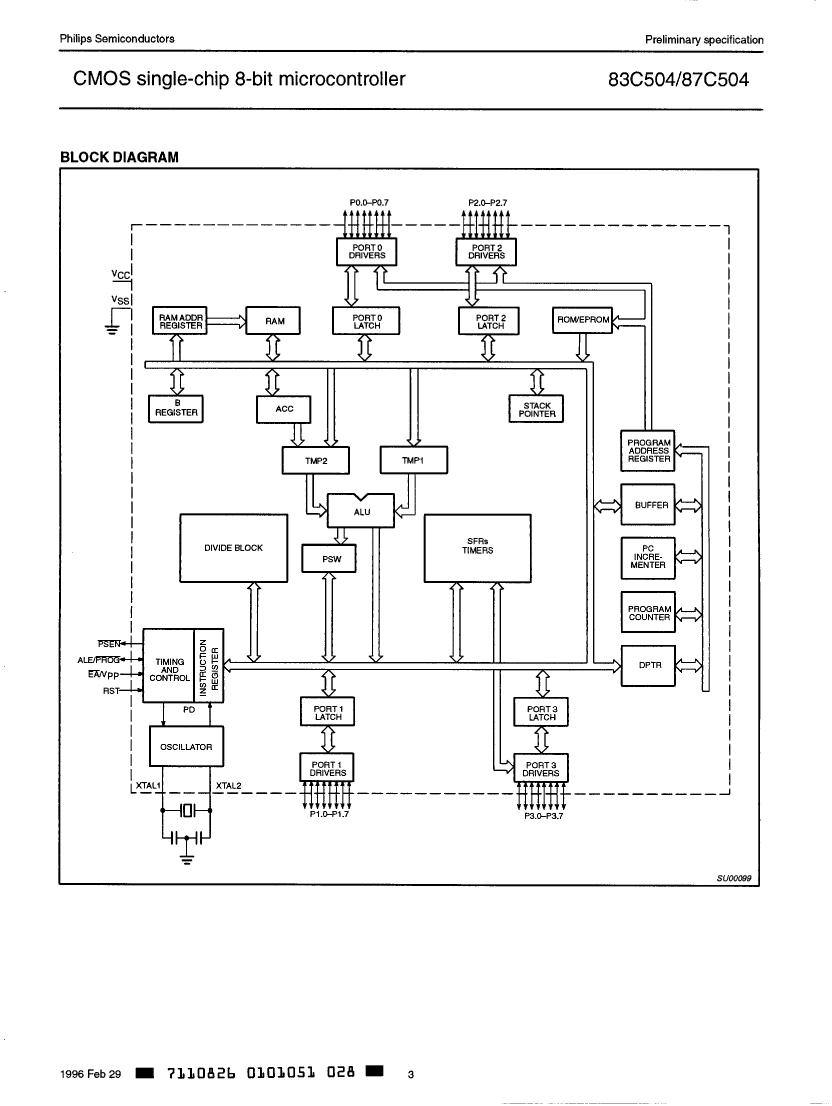

P83C504IBP Overview

Microcontroller, 8-Bit, MROM, 8051 CPU, 24MHz, CMOS, PDIP40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
bit size	8
CPU series	8051
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	16384
ROM programmability	MROM
speed	24 MHz
Maximum slew rate	44 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
