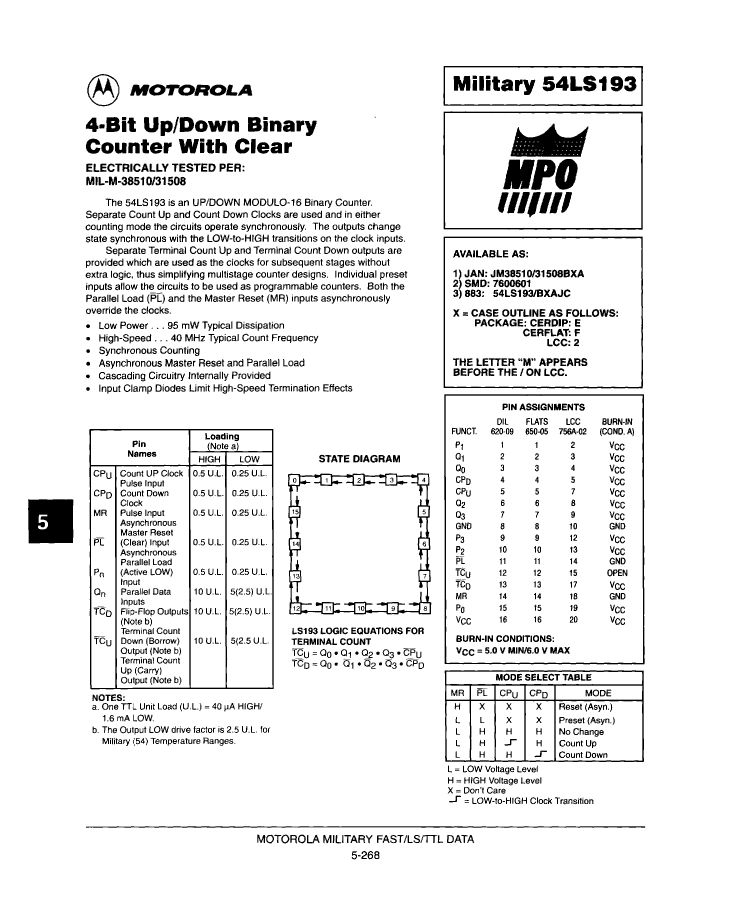

Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDIP16, CERDIP-16

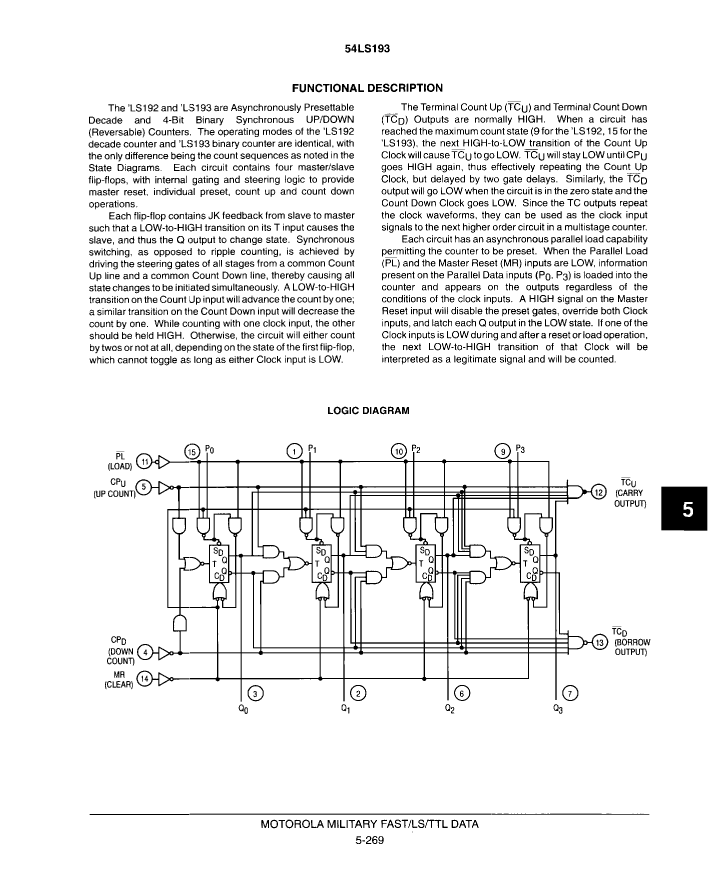

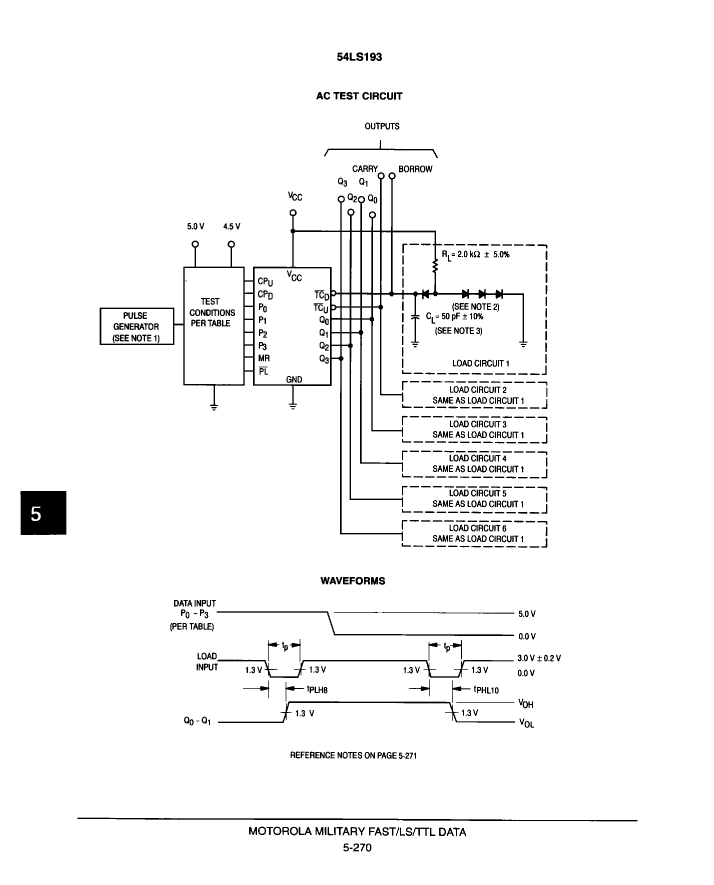

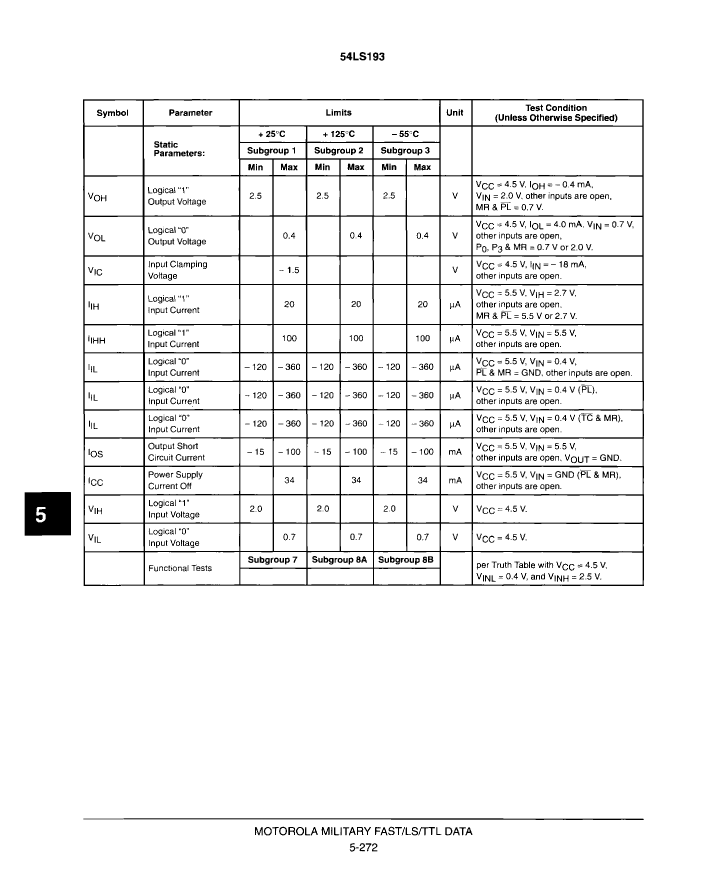

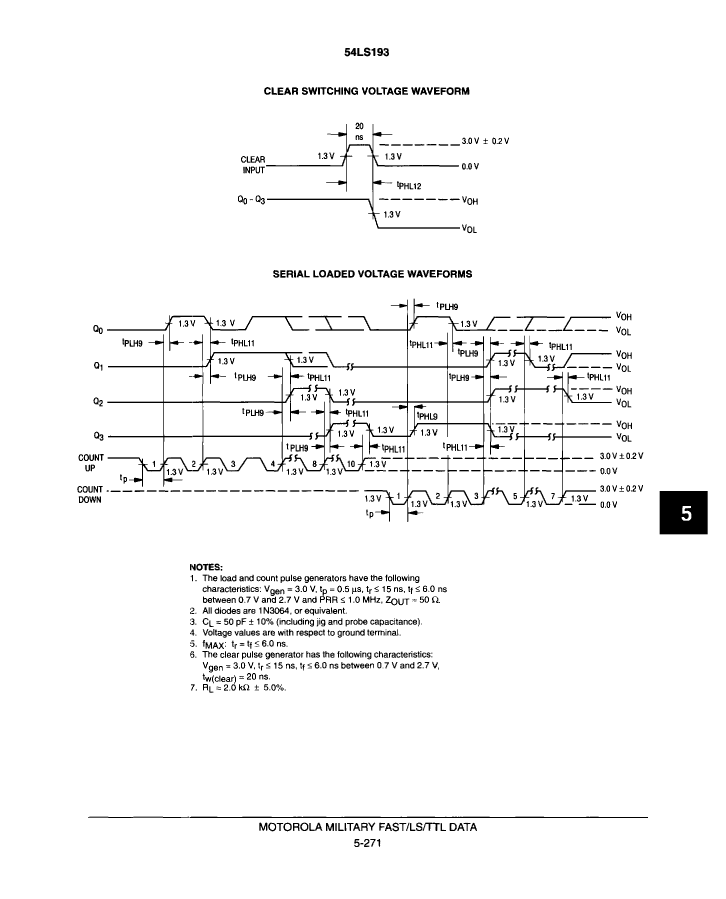

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| package instruction | CERDIP-16 |
| Reach Compliance Code | unknown |
| Other features | TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK |
| Counting direction | BIDIRECTIONAL |
| series | LS |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| length | 19.3 mm |
| Load capacitance (CL) | 50 pF |
| Load/preset input | YES |
| Logic integrated circuit type | BINARY COUNTER |
| Maximum Frequency@Nom-Sup | 25000000 Hz |
| MaximumI(ol) | 0.004 A |
| Operating mode | SYNCHRONOUS |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 34 mA |
| propagation delay (tpd) | 73 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 4.19 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| width | 7.62 mm |
| minfmax | 22 MHz |
| Base Number Matches | 1 |
| 54LS193/BEAJC | 54LS193/BFAJC | 54LS193M/B2AJC | 76006012A | 7600601FA | 7600601EA | |
|---|---|---|---|---|---|---|
| Description | Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDIP16, CERDIP-16 | LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDFP16, CERAMIC, FP-16 | Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CQCC20, CERAMIC, LCC-20 | LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CQCC20, CERAMIC, LCC-20 | LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDFP16, CERAMIC, FP-16 | Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDIP16, CERDIP-16 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | CERDIP-16 | DFP, FL16,.3 | CERAMIC, LCC-20 | QCCN, | DFP, | DIP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK | TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK | TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK | TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK | TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK | TCO UP AND TCO DOWN OUTPUTS; SEPARATE UP/DOWN CLOCK |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| series | LS | LS | LS | LS | LS | LS |
| JESD-30 code | R-GDIP-T16 | R-GDFP-F16 | S-CQCC-N20 | S-CQCC-N20 | R-GDFP-F16 | R-GDIP-T16 |
| length | 19.3 mm | 9.65 mm | 8.89 mm | 8.885 mm | 9.65 mm | 19.3 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Load/preset input | YES | YES | YES | YES | YES | YES |
| Logic integrated circuit type | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER |
| Operating mode | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 20 | 20 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DFP | QCCN | QCCN | DFP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | FLATPACK | CHIP CARRIER | CHIP CARRIER | FLATPACK | IN-LINE |
| Maximum supply current (ICC) | 34 mA | 34 mA | 34 mA | 34 mA | 34 mA | 34 mA |
| propagation delay (tpd) | 73 ns | 73 ns | 73 ns | 73 ns | 73 ns | 73 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.19 mm | 2.15 mm | 1.9 mm | 1.9 mm | 2.15 mm | 4.19 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | YES | YES | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | FLAT | NO LEAD | NO LEAD | FLAT | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | QUAD | QUAD | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 7.62 mm | 6.415 mm | 8.89 mm | 8.885 mm | 6.415 mm | 7.62 mm |
| minfmax | 22 MHz | 22 MHz | 22 MHz | 22 MHz | 22 MHz | 22 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
