PRESSURE TRANSDUCERS WITH AMP.
PA-850

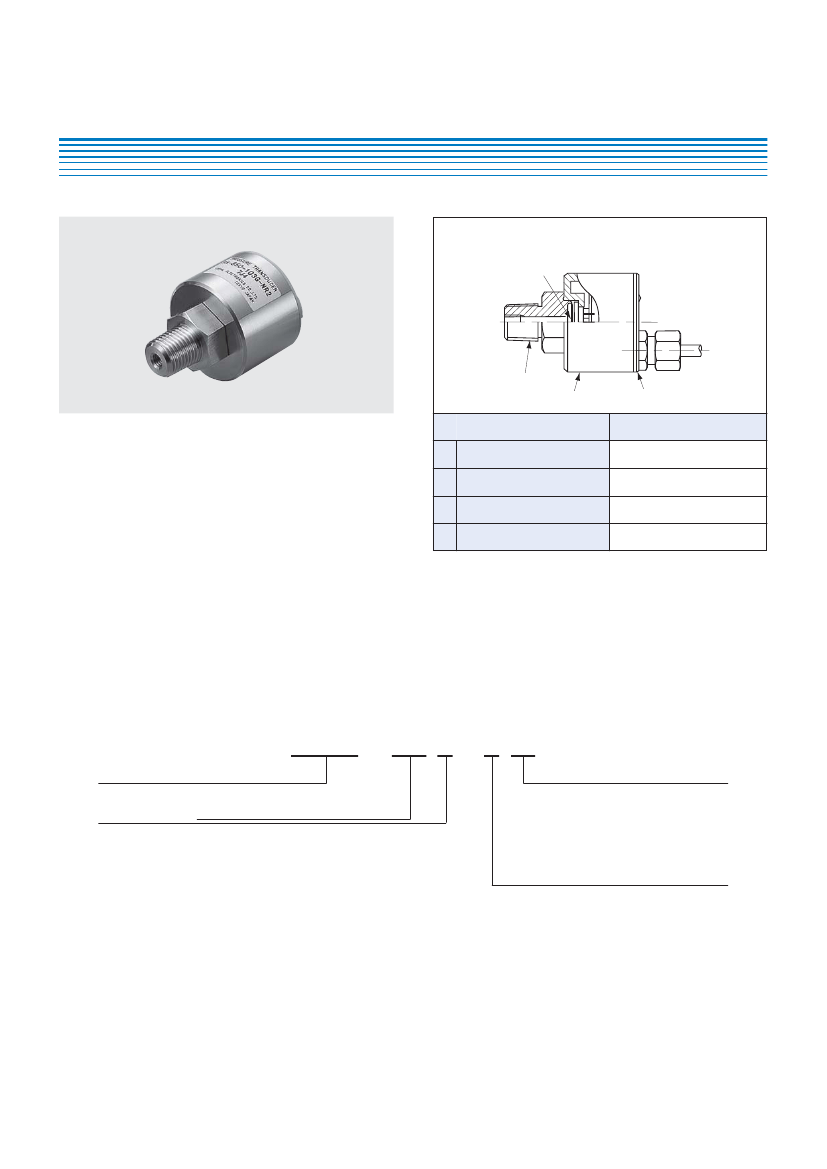

INTERNAL STRUCTURE
PA-850 (R 1/4)
4
1
2
Part name
3
Material
SUS 316L
SUS 316L
ABS (Acrylonitrile butadiene
styrene)
+
PC (Polycarbonate)
SUS 316L
■
FEATURES
High corrosion resistance and drip-proof construction
Pressure port attachment made of SUS 316L
Proven IP-65 grade gauge body (IP-65 in accordance with IEC)
Standard product provides both a switch output
(hysteresis adjustable) and an analog output
Absolute pressure type and compound pressure type
which can control negative to positive pressure with only
a single pressure gauge are all in line
Three standard types of joint are provided
R2 : R 1/4 (M 5 female screw)
GF : G 3/8 with flash diaphragm
G2 : G 1/4 (M 5 female screw)
1
2
3
4
Fitting
Housing
Plastic cover
Stainless steel diaphragm
■
MODEL NUMBER DESIGNATION
PA-850 - 102 R - N R2
Series name
Rated pressure range
102：0 ~ 100 kPa
352：0 ~ 350 kPa
103：0 ~ 1000 kPa
102：0 ~
−
100 kPa
102：− 100 ~ 100 kPa
302：− 100 ~ 300 kPa
102：0 ~ 100 kPa abs
Fitting
R2：R 1/4 with M 5 female screw
GF：G 3/8 with flash diaphragm
G2：G 1/4 with M 5 female screw
Pressure reference
G：Gauge
V：Gauge (Vacuum)
R：Compound
A：Absolute
Switch output interface
N：NPN open collector
(Upper limit mode)
P：PNP open collector
(Upper limit mode)
※Please
refer to the LIST OF MODEL NUMBERS when placing orders.
PA-850
PRESSURE TRANSDUCERS WITH AMP.
■
LIST OF MODEL NUMBERS
Pressure reference
Fitting
SW output interface
R2
(R 1/4)
kPa
Rated pressure range
Gauge
0 ~ 100
PA-850-
102G-NR2
PA-850-
102G-PR2
PA-850-
102G-NGF
PA-850-
102G-PGF
PA-850-
102G-NG2
PA-850-
102G-PG2
0 ~ 350
PA-850-
352G-NR2
PA-850-
352G-PR2
PA-850-
352G-NGF
PA-850-
352G-PGF
PA-850-
352G-NG2
PA-850-
352G-PG2
0 ~ 1000
PA-850-
103G-NR2
PA-850-
103G-PR2
PA-850-
103G-NGF
PA-850-
103G-PGF
PA-850-
103G-NG2
PA-850-
103G-PG2
0 ~
−
100
PA-850-
102V-NR2
PA-850-
102V-PR2
PA-850-
102V-NGF
PA-850-
102V-PGF
PA-850-
102V-NG2
PA-850-
102V-PG2
−
100 ~ 100
PA-850-
102R-NR2
PA-850-
102R-PR2
PA-850-
102R-NGF
PA-850-
102R-PGF
PA-850-
102R-NG2
PA-850-
102R-PG2
−
100 ~ 300
PA-850-
302R-NR2
PA-850-
302R-PR2
PA-850-
302R-NGF
PA-850-
302R-PGF
PA-850-
302R-NG2
PA-850-
302R-PG2
Absolute
0 ~100
PA-850-
102A-NR2
PA-850-
102A-PR2
PA-850-
102A-NGF
PA-850-
102A-PGF
PA-850-
102A-NG2
PA-850-
102A-PG2
NPN
PNP
NPN
PNP
NPN
PNP
GF
(G 3/8)
G2
(G 1/4)
※Verify
the above model numbers when placing orders.
■
STANDARD SPECIFICATIONS
●
Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C and excitation voltage of 12 V DC.
Item
Pressure reference
Model number
102G
352G
103G
PA-850
102V
102R
302R
102A
Absolute
−
100
200
300
−
20 ~ 80
0 ~ 50
35 ~ 85
（
No condensation
）
−
20 ~ 80
（
Atmospheric pressure, humidity 65 %RH maximum
）
Corrosive gases/liquids compatible with SUS 316L
−
100 ~ 100
200
300
−
100 ~ 300
600
900
100 (abs)
200 (abs)
300 (abs)
Gauge
kPa
kPa
kPa
°C
°C
%RH
°C
100
200
300
350
700
1050
1000
2000
3000
Rated pressure range
Maximum pressure
Break-down pressure
Operating temp. range
General specifications
Compensated temp. range
Operating humidity
Storage temp.
Pressure medium
Insulation resistance
Dielectric strength
Sealed liquid
Pressure port
Net weight
Protection grade
MΩ
minimum
100 (500 V DC)
800 V AC, 60 s
（
Leakage current 1 mA maximum
）
Silicone oil
R 1/4
、
3/8 Flash diaphragm
）
G 1/4
※1
G
（
、
g
R2 : Approx. 165, GF : Approx. 180, G2 : Approx. 170
IP65
※1
An “O” ring provided.
（G 3/8 : P18、G 1/4 : P15）
PRESSURE TRANSDUCERS WITH AMP.
PA-850
Item
Power
Supply voltage
Model number
V DC
maximum
V
V
V
mA
maximum
%F.S.
ZERO %F.S./°C
PA-850
102G
352G
103G
102V
102R
302R
102A
10.8 ~ 30
（
Including ripple voltage
）
20 mA
1~5
1
±
0.04
4
±
0.04
3
±
0.1
4
±
0.1
1
（
Load resistance 5 kΩ minimum
）
±
0.5
±
0.06
±
0.06
±
0.02
Approx. 2
±
0.3
±
0.1
±
0.05
1
NPN or PNP open collector output
Adjustable by VR
0 ~ 108 % of rated
pressure range
±
0.3
±
0.1
±
0.3
2
±
0.1
1
±
0.04
4
±
0.04
Consumption current
Output voltage
Zero voltage
Span voltage
Output current
Analog output
Linearity/Hysteresis
Thermal error
SPAN %F.S./°C
Supply voltage effect
Response
V
maximum
ms
Gravitational effect
%F.S.
(From horizontal position to vertical position)
No. of outputs
Output interface
Setting method
Switch output
Adjustable range
0 ~ 100 % of rated pressure range
Display
Accuracy
Hysteresis
Hysteresis setting method
Switching capacity
Residual voltage
(Reference temp.: 25 °C) %F.S.
Red LED
±
3
Approx. 1 ~ 15 % of set value
Adjustable by VR
30 V DC 100 mA
NPN : 0.8 V, PNP : 1.2 V
■
ENVIRONMENTAL CHARACTERISTICS
Test item
Vibration
Shock
Pressure cycling
Moisture resistance
Test conditions (At 25
±
5 °C)
10 ~ 500 Hz, 1.5 mm maximum/98.1 m/s
2
,
3 directions for 2 hours each
490 m/s
2
3 directions for 3 times each
10
6
cycles
0
∼
Rated pressure/Rated pressure range
40 °C, 90 ~ 95 %RH, 240 hrs.
Permissible change
Switch output setting and analog output
(Zero voltage, Span voltage)
:
±
1 %F.S. maximum each
PA-850
PRESSURE TRANSDUCERS WITH AMP.
■

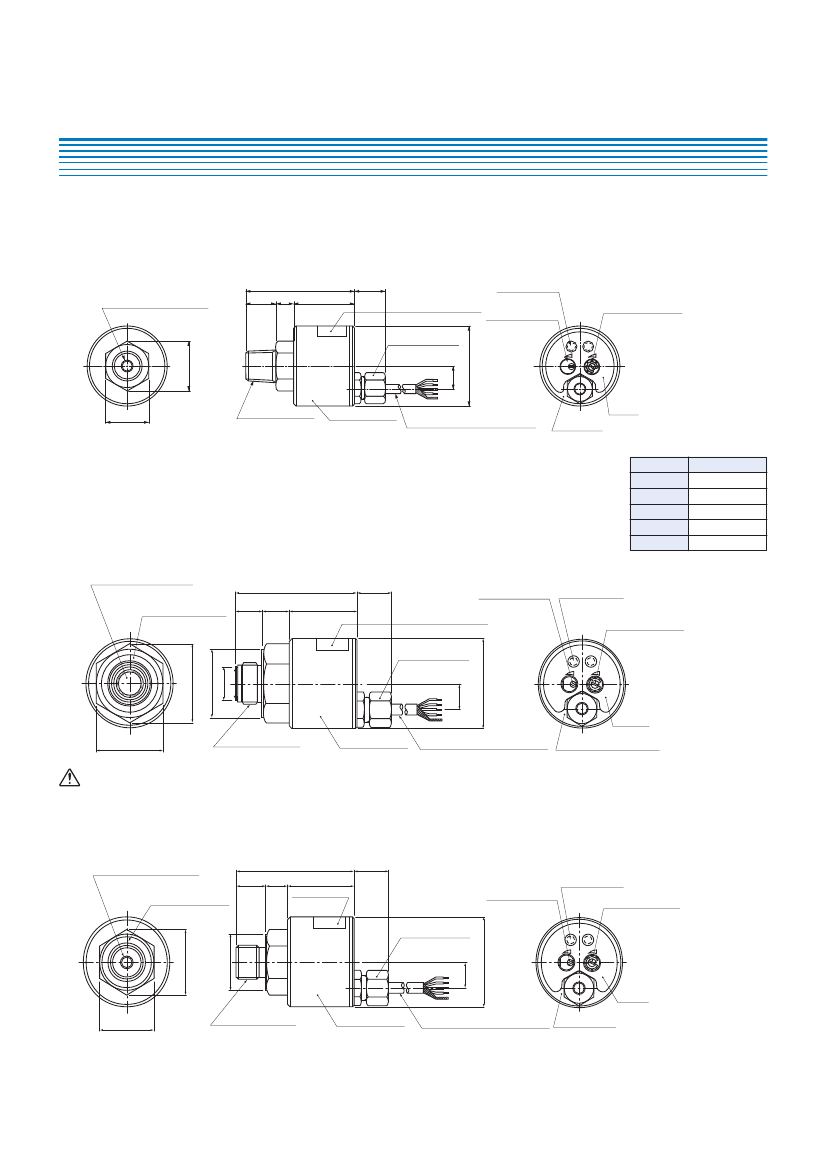

OUTLINE DIMENSIONS
Configurations of joint R2 (R1/4) type
13.5
48.5 ± 1
(8)
27
(14)
Label 2
Lot. No.
Unless otherwise specified, tolerance :
±
0.5
(Unit: mm)
Indicator LED
Pressure setting VR
Hysteresis setting VR
Pressure port M5 depth 6
(21.9)
Cable nut
Brass + Ni-plated
10
φ
35.2
19
–0.3
0
R 1/4 (PT 1/4)
(SUS 316L)
Housing
(SUS 316L)
Label 1
4-core shielded cable (
φ
4.5)
L = 2000 ± 100 AWG22 ULNo.2547
Plastic cover
(ABS+PC)
Configurations of joint GF (G 3/8) type
Diaphragm
(SUS 316L)
“O” rirg groove
Outside :
φ
22.8
Inside :
φ
18
11
(11)
49
±
1
27
Label 2
Lot No.
Cable nut
Brass + Ni-plated
(31.2)
(10)
φ
35.2
φ
27
φ
13.2
Wire color
Brown
White
Black
Blue
Shield
Connection
Power
B
Analog output
Switch output
Common
Fitting
(14)
Pressure setting VR
Indicator LED
Hysteresis setting VR
Label 1
27
–0.3
0
G 3/8 (PF 3/8)
(SUS 316L)
Housing
(SUS 316L)
4-core shielded cable (
φ
4.5)
L = 2000 ± 100 AWG22 ULNo.2547
Plastic cover
(ABS+PC)
Extra care should be taken with the diaphragm part. Do not touch the diaphragm directly to avoid damaging the diaphragm.
Configurations of joint G2 (G 1/4) type
Pressure port M 5 depth 6
12
“O” rirg groove
Outside :
φ
20
Inside :
φ
15
(9)
48
±
1
27
Label 2
Lot No.
(14)
Indicator LED
Pressure setting VR
Hysteresis setting VR
Cable nut
Brass + Ni-plated
(25.4)
(10)
φ
35.2
φ
22
Label 1
22
–0.3
0
G 1/4 (PF 1/4)
(SUS 316L)
Housing
(SUS 316L)
Plastic cover
4-core shielded cable (
φ
4.5)
L = 2000
±
100 AWG22 ULNo.2547 (ABS+PC)
PRESSURE TRANSDUCERS WITH AMP.
PA-850
■
INTERNAL ELECTRICAL SCHEMATICS
NPN output
PNP output
LED Indicator
Pressure
Sensor
Main circuit
Power
B
A.Output
S.Output
Common
Shield
Pressure
Sensor
LED Indicator
Power
B
A.Output
Main circuit
S.Output
Common
Shield
■
SWITCH OUTPUT SCHEMATICS
Turns on at the set pressure and turns off at the set pressure minus the hysteresis.
PA-850-
＊＊＊
G
Hysteresis
ON
OFF
Atmospheric
pressure
Set value
Rated pressure
PA-850-102V
Hysteresis
ON
OFF
−100
kPa
Set value
Barometic
pressure
PA-850-
＊＊＊
R
Hysteresis
ON
OFF
−100
kPa
Set value
Rated pressure
PA-850-
＊＊＊
A
Hysteresis
ON
OFF
Absolute
vacuun
Set value
108 kPa
※Adjustable
hysteresis
