86093428813750F17E1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86093428813750F17E1

86093428813750F17E1: DescriptionBoard Euro Connector, 42 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size133KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86093428813750F17E1 Overview

Board Euro Connector, 42 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, Receptacle

86093428813750F17E1 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	42
UL Flammability Code	94V-0
Base Number Matches	1

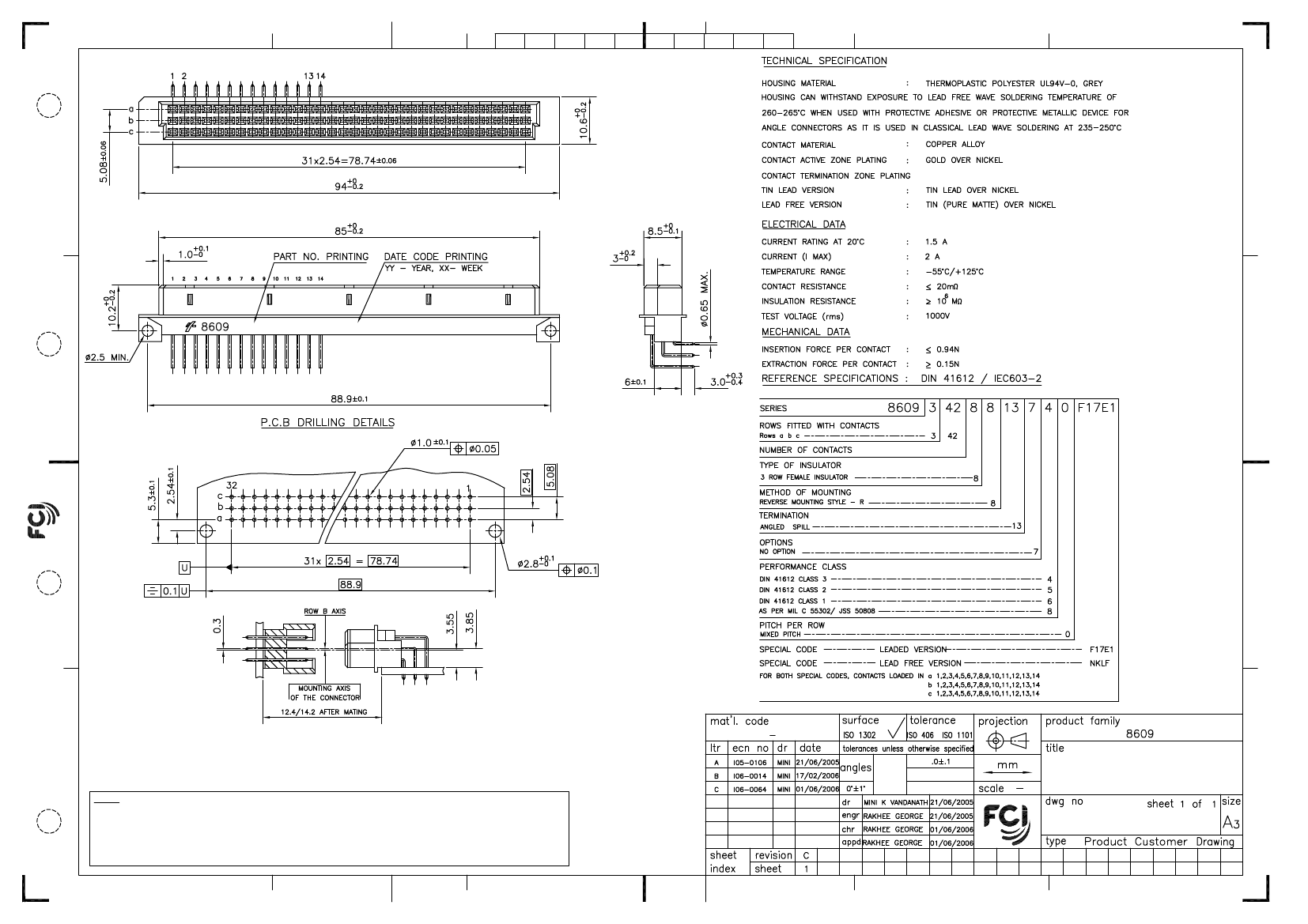

Preview

Download Datasheet

View All

2 3

XXX XX XX XXX XXXX YY XX

FCIconnect.com

linear

NOTES:-

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION

WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

DIN REVERSE RECEPTACLE

ANGLED SPILL DIN 41612 STYLE-R

C-8609-2062

STATUS:

Released

Printed: May 14, 2011

3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.

form: A3

PDM: Rev:C
