5962F9568902VXC datasheet, PDF

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> 5962F9568902VXC

5962F9568902VXC: DescriptionQUAD LINE RECEIVER, UUC16; Categorysemiconductor Analog mixed-signal IC; File Size62KB，3 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

5962F9568902VXC Overview

QUAD LINE RECEIVER, UUC16

5962F9568902VXC Parametric

Parameter Name	Attribute value
Number of functions	4
Number of terminals	16
Maximum supply voltage 1	3.6 V
Minimum supply voltage 1	3 V
Rated supply voltage 1	3.3 V

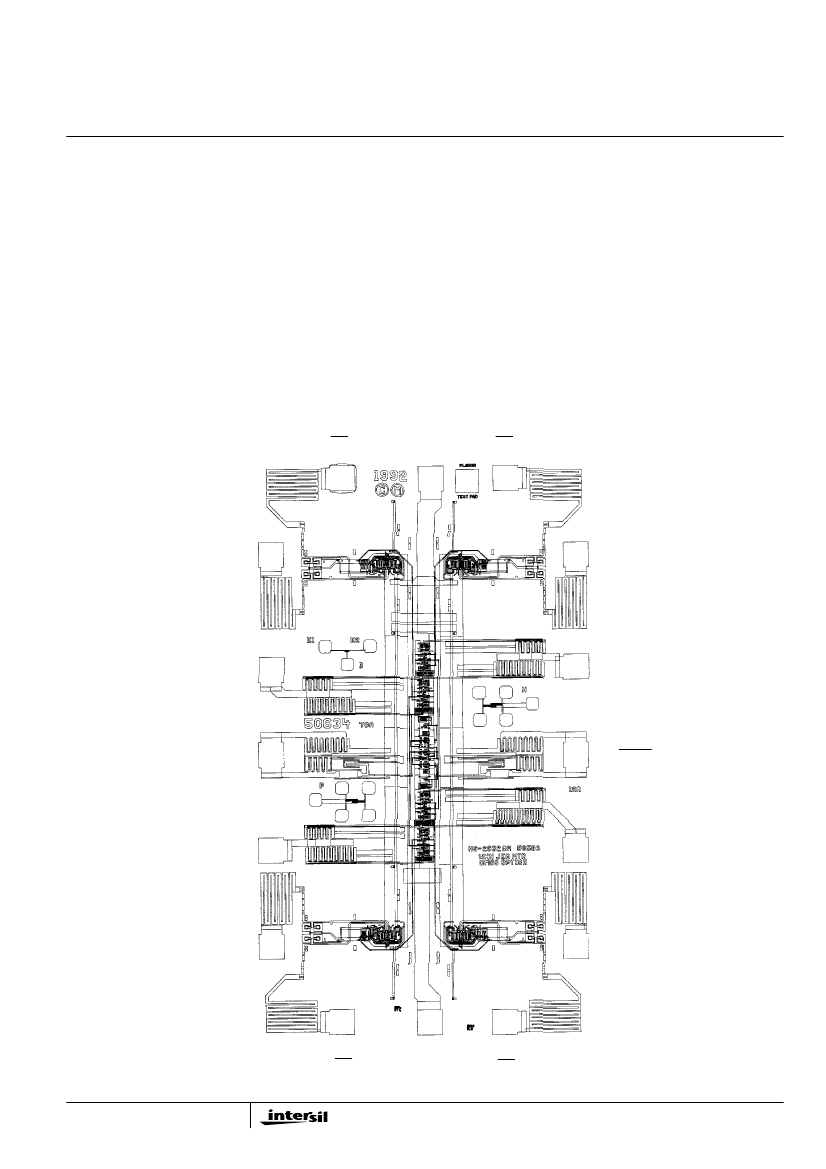

Processing package description	DIE-16
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	UNCASED CHIP
surface mount	Yes
Terminal form	NO LEAD
terminal coating	NOT SPECIFIED
Terminal location	UPPER
Packaging Materials	UNSPECIFIED
Interface Type	LINE RECEIVER
Interface standards	EIA-422
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Number of receiver bits	4

Preview

Download Datasheet

View All

HS-26CLV32RH

Data Sheet

August 2000

File Number

4907

Radiation Hardened 3.3V Quad Differential

Line Receiver

The Intersil HS-26CLV32RH is a radiation hardened 3.3V

quad differential line receiver designed for digital data

transmission over balanced lines, in low voltage, RS-422

protocol applications. Radiation hardened CMOS processing

assures low power consumption, high speed, and reliable

operation in the most severe radiation environments.

The HS-26CLV32RH has an input sensitivity of 200mV (Typ)

over a common mode input voltage range of -4V to

+7V.

The

receivers are also equipped with input fail safe circuitry,

which causes the outputs to go to a logic “1” when the inputs

are open. The device has unique inputs that remain high

impedance when the receiver is disabled or powered-down,

maintaining signal integrity in multi-receiver applications.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Speciﬁcations for these devices are

contained in SMD 5962-95689. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/space.asp

Features

• Electrically Screened to SMD # 5962-95689

• QML Qualiﬁed per MIL-PRF-38535 Requirements

• 1.2 Micron Radiation Hardened CMOS

- Total Dose. . . . . . . . . . . . . . . . . . . . . 300 krad(Si)(Max)

- Single Event Upset LET . . . . . . . . . . .100MeV/mg/cm

)

- Single Event Latch-up Immune

• Low Stand-by Current. . . . . . . . . . . . . . . . . . . 13mA(Max)

• Operating Supply Range . . . . . . . . . . . . . . . . 3.0V to 3.6V

• Enable Input Levels . . . . V

> (.7)(V

); V

< (.3)(V

)

• CMOS Output Levels . . . . . . . . V

> 2.55V; V

< 0.4V

• Input Fail Safe Circuitry

• High Impedance Inputs when Disabled or Powered-down

• Full -55

C to 125

C Military Temperature Range

Pinouts

HS1-26CLV32RH 16 LEAD CERAMIC SIDEBRAZE DIP

MIL-STD-1835: CDIP2-T16

TOP VIEW

AIN 1

AIN 2

16 V

15 BIN

14 BIN

13 BOUT

12 ENABLE

11 DOUT

10 DIN

9 DIN

Ordering Information

ORDERING NO.

5962F9568902QEC

5962F9568902QXC

5962F9568902V9A

5962F9568902VEC

5962F9568902VXC

INTERNAL MKT. NO.

HS1-26CLV32RH-8

HS9-26CLV32RH-8

HS0-26CLV32RH-Q

HS1-26CLV32RH-Q

HS9-26CLV32RH-Q

TEMP.

RANGE

(

-55 to 125

AOUT

ENABLE 4

COUT 5

CIN 6

CIN 7

GND 8

HS1-26CLV32RH/PROTO HS1-26CLV32RH/PROTO -55 to 125

HS9-26CLV32RH/PROTO HS9-26CLV32RH/PROTO -55 to 125

HS9-26CLV32RH 16 LEAD FLATPACK

MIL-STD-1835: CDFP4-F16

TOP VIEW

AIN

BIN

BOUT

ENABLE

DOUT

DIN

Logic Diagram

ENABLE

ENABLE DIN DIN

CIN CIN

BIN BIN

AIN AIN

AOUT

ENABLE

COUT

CIN

GND

DOUT

COUT

BOUT

AOUT

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil and Design is a trademark of Intersil Corporation.
