MC6850CS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MC6850CS

MC6850CS: Description1 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, CDIP24, CERDIP-24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size371KB，9 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC6850CS Overview

1 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, CDIP24, CERDIP-24

MC6850CS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DIP,
Reach Compliance Code	unknown
Address bus width	1
boundary scan	NO
Bus compatibility	6800
maximum clock frequency	1 MHz
letter of agreement	ASYNC, BIT
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width	8
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
length	32.005 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	1
Number of terminals	24
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	5.59 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

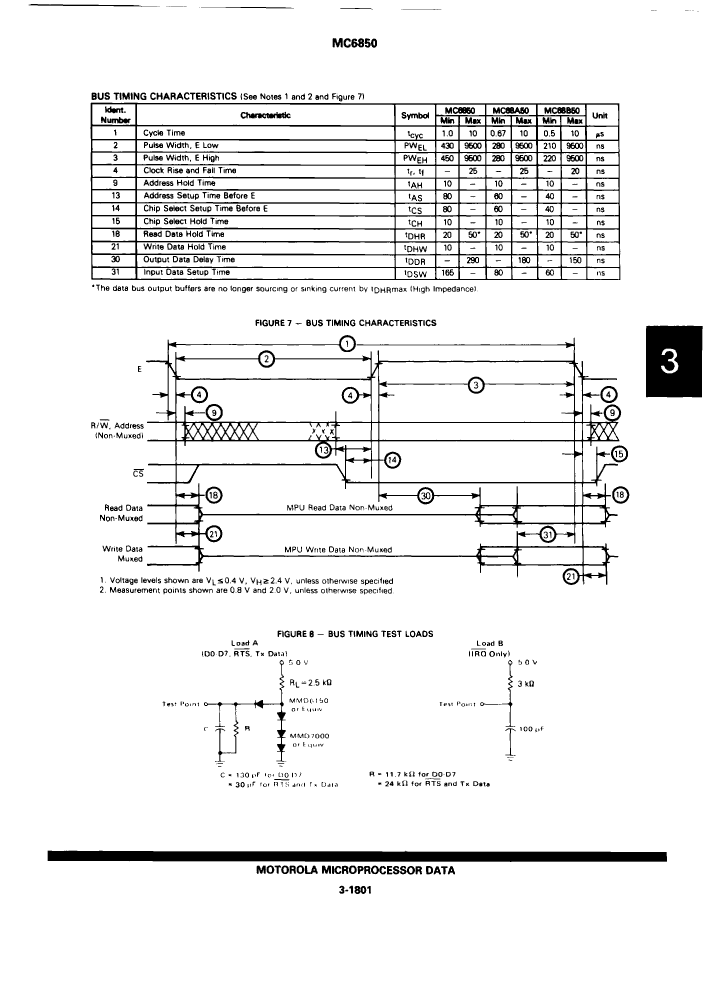

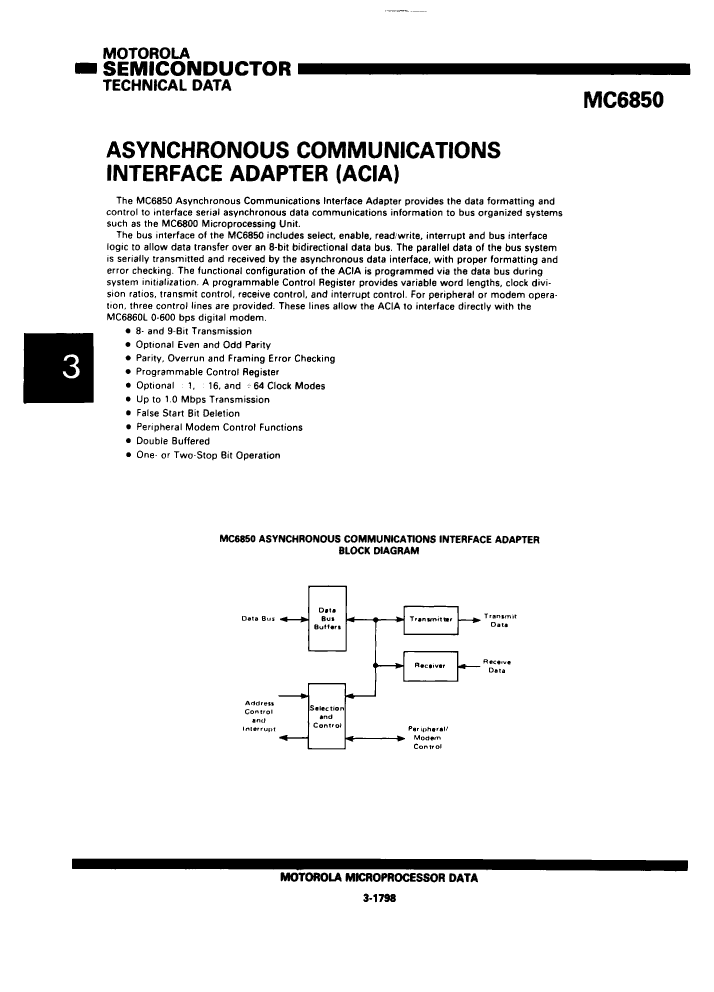

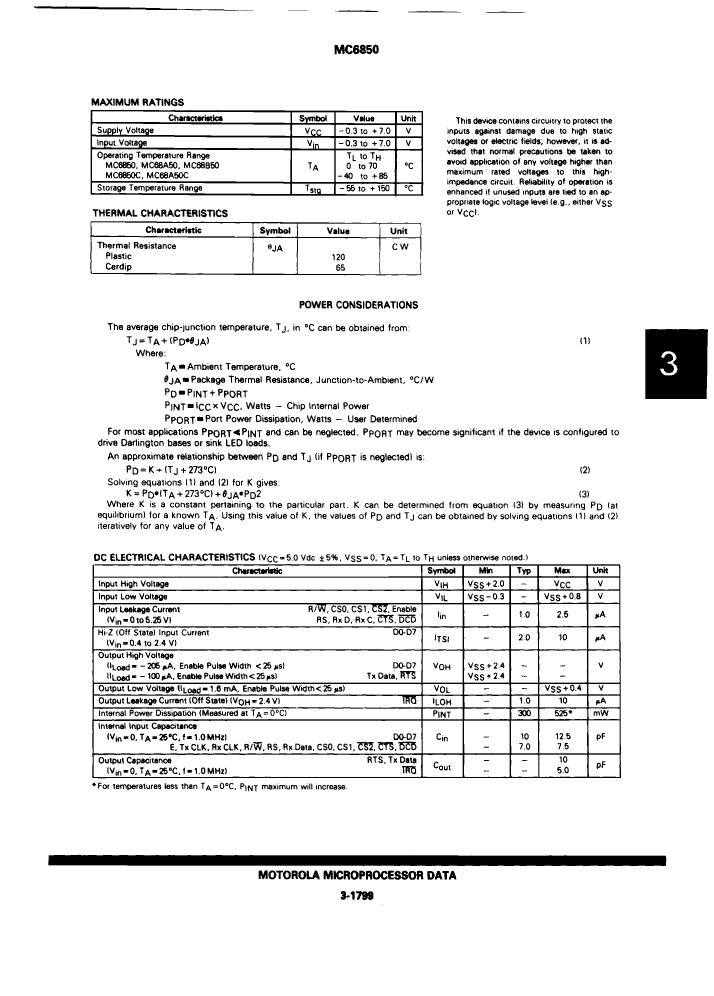

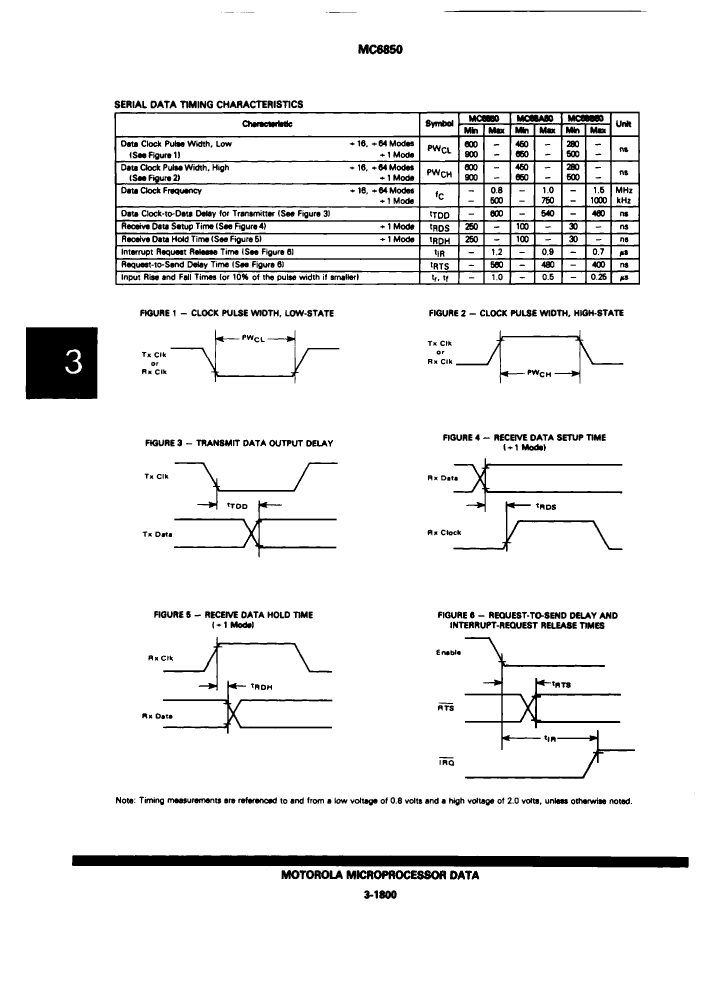

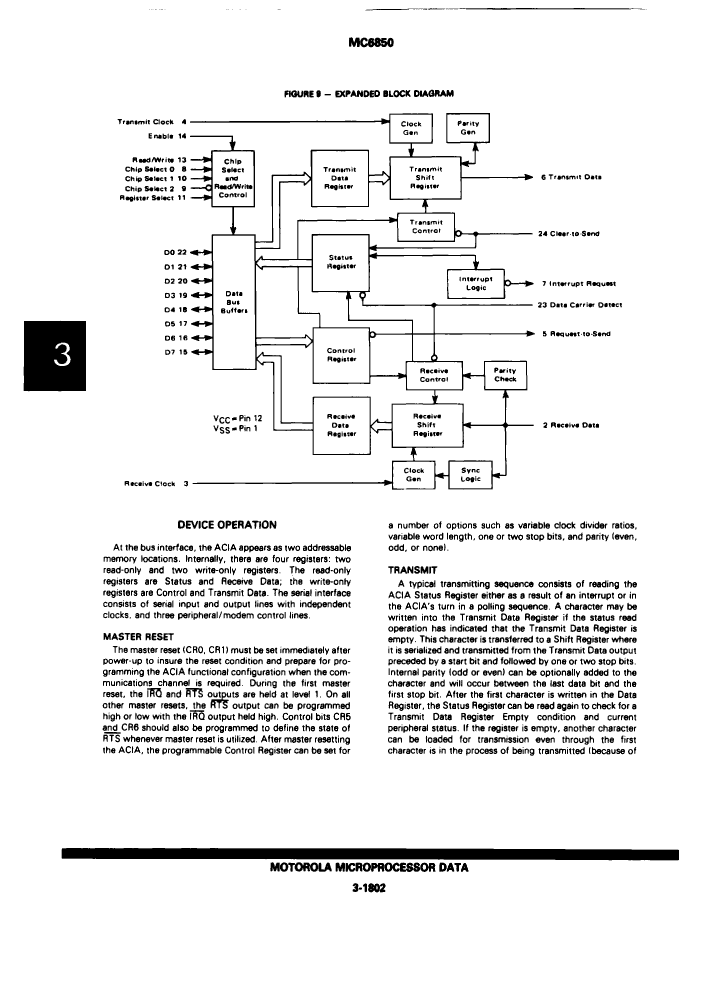

Preview

Download Datasheet

View All

MC6850CS Related Products

	MC6850CS	MC6850CP	MC6850P	MC68A50P	MC68A50CP	MC68A50CS
Description	1 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, CDIP24, CERDIP-24	1 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, PDIP24, PLASTIC, DIP-24	1 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, PDIP24, PLASTIC, DIP-24	1 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, PDIP24, PLASTIC, DIP-24	1 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, PDIP24, PLASTIC, DIP-24	1 CHANNEL(S), 1Mbps, SERIAL COMM CONTROLLER, CDIP24, CERDIP-24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP,	DIP,	DIP,	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
Address bus width	1	1	1	1	1	1
boundary scan	NO	NO	NO	NO	NO	NO
Bus compatibility	6800	6800	6800	6800	6800	6800
maximum clock frequency	1 MHz	1 MHz	1 MHz	1.5 MHz	1.5 MHz	1.5 MHz
letter of agreement	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	8	8	8	8	8	8
JESD-30 code	R-CDIP-T24	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24	R-CDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0
length	32.005 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	32.005 mm
low power mode	NO	NO	NO	NO	NO	NO
Number of serial I/Os	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-	-40 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.59 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.59 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Parts packaging code	-	-	DIP	DIP	DIP	DIP
Contacts	-	-	24	24	24	24
