BHV15: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 1.5W, 1; 2; 5; 10%, 150ppm, 1000000000ohm - 1000000000ohm, THROUGH HOLE MOUNT, SIP; CategoryPassive components The resistor; File Size203KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

BHV15 Overview

RESISTOR, METAL GLAZE/THICK FILM, 1.5W, 1; 2; 5; 10%, 150ppm, 1000000000ohm - 1000000000ohm, THROUGH HOLE MOUNT, SIP

BHV15 Parametric

Parameter Name	Attribute value
Maker	TT Electronics plc
package instruction	,
Reach Compliance Code	unknown
Other features	RESISTANCE RANGE AVAILABLE UPTO 1G OHM
Manufacturer's serial number	BHV
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated temperature	70 °C
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Terminal shape	FLAT AND WIRE
Operating Voltage	15000 V
Base Number Matches	1

Preview

Download Datasheet

View All

MODEL BHV SERIES

High Voltage/High Value

Thick Film SIP

Epoxy Coated Resistors

APPPLICATIONS

•

Photomultiplier power supplies

Voltage sense in high voltage power supplies

High Voltage bleeder resistors

Deflection circuitry in display systems and monitors

ELECTRICAL

Resistance Range

Tolerance

Temperature Coefficient of Resistance

Voltage Coefficient

ENVIRONMENTAL

(Per MIL – PRF – 83401)

Operating Temperature Range

Thermal Shock

Terminal Strength

Moisture Resistance

Mechanical Shock

Vibration

Low Temperature Storage

High Temperature Exposure

Load Life, 1000 Hours

Resistance to Solder Heat

Dielectric Withstanding Voltage

Marking Permanency

Lead Solderability

Flammability

Storage Temperature Range

-55°C to +125°C

∆R: ±0.50%

∆R: ±0.25%

∆R: ±0.50%

∆R: ±0.25%

∆R: ±1.00%

∆R: ±0.25%

5000 V Minimum

MIL – STD – 202, Method 215

MIL – STD – 202, Method 208

UL 94V- 0 Rated

-55°C to +125°C

1 Giga Ohm maximum

Standard:

±

5%,

±

10%

Custom:

±

1%,

±

2%

±

150 ppm/°C Maximum

2 ppm/V Maximum

Consult factory for Voltage dividers and application specific devices

Specifications subject to change without notice

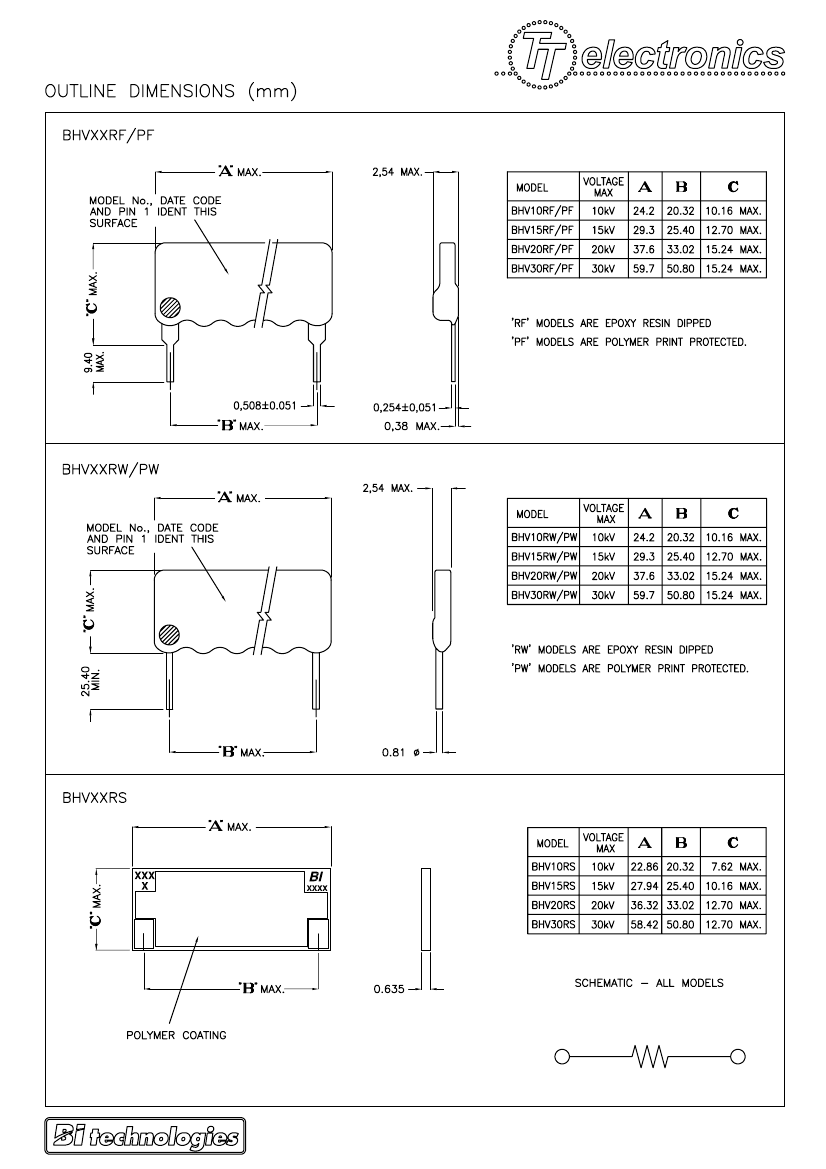

Model BHV

BHV15 Related Products

	BHV15	BHV10	BHV20	BHV30
Description	RESISTOR, METAL GLAZE/THICK FILM, 1.5W, 1; 2; 5; 10%, 150ppm, 1000000000ohm - 1000000000ohm, THROUGH HOLE MOUNT, SIP	RESISTOR, METAL GLAZE/THICK FILM, 1W, 1; 2; 5; 10%, 150ppm, 1000000000ohm - 1000000000ohm, THROUGH HOLE MOUNT, SIP	RESISTOR, METAL GLAZE/THICK FILM, 2W, 1; 2; 5; 10%, 150ppm, 1000000000ohm - 1000000000ohm, THROUGH HOLE MOUNT, SIP	RESISTOR, METAL GLAZE/THICK FILM, 3W, 1; 2; 5; 10%, 150ppm, 1000000000ohm - 1000000000ohm, THROUGH HOLE MOUNT, SIP
Maker	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	RESISTANCE RANGE AVAILABLE UPTO 1G OHM	RESISTANCE RANGE AVAILABLE UPTO 1G OHM	RESISTANCE RANGE AVAILABLE UPTO 1G OHM	RESISTANCE RANGE AVAILABLE UPTO 1G OHM
Manufacturer's serial number	BHV	BHV	BHV	BHV
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK	BULK	BULK	BULK
Rated temperature	70 °C	70 °C	70 °C	70 °C
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
surface mount	NO	NO	NO	NO
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Terminal shape	FLAT AND WIRE	FLAT AND WIRE	FLAT AND WIRE	FLAT AND WIRE
Operating Voltage	15000 V	10000 V	20000 V	30000 V
Base Number Matches	1	1	1	1
