ACTS280MS
January 1996
Radiation Hardened 9-Bit Odd/
Even Parity Generator Checker
Pinouts
14 PIN CERAMIC DUAL-IN-LINE
MIL-STD-1835 DESIGNATOR, CDIP2-T14,
LEAD FINISH C
TOP VIEW
I6 1
I7 2
NC 3
I8 4
EVEN 5
ODD 6
GND 7
14 VCC
13 I5
12 I4
11 I3
10 I2
9 I1
8 I0
Features
• Devices QML Qualified in Accordance with MIL-PRF-38535
• Detailed Electrical and Screening Requirements are Contained in
SMD# 5962-96720 and Intersil’ QM Plan
• 1.25 Micron Radiation Hardened SOS CMOS
• Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD (Si)
• Single Event Upset (SEU) Immunity: <1 x 10
-10
Errors/Bit/Day
(Typ)
• SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm
2
/mg
• Dose Rate Upset . . . . . . . . . . . . . . . . >10
11
RAD (Si)/s, 20ns Pulse
• Dose Rate Survivability . . . . . . . . . . . >10
12
RAD (Si)/s, 20ns Pulse
• Latch-Up Free Under Any Conditions
• Military Temperature Range . . . . . . . . . . . . . . . . . . -55
o
C to +125
o
C
• Significant Power Reduction Compared to ALSTTL Logic
• DC Operating Voltage Range . . . . . . . . . . . . . . . . . . . . 4.5V to 5.5V
• Input Logic Levels
- VIL = 0.8V Max
- VIH = VCC/2 Min
• Input Current
≤
1µA at VOL, VOH
• Fast Propagation Delay . . . . . . . . . . . . . . . . 24ns (Max), 16ns (Typ)
14 PIN CERAMIC FLATPACK
MIL-STD-1835 DESIGNATOR, CDFP3-F14
LEAD FINISH C
TOP VIEW
I6
I7
NC
I8
EVEN
ODD
GND
1
2
3
4
5
6
7
14
13
12
11
10
9
8
VCC
I5
I4
I3
I2
I1
I0
Description

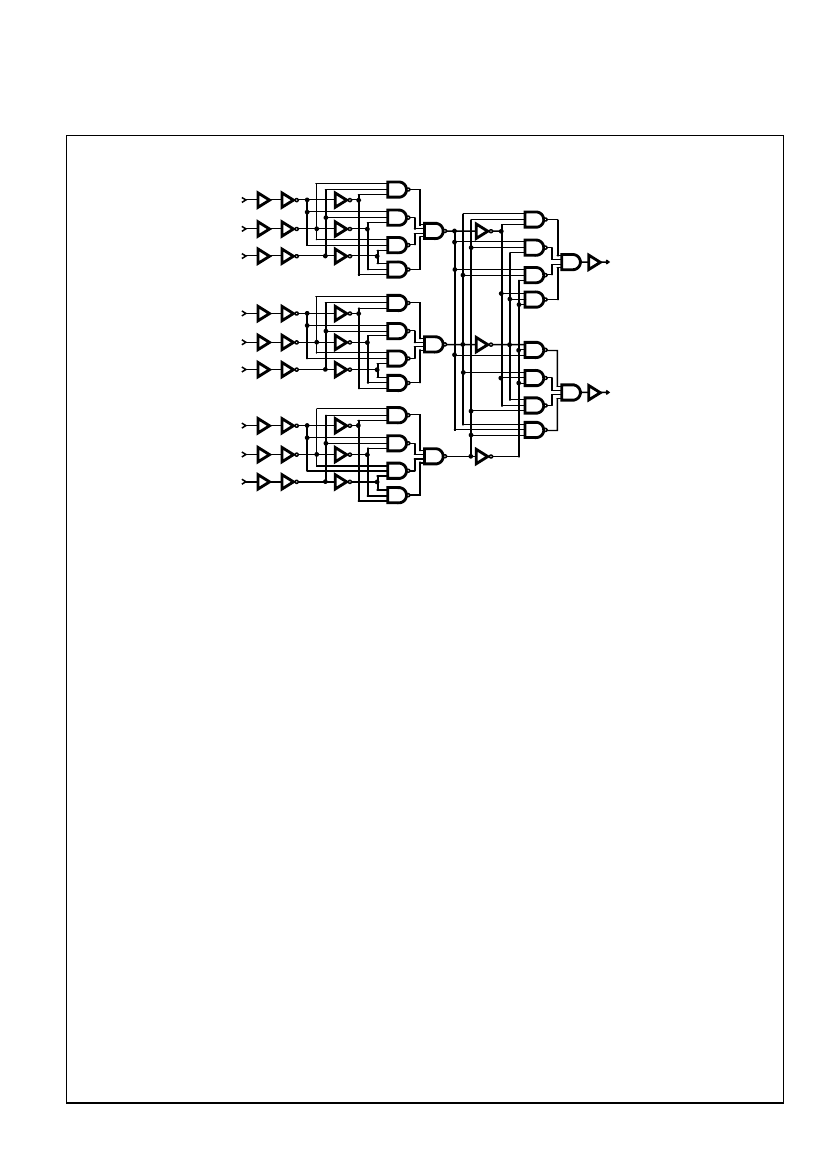

The Intersil ACTS280MS is a Radiation Hardened 9-bit odd/even parity
generator checker device. Both odd and even parity outputs are available
for generating or checking parity for words up to 9 bits long. Even parity
is indicated (EVEN output high) when an even number of data inputs are
high. Odd parity is indicated (ODD output high) when an odd number of
data inputs are high. Parity checking for larger words can be accom-
plished by tying EVEN output to any input of an additional ACTS280MS.
The ACTS280MS utilizes advanced CMOS/SOS technology to achieve
high-speed operation. This device is a member of a radiation hardened,
high-speed, CMOS/SOS Logic Family.
The ACTS280MS is supplied in a 14 lead Ceramic Flatpack (K suffix) or
a Ceramic Dual-In-Line Package (D suffix).

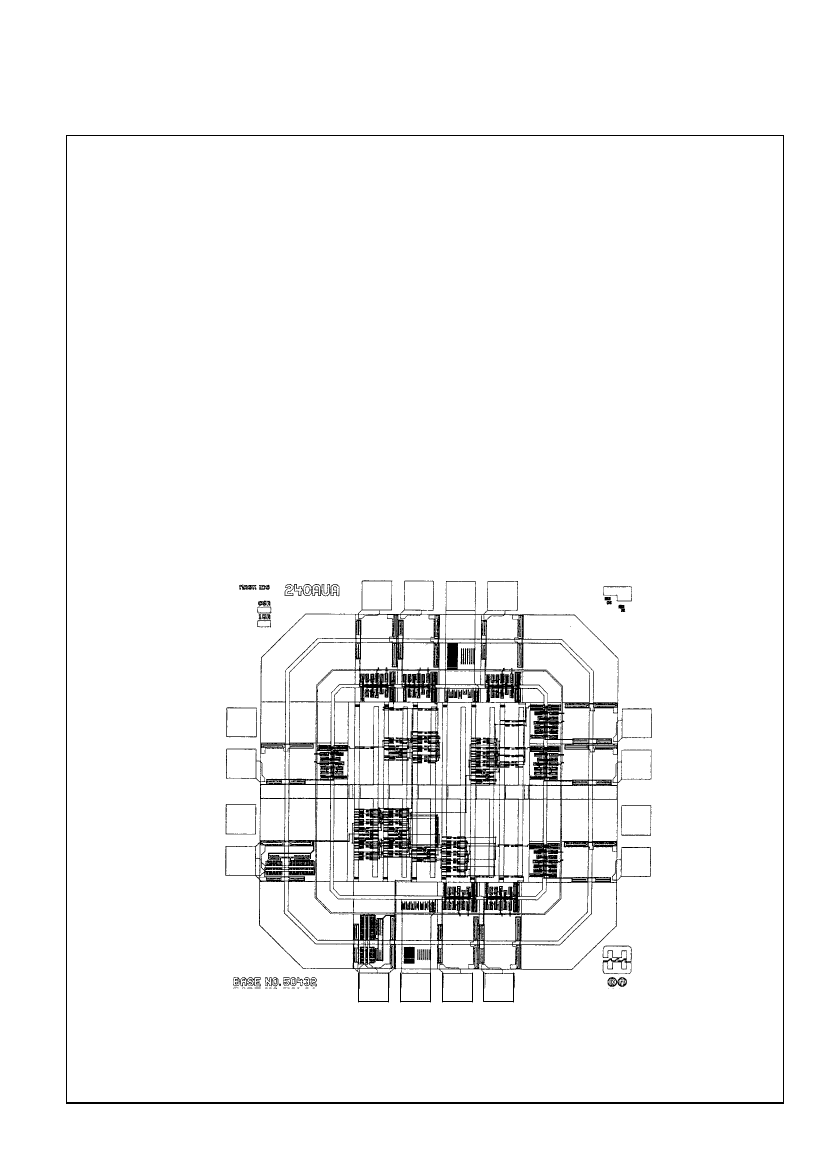

Ordering Information
PART NUMBER
5962F9672001VCC
5962F9672001VXC
ACTS280D/Sample
ACTS280K/Sample
ACTS280HMSR
TEMPERATURE RANGE
-55
o
C to +125
o
C
-55
o
C to +125
o
C
25
o
C
25
o
C
25
o
C
SCREENING LEVEL
MIL-PRF-38535 Class V
MIL-PRF-38535 Class V
Sample
Sample
Die
PACKAGE
14 Lead SBDIP
14 Lead Ceramic Flatpack
14 Lead SBDIP
14 Lead Ceramic Flatpack
Die
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
|
Copyright
©
Intersil Corporation 1999
Spec Number
File Number
1
518827
3569.1
