ACS240MS

March 1998

Radiation Hardened

Inverting, Octal, Three-State Buffer/Line Driver

Description

The Radiation Hardened ACS240MS is an Inverting, Octal,

Three-State Buffer/Line Driver with two active-LOW Enable

inputs (AE and BE). Each Enable input controls four outputs.

When an Enable input is LOW, the corresponding outputs

are active and input signals are inverted. A HIGH on an

Enable input causes the corresponding outputs to be high

impedance, regardless of the input levels.

The ACS240MS is fabricated on a CMOS Silicon on Sap-

phire (SOS) process, which provides an immunity to Single

Event Latch-up and the capability of highly reliable perfor-

mance in any radiation environment. These devices offer

signiﬁcant power reduction and faster performance when

compared to ALSTTL types.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACS240 are

contained in SMD 5962-98540. A “hot-link” is provided

on our homepage with instructions for downloading.

http://www.intersil.com/data/sm/index.htm

Features

• QML Qualiﬁed Per MIL-PRF-38535 Requirements

• 1.25Micron Radiation Hardened SOS CMOS

• Radiation Environment

- Latch-up Free Under any Conditions

- Total Dose . . . . . . . . . . . . . . . . . . . . . . 3 x 10

RAD(Si)

- SEU Immunity . . . . . . . . . . . <1 x 10

-10

Errors/Bit/Day

- SEU LET Threshold . . . . . . . . . . . >100MeV/(mg/cm

)

• Input Logic Levels V

= (0.3V)(V

), V

= (0.7V)(V

)

• Output Current

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±16mA

• Quiescent Supply Current. . . . . . . . . . . . . . . . . . . .20µA

• Propagation Delay . . . . . . . . . . . . . . . . . . . . . . . . 11.5ns

Applications

• Databus Driving

• Data Routing

• Redundant Data Control Circuitry

Ordering Information

SMD PART NUMBER

5962F9854001VRC

N/A

5962F9854001VXC

N/A

INTERSIL PART NUMBER

ACS240DMSR-02

ACS240D/Sample-02

ACS240KMSR-02

ACS240K/Sample-02

ACS240HMSR-02

TEMP. RANGE (

-55 to 125

PACKAGE

20 Ld SBDIP

20 Ld Flatpack

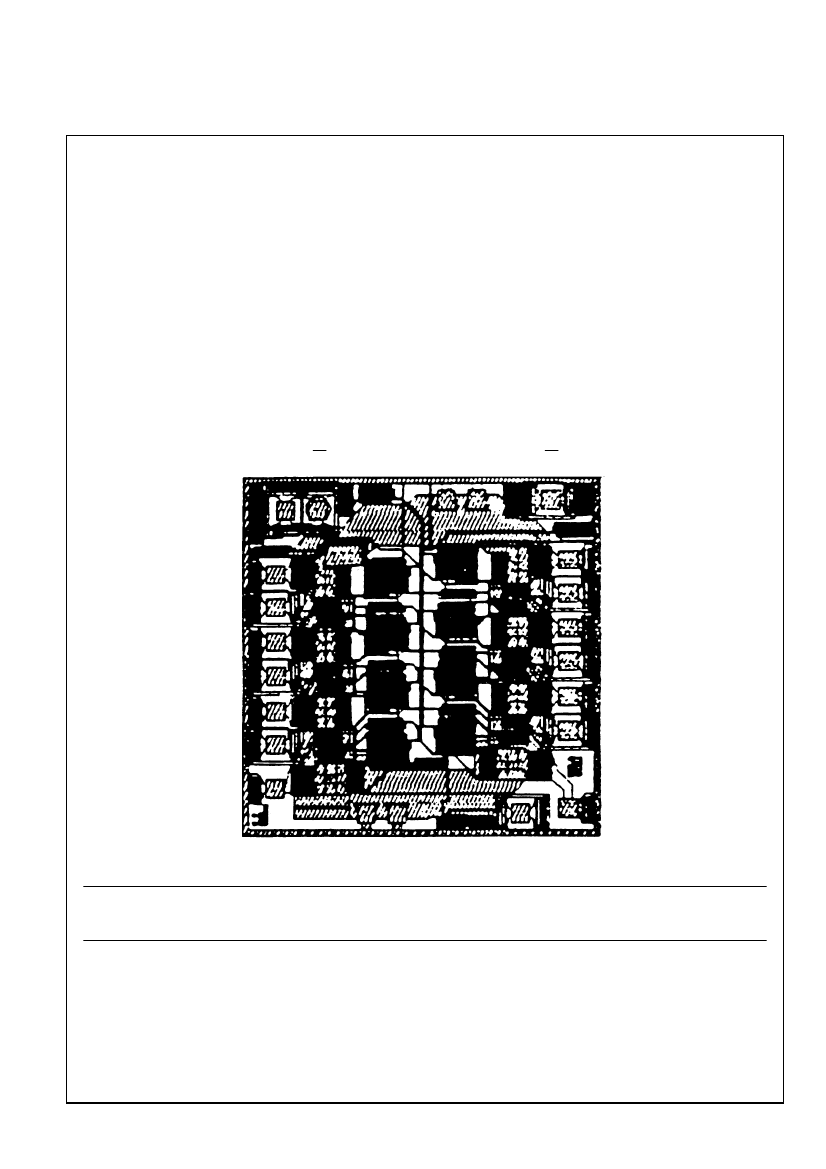

Die

CASE OUTLINE

CDIP2-T20

CDFP4-F20

N/A

Pinouts

ACS240 (SBDIP)

TOP VIEW

AI1

BO4

AI2

BO3

AI3

BO2

AI4

BO1

20 V

19 BE

18 AO1

17 BI4

16 AO2

15 BI3

14 AO3

13 BI2

12 AO4

11 BI1

AI1

BO4

AI2

BO3

AI3

BO2

AI4

BO1

GND

ACS240 (FLATPACK)

TOP VIEW

AO1

BI4

AO2

BI3

AO3

BI2

AO4

BI1

GND 10

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

File Number

4478
