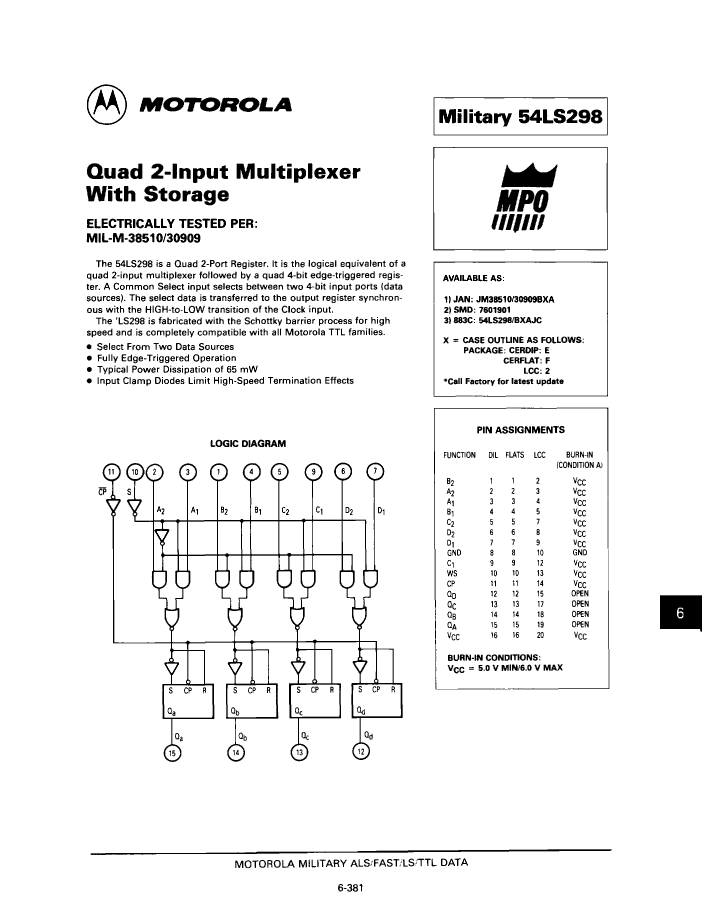

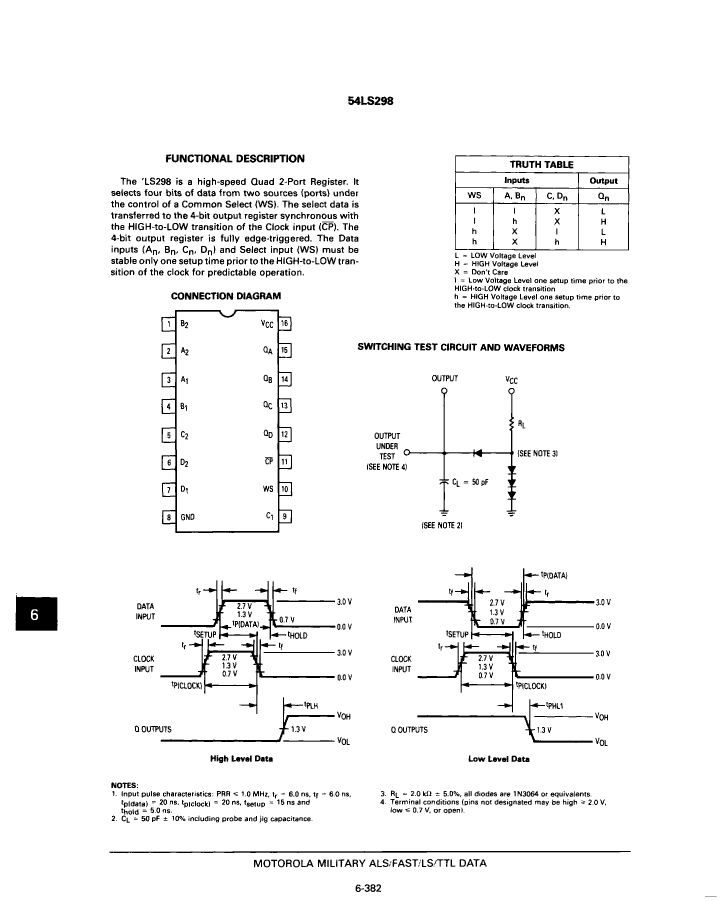

LS SERIES, NEGATIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20

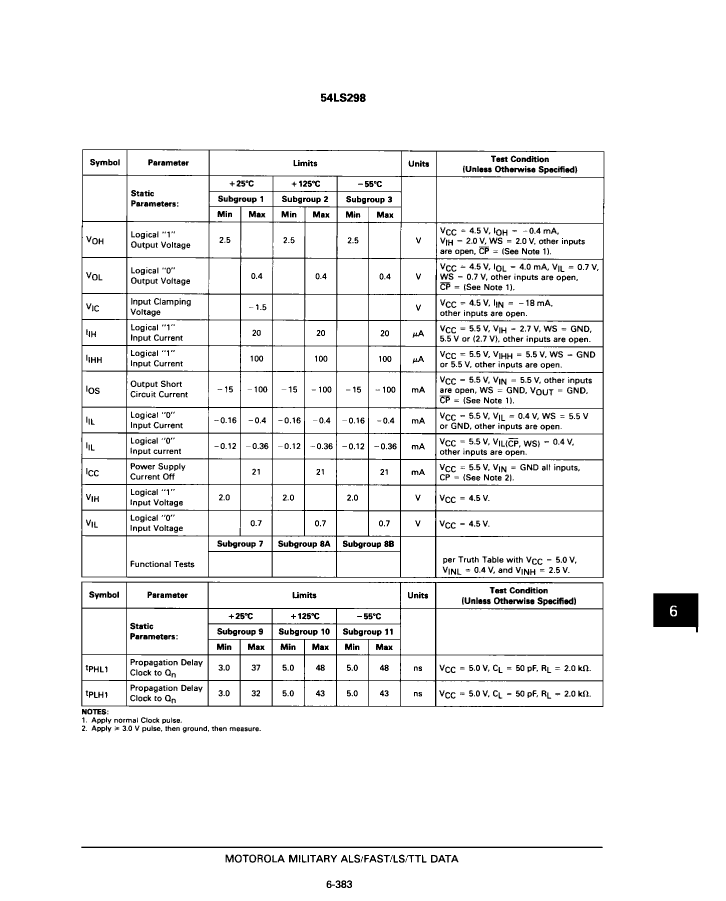

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| Parts packaging code | QLCC |
| package instruction | QCCN, LCC20,.35SQ |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| series | LS |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.885 mm |
| Logic integrated circuit type | MULTIPLEXER |
| MaximumI(ol) | 0.004 A |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of entries | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 21 mA |
| Prop。Delay @ Nom-Sup | 48 ns |
| propagation delay (tpd) | 48 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | NEGATIVE EDGE |
| width | 8.885 mm |
| Base Number Matches | 1 |
| 54LS298/B2AJC | JM38510/30909BFA | 7601901 | JM38510/30909BEA | JM38510/30909B2A | |
|---|---|---|---|---|---|
| Description | LS SERIES, NEGATIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20 | LS SERIES, NEGATIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDFP16, CERAMIC, FP-16 | D Flip-Flop, LS Series, 1-Func, Negative Edge Triggered, 4-Bit, True Output, TTL | D Flip-Flop, LS Series, 1-Func, Negative Edge Triggered, 4-Bit, True Output, TTL, CDIP16, CERDIP-16 | LS SERIES, NEGATIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | QCCN, LCC20,.35SQ | DFP, | , | DIP, | QCCN, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknow |
| Parts packaging code | QLCC | DFP | - | - | QLCC |
| Contacts | 20 | 16 | - | - | 20 |
| series | LS | LS | LS | - | LS |
| JESD-30 code | S-CQCC-N20 | R-GDFP-F16 | - | - | S-CQCC-N20 |
| length | 8.885 mm | 9.65 mm | - | - | 8.885 mm |
| Logic integrated circuit type | MULTIPLEXER | D FLIP-FLOP | D FLIP-FLOP | - | D FLIP-FLOP |
| Number of digits | 4 | 4 | 4 | - | 4 |
| Number of functions | 1 | 1 | 1 | - | 1 |
| Number of terminals | 20 | 16 | - | - | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | - | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | - | -55 °C |
| Output polarity | TRUE | TRUE | TRUE | - | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | - | - | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN | DFP | - | - | QCCN |
| Package shape | SQUARE | RECTANGULAR | - | - | SQUARE |
| Package form | CHIP CARRIER | FLATPACK | - | - | CHIP CARRIER |
| propagation delay (tpd) | 48 ns | 48 ns | 48 ns | - | 48 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified |
| Maximum seat height | 1.9 mm | 2.15 mm | - | - | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | - | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | - | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | - | 5 V |
| surface mount | YES | YES | - | - | YES |
| technology | TTL | TTL | TTL | - | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | - | MILITARY |
| Terminal form | NO LEAD | FLAT | - | - | NO LEAD |
| Terminal pitch | 1.27 mm | 1.27 mm | - | - | 1.27 mm |
| Terminal location | QUAD | DUAL | - | - | QUAD |
| Trigger type | NEGATIVE EDGE | NEGATIVE EDGE | NEGATIVE EDGE | - | NEGATIVE EDGE |
| width | 8.885 mm | 6.415 mm | - | - | 8.885 mm |
| Base Number Matches | 1 | 1 | 1 | - | - |
