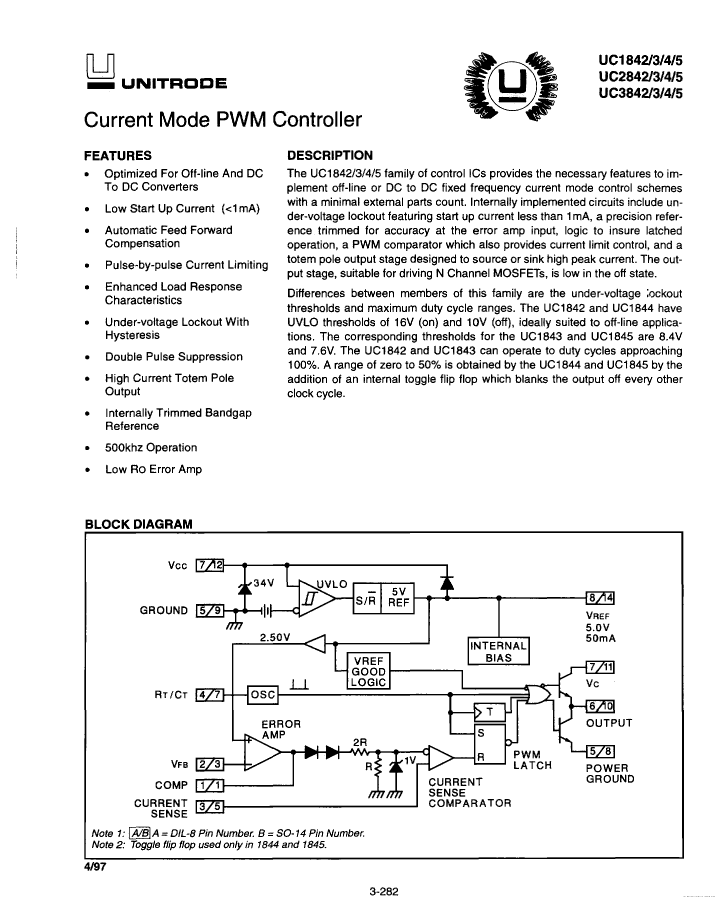

Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8,

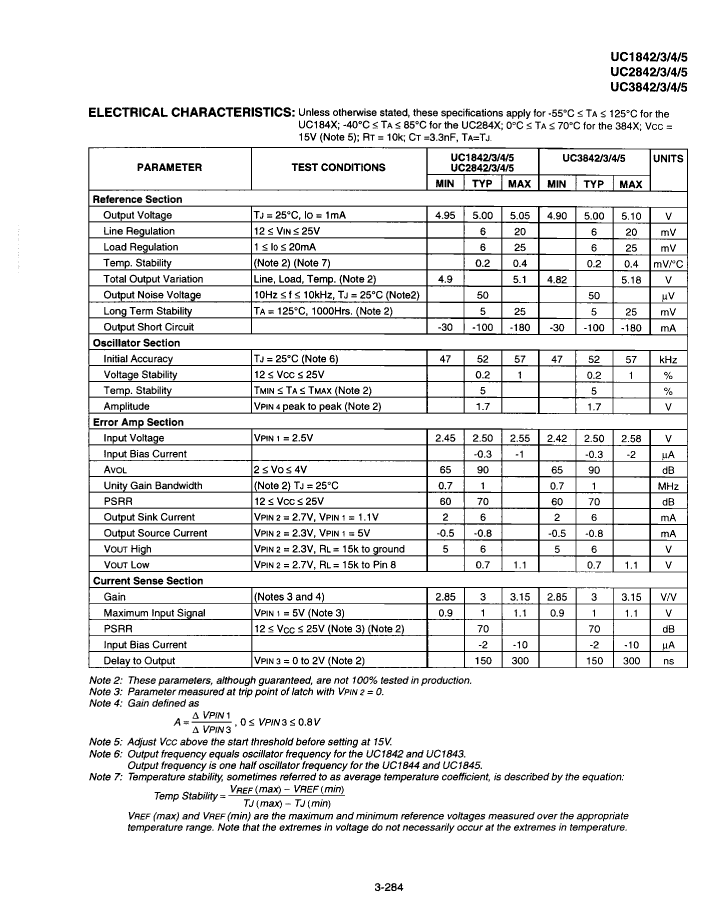

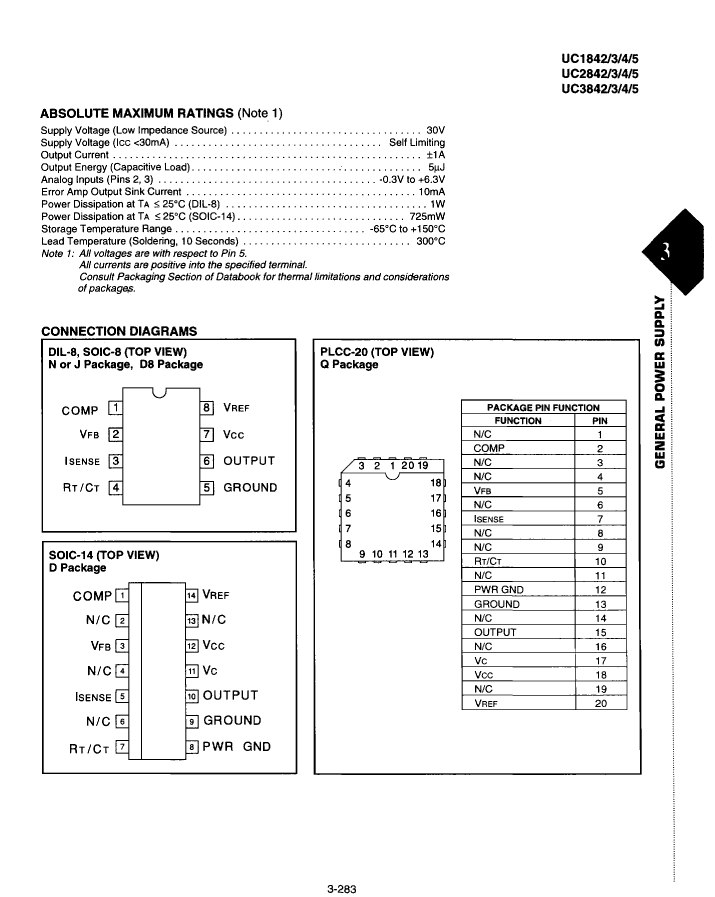

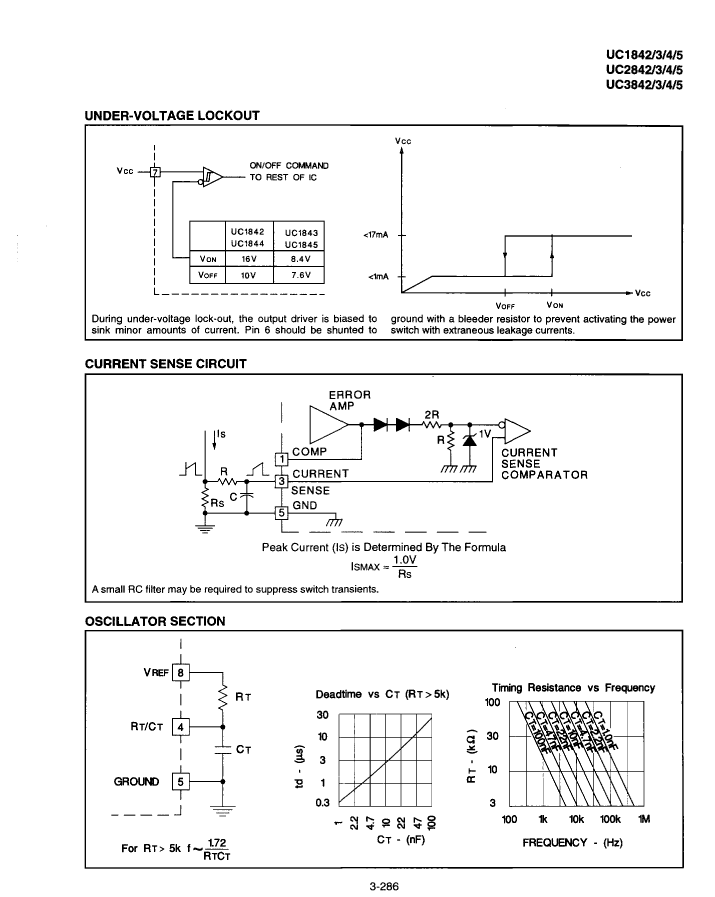

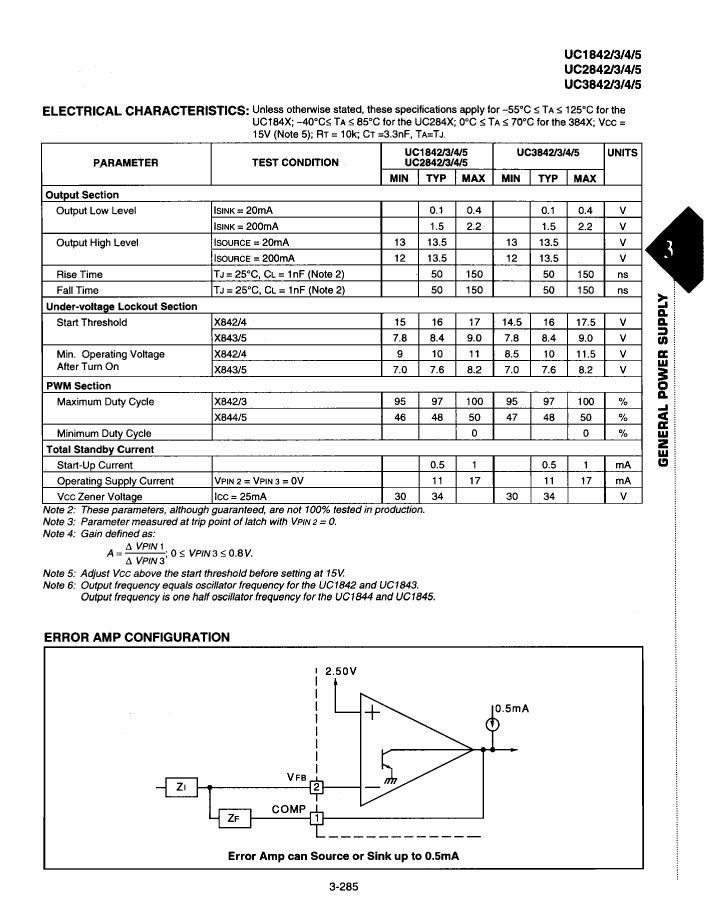

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Unitrode Corporation |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | SWITCHING CONTROLLER |
| control mode | CURRENT-MODE |
| Control Technology | PULSE WIDTH MODULATION |
| Maximum input voltage | 25 V |
| Minimum input voltage | 12 V |
| Nominal input voltage | 15 V |
| JESD-30 code | R-CDIP-T8 |
| JESD-609 code | e0 |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Maximum output current | 1 A |
| Nominal output voltage | 2.5 V |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum supply current (Isup) | 17 mA |
| surface mount | NO |
| Switch configuration | SINGLE |
| Maximum switching frequency | 500 kHz |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) - hot dipped |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| 5962-8670404PA | 5962-8670401PA | 5962-8670402PA | 5962-8670403PA | 5962-8670403PX | 5962-8670404PX | 5962-8670401PX | 5962-8670402PX | |
|---|---|---|---|---|---|---|---|---|
| Description | Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8, | Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8, | Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8, | Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8, | Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8, | Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8, | Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8, | Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8, |
| Maker | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation | Unitrode Corporation |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | SWITCHING CONTROLLER | SWITCHING CONTROLLER | SWITCHING CONTROLLER | SWITCHING CONTROLLER | SWITCHING CONTROLLER | SWITCHING CONTROLLER | SWITCHING CONTROLLER | SWITCHING CONTROLLER |
| control mode | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE |
| Control Technology | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION |
| Maximum input voltage | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V |
| Minimum input voltage | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V | 12 V |
| Nominal input voltage | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| JESD-30 code | R-CDIP-T8 | R-CDIP-T8 | R-CDIP-T8 | R-CDIP-T8 | R-CDIP-T8 | R-CDIP-T8 | R-CDIP-T8 | R-CDIP-T8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Maximum output current | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Switch configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum switching frequency | 500 kHz | 500 kHz | 500 kHz | 500 kHz | 500 kHz | 500 kHz | 500 kHz | 500 kHz |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
