American Power Design, Inc.

"The best high voltage design solution"

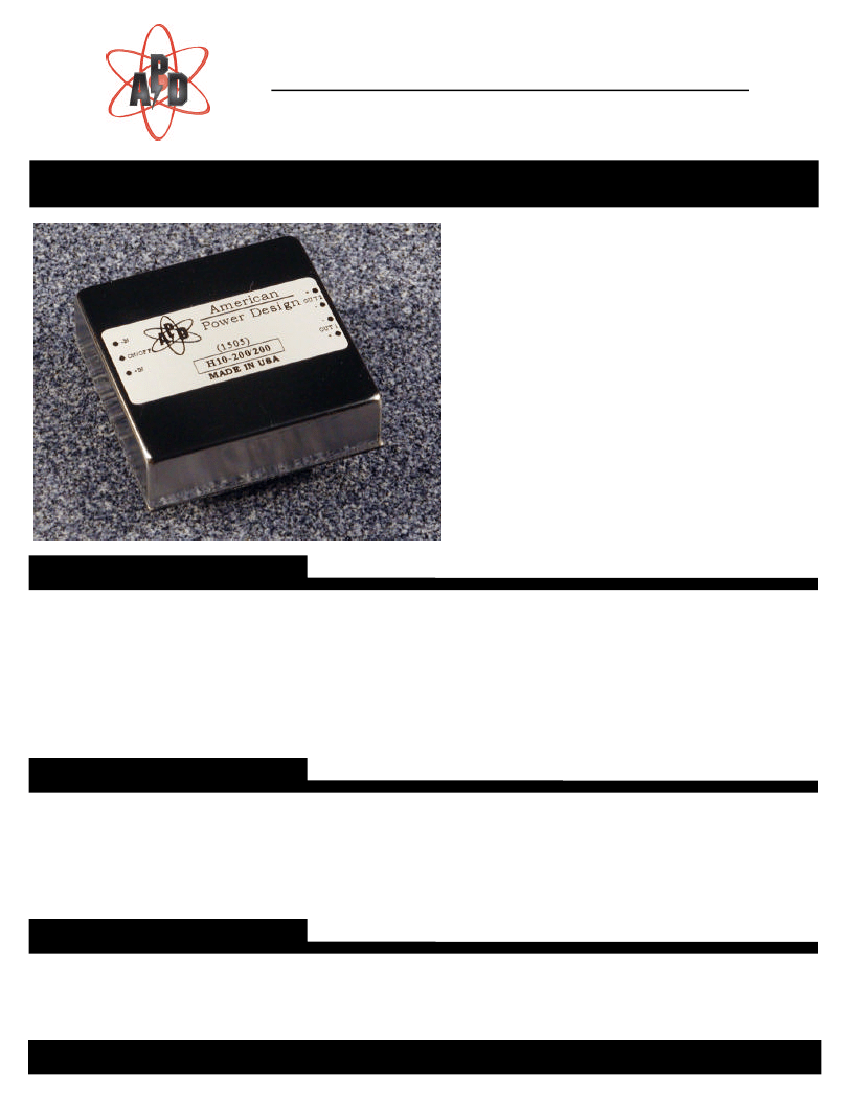

H 1 0 S E R IE S 1 0 W A T T H IG H V O L T A G E D C / D C C O N V E R T E R S

FEATURES

Customer Selects Output

Voltages

* W ide Input Ranges

(5-15 Vdc , 9-36 Vdc , 20-60 Vdc)

* E fficiency 83% (typ.)

* Independently Isolated Outputs

* S ix-Sided Shield Case

* Remote On/Off Control

* 100 k H z Switching Frequency

The H 1 0 Series of DC/DC converters accepts ultra

wide input ranges of 5-15 Vdc, 9-36 Vdc, & 20-60 Vdc.

Outputs are independently isolated. In the case of

duals, full pow e r may be taken from either output. All

models will tolerate a short circuit indefinitely. Also

included is a P i input filter a n d remote on/off.

ELECTRICAL SPECIFICATIONS

Voltage Accuracy ............................................................+/- 3%

Input R egulation..............................................................+/-3%

Load Regulation ...................................(20% to full load) +/-3%

Output R ipple................................................................+/-0.3%

* 9-36 Vdc Input add suffix /A

* 20-60 Vdc Input add suffix /B

Short Circuit Protection .........................Input Current Foldback

Input Filter ................................................................Pi N e twork

Efficiency ..................................................................83% (typ.)

Switching Frequency ...................................................100 kHz

Isolation (Input-Output(1)-Output(2)-Case).........................1Kv

GENERAL SPECIFICATIONS

Te m p . Stability.......................................................+/- 0.02%/°C

Te m p . (Operating,Case) ........................................-45 to +85°C

Te m p . (Storage) ..................................................-55 to +100°C

Logic Shutdown....................................................Logic 0 (on)

EMI/RFI ..........................................................Six-Sided Shield

Te m p . Derating .................................................................None

Cooling .....................................................Free-Air Convection

* All models designed to meet UL 60950

* For RoHS Compliant part, add suffix /Y

PHYSICAL SPECIFICATIONS

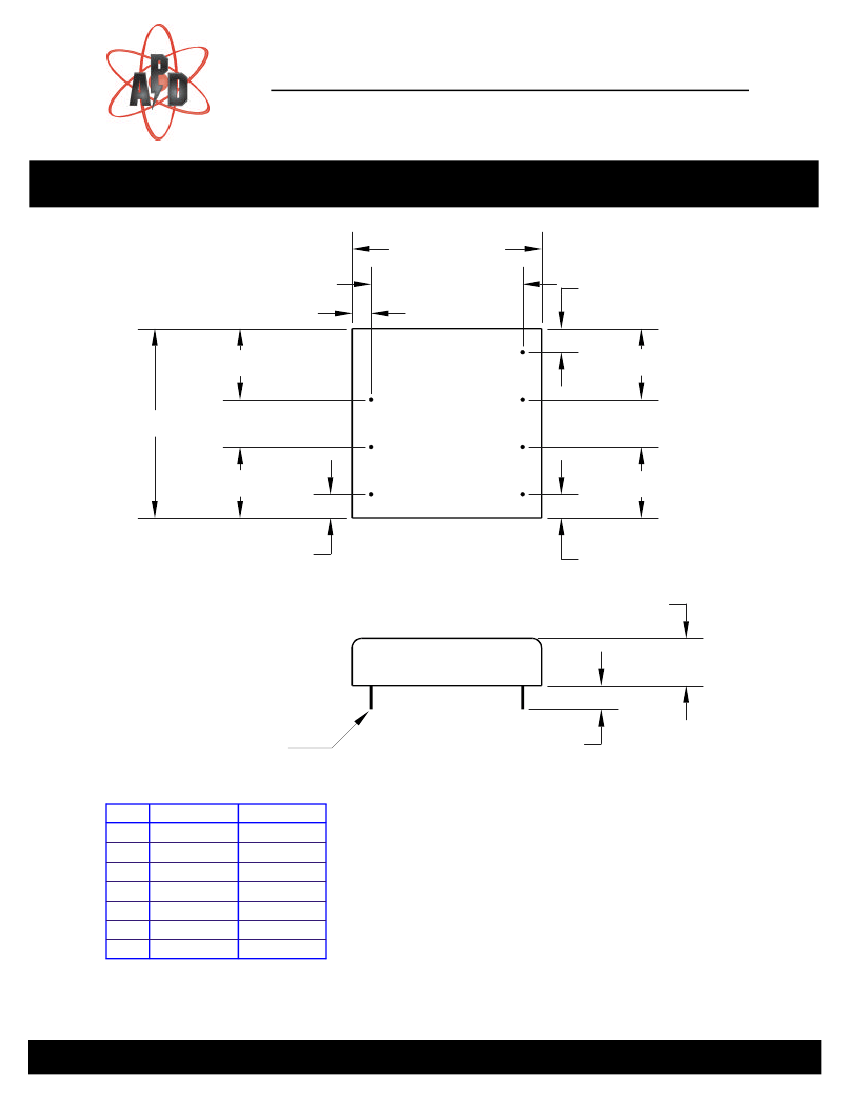

D imensions ..............................................2.0 x 2.0 x 0.5 inches

Weight ............................................................................2.8 Oz

Case M aterial ............................................ N ickelPlated Copper

(With N on-Conductive Base Plate)

T e l (8 8 8 ) 8 9 4 - 4 4 4 6

W W W . A P O W E R D E S I G N .C O M

Fax (603) 898-6534
