530-24-CC-D datasheet, PDF - EEWORLD Datasheet

530-24-CC-D: DescriptionIC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder,; CategoryThe connector socket; File Size251KB，3 Pages; ManufacturerWPI Garry Electronics

Download Datasheet Parametric View All

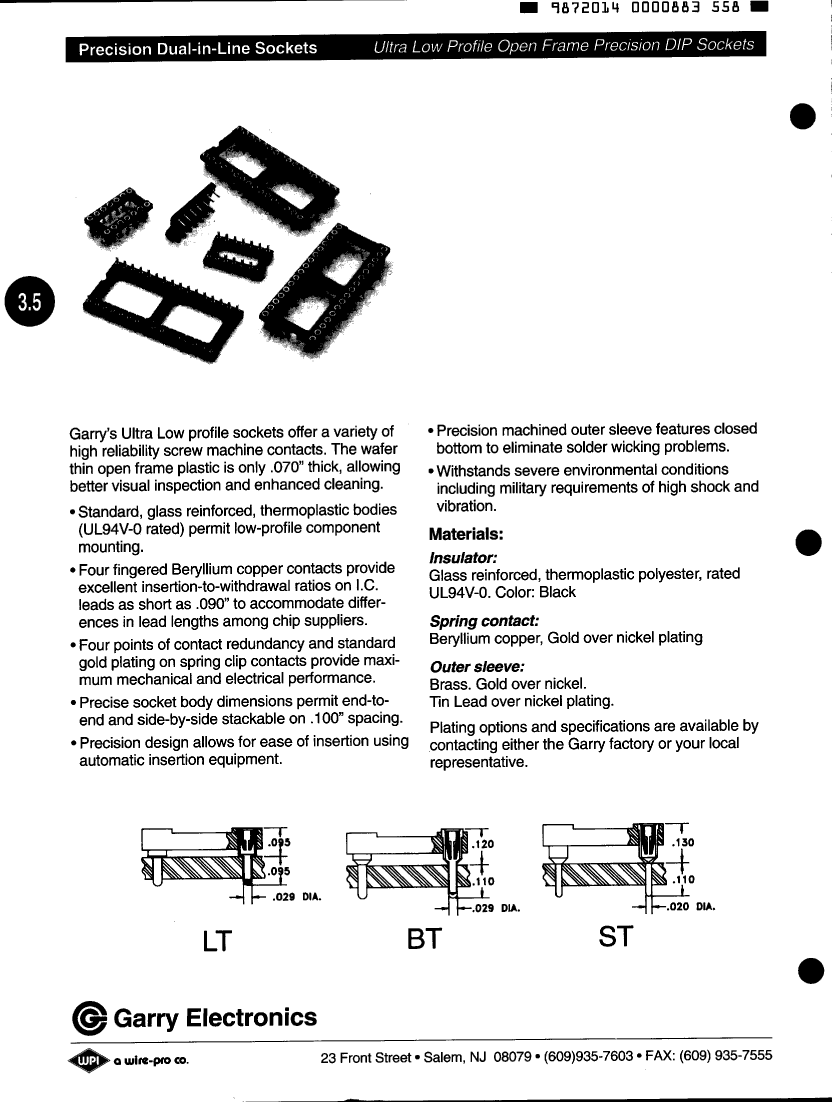

530-24-CC-D Overview

IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder,

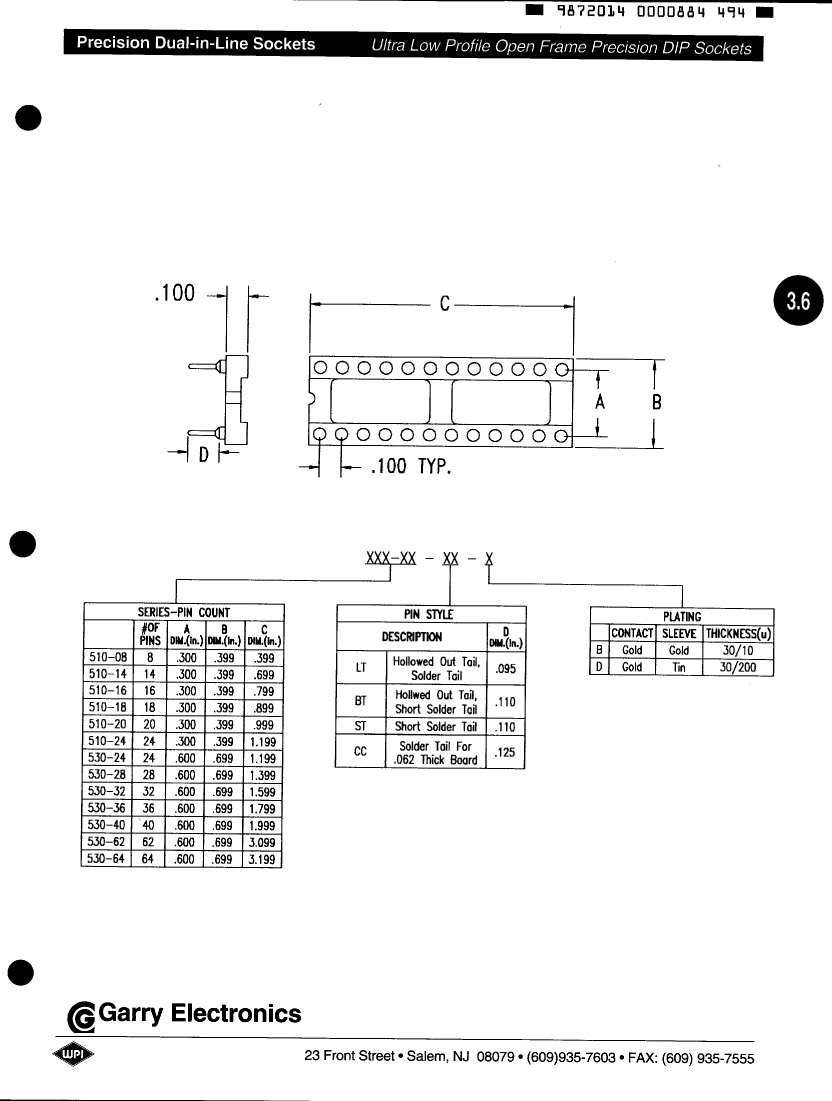

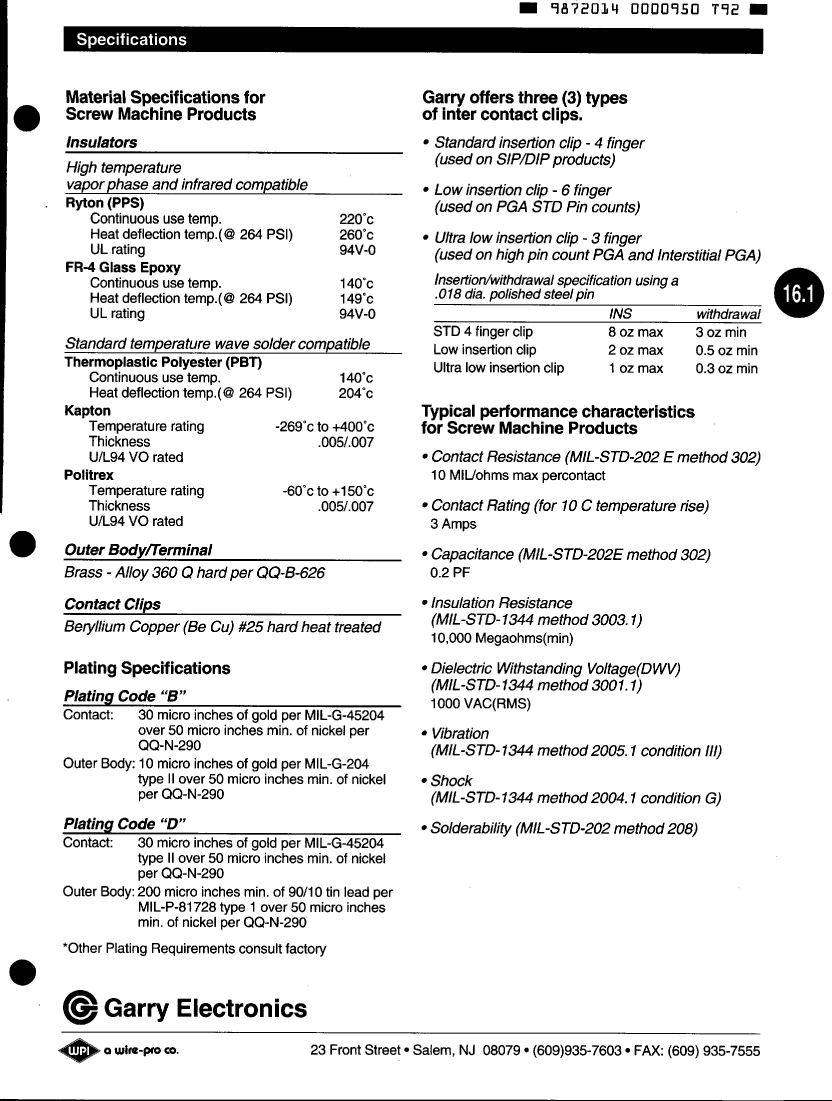

Parameter Name	Attribute value
Maker	WPI Garry Electronics
Reach Compliance Code	unknown
body width	0.699 inch
subject depth	0.165 inch
body length	1.199 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact material	BRASS
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP24
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED THERMOPLASTIC
Insulation resistance	10000000000 Ω
Manufacturer's serial number	530
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	24
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1
