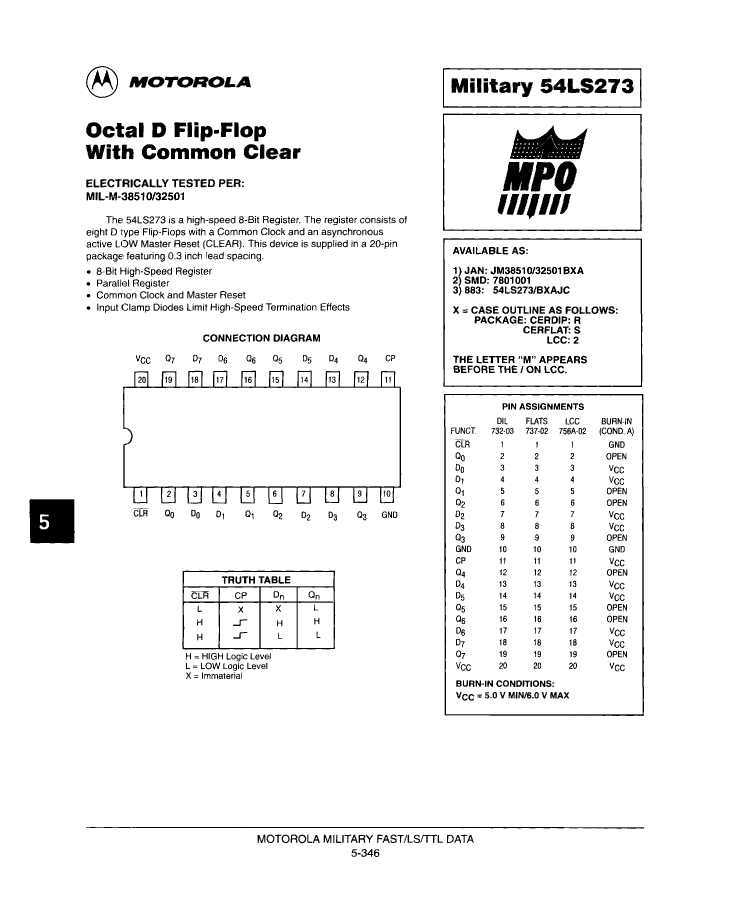

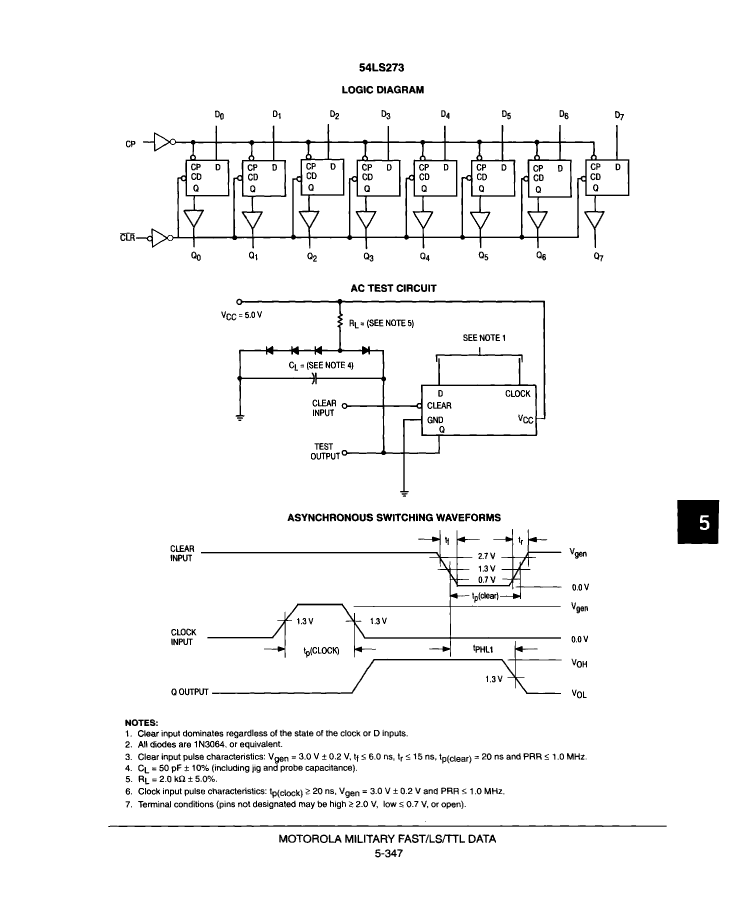

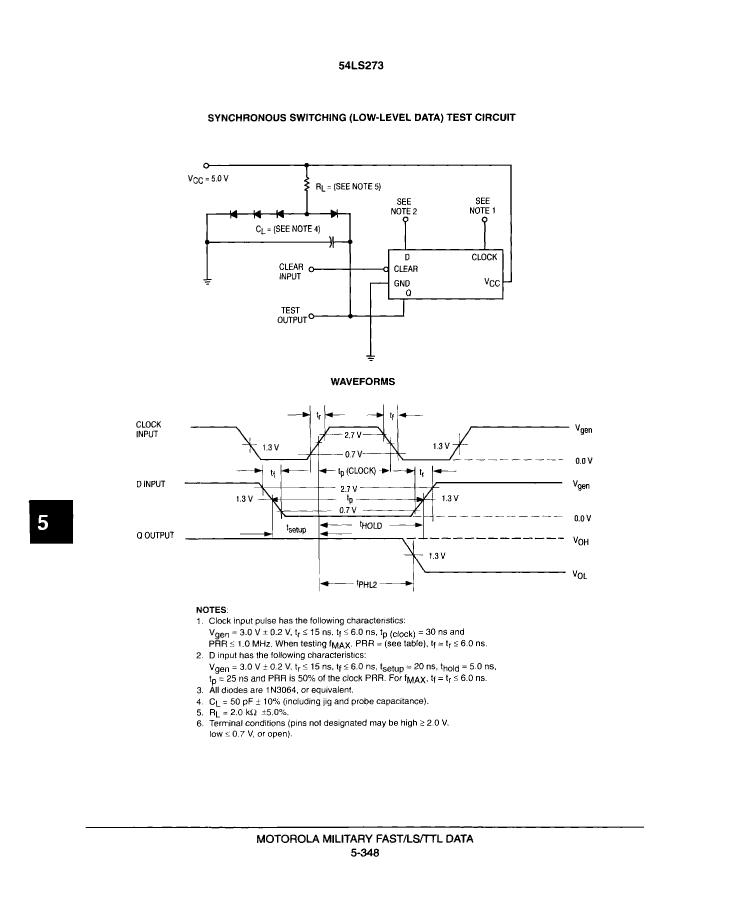

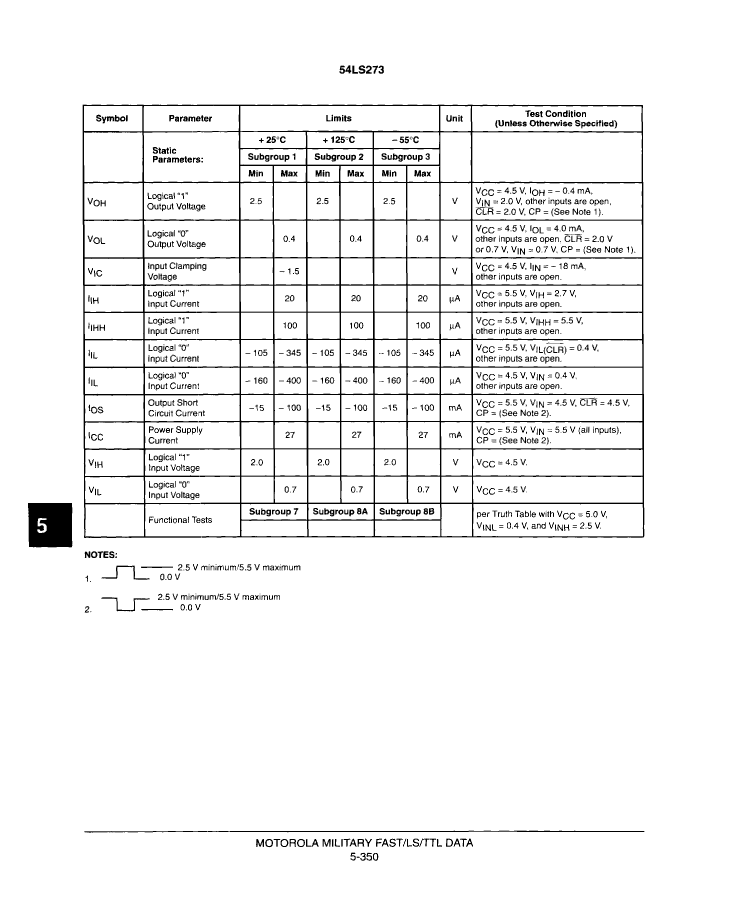

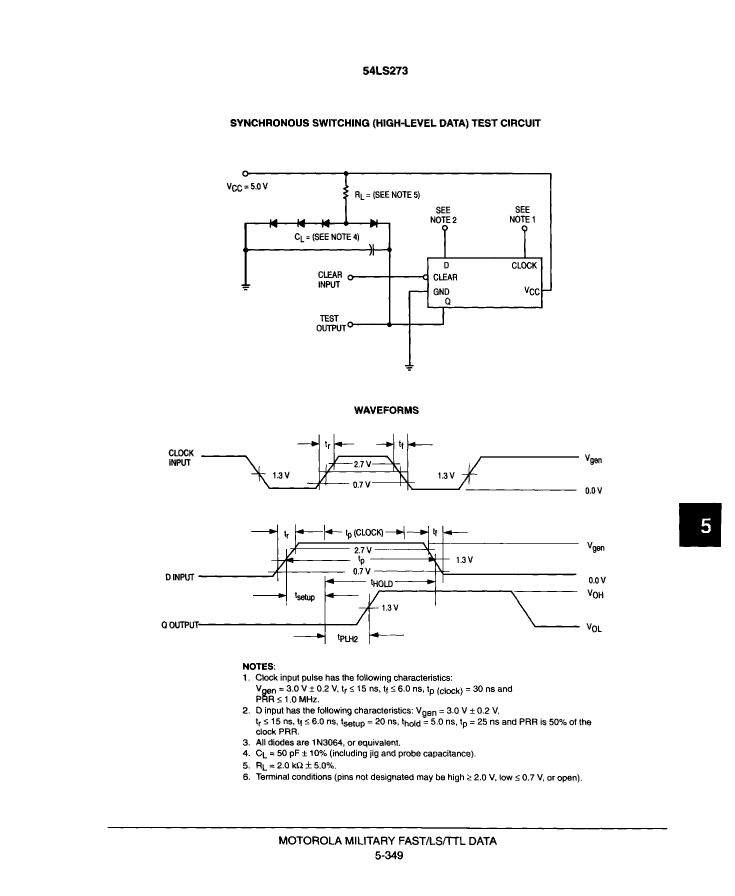

54LS273M/B2AJC: DescriptionLS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size115KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS273M/B2AJC Overview

LS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20

54LS273M/B2AJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	CERAMIC, LCC-20
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	30000000 Hz
MaximumI(ol)	0.004 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	27 mA
propagation delay (tpd)	37 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	8.885 mm
minfmax	30 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

54LS273M/B2AJC Related Products

	54LS273M/B2AJC	54LS273/BRAJC	54LS273/BSAJC
Description	LS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CDIP20, CERDIP-20	LS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDFP20, CERAMIC, FP-20
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	CERAMIC, LCC-20	DIP,	CERAMIC, FP-20
Reach Compliance Code	unknown	unknown	unknown
series	LS	LS	LS
JESD-30 code	S-CQCC-N20	R-CDIP-T20	R-GDFP-F20
JESD-609 code	e0	e0	e0
length	8.885 mm	24.515 mm	13.08 mm
Load capacitance (CL)	15 pF	15 pF	15 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP	DFP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	27 mA	27 mA	27 mA
propagation delay (tpd)	37 ns	37 ns	37 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	5.08 mm	2.16 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	8.885 mm	7.62 mm	6.475 mm
minfmax	30 MHz	30 MHz	30 MHz
Base Number Matches	1	1	1
Maximum Frequency@Nom-Sup	30000000 Hz	-	30000000 Hz
MaximumI(ol)	0.004 A	-	0.004 A
Encapsulate equivalent code	LCC20,.35SQ	-	FL20,.3
power supply	5 V	-	5 V
Filter level	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B
