54F374/B2C

Description
D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CQCC20
Categorylogic    logic
File Size472KB,9 Pages
ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.)
Websitehttps://www.nxp.com/
Download Datasheet Parametric Compare View All

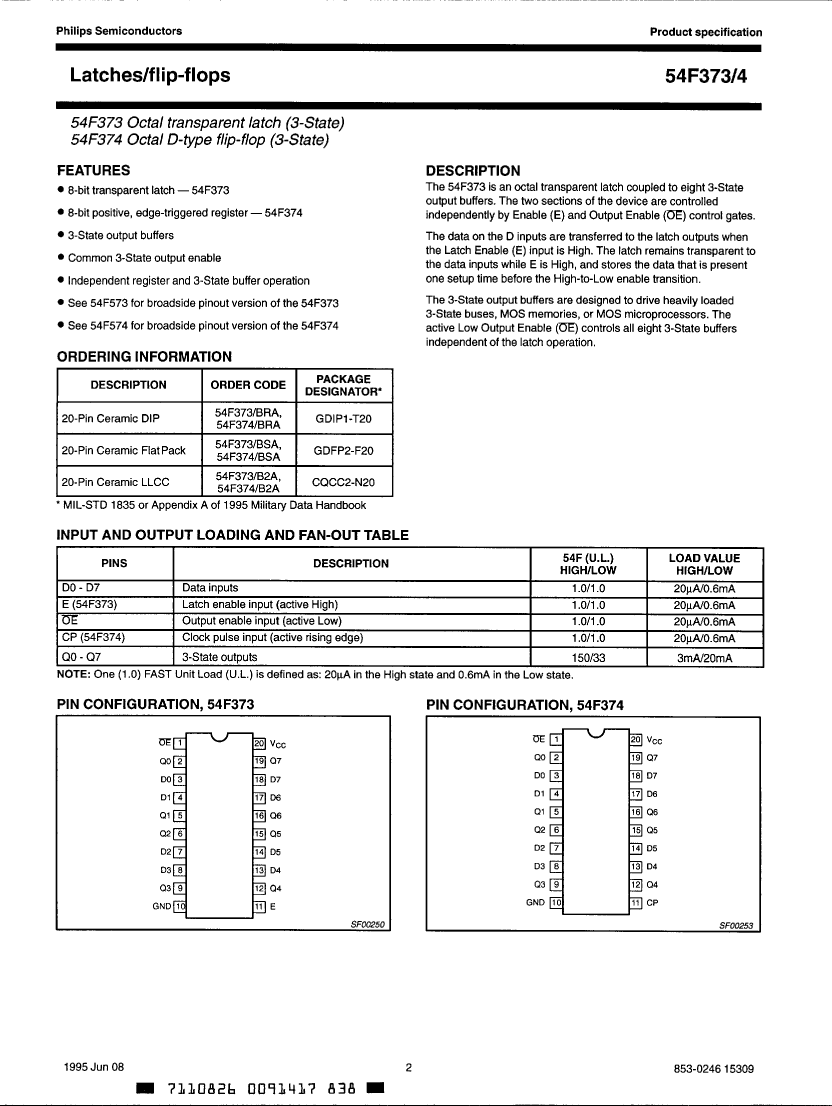

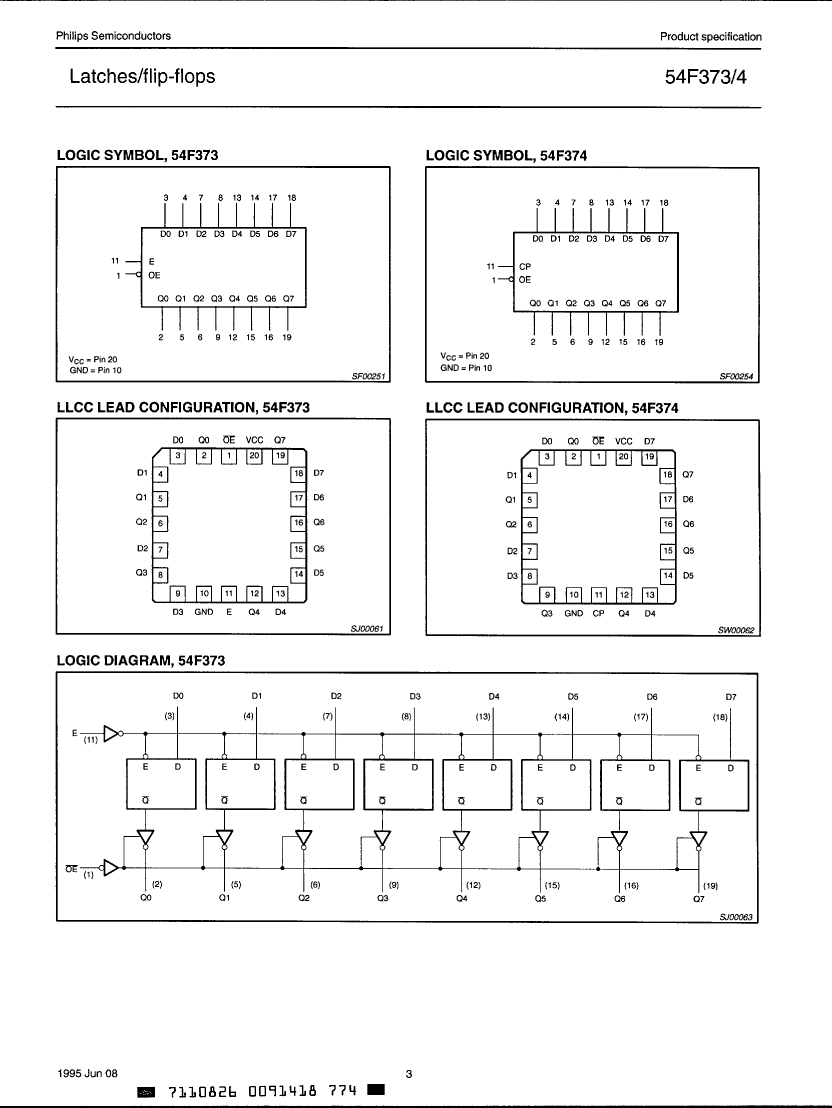

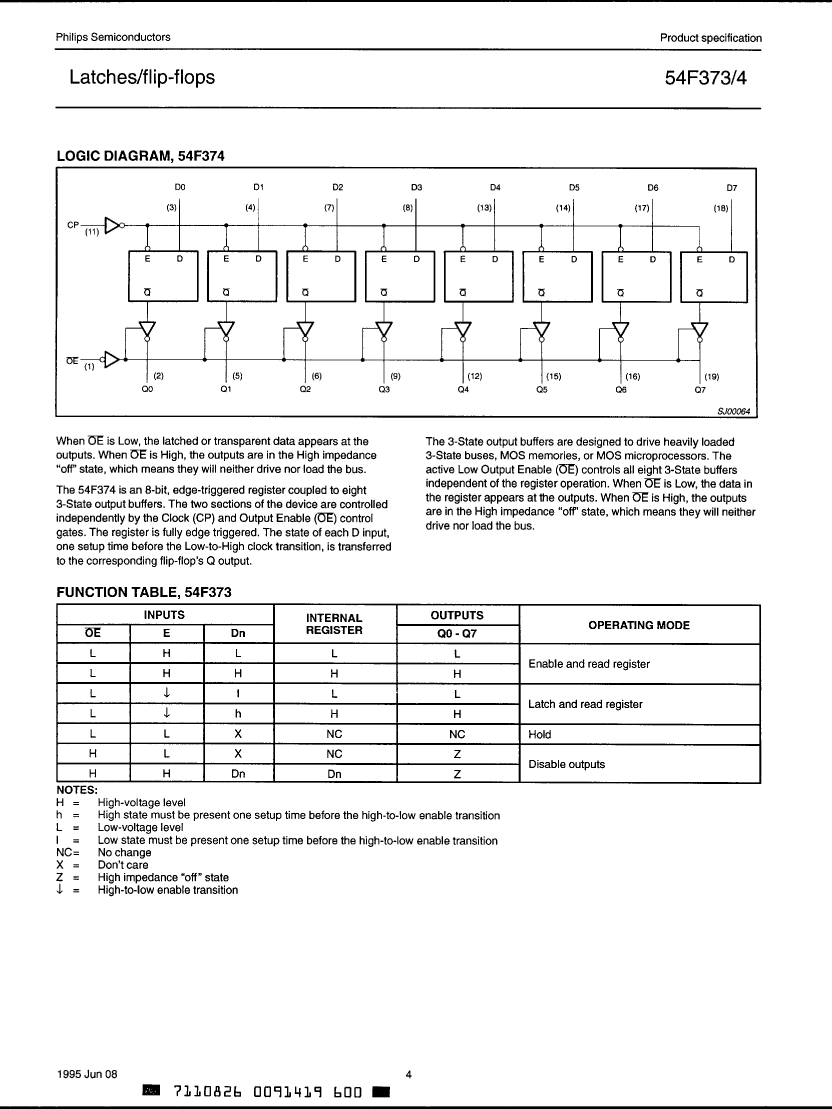

54F374/B2C Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CQCC20

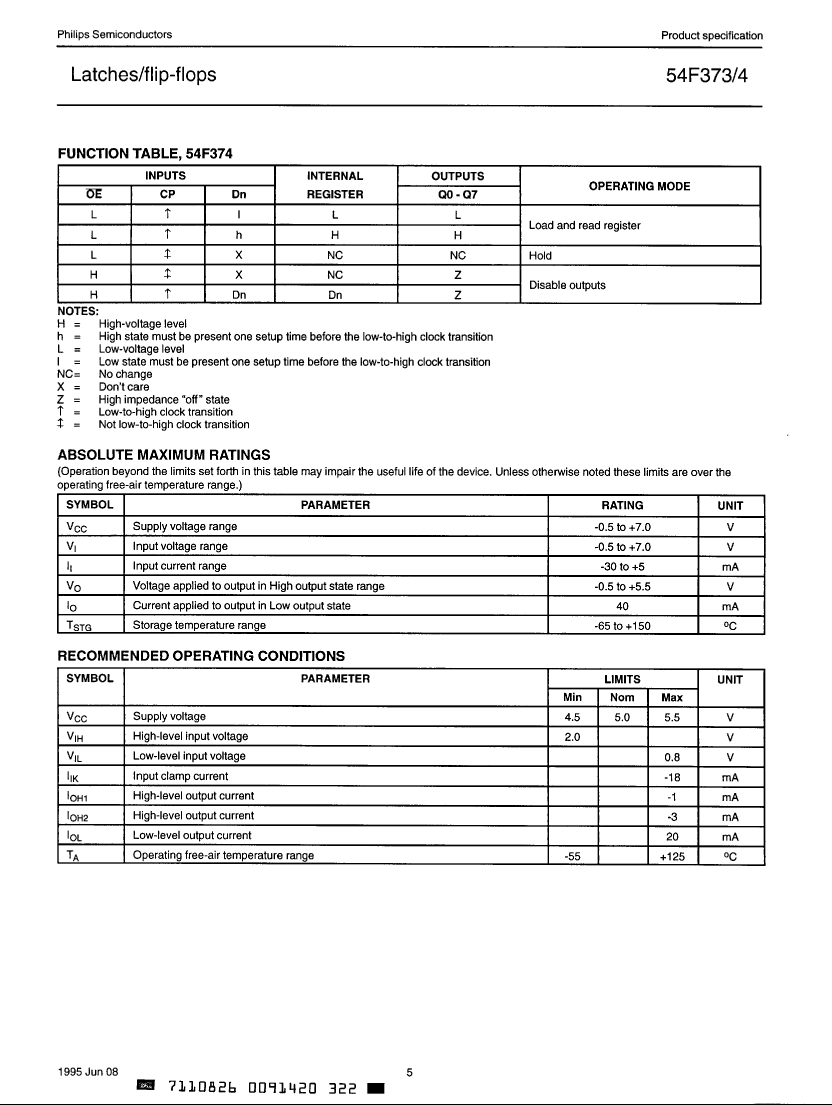

54F374/B2C Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPhilips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Codeunknown
JESD-30 codeS-XQCC-N20
JESD-609 codee0
Logic integrated circuit typeD FLIP-FLOP
Maximum Frequency@Nom-Sup60000000 Hz
MaximumI(ol)0.02 A
Number of functions8
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Package body materialCERAMIC
encapsulated codeQCCN
Encapsulate equivalent codeLCC20,.35SQ
Package shapeSQUARE
Package formCHIP CARRIER
power supply5 V
Maximum supply current (ICC)86 mA
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Trigger typePOSITIVE EDGE
Base Number Matches1

54F374/B2C Related Products

54F374/B2C N74F374N-B
Description D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CQCC20 D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, PDIP20
Is it Rohs certified? incompatible incompatible
Maker Philips Semiconductors (NXP Semiconductors N.V.) Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code unknown unknown
JESD-30 code S-XQCC-N20 R-PDIP-T20
JESD-609 code e0 e0
Logic integrated circuit type D FLIP-FLOP D FLIP-FLOP
Maximum Frequency@Nom-Sup 60000000 Hz 140000000 Hz
MaximumI(ol) 0.02 A 0.024 A
Number of functions 8 8
Number of terminals 20 20
Maximum operating temperature 125 °C 70 °C
Output characteristics 3-STATE 3-STATE
Package body material CERAMIC PLASTIC/EPOXY
encapsulated code QCCN DIP
Encapsulate equivalent code LCC20,.35SQ DIP20,.3
Package shape SQUARE RECTANGULAR
Package form CHIP CARRIER IN-LINE
power supply 5 V 5 V
Maximum supply current (ICC) 86 mA 86 mA
Nominal supply voltage (Vsup) 5 V 5 V
surface mount YES NO
technology TTL TTL
Temperature level MILITARY COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm
Terminal location QUAD DUAL
Trigger type POSITIVE EDGE POSITIVE EDGE
