571-4179-01-01-19 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 571-4179-01-01-19

Preview

571-4179-01-01-19: DescriptionPCB Terminal; CategoryThe connector terminals; File Size202KB，1 Pages; ManufacturerCambion Electronics Ltd.; Websitehttp://www.cambion.com/; Environmental Compliance

Download Datasheet Parametric View All

571-4179-01-01-19 Overview

PCB Terminal

571-4179-01-01-19 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cambion Electronics Ltd.
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

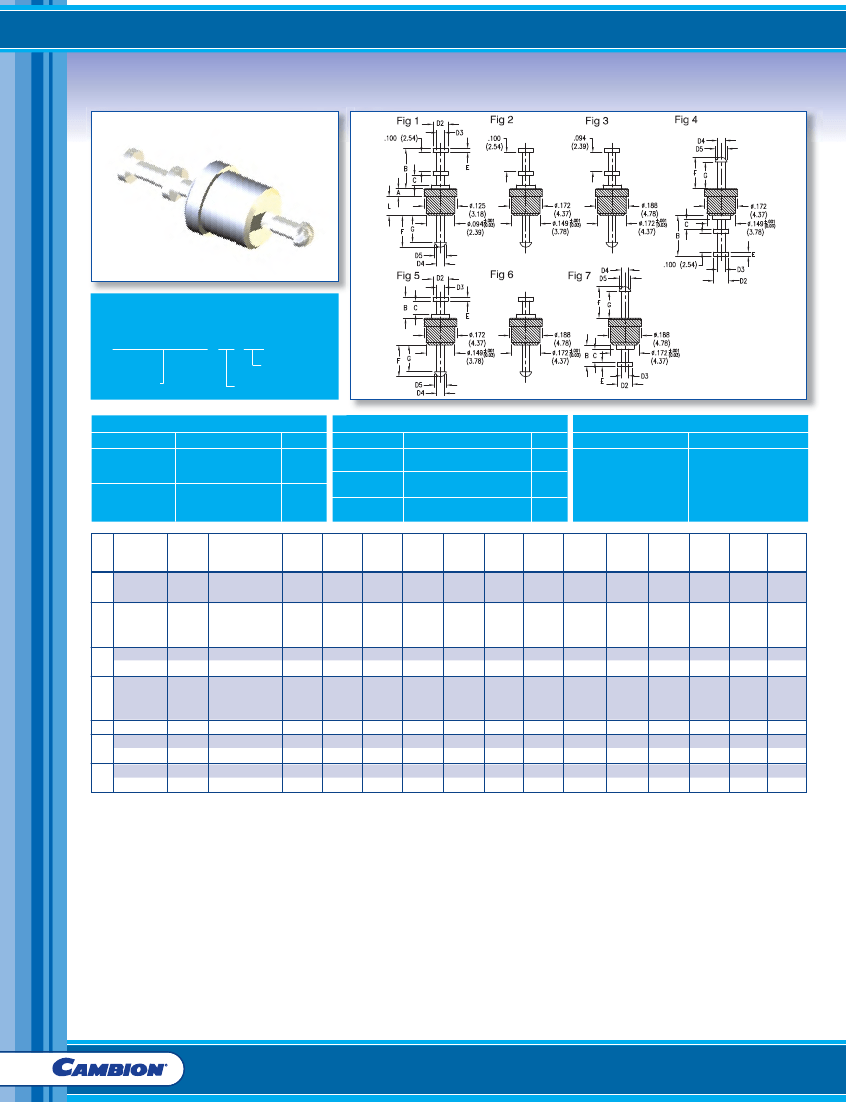

SOLDER TERMINALS - PTFE INSULATED, PRESS MOUNT, FEEDTHROUGH

Dimensions in inches (mm)

See page 91 for Mounting Instructions

How to order code

571 - 4XXX - XX - XX - 19

Insulator Colour

Basic Part No.

Terminal Finish

Material Code Table

Component

Insulator

Terminal

Fig.

Basic Part

No.

571-4154 -01

-02

571-4182 -01

-02

-03

571-4250 -01

571-4241 -01

571-4186 -01

-02

-03

571-4179 -01

571-4232 -01

571-4233 -01

571-4234 -01

571-4235 -01

L

.060 (1.52)

.100 (2.54)

.125 (3.18)

.165 (4.19)

.200 (5.08)

.212 (5.38)

.100 (2.54)

.125 (3.18)

.165 (4.19)

.100 (2.54)

.275 (6.99)

.400 (10.16)

.212 (5.38)

.275 (6.99)

Material

PTFE

Brass

Board

Thickness

.016 (0.40) only

.031 (0.79) to .062 (1.57)

.031 (0.79) to .085 (2.16)

.031 (0.79) to .125 (3.18)

.031 (0.79) to .162 (4.11)

.031 (0.79) to .172 (4.37)

.031 (0.79) to .062 (1.57)

.031 (0.79) to .085 (2.16)

.031 (0.79) to .125 (3.18)

.031 (0.79) to .062 (1.57)

.031 (0.79) to .234 (5.94)

.031 (0.79) to .250 (6.35)

.031 (0.79) to .172 (4.37)

.031 (0.79) to .234 (5.94)

RoHS

✓

A

Finish Code Table

Dash No.

Terminal Finish

-01

-04

-05

B

C

D2

Silver

Electro-Tin

Electro-Solder

D3

D4

RoHS

✓

X

D5

Insulation Colour Code Table

Dash No.

-19

Colour

White

E

F

G

1

2

3

4

5

6

7

.040 (1.02) .210 (5.33) .050 (1.27) .080 (2.03) .040 (1.02) .035 (0.89) .050 (1.27) .020 (0.51)

.040 (1.02) .210 (5.33) .050 (1.27) .080 (2.03) .040 (1.02) .040 (1.02) .060 (1.52) .020 (0.51)

.125 (3.18) .281 (7.14) .094 (2.39) .125 (3.18) .062 (1.57) .050 (1.27) .080 (2.03) .031 (0.79)

.188 (4.78) .250 (6.35) .096 (2.44) .094 (2.39) .050 (1.27) .050 (1.27) .065 (1.65) .020 (0.51)

.040 (1.02) .210 (5.33) .050 (1.27) .080 (2.03) .040 (1.02) .040 (1.02) .060 (1.52) .020 (0.51)

.040 (1.02)

.250 (6.35)

.375 (9.53)

.188 (4.78)

.250 (6.35)

.125 (3.18 )

.125 (3.18)

.095 (2.41)

.063 (1.60)

.080 (2.03)

.125 (3.18)

.040 (1.02)

.050 (1.27)

.040 (1.02)

.050 (1.27)

.060 (1.52)

.065 (1.65)

.020 (0.51)

.031 (0.79)

.150 (3.81) .125 (3.18)

.150 (3.81)

.125 (3.18)

.085 (2.16)

.222 (5.64)

.186 (4.72)

.150 (3.81)

.125 (3.18)

.194 (4.93)

.085 (2.16)

.215 (5.46)

.120 (3.05)

.095 (2.41)

.055 (1.40)

.182 (4.62)

.154 (3.91)

.120 (3.05)

.095 (2.41)

.164 (4.17)

.055 (1.40)

.183 (4.65)

Mtg. Hole Capacitance Flashover

Diameter (pF)

VRMS at

Sea Level

.083 (2.11)

0.5

1500

0.7

1500

.136 (3.45)

0.4

3000

0.4

3000

0.4

3000

.158 (4.01)

1.0

5500

.158 (4.01)

0.4

6000

.136 (3.45)

0.4

3000

0.4

3000

0.4

3000

.136 (3.45)

0.4

3000

.158 (4.01) 0.45

7000

.158 (4.01) 0.45

9000

.158 (4.01)

0.4

6000

.158 (4.01)

0.5

7000

Other colours available, consult factory.

40

Call our dedicated order line on

+44 (0) 1433 621555

or visit

www.cambion.com
