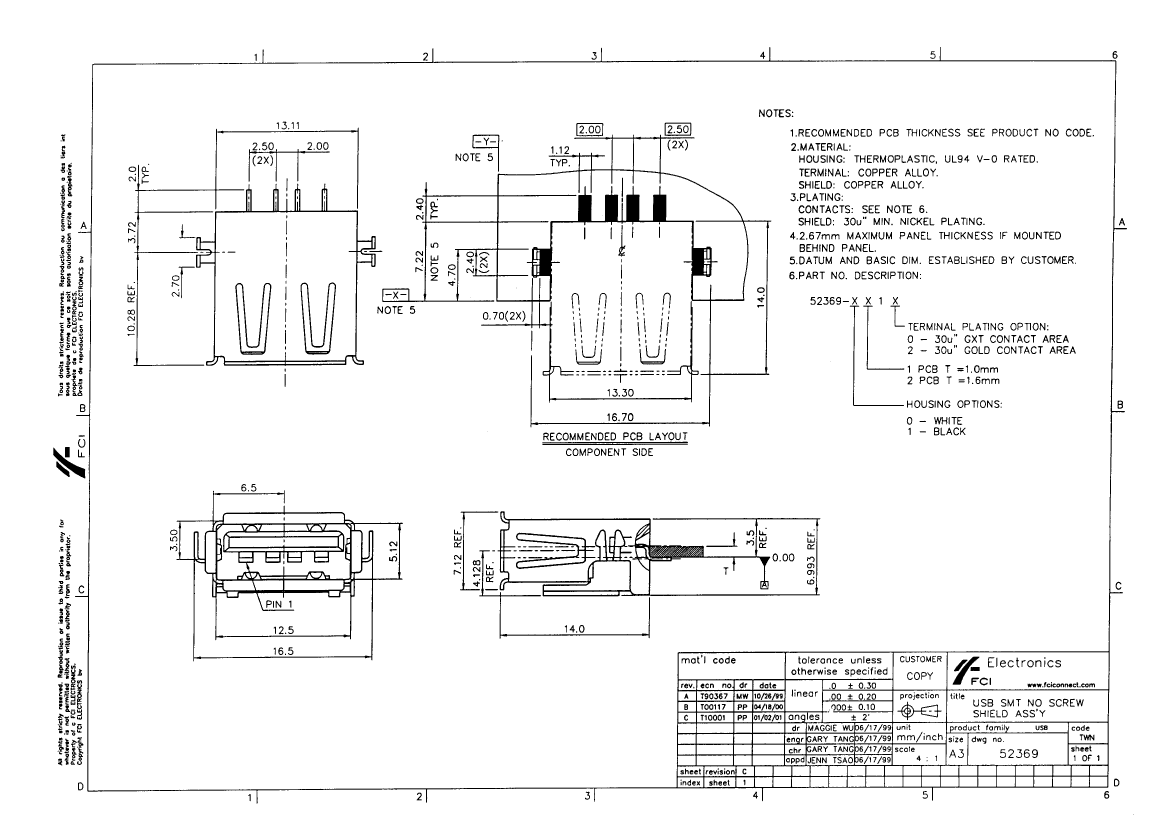

52369-1210: DescriptionTelecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

52369-1210 Overview

Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BLACK HOUSING, PCB THICK=1.6MM
Board mount options	SOLDER HOLDING POSTS
body width	0.28 inch
subject depth	0.63 inch
body length	0.524 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
insulator material	THERMOPLASTIC
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	4
Base Number Matches	1

	52369-1210	52369-0210
Description	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	BLACK HOUSING, PCB THICK=1.6MM	WHITE HOUSING, PCB THICK=1.6MM
Board mount options	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS
body width	0.28 inch	0.28 inch
subject depth	0.63 inch	0.63 inch
body length	0.524 inch	0.524 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI	AU-PD-NI ON NI
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
insulator material	THERMOPLASTIC	THERMOPLASTIC
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of ports	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL
Shell material	COPPER ALLOY	COPPER ALLOY
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	4
