54F109M/B2AJC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 54F109M/B2AJC

Preview

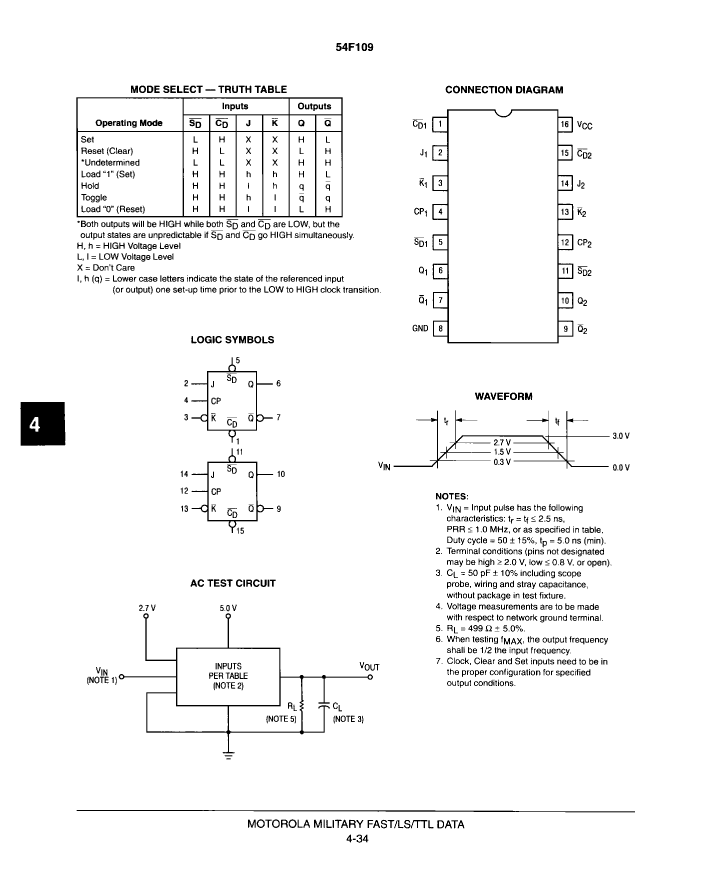

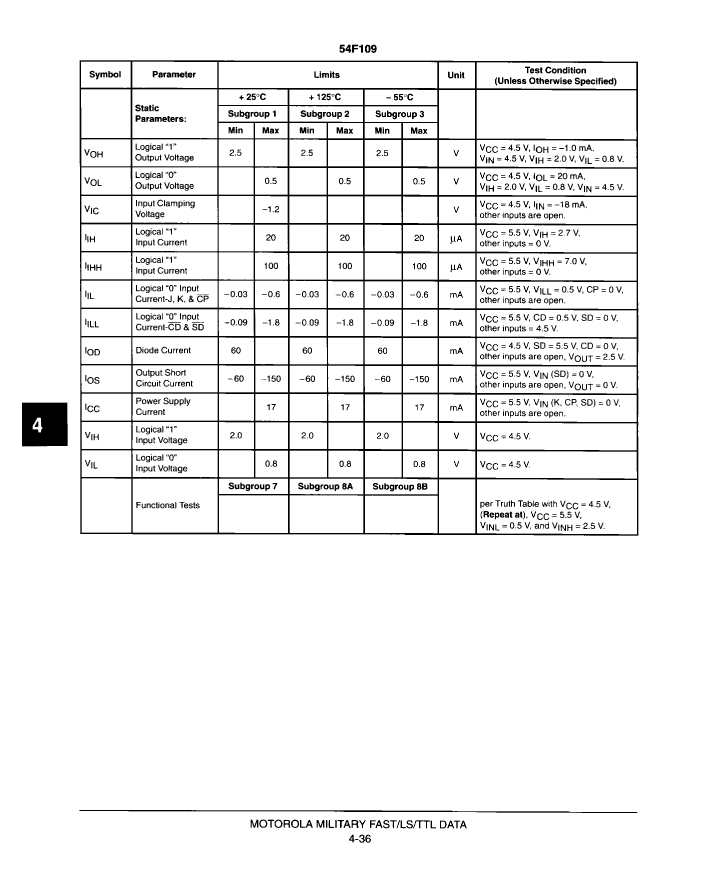

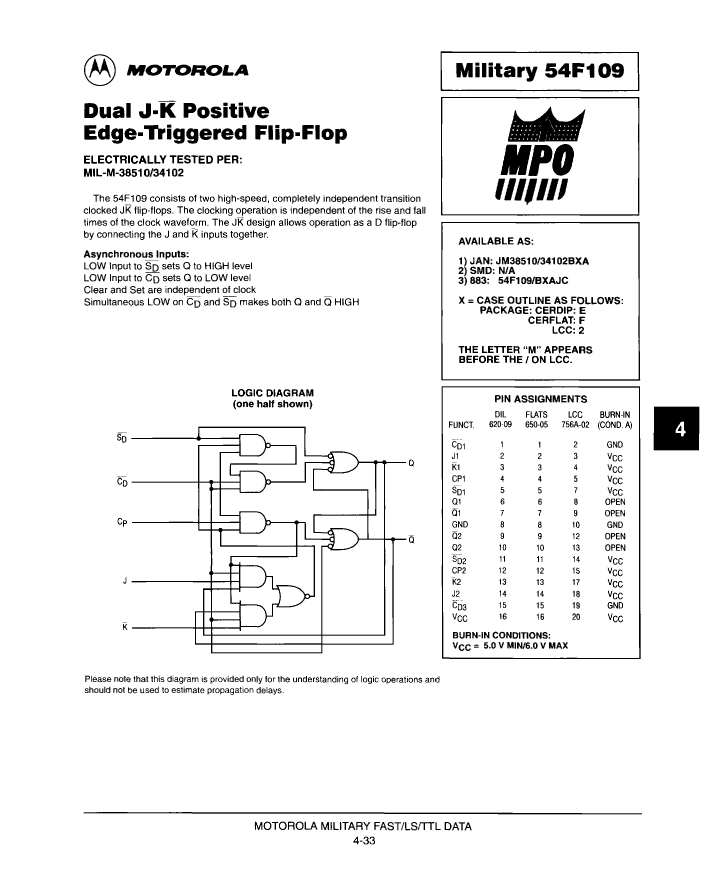

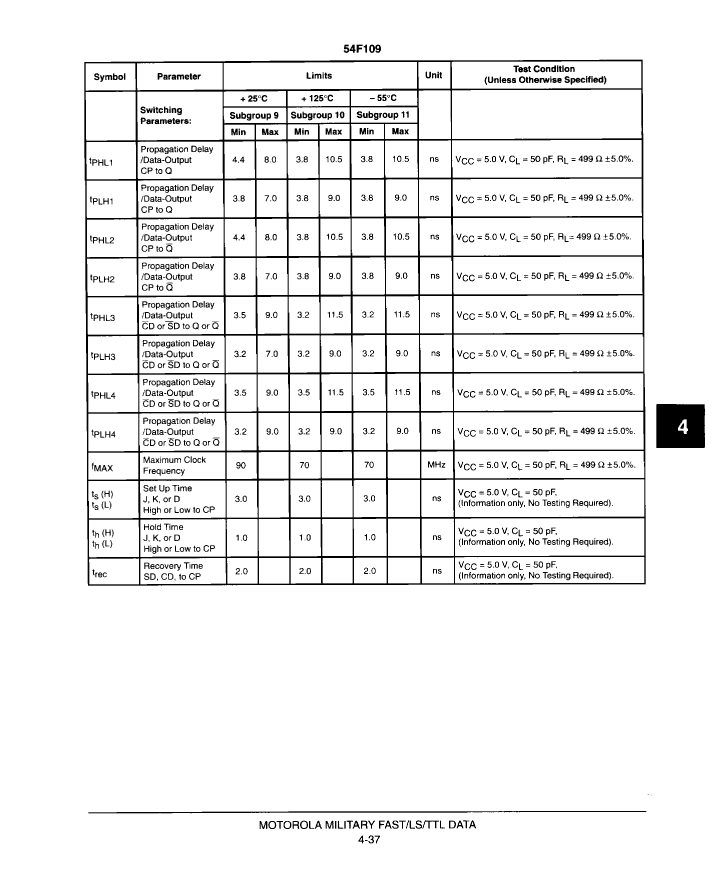

54F109M/B2AJC: DescriptionF/FAST SERIES, DUAL POSITIVE EDGE TRIGGERED J-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size102KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F109M/B2AJC Overview

F/FAST SERIES, DUAL POSITIVE EDGE TRIGGERED J-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20

54F109M/B2AJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	J-KBAR FLIP-FLOP
Maximum Frequency@Nom-Sup	90000000 Hz
MaximumI(ol)	0.02 A
Number of digits	2
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	17 mA
propagation delay (tpd)	10.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	8.885 mm
minfmax	70 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

54F109M/B2AJC Related Products

	54F109M/B2AJC	54F109/BFAJC
Description	F/FAST SERIES, DUAL POSITIVE EDGE TRIGGERED J-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20	F/FAST SERIES, DUAL POSITIVE EDGE TRIGGERED J-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, FP-16
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	QLCC	DFP
package instruction	QCCN, LCC20,.35SQ	DFP, FL16,.3
Contacts	20	16
Reach Compliance Code	unknown	unknown
series	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-GDFP-F16
JESD-609 code	e0	e0
length	8.885 mm	9.65 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	J-KBAR FLIP-FLOP	J-KBAR FLIP-FLOP
Maximum Frequency@Nom-Sup	90000000 Hz	90000000 Hz
MaximumI(ol)	0.02 A	0.02 A
Number of digits	2	2
Number of functions	2	2
Number of terminals	20	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP
Encapsulate equivalent code	LCC20,.35SQ	FL16,.3
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Maximum supply current (ICC)	17 mA	17 mA
propagation delay (tpd)	10.5 ns	10.5 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	1.9 mm	2.15 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	8.885 mm	6.415 mm
minfmax	70 MHz	70 MHz
Base Number Matches	1	1
