5962-89856012A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5962-89856012A

5962-89856012A: DescriptionOR/NOR Gate, 10H Series, 2-Func, 5-Input, ECL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size96KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

5962-89856012A Overview

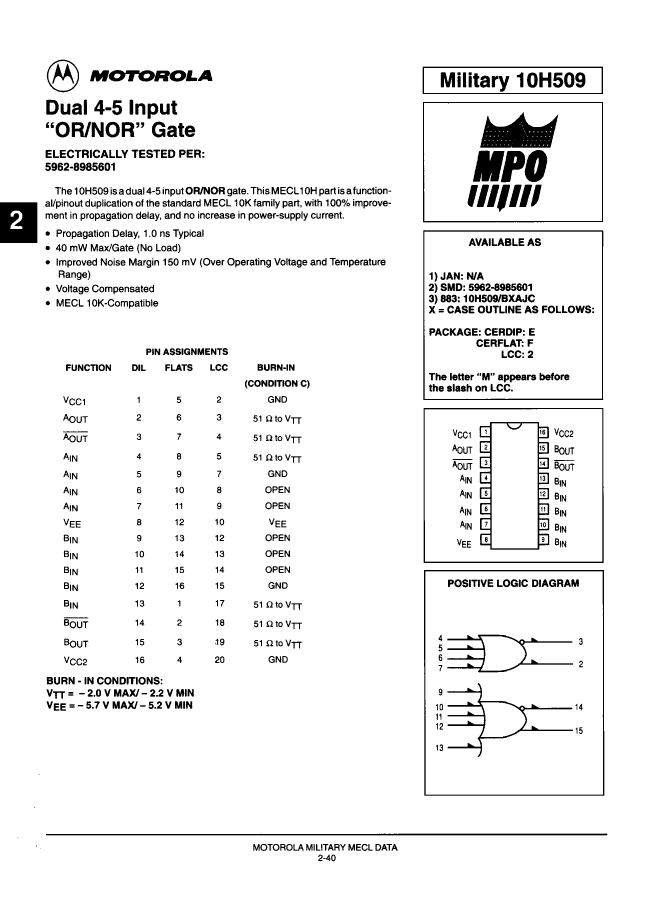

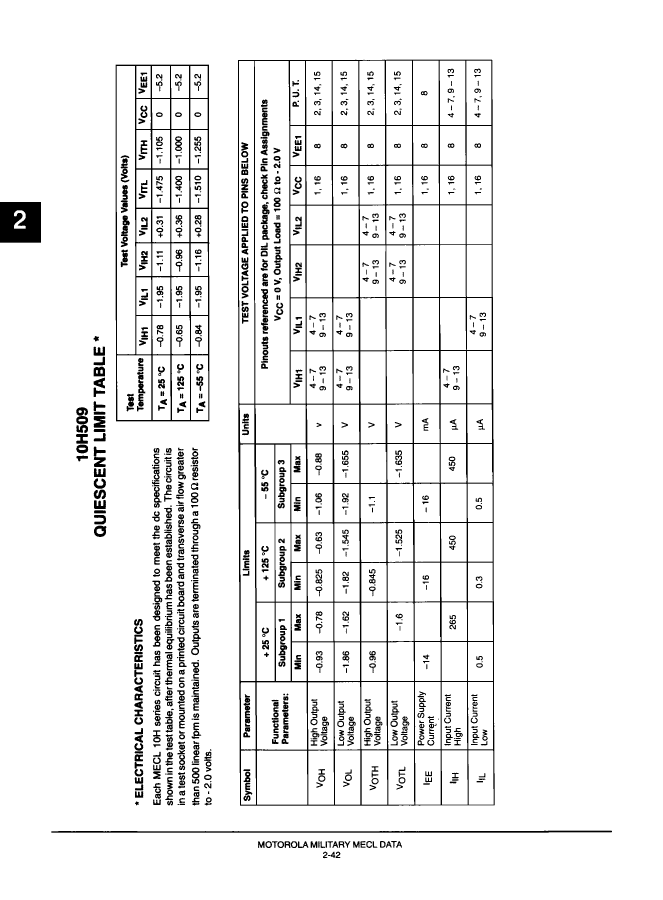

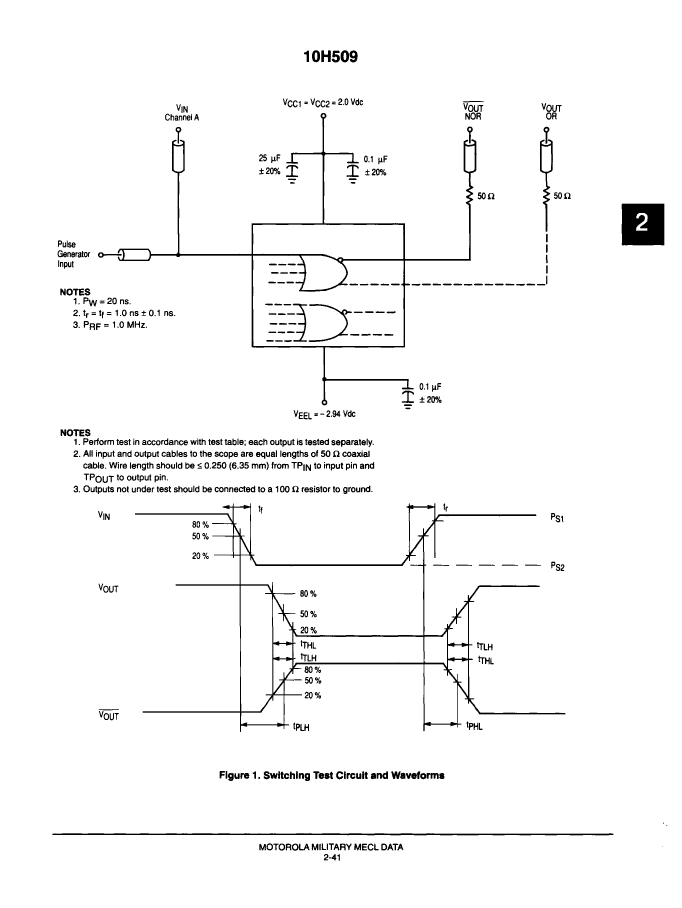

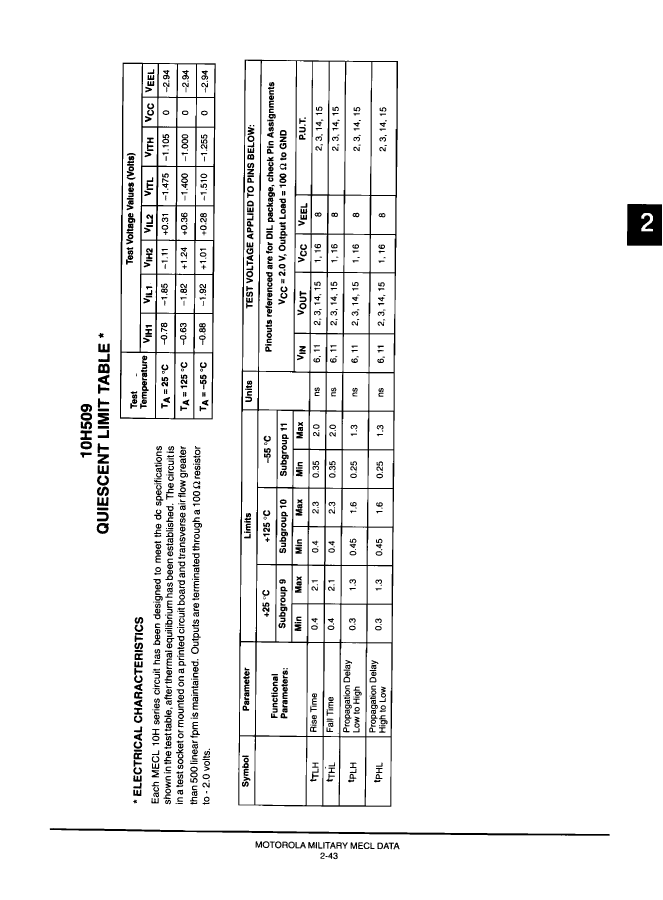

OR/NOR Gate, 10H Series, 2-Func, 5-Input, ECL, CQCC20, CERAMIC, LCC-20

5962-89856012A Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
Other features	ASYMMETRICAL INPUTS
series	10H
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Logic integrated circuit type	OR/NOR GATE
Number of functions	2
Number of entries	5
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	16 mA
propagation delay (tpd)	1.6 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.885 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-89856012A Related Products

	5962-89856012A	GRM0222C1H5R6DA03	5962-8985601EA	5962-8985601FA
Description	OR/NOR Gate, 10H Series, 2-Func, 5-Input, ECL, CQCC20, CERAMIC, LCC-20	Chip Multilayer Ceramic Capacitors for General Purpose	OR/NOR Gate, 10H Series, 2-Func, 5-Input, ECL, CDIP16, CERDIP-16	OR/NOR Gate, 10H Series, 2-Func, 5-Input, ECL, CDFP16, CERAMIC, FP-16
package instruction	QCCN,	-	DIP, DIP16,.3	DFP,
Reach Compliance Code	unknown	-	unknown	unknown
Other features	ASYMMETRICAL INPUTS	-	ASYMMETRICAL INPUTS	ASYMMETRICAL INPUTS
series	10H	-	10H	10H
JESD-30 code	S-CQCC-N20	-	R-GDIP-T16	R-GDFP-F16
JESD-609 code	e0	-	e0	e0
length	8.885 mm	-	19.49 mm	9.65 mm
Logic integrated circuit type	OR/NOR GATE	-	OR/NOR GATE	OR/NOR GATE
Number of functions	2	-	2	2
Number of entries	5	-	5	5
Number of terminals	20	-	16	16
Maximum operating temperature	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C
Output characteristics	OPEN-EMITTER	-	OPEN-EMITTER	OPEN-EMITTER
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	-	DIP	DFP
Package shape	SQUARE	-	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	-	IN-LINE	FLATPACK
Maximum supply current (ICC)	16 mA	-	16 mA	16 mA
propagation delay (tpd)	1.6 ns	-	1.6 ns	1.6 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	-	5.08 mm	2.15 mm
surface mount	YES	-	NO	YES
technology	ECL	-	ECL	ECL
Temperature level	MILITARY	-	MILITARY	MILITARY
Terminal surface	TIN LEAD	-	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	NO LEAD	-	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	-	2.54 mm	1.27 mm
Terminal location	QUAD	-	DUAL	DUAL
width	8.885 mm	-	7.62 mm	6.415 mm
Base Number Matches	1	-	1	1
