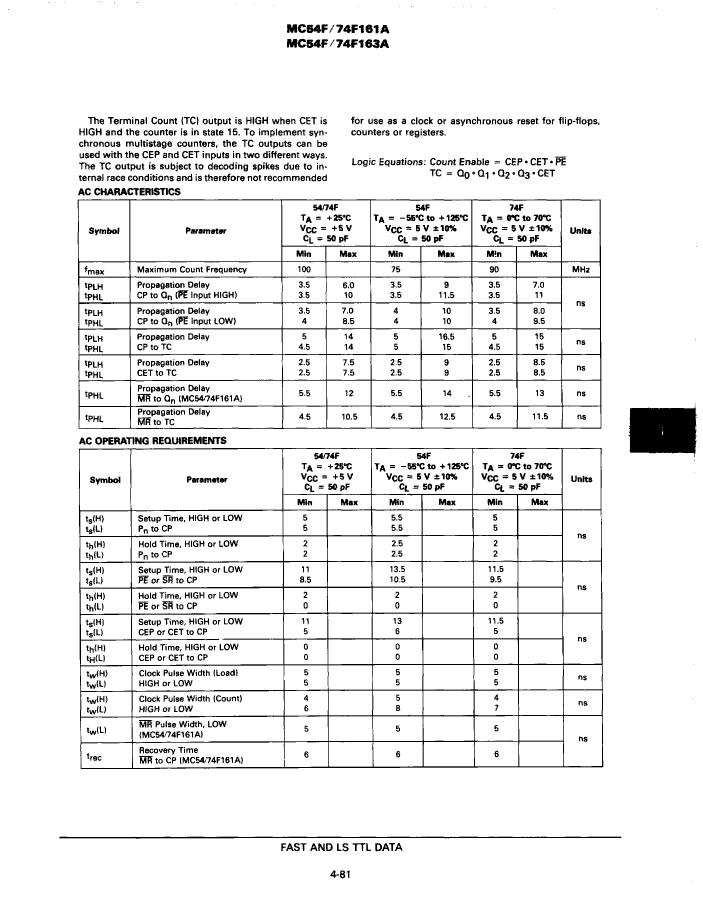

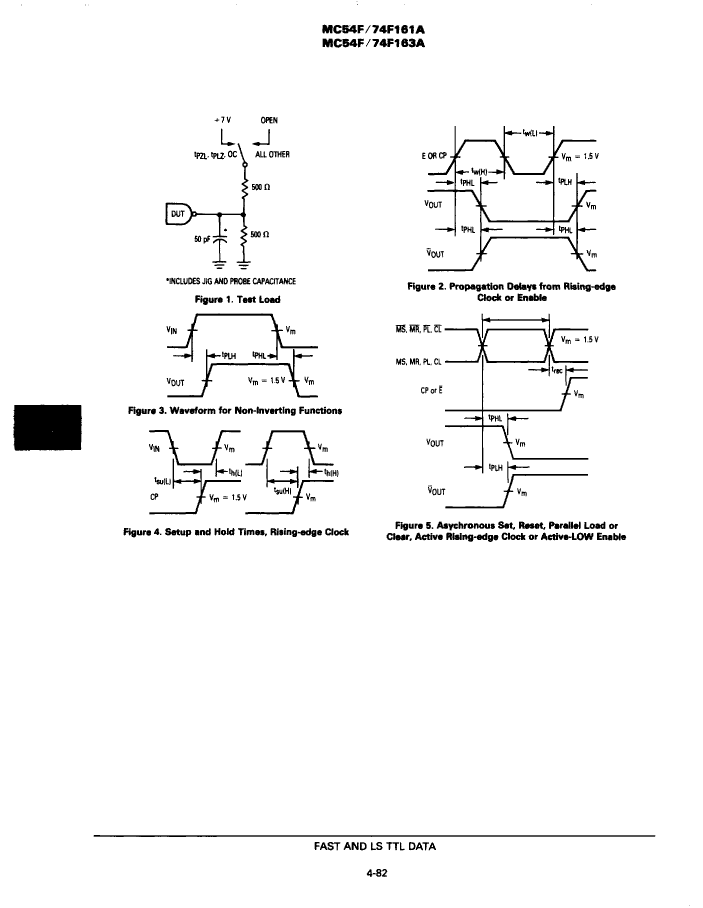

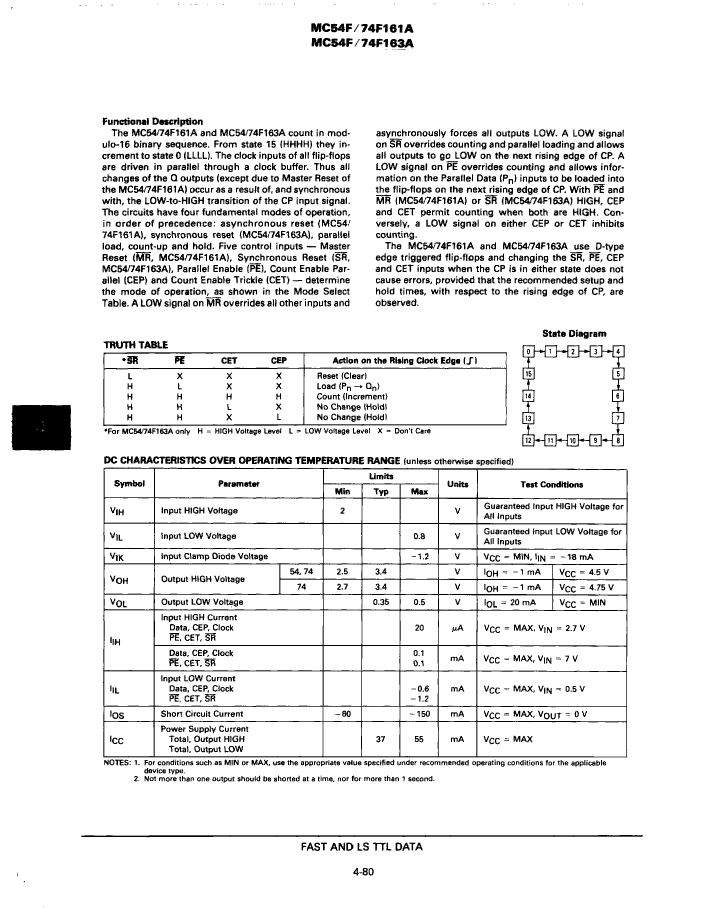

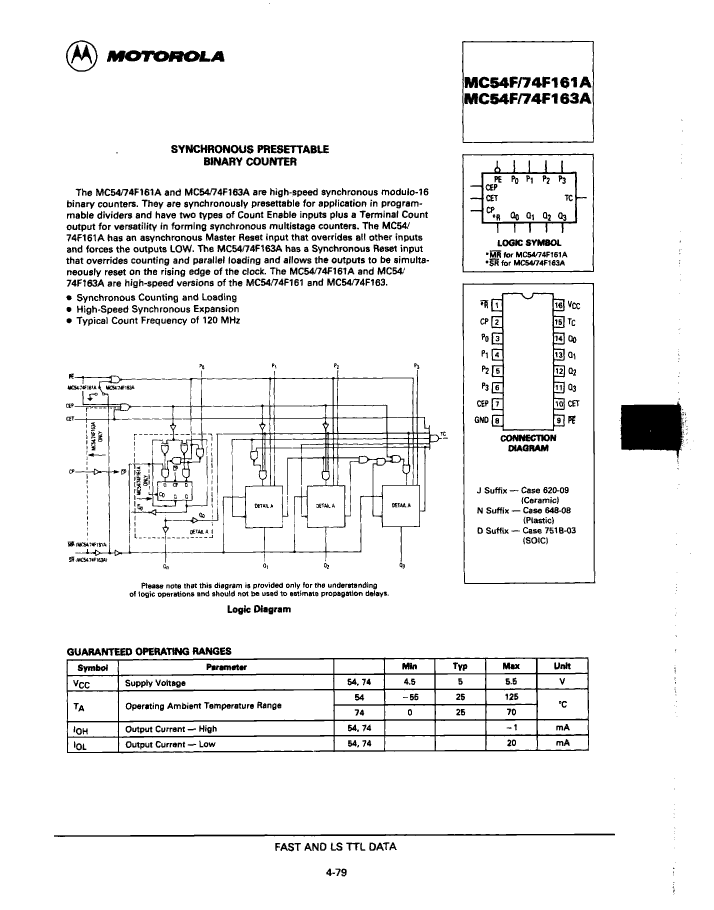

F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| package instruction | CERAMIC, DIP-16 |
| Reach Compliance Code | unknown |
| Counting direction | UP |
| series | F/FAST |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| length | 19.3 mm |
| Load capacitance (CL) | 50 pF |
| Load/preset input | YES |
| Logic integrated circuit type | BINARY COUNTER |
| Operating mode | SYNCHRONOUS |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 55 mA |
| propagation delay (tpd) | 11.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.19 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| width | 7.62 mm |
| minfmax | 75 MHz |
| Base Number Matches | 1 |
| MC54F161AJD | MC54F161AJ | MC54F163AJ | MC54F163AJD | MC74F161ADD | MC74F161ADDR2 | MC74F163ADDR2 | MC74F163ADD | |
|---|---|---|---|---|---|---|---|---|
| Description | F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16 | F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16 | F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16 | F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16 | Binary Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDSO16, PLASTIC, SOIC-16 | Binary Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDSO16, PLASTIC, SOIC-16 | F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, PLASTIC, SOIC-16 | F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, PLASTIC, SOIC-16 |
| package instruction | CERAMIC, DIP-16 | CERAMIC, DIP-16 | CERAMIC, DIP-16 | CERAMIC, DIP-16 | SOP, | SOP, | SOP, | SOP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Counting direction | UP | UP | UP | UP | UP | UP | UP | UP |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDIP-T16 | R-GDIP-T16 | R-GDIP-T16 | R-GDIP-T16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 |
| length | 19.3 mm | 19.3 mm | 19.3 mm | 19.3 mm | 9.9 mm | 9.9 mm | 9.9 mm | 9.9 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Load/preset input | YES | YES | YES | YES | YES | YES | YES | YES |
| Logic integrated circuit type | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER |
| Operating mode | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | DIP | SOP | SOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Maximum supply current (ICC) | 55 mA | 55 mA | 55 mA | 55 mA | 55 mA | 55 mA | 55 mA | 55 mA |
| propagation delay (tpd) | 11.5 ns | 11.5 ns | 11.5 ns | 11.5 ns | 11 ns | 11 ns | 11 ns | 11 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.19 mm | 4.19 mm | 4.19 mm | 4.19 mm | 1.75 mm | 1.75 mm | 1.75 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | YES | YES | YES | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 3.9 mm | 3.9 mm | 3.9 mm | 3.9 mm |
| minfmax | 75 MHz | 75 MHz | 75 MHz | 75 MHz | 90 MHz | 90 MHz | 90 MHz | 90 MHz |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | - | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - | - |
