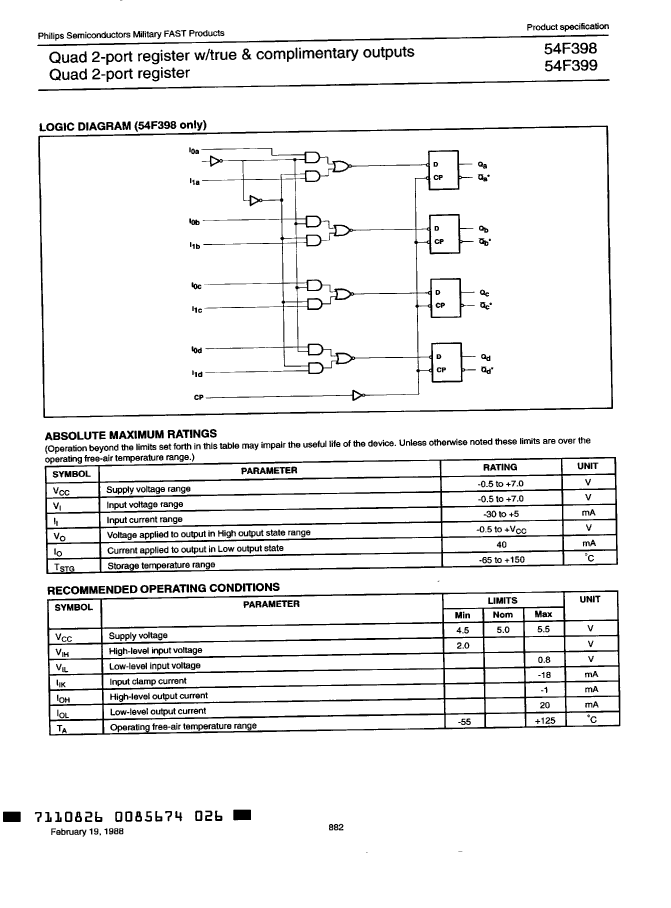

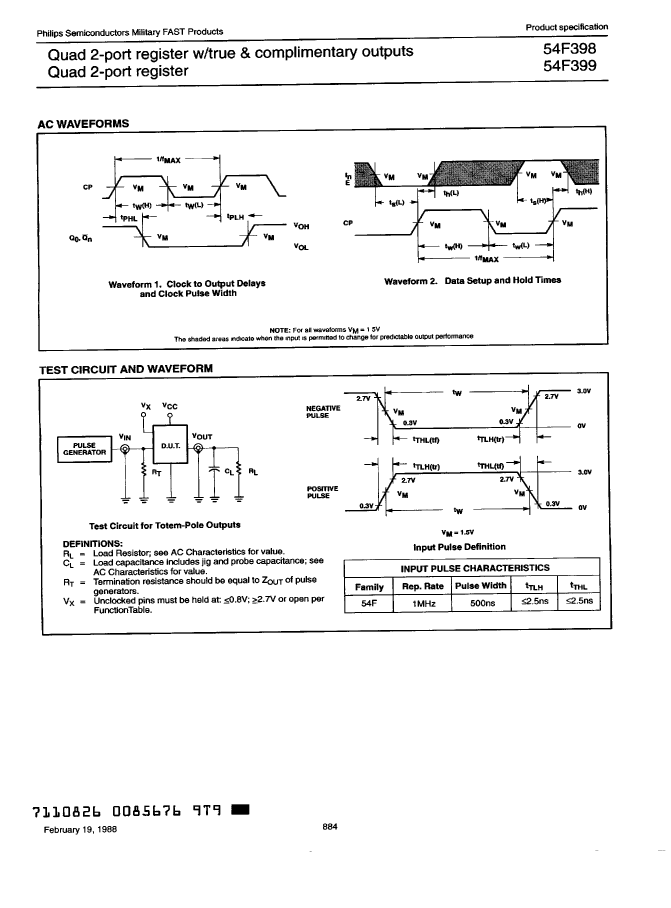

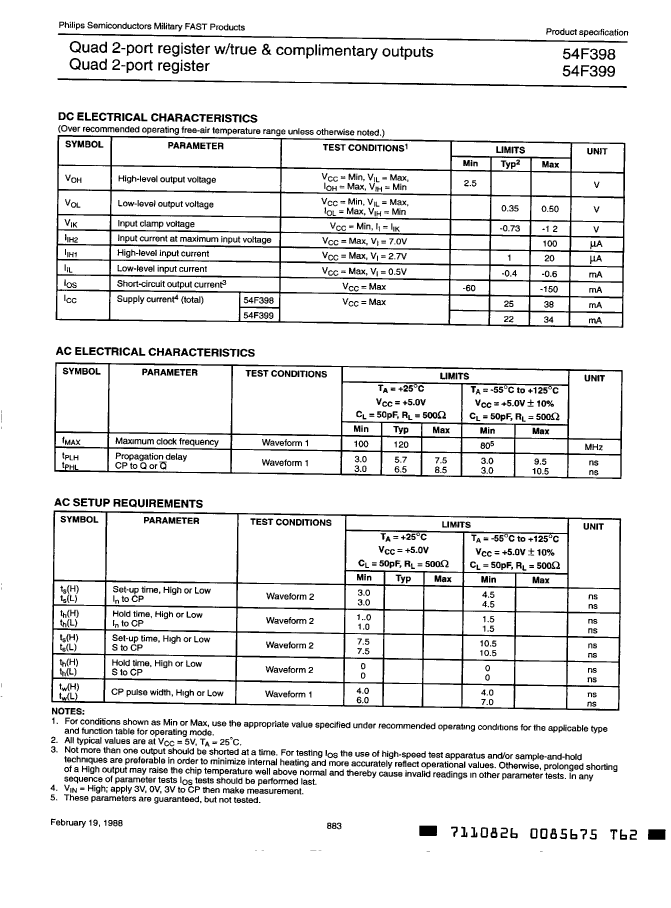

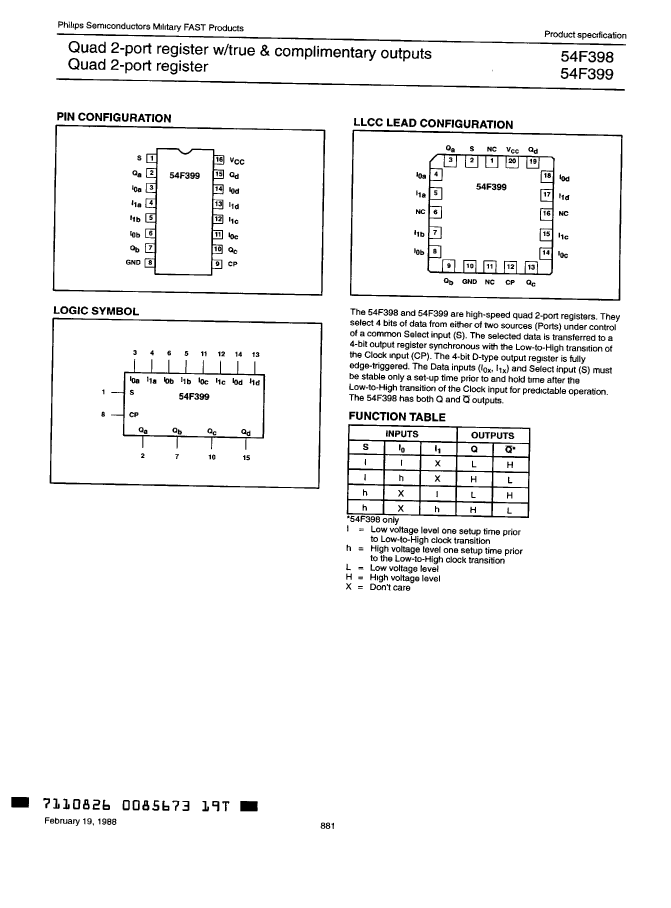

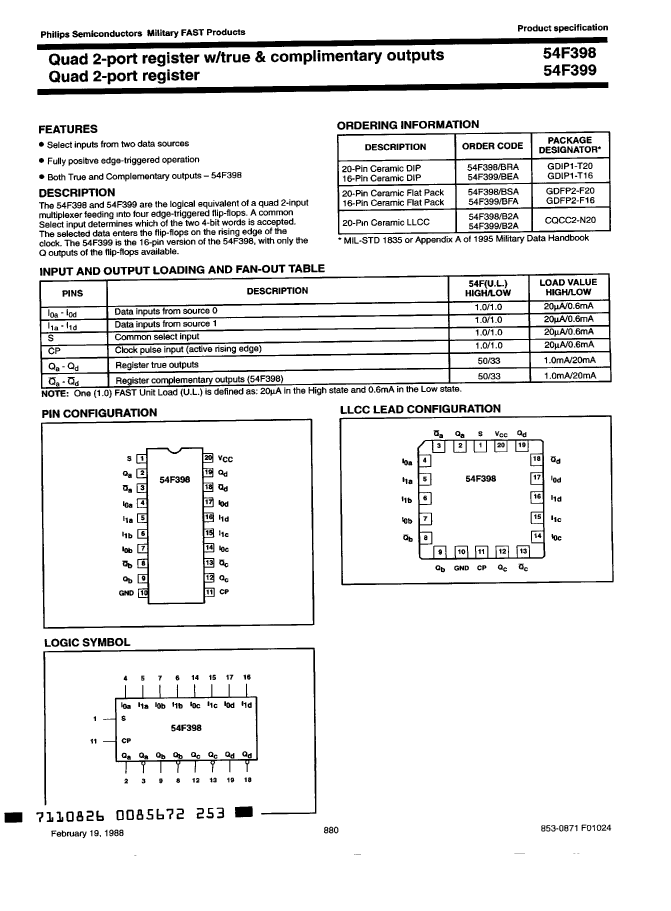

Multiplexer, 4-Func, 2 Line Input, TTL, CQCC20
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | QCCN, LCC20,.35SQ |
| Reach Compliance Code | unknown |
| JESD-30 code | S-XQCC-N20 |
| JESD-609 code | e0 |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| power supply | 5 V |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Base Number Matches | 1 |
| 54F398/B2A | 54F398/BRA | 54F399/B2A | 54F398/BSA | 54F399/BEA | 54F399/BFA | |
|---|---|---|---|---|---|---|
| Description | Multiplexer, 4-Func, 2 Line Input, TTL, CQCC20 | Multiplexer, 4-Func, 2 Line Input, TTL, CDIP20 | Multiplexer, 4-Func, 2 Line Input, TTL, CQCC20 | Multiplexer, 4-Func, 2 Line Input, TTL, CDFP20 | Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16 | Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | QCCN, LCC20,.35SQ | DIP, DIP20,.3 | QCCN, LCC20,.35SQ | DFP, FL20,.3 | DIP, DIP16,.3 | DFP, FL16,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| JESD-30 code | S-XQCC-N20 | R-XDIP-T20 | S-XQCC-N20 | R-XDFP-F20 | R-XDIP-T16 | R-XDFP-F16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of entries | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC |
| encapsulated code | QCCN | DIP | QCCN | DFP | DIP | DFP |
| Encapsulate equivalent code | LCC20,.35SQ | DIP20,.3 | LCC20,.35SQ | FL20,.3 | DIP16,.3 | FL16,.3 |
| Package shape | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | IN-LINE | CHIP CARRIER | FLATPACK | IN-LINE | FLATPACK |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Filter level | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | YES | NO | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | THROUGH-HOLE | NO LEAD | FLAT | THROUGH-HOLE | FLAT |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | DUAL | QUAD | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
