E32D1
Series
• RoHS Compliant (Pb-Free)
• PECL Output Oscillators
• 3.3V supply voltage
• Ceramic 6-pad SMD Package
• Stability to ±25ppm
• Tri-State Output
• Complementary Output
• Available on Tape and Reel
ELECTRICAL SPECIFICATIONS
Frequency Range
H
L
W
E32D1
2.0
7.0
5.0
OSCILLATOR
61.440MHz, 76.800MHz, 80.000MHz, 125.000MHz, 128.000MHz, 155.520MHz, 156.250MHz,
161.1328MHz, 167.3315MHz
Operating Temperature Range
0°C to 70°C
-40°C to 85°C
Storage Temperature Range
-55°C to 125°C
Supply Voltage (V
CC
)
3.3V
DC
±5%
Input Current
100mA Maximum
With Load
Frequency Tolerance / Stability
Inclusive of all conditions: Calibration Tolerance at 25°C, ±50ppm or ±25ppm Maximum
Frequency Stability over the Operating Temperature
Range, Supply Voltage Change, Output Load Change, 1st
Year Aging, Shock, and Vibration
Output Voltage Logic High (V
OH
)
V
CC
-1.025V
DC
Minimum
Output Voltage Logic Low (V
OL
)
V
CC
-1.620V
DC
Maximum
Rise Time / Fall Time
1.5 nSeconds Maximum
20% to 80% of waveform
Duty Cycle
50 ±10(%)
at 50% of waveform
50 ±5(%)
Load Drive Capability
50 Ohms into V
CC
-2.0V
DC
Control Voltage (V
C
)
1.65V
DC
±1.65V
DC
Test Conditions for Frequency Deviation
Control Voltage Range (V
CR
)
0.0V
DC
to V
CC
+0.5V
DC
Frequency Deviation
±75ppm Minimum
Inclusive of Operating Temperature Range, Supply
Voltage Change, and Output Load Change
Linearity
20%, 15%, or 10% Maximum
Transfer Function
Positive Transfer Characteristic
Modulation Bandwidth (MBW)
10kHz Minimum
Measured at -3dB with Contol Voltage of +1.65V
DC
Input Impedance (Z
I
)
50kOhms Typical
Typical Phase Noise (Fo = 155.520MHz)
at 10Hz Offset
-55dBc/Hz
-90dBc/Hz
at 100Hz Offset
-120dBc/Hz
at 1kHz Offset
-140dBc/Hz
at 10kHz Offset
-145dBc/Hz
at 100kHz Offset
-148dBc/Hz
at 1MHz Offset
Logic Control/Additional Output
Tri-State Enable Low / Complementary Output
Tri-State Input Voltage
Disables Outputs: High Impedance
V
IH
of 70% of V
CC
Minimum
Enables Output
No Connection
Enables Output
V
IL
of 30% of V
CC
Maximum
RMS Phase Jitter
0.4pSec Typical, 1pSec Maximum
FJ = 12kHz to 20MHz
Accumulated Period Jitter (t
acc
)
4pSec Typical, 5pSec Maximum
Sigma of Total Jitter Distribution
Period Jitter (t
rj
)
3pSec Typical, 5pSec Maximum
Sigma of Random Jitter
Period Jitter (t
rms
)
3pSec Typical, 5pSec Maximum
Sigma of Total Jitter Distribution
Period Jitter (t
dj
)
4pSec Typical, 10pSec Maximum
Deterministic Jitter
Period Jitter (t
p-p
)
27pSec Typical, 40pSec Maximum
Peak to Peak of Jitter Distribution
Start Up Time
10 mSeconds Maximum
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E32D1
CERAMIC
3.3V
OS3Y
10/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
E32D1 E E A 2 K - 155.520M TR
FREQUENCY TOLERANCE & STABILITY/
OPERATING TEMPERATURE RANGE
D=±50ppm Maximum over 0°C to +70°C
E=±25ppm Maximum over 0°C to +70°C
H=±50ppm Maximum over -40°C to +85°C
FREQUENCY DEVIATION
E=±75ppm Minimum
LINEARITY
A=20% Maximum
B=15% Maximum
C=10% Maximum
AVAILABLE OPTIONS
Blank=Bulk
TR=Tape and Reel (Standard)
FREQUENCY
LOGIC CONTROL / ADDITIONAL OUTPUT
K=Tri-State (Enable Low) / Complementary Output
DUTY CYCLE
1=50% ±10%
2=50% ±5%

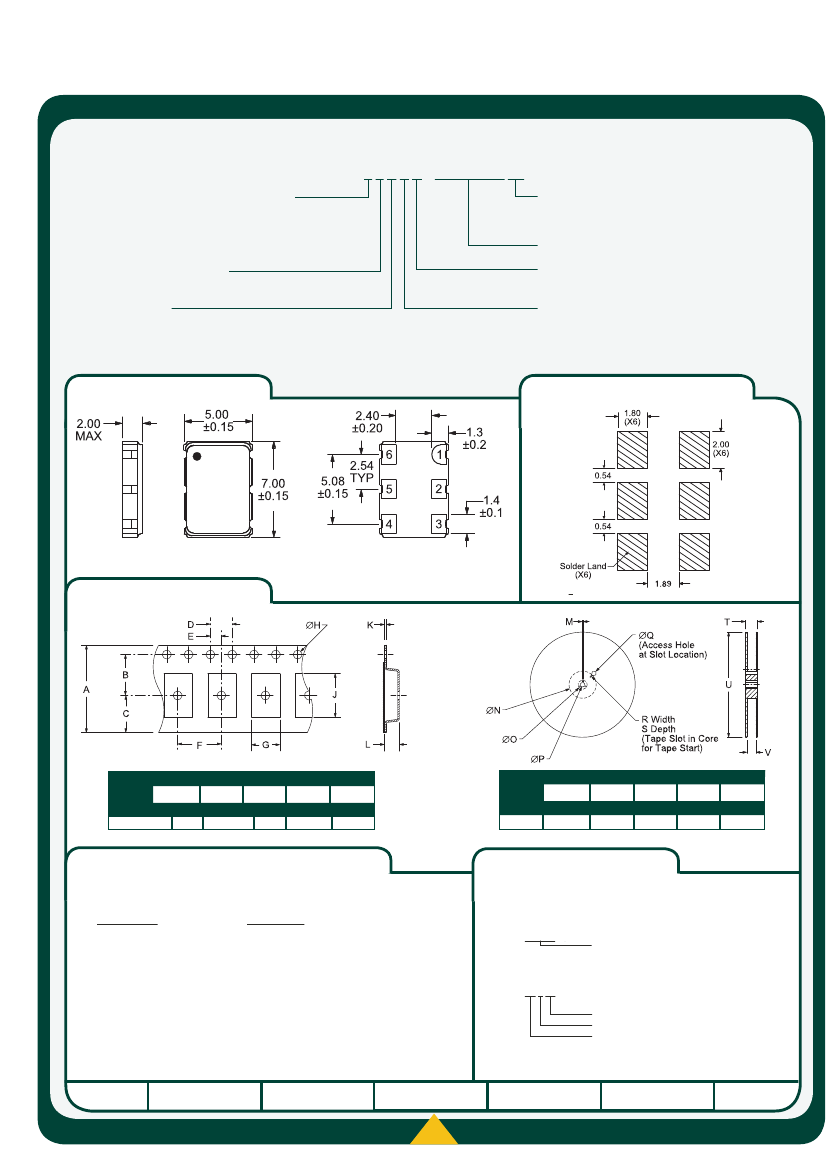

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Voltage Control
Pin 2: Tri-State
Pin 3: Case Ground
Pin 4: Output
Pin 5: Complementary Output
Pin 6: Supply Voltage
Tolerances= +0.1
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE
A
16±.3-.1
B
7.5±.1
C
6.75±.1
D
4 ±.1
E
2±.1
F
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1,000
F
8±.1
G
B0*
H
1.5 +.1-0
J
A0*
K
.3 ±.05
L
K0*
R
2.5 MIN
S
10 MIN
T
22.4 MAX
U
360 MAX
V
16.4+2-0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
Line 2: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E32D1
CERAMIC
3.3V
OS3Y
10/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
