EYN
Vishay Roederstein
Aluminum Capacitors
Standard - 85 °C Snap-In
FEATURES
•
Polarized aluminium electrolytic capacitors
•
Small dimension
•
High C x U product
APPLICATIONS
Component Outline
156
long
life
EYN
high
voltage
197
smaller
dimensions
•
General purpose
electronics
audio/video
systems,
industrial
•
Smoothing and filtering
•
Standard and switch mode power supplies
093
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size (Ø D x L in mm)
Rated capacitance range, C
R
Capacitance tolerance
Rated voltage range, U
R
Category temperature range
Load life at 85 °C
Shelf life at 0 V, 85 °C
Based on sectional specification
Climatic category IEC 60068
UNIT
mm
µF
%
V
°C
h
h
VALUE
22 x 25 to 40 x 60
1200 to 100 000
± 20
6.3 to 100
- 40 to + 85
2000
1000
IEC 60384-4/EN 130 300
40/85/56
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
( Ø D x L in mm)
C
R
(µF)
1200
U
R
(V)
6.3
-
10
-
16
-
25
-
35
-
50
-
63
-
80
22 x 25
100
22 x 30
25 x 25
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
22 x 45
25 x 40
30 x 30
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 35
1500
-
-
-
-
-
-
-
22 x 30
22 x 30
25 x 25
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
22 x 45
25 x 40
30 x 30
1800
-
-
-
-
-
-
22 x 25
22 x 30
25 x 25
22 x 35
25 x 30
22 x 35
25 x 30
30 x 25
2200
-
-
-
-
-
-
2700
-
-
-
-
-
-
22 x 30
25 x 25
3300
-
-
-
-
-
www.vishay.com
206
For technical questions, contact: aluminumcaps3@vishay.com
Document Number: 25137
Revision: 12-Dec-08
EYN
Aluminum Capacitors
Standard - 85 °C Snap-In
Vishay Roederstein
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
( Ø D x L in mm)
C
R
(µF)
3900
U
R
(V)
6.3
-
10
-
16
-
25
-
35
-
22 x 30
25 x 25
50
-
22 x 40
25 x 35
30 x 25
35 x 25
22 x 45
25 x 40
30 x 30
35 x 25
22 x 50
25 x 40
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
63
22 x 40
25 x 35
30 x 30
22 x 50
25 x 40
30 x 35
35 x 30
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
40 x 40
80
22 x 50
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
100
30 x 45
35 x 35
30 x 50
35 x 40
4700
-
-
-
-
5600
-
-
-
22 x 25
22 x 35
25 x 30
35 x 45
40 x 40
6800
-
-
-
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
30 x 35
25 x 45
30 x 35
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
40 x 40
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
30 x 30
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 40
35 x 45
40 x 40
35 x 40
40 x 50
8200
-
-
-
22 x 25
35 x 45
40 x 40
40 x 50
-
10 000
-
-
22 x 30
25 x 25
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
22 x 50
25 x 40
30 x 30
25 x 45
30 x 35
30 x 40
35 x 30
30 x 45
40 x 50
12 000
-
22 x 25
22 x 30
25 x 25
22 x 35
25 x 25
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
35 x 25
25 x 45
30 x 25
25 x 50
30 x 40
30 x 45
-
40 x 50
-
-
15 000
-
22 x 30
25 x 25
35 x 45
35 x 50
40 x 40
-
-
-
18 000
-
-
-
22 000
22 x 35
22 x 40
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
35 x 25
30 x 35
35 x 30
30 x 40
35 x 30
-
40 x 40
40 x 50
-
-
-
27 000
40 x 50
40 x 60
-
-
-
33 000
40 x 50
-
-
-
-
39 000
-
-
-
-
-
-
47 000
56 000
68 000
100 000
30 x 50
35 x 40
40 x 40
35 x 50
40 x 60
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Document Number: 25137
Revision: 12-Dec-08
For technical questions, contact: aluminumcaps3@vishay.com
www.vishay.com
207
EYN
Vishay Roederstein
Aluminum Capacitors
Standard - 85 °C Snap-In

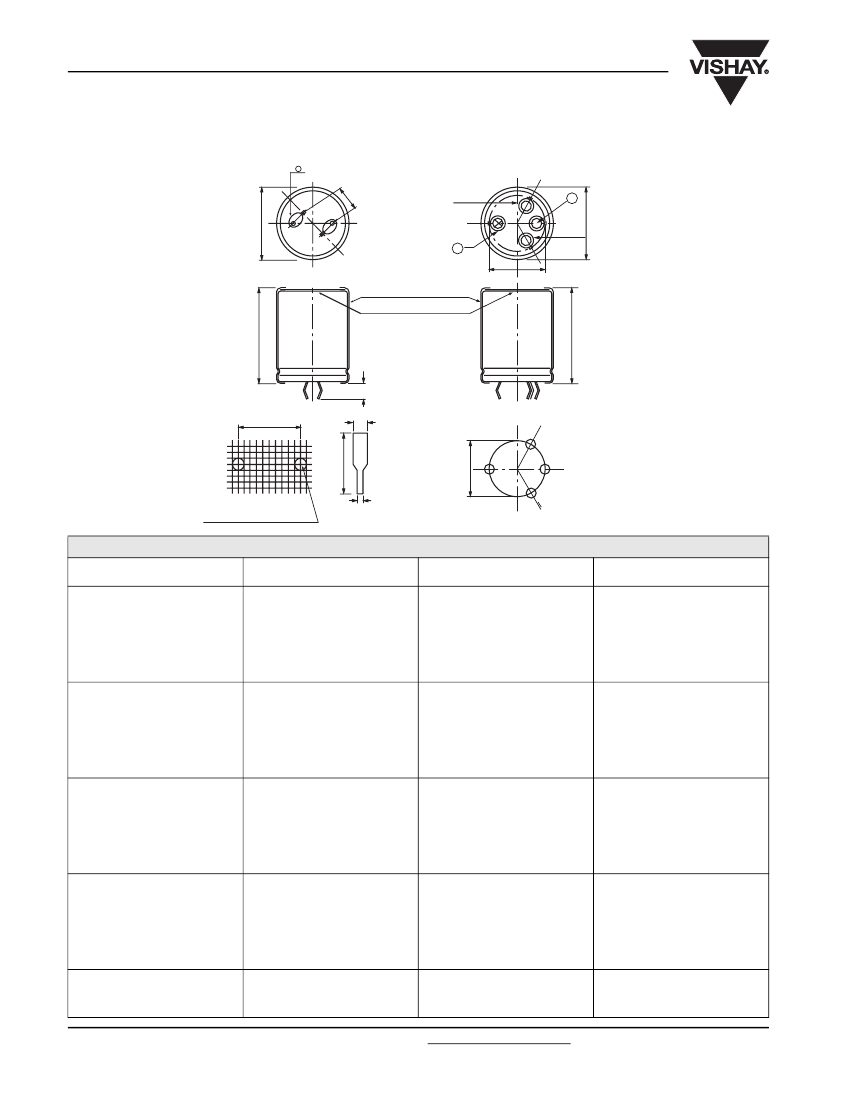

Ø D
≤
35 mm
-
Blank
Ø D
=
40 mm
30°
+
40 ± 1.0
Blank
-
22.5
Insulation
Bottom safety
vent
L
max
6.0 ± 1.0
L
max
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
10
D
max
10 ± 0.2
6.0 ± 1.0
1.5 ± 0.5
Ø 22.5 ± 0.2
Pin length
4.0 ± 0.5
also available
30°
PC
board
mounting holes
Ø 2.0 ± 10
0.8 ± 0.1
30°
PC
board
mounting holes
DIMENSIONS
in millimeters
MASS AND PACKAGING QUANTITIES
NOMINAL CASE SIZE
ØDxL
22 x 25
22 x 30
22 x 35
22 x 40
22 x 45
22 x 50
25 x 25
25 x 30
25 x 35
25 x 40
25 x 45
25 x 50
30 x 25
30 x 30
30 x 35
30 x 40
30 x 45
30 x 50
35 x 25
35 x 30
35 x 35
35 x 40
35 x 45
35 x 50
40 x 40
40 x 50
40 x 60
www.vishay.com
208
MAXIMUM SIZE
Ø D
max.
x L
max.
23 x 27
23 x 32
23 x 37
23 x 42
23 x 47
23 x 52
26.4 x 27
26.4 x 32
26.4 x 37
26.4 x 42
26.4 x 47
26.4 x 52
31 x 27
31 x 32
31 x 37
31 x 42
31 x 47
31 x 52
36 x 27
36 x 32
36 x 37
36 x 42
36 x 47
36 x 52
41 x 42
41 x 52
41 x 62
MASS
(g)
14
16
19
22
24
27
10
21
25
28
31
35
25
30
35
40
45
50
34
41
48
55
62
68
72
89
107
PACKAGING QUANTITIES
(units per box)
200
150
100
50
50
For technical questions, contact: aluminumcaps3@vishay.com
Document Number: 25137
Revision: 12-Dec-08
EYN
Aluminum Capacitors
Standard - 85 °C Snap-In
ELECTRICAL DATA
SYMBOL
C
R
U
R
ESR
I
R
rated voltage
equivalent series resistance at 120 Hz
rated RMS ripple current at 120 Hz, 85 °C
DESCRIPTION
rated capacitance at 120 Hz
Vishay Roederstein
ORDERING EXAMPLE
Electrolytic capacitor EYN series
4700 µF/35 V; ± 20 %
Nominal case size: 22 mm x 30 mm
snap-in pin 4 mm, fully insulated
Ordering code: MALIEYN07LV447F42K
Note
• Unless otherwise specified, all electrical values apply at
T
amb
= 20 °C, P = 80 kPa to 120 kPa, RH = 45 % to 75 %
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
120 Hz
(µF)
18 000
18 000
22 000
27 000
27 000
33 000
33 000
33 000
39 000
39 000
39 000
47 000
47 000
56 000
56 000
100 000
12 000
15 000
15 000
18 000
18 000
22 000
22 000
22 000
27 000
27 000
27 000
33 000
33 000
33 000
39 000
39 000
39 000
47 000
47 000
56 000
100 000
10 000
12 000
12 000
15 000
NOMINAL
CASE SIZE
ØDxL
(mm)
22 x 30
25 x 25
22 x 35
22 x 40
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
35 x 25
30 x 35
35 x 30
30 x 40
35 x 30
40 x 40
22 x 25
22 x 30
25 x 25
22 x 35
25 x 25
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
35 x 25
25 x 45
35 x 30
30 x 35
25 x 50
30 x 40
30 x 45
40 x 50
22 x 25
22 x 30
25 x 25
22 x 35
I
R
120 Hz
(A)
3.85
3.96
4.34
4.85
4.89
5.36
5.32
5.47
5.83
5.82
5.82
6.26
6.41
6.80
6.64
8.49
3.31
3.82
3.39
4.28
4.17
4.79
4.71
4.83
5.30
5.26
5.41
5.82
5.81
5.81
6.31
6.38
6.22
6.83
6.78
7.31
9.35
3.32
3.55
3.89
4.29
I
L5
(µA)
1010
1010
1117
1237
1237
1368
1368
1368
1487
1487
1487
1632
1632
1782
1782
2381
1039
1162
1162
1273
1273
1407
1407
1407
1559
1559
1559
1723
1723
1723
1873
1873
1873
2057
2057
2245
3000
949
1039
1039
1162
ESR
120 Hz
MAX.
(Ω)
0.033
0.033
0.030
0.027
0.027
0.024
0.024
0.024
0.022
0.022
0.022
0.021
0.021
0.020
0.020
0.017
0.044
0.038
0.038
0.034
0.034
0.030
0.030
0.030
0.027
0.027
0.027
0.025
0.025
0.025
0.023
0.023
0.023
0.021
0.021
0.020
0.017
0.046
0.041
0.041
0.035
ORDERING CODE
6 mm PIN LENGTH
MALIEYN07LV518B02K
MALIEYN07AU518B02K
MALIEYN07LA522B02K
MALIEYN07LB527B02K
MALIEYN07BU527B02K
MALIEYN07LC533B02K
MALIEYN07AA533B02K
MALIEYN07BV533B02K
MALIEYN07LD539B02K
MALIEYN07AB539B02K
MALIEYN07CU539B02K
MALIEYN07BA547B02K
MALIEYN07CV547B02K
MALIEYN07BB556B02K
MALIEYN07CV556B02K
MALIEYN07DB610B02K
MALIEYN07LU512C02K
MALIEYN07LV515C02K
MALIEYN07AU515C02K
MALIEYN07LA518C02K
MALIEYN07AU518C02K
MALIEYN07LB522C02K
MALIEYN07AV522C02K
MALIEYN07BU522C02K
MALIEYN07LC527C02K
MALIEYN07AA527C02K
MALIEYN07BV527C02K
MALIEYN07LD533C02K
MALIEYN07AB533C02K
MALIEYN07CU533C02K
MALIEYN07AC539C02K
MALIEYN07CV539C02K
MALIEYN07BA539C02K
MALIEYN07AD547C02K
MALIEYN07BB547C02K
MALIEYN07BC556C02K
MALIEYN07DD610C02K
MALIEYN07LU510D02K
MALIEYN07LV512D02K
MALIEYN07AU512D02K
MALIEYN07LA515D02K
ORDERING CODE
4 mm PIN LENGTH
MALIEYN07LV518B42K
MALIEYN07AU518B42K
MALIEYN07LA522B42K
MALIEYN07LB527B42K
MALIEYN07BU527B42K
MALIEYN07LC533B42K
MALIEYN07AA533B42K
MALIEYN07BV533B42K
MALIEYN07LD539B42K
MALIEYN07AB539B42K
MALIEYN07CU539B42K
MALIEYN07BA547B42K
MALIEYN07CV547B42K
MALIEYN07BB556B42K
MALIEYN07CV556B42K
MALIEYN07DB610B42K
MALIEYN07LU512C42K
MALIEYN07LV515C42K
MALIEYN07AU515C42K
MALIEYN07LA518C42K
MALIEYN07AU518C42K
MALIEYN07LB522C42K
MALIEYN07AV522C42K
MALIEYN07BU522C42K
MALIEYN07LC527C42K
MALIEYN07AA527C42K
MALIEYN07BV527C42K
MALIEYN07LD533C42K
MALIEYN07AB533C42K
MALIEYN07CU533C42K
MALIEYN07AC539C42K
MALIEYN07CV539C42K
MALIEYN07BA539C42K
MALIEYN07AD547C42K
MALIEYN07BB547C42K
MALIEYN07BC556C42K
MALIEYN07DD610C42K
MALIEYN07LU510D42K
MALIEYN07LV512D42K
MALIEYN07AU512D42K
MALIEYN07LA515D42K
www.vishay.com
209
6.3
10
16
Document Number: 25137
Revision: 12-Dec-08
For technical questions, contact: aluminumcaps3@vishay.com
EYN
Vishay Roederstein
Aluminum Capacitors
Standard - 85 °C Snap-In
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
120 Hz
(µF)
15 000
15 000
18 000
18 000
18 000
22 000
22 000
22 000
27 000
27 000
33 000
33 000
39 000
47 000
47 000
56 000
68 000
100 000
5600
6800
6800
8200
8200
10 000
10 000
10 000
12 000
12 000
12 000
15 000
15 000
15 000
18 000
18 000
18 000
22 000
22 000
27 000
27 000
33 000
33 000
4700
4700
5600
5600
6800
6800
6800
8200
8200
8200
10 000
10 000
NOMINAL
CASE SIZE
ØDxL
(mm)
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
22 x 50
25 x 40
30 x 30
25 x 45
30 x 35
30 x 40
35 x 30
30 x 45
30 x 50
35 x 40
40 x 40
35 x 50
40 x 60
22 x 25
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
30 x 35
25 x 45
30 x 35
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
40 x 40
22 x 30
25 x 25
22 x 35
25 x 30
22 x 40
25 x 30
30 x 25
22 x 45
25 x 35
30 x 30
22 x 50
25 x 40
I
R
120 Hz
(A)
4.45
4.56
4.77
4.96
5.10
5.51
5.51
5.39
6.06
5.98
6.56
6.41
7.08
7.62
7.54
8.23
8.63
10.20
2.65
3.06
3.15
3.45
3.57
3.95
3.89
3.99
4.41
4.37
4.50
4.94
4.94
5.10
5.45
5.38
5.51
6.22
6.12
6.82
6.74
7.35
7.48
3.06
2.98
3.28
3.39
3.73
3.67
3.76
4.13
4.10
4.22
4.68
4.68
I
L5
(µA)
1162
1162
1273
1273
1273
1407
1407
1407
1559
1972
2180
2180
2370
2602
2602
2840
3129
3795
898
990
990
1087
1087
1200
1200
1200
1643
1643
1643
1837
1837
1837
2012
2012
2012
2225
2225
2465
2465
2725
2725
1028
1028
1122
1122
1464
1464
1464
1607
1607
1607
1775
1775
ESR
120 Hz
MAX.
(Ω)
0.035
0.035
0.032
0.032
0.032
0.028
0.028
0.028
0.026
0.026
0.023
0.023
0.022
0.020
0.020
0.019
0.018
0.017
0.083
0.071
0.071
0.061
0.061
0.052
0.052
0.052
0.046
0.046
0.046
0.039
0.039
0.039
0.035
0.035
0.035
0.031
0.031
0.028
0.028
0.025
0.025
0.085
0.085
0.073
0.073
0.063
0.063
0.063
0.054
0.054
0.054
0.047
0.047
ORDERING CODE
6 mm PIN LENGTH
MALIEYN07AV515D02K
MALIEYN07BU515D02K
MALIEYN07LB518D02K
MALIEYN07AA518D02K
MALIEYN07BV518D02K
MALIEYN07LD522D02K
MALIEYN07AB522D02K
MALIEYN07BV522D02K
MALIEYN07AC527D02K
MALIEYN07BA527D02K
MALIEYN07BB533D02K
MALIEYN07CV533D02K
MALIEYN07BC539D02K
MALIEYN07BD547D02K
MALIEYN07CB547D02K
MALIEYN07DB556D02K
MALIEYN07CD568D02K
MALIEYN07DF610D02K
MALIEYN07LU456E02K
MALIEYN07LV468E02K
MALIEYN07AU468E02K
MALIEYN07LA482E02K
MALIEYN07AV482E02K
MALIEYN07LB510E02K
MALIEYN07AV510E02K
MALIEYN07BU510E02K
MALIEYN07LC512E02K
MALIEYN07AA512E02K
MALIEYN07BV512E02K
MALIEYN07LD515E02K
MALIEYN07AB515E02K
MALIEYN07BA515E02K
MALIEYN07AC518E02K
MALIEYN07BA518E02K
MALIEYN07CV518E02K
MALIEYN07BC522E02K
MALIEYN07CA522E02K
MALIEYN07BD527E02K
MALIEYN07CB527E02K
MALIEYN07CC533E02K
MALIEYN07DB533E02K
MALIEYN07LV447F02K
MALIEYN07AU447F02K
MALIEYN07LA456F02K
MALIEYN07AV456F02K
MALIEYN07LB468F02K
MALIEYN07AV468F02K
MALIEYN07BU468F02K
MALIEYN07LC482F02K
MALIEYN07AA482F02K
MALIEYN07BV482F02K
MALIEYN07LD510F02K
MALIEYN07AB510F02K
ORDERING CODE
4 mm PIN LENGTH
MALIEYN07AV515D42K
MALIEYN07BU515D42K
MALIEYN07LB518D42K
MALIEYN07AA518D42K
MALIEYN07BV518D42K
MALIEYN07LD522D42K
MALIEYN07AB522D42K
MALIEYN07BV522D42K
MALIEYN07AC527D42K
MALIEYN07BA527D42K
MALIEYN07BB533D42K
MALIEYN07CV533D42K
MALIEYN07BC539D42K
MALIEYN07BD547D42K
MALIEYN07CB547D42K
MALIEYN07DB556D42K
MALIEYN07CD568D42K
MALIEYN07DF610D42K
MALIEYN07LU456E42K
MALIEYN07LV468E42K
MALIEYN07AU468E42K
MALIEYN07LA482E42K
MALIEYN07AV482E42K
MALIEYN07LB510E42K
MALIEYN07AV510E42K
MALIEYN07BU510E42K
MALIEYN07LC512E42K
MALIEYN07AA512E42K
MALIEYN07BV512E42K
MALIEYN07LD515E42K
MALIEYN07AB515E42K
MALIEYN07BA515E42K
MALIEYN07AC518E42K
MALIEYN07BA518E42K
MALIEYN07CV518E42K
MALIEYN07BC522E42K
MALIEYN07CA522E42K
MALIEYN07BD527E42K
MALIEYN07CB527E42K
MALIEYN07CC533E42K
MALIEYN07DB533E42K
MALIEYN07LV447F42K
MALIEYN07AU447F42K
MALIEYN07LA456F42K
MALIEYN07AV456F42K
MALIEYN07LB468F42K
MALIEYN07AV468F42K
MALIEYN07BU468F42K
MALIEYN07LC482F42K
MALIEYN07AA482F42K
MALIEYN07BV482F42K
MALIEYN07LD510F42K
MALIEYN07AB510F42K
Document Number: 25137
Revision: 12-Dec-08
16
25
35
www.vishay.com
210
For technical questions, contact: aluminumcaps3@vishay.com
Linux and Android
京公网安备 11010802033920号
EEWORLD
