461-2634-02-03-00: DescriptionPCB Terminal; CategoryThe connector terminals; File Size243KB，1 Pages; ManufacturerCambion Electronics Ltd.; Websitehttp://www.cambion.com/

Download Datasheet Parametric Compare View All

461-2634-02-03-00 Overview

PCB Terminal

461-2634-02-03-00 Parametric

Parameter Name	Attribute value
Maker	Cambion Electronics Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

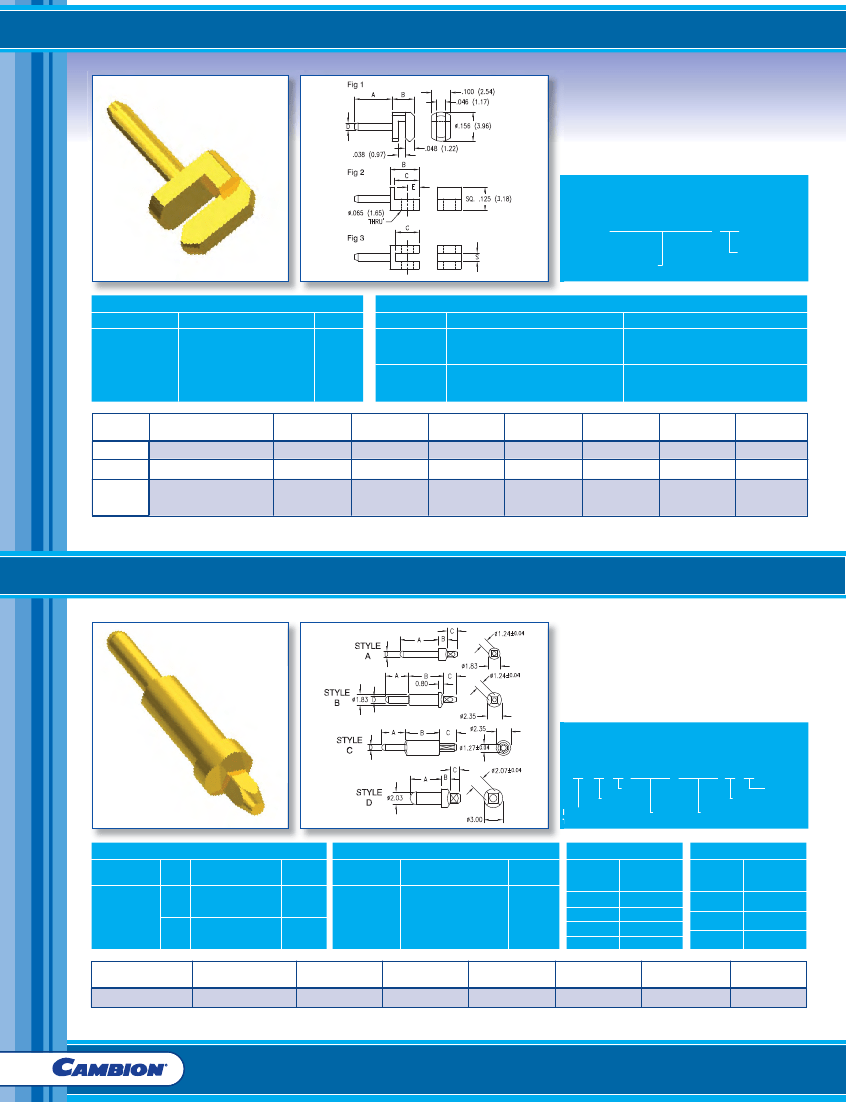

CONNECTOR PINS - EDGE MOUNT

Dimensions in inches (mm)

How to order code

46X - XXXX - XX - XX - 00

Finish

Basic Part No.

Material Code Table

Component

Material

Brass

RoHS

✓

Finish Code Table

Dash No.

-03

-04

Pin Finish

Gold over Nickel

Electro-Tin

RoHS

✓

D

.040 (1.02)

E

-

.062 (1.57)

S

-

.045 (1.15)

.078 (1.98)

Fig.

1

2

3

460-8250 -01

461-2633 -01

461-2634 -01

-02

Basic Part

No.

A

.200 (5.08)

.188 (4.77)

.200 (5.08)

Board

Thickness

-

.031 (0.78)

.062 (1.57)

B

.117 (2.97)

.156 (3.96)

C

-

.132 (3.35)

.125 (3.18)

CONNECTOR PINS - SOLDER MOUNT POLYGON

Dimensions in mm

How to order code

X - X - X - XXXX - XXXX - 3 - X

Style

‘D’ Dia

‘A’ Pin

B - Brass

T - Tellurium Copper Length

Finish

‘B’ Standoff

Length

‘C’

Mounting

Length

Material Code Table

Component Dash

Letter

B

T

Material

Brass

RoHS

✓

Finish Code Table

Dash No.

-03

Finish

RoHS

✓

Gold over Nickel

Mounting Code Table

Dash No.

C Mounting

Length

1

2

3

4

Stand off

Length B

4.32

0.90

1.50

2.00

2.70

Pin Dia Code Table

Dash No.

D Pin

Diameter

1

2

3

1.02

1.57

2.03

Mounting

Length C

2.70

Tellurium Copper

Material

Brass

Example Part Number

B-1-B-0478-0432-3-4

Pin dia D

1.02

Style

B

Pin Length A

4.78

Finish

Gold

24

Call our dedicated order line on

+44 (0) 1433 621555

or visit

www.cambion.com
