ACTS240T
Data Sheet
July 1999
File Number
4610.1
High Reliability, Radiation Hardened Octal
Buffer/Line Driver, Three-State, Inverting
Intersil‘s Satellite Applications Flow
TM
(SAF) devices are
fully tested and guaranteed to 100kRAD total dose. These
QML Class T devices are processed to a standard flow
intended to meet the cost and shorter lead-time needs of
large volume satellite manufacturers, while maintaining a
high level of reliability.
The Intersil ACTS240T is a Radiation Hardened High
Reliability, High-Speed CMOS/SOS Octal Buffer/Line Driver
with three-state outputs having two active low enable inputs.
Each enable input controls a set of four inverting buffer/line
drivers. A HIGH on the enable input places the outputs in a
high impedance state.
Features
• QML Class T, Per MIL-PRF-38535
• Radiation Performance
- Gamma Dose (γ) 1 x 10
5
RAD(Si)
- Latch-Up Free Under Any Conditions
- Single Event Upset (SEU) Immunity: <1 x 10
-10
Errors/Bit/Day (Typ)
- SEU LET Threshold . . . . . . . . . . . . .>100 MEV-cm
2
/mg
• 1.25 Micron Radiation Hardened SOS CMOS
• Significant Power Reduction Compared to ALSTTL Logic
• DC Operating Voltage Range . . . . . . . . . . . . 4.5V to 5.5V
• Input Logic Levels
- V
IL
= 0.8V Max
- V
IH
= V
CC/2
Min
• Fast Propagation Delay . . . . . . . 17.5ns (Max), 12ns (Typ)
Specifications
Specifications for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Specifications for the ACTS240T are
contained in SMD 5962-96717.
A “hot-link” is provided from
our website for downloading.
www.intersil.com/spacedefense/newsafclasst.asp
Intersil‘s Quality Management Plan (QM Plan), listing all
Class T screening operations, is also available on our
website.
www.intersil.com/quality/manuals.asp
Pinouts
ACTS240T (SBDIP), CDIP2-T20
TOP VIEW
AEN
AI1
BO4
AI2
BO3
AI3
BO2
1
2
3
4
5
6
7
8
9
20 V
CC
19 BEN
18 AO1
17 BI4
16 AO2
15 BI3
14 AO3
13 BI2
12 AO4
11 BI1
Ordering Information
ORDERING
NUMBER
5962R9671701TRC
5962R9671701TXC
PART
NUMBER
ACTS240DTR
ACTS240KTR
TEMP.
RANGE
(
o
C)
-55 to 125
-55 to 125
AEN
AI1
BO4
AI2
BO3
AI3
BO2
AI4
BO1
GND
AI4
BO1
GND 10
ACTS240T (FLATPACK), CDFP4-F20
TOP VIEW
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
V
CC
BEN
AO1
BI4
AO2
BI3
AO3
BI2
AO4
BI1
NOTE:
Minimum order quantity for -T is 150 units through
distribution, or 450 units direct.
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
www.intersil.com or 407-727-9207
|
Copyright
©
Intersil Corporation 1999
ACTS240T
Die Characteristics
DIE DIMENSIONS:
(2540µm x 2540µm x 533µm
±51µm)
100 x 100 x 21mils
±2mil
METALLIZATION:
Type: Al Si Cu
Thickness: 10.0k
Å
±2k
Å
SUBSTRATE POTENTIAL:
Unbiased (Silicon on Sapphire)
Bond Pad #20 (V
CC
) First
Bond Pad #10 (Gnd) Uses Two Bond Wires
Bond Pad #20 (V
CC
) Uses Two Bond Wires
BACKSIDE FINISH:
Sapphire
PASSIVATION:
Type: Silox (S
i
O
2
)
Thickness: 8.0k
Å
±1.0k
Å
WORST CASE CURRENT DENSITY:
< 2.0e5 A/cm
2
TRANSISTOR COUNT:
164
PROCESS:
CMOS SOS

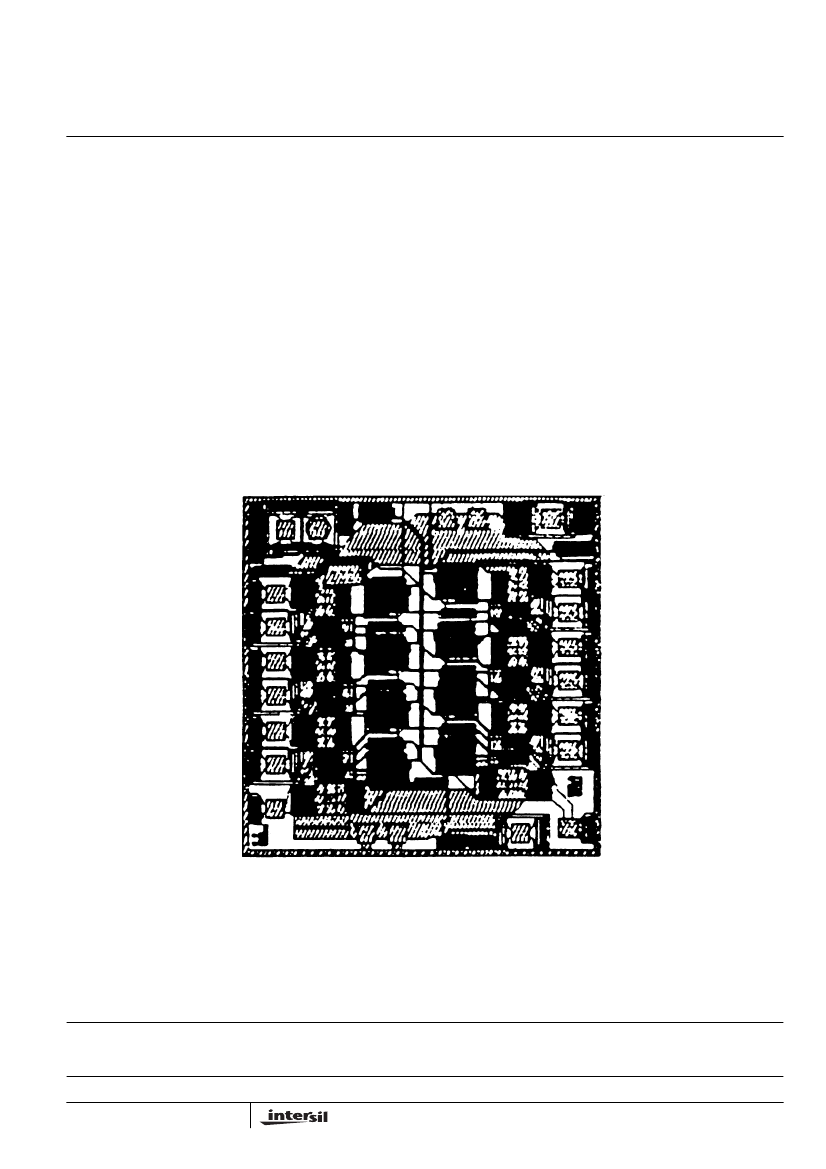

Metallization Mask Layout
ACTS240T
AI1
(2)
AEN
(1)
V
CC
(20)
V
CC
(20)
BEN
(19)
(18) AO1
BO4 (3)
(17) BI4
AI2 (4)
(16) AO2
BO3 (5)
(15) BI3
AI3 (6)
(14) AO3
BO2 (7)
(13) BI2
AI4 (8)
BO1 (9)
AO4 (12)
(10) (10)
GND GND
(11)
BI1
